RCA to Coaxial Adapter, RF Coaxial Modulator, CVBS RF Adapter, VHF Converter, Channel 3/4 Switch for Game & Video Hub, DVD, VCR Player, PS2 PS3 PS4

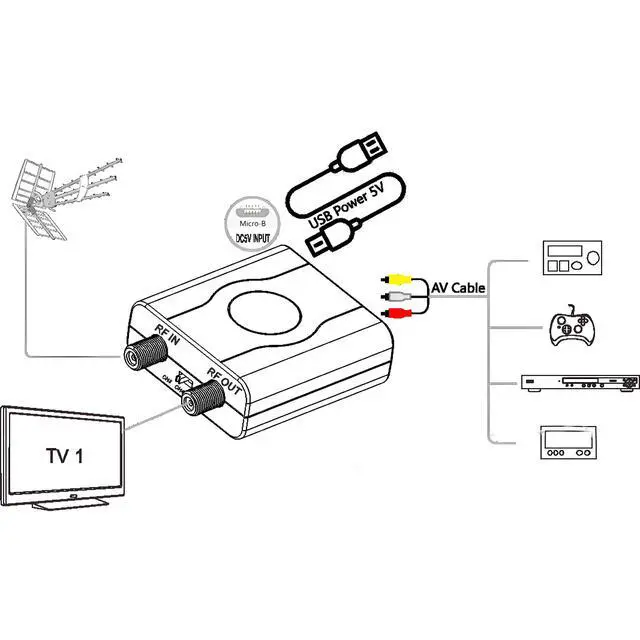

- RF Modulator RCA in, Coax out: Universal Game & Video Hub Links PS2/3/4, Switch, VCR, DVD, Blu-ray, camcorder, cable box or CCTV camera to any old TV, projector or monitor that lacks AV jacks
- 100 ft and signal reach turns RCA video into strong RF channels 3/4, sending movies, games or security footage to distant rooms without quality drop
- NTSC Optimized: One-click switch for Channel 3 or 4, guaranteed clear picture on every North-American set
- Zero-Setup Install: Plug in, attach coax, power onno drivers, no pairing, no service call
- Reuse legacy TVs and share one source across multiple screens
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SPECIFICATION
- Inputs: 1× Composite RCA (CVBS) video, L/R audio
- Output: 1× F-type RF coax (Channel 3/4 selectable)
- Format: NTSC
- Range: >100 ft coaxial distribution
- Power: 5 V DC adapter (included)
- Compatibility: PS2/3/4, Switch, VCR, DVD, cable box, CCTV, etc
- Frequency Range: CH3=61.25 / CH4=67.25
- Output Impedance: 75OHm
- Output level: 80±5dBV
- Sound system: M=4.5MHz
- Video Input Impedance: 75 Ohms
- Audio Input Impedance: 13±3k Ohms
- TV to ANT Insertion Loss 50-860 -6±2dB
- A/V connector: RCA female
- RF Input: F female
- RF Output: F female
- Operating Temperature: 0 ~ +40
- Product Size/Weight: 88*65*27mm / 60g
- Packaging Size/Weight: 128*100*30mm / 105g
PACKAGE
1* RCA to Coaxial Adapter
