Notes

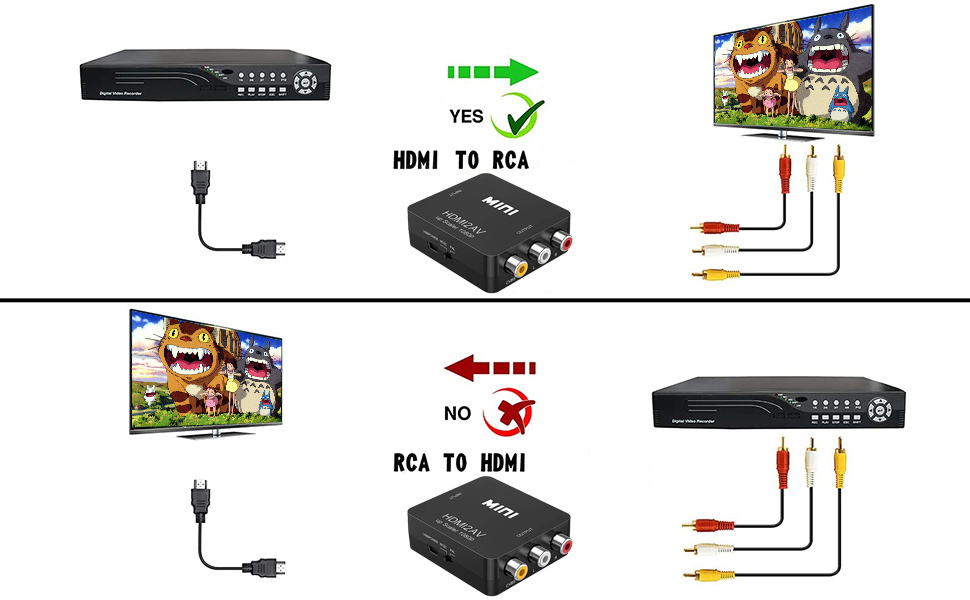

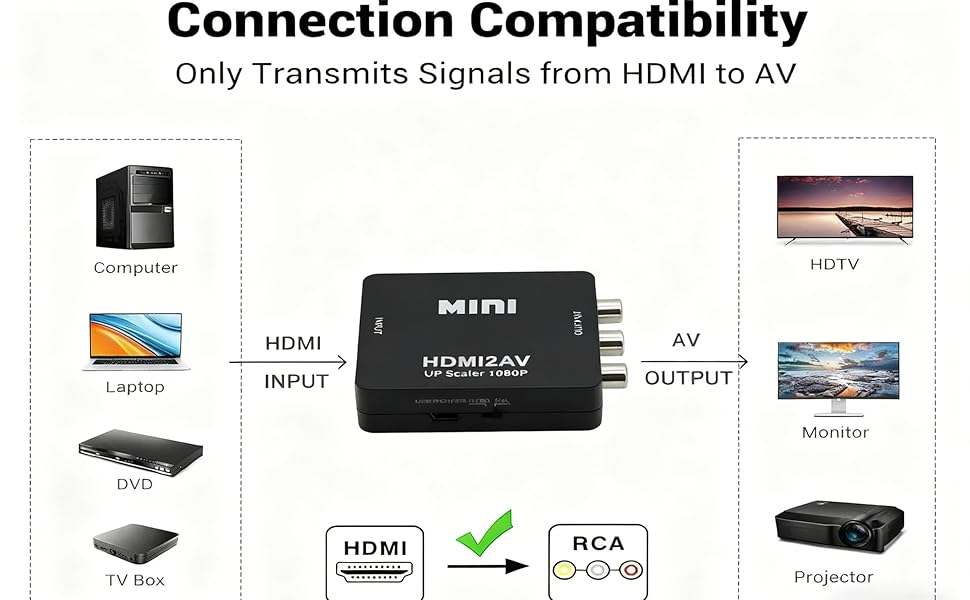

HDMI to AV Analog composite converter HDMI (rca3 / CVBS). Cannot be used in reverse direction (AV to HDMI).
Mobile devices HDMI The operation becomes unstable if sufficient power is supplied from the port. In that case the included USB Connect and connect cables.
PC HDMI Signal input may not normally be output. (DVD Rake BD Players, smartphones, etc
* 1080p HDMI Output resolution is P/60Hz?1080P/60Hz The output resolution can be switched by the conversion button. This composite / composite S Terminal signal HDMI It is a converter that converts to a signal, but is not a product that improves picture quality. The output image output is original / S Please note that it is equivalent to the terminal image quality.
* Please note that the above mentioned resolution does not display correctly when the refresh rate is different.
* it does not suitable all devices.
[Product Size] 66 (L) x 55 (W) x 20 mm

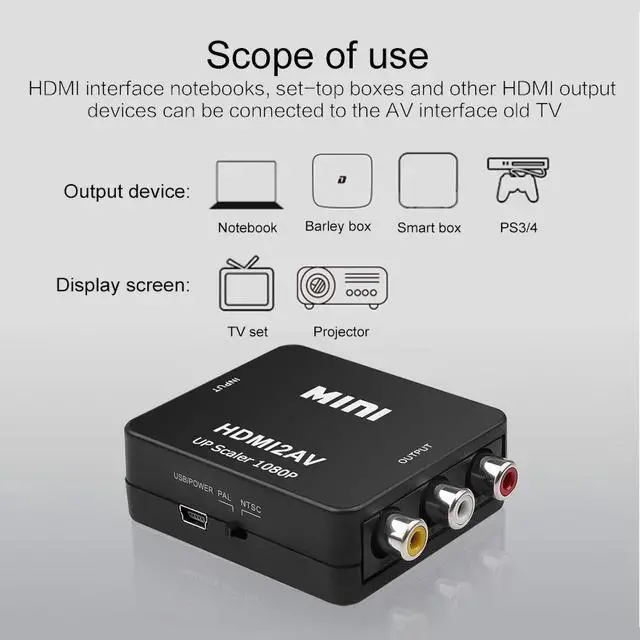

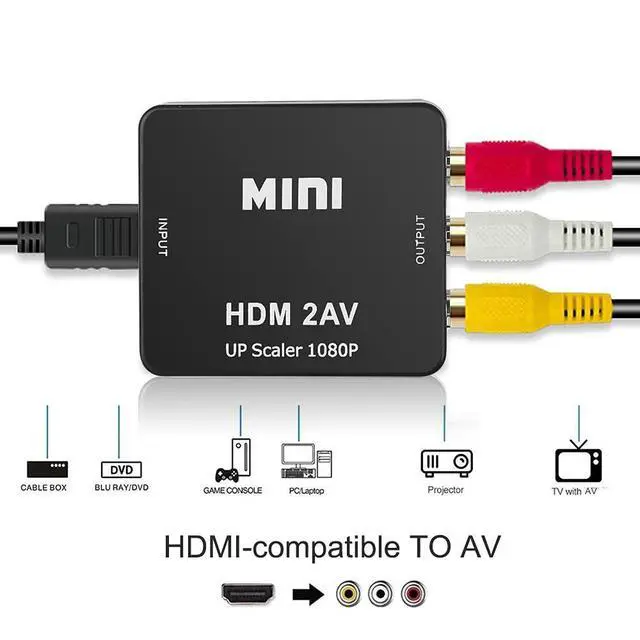

[Product Introduction] HDMI to CVBS Signal Converter, which can convert HDMI digital signals into AV (CVBS) composite video signals and FL/FR stereo audio signals, allowing customers to convert high-quality HDMI audio and video signals into ordinary TVs, VHS green players, DVD recorders, etc. that can receive CVBS signals (standard resolution 480i, 576i) and support two different formats: NTSC/PAL
[Note] DTS and RAW source code are not decoded
[Product Function] Input HDMI signal format: 480 i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz, 720p50/60Hz, 1080i50/60Hz, 1080p50/60Hz.
Output signals: CVBS (1.0Vpp), S-Video (Y: 1.0V pp, C: 0.3V pp).
Output video formats: PAL, NTSC.
Output video signal impedance matching: 75 ohms.
Compatible with HDCP protocol.
Power supply: If the power supply is insufficient, please use USB charging
