OZV8-2 HDMI 2.0b Audio Extractor Converter 4K/60Hz HDMI ARC Output with SPDIF RCA Stereo and 3.5mm Audio Jack Supports HDR10 Dolby Vision Dolby Atmos HDCP 2.2 18.5Gbps Signal Retiming

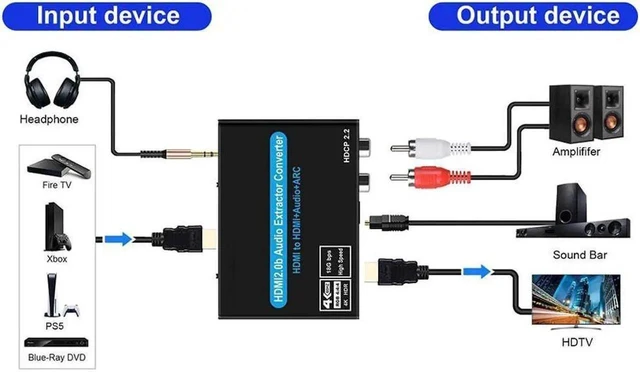

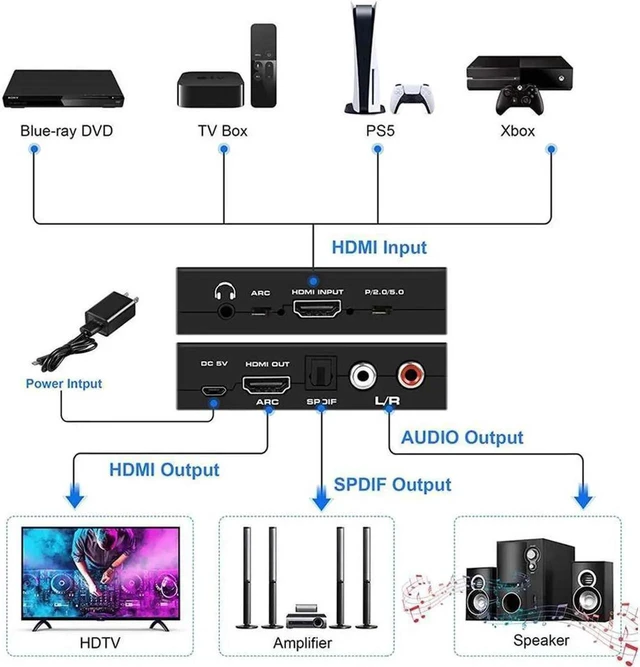

- Converts one HDMI input into one HDMI ARC output plus SPDIF, RCA stereo, and 3.5mm audio outputs for flexible signal routing.
- Supports 4K x 2K at 60Hz with YUV 4:4:4, 3D video, and maximum HDCP 2.2 compatibility for supported source and display devices.
- Supports HDR10, Dolby Vision, and Dolby Atmos to preserve specified high-dynamic-range video and immersive audio signals.
- Handles deep color at 24-bit, 30-bit, and 36-bit levels, with support for Blu-ray 24/50/60fs, HD-DVD, and xvYCC signals.
- Supports DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC-3, and DSD digital audio formats through the specified audio outputs.

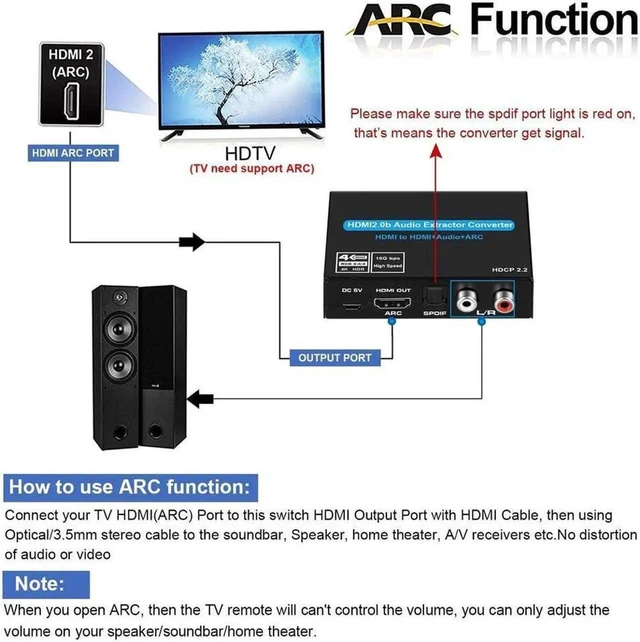

- Supports HDMI ARC and signal retiming, helping route compatible HDMI audio and video signals through the extractor.
- Supports HDMI resolutions from 480i and 480p through 576i, 576p, 720i, 720p, 1080i, 1080p, and 4K x 2K at 60Hz.
- Provides up to 600MHz bandwidth and an 18.5Gbps maximum baud rate for supported HDMI 2.0a signal transmission.
- Supports input and output cable distances up to 10m when using AWG26 HDMI 2.0a standard cables; requires a DC 5V power supply.
- Measures 84.5 x 61.8 x 21mm and supports plug-and-play connection for compatible HDMI equipment.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Description:

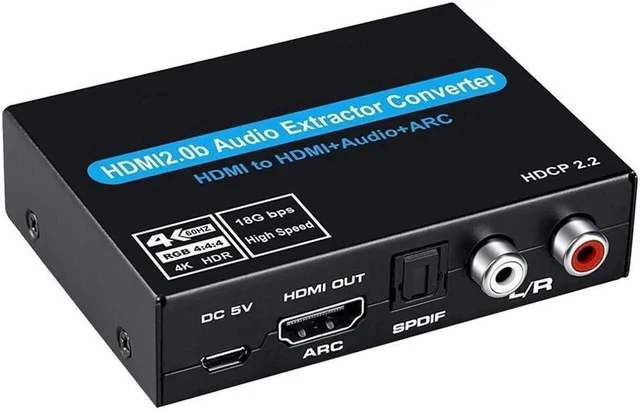

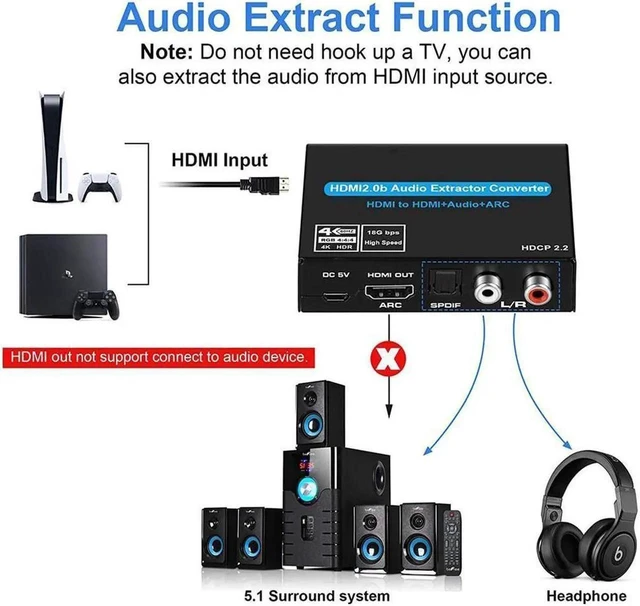

HDMI 2.0b audio and ARC extractor converter that converts an HDMI input into an HDMI ARC output plus separate SPDIF, RCA stereo, and 3.5 mm audio outputs. It is designed for extracting audio from compatible HDMI source and display setups while supporting high-resolution video transmission.
Core Selling Points:
Supports 4K x 2K at 60Hz with YUV 4:4:4, 3D video, HDCP 2.2, HDR10, Dolby Vision, and Dolby Atmos. Supports deep color at 24/30-bit and 36-bit, signal retiming, HDMI ARC, and digital audio formats including DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC-3, and DSD. Plug-and-play connection supports convenient setup.
Technical Specifications:

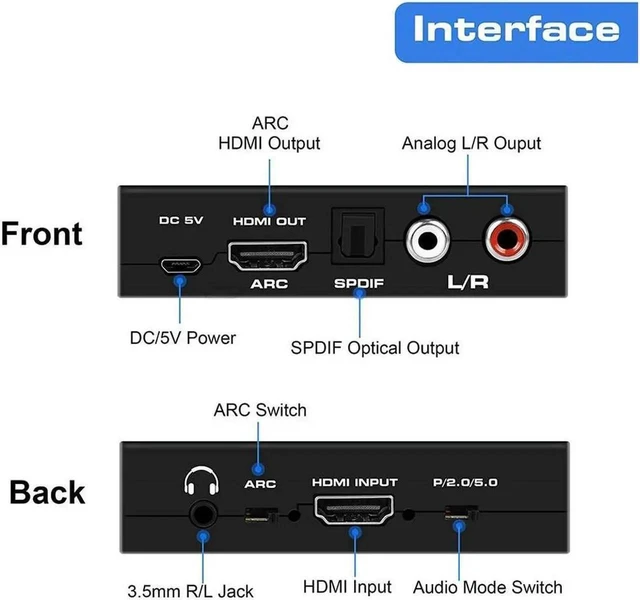

Model: OZV8-2. HDMI standard: HDMI 2.0b. Input: one HDMI. Outputs: one HDMI ARC, SPDIF, RCA stereo, and 3.5 mm audio jack. Supported resolutions: 4K x 2K@60Hz, 3D, 1080p, 1080i, 720p, 720i, 576p, 576i, 480p, and 480i. Maximum bandwidth: 600MHz. Maximum baud rate: 18.5Gbps. Input cable distance: 10m with AWG26 HDMI 2.0a standard cable. Output cable distance: 10m with AWG26 HDMI 2.0a standard cable. Power requirement: DC 5V. Dimensions: 84.5 x 61.8 x 21 mm (L x W x H).
Before Purchase:
Confirm that the source and display use compatible HDMI connections and that a DC 5V power supply is available. Verify that the audio system supports the selected SPDIF, RCA stereo, or 3.5 mm output. Compatibility with formats and features depends on the connected devices and cables.
