HDMI 5.1 Audio Converter Decoder DAC DTS AC3 FLAC PCUSB APE 4K*2K HDMI to HDMI Extractor Converter Splitter Digital SPDIF ARC, Digital Analog Audio Video Surround Sound System 192Khz/24Bit for Movies

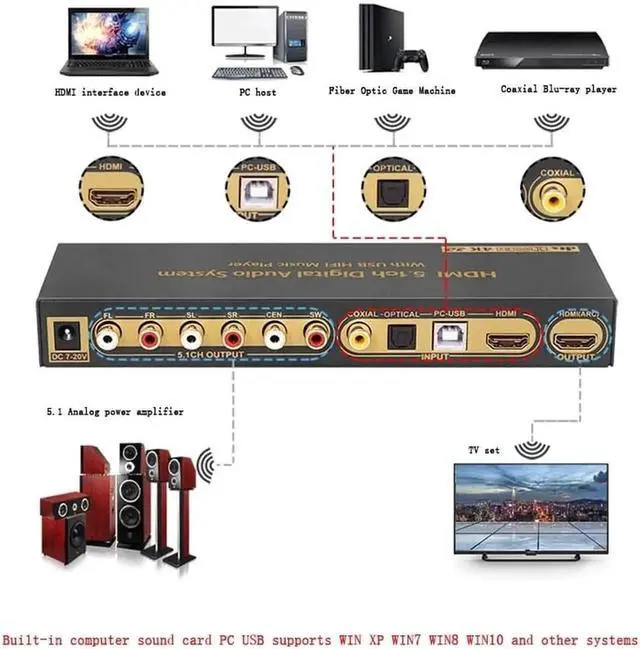

- 1: Support one HDMI input,one Coaxial input,one Optical input,one PC-USB input,one AUX input,one USB 2.0 input. You can switch different signal sources randomy via Button or Remote.
- 2: Support one HDMI(ARC) output, one Optical output,one Coxial output,one 5.1ch analog audio output of RCA , all audio output simultaneously.

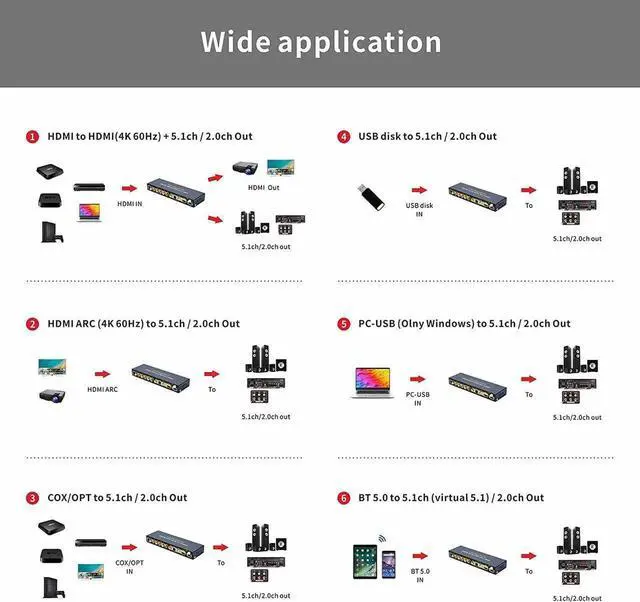

- 3: All signal source(HDMI/ARC/COXIAL/OPTICAL/PC-USB/USB) can decode to 5.1ch output,it is audio decoder system.
- 4:All signal source(HDMI/ARC/COXIAL/OPTICAL/PC-USB) but USB player can convert to COXIAL/OPTICAL output,it is S/PDIF Switcher system.
- 5: HDMI resolution up to 4Kx2K@30hz,support 3D
- 6: Supported audio farmat :DTS,DTS-ES,WAV,FLAC,APE,HDCD,AAC, WMV,MP3,M4A etc.

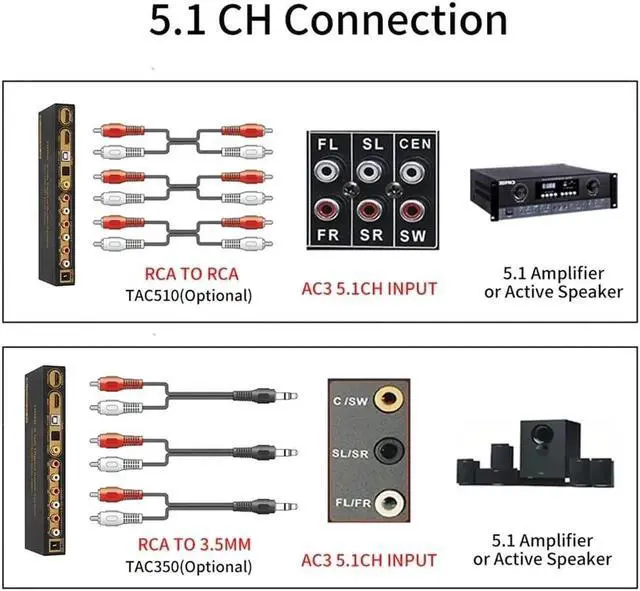

- 7: Support 5.1ch/2.0ch output mode,FL/FR active when 2.0ch output mode.

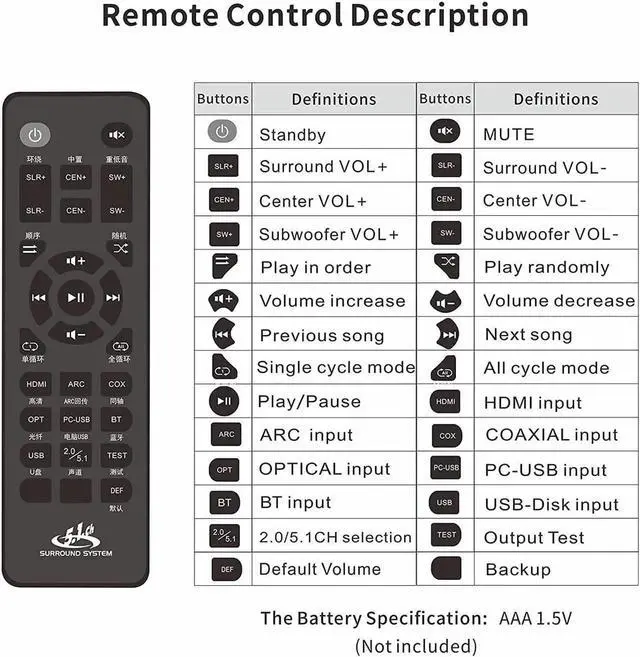

- 8: Support Button or IR remote switch input source.
- 9:Supporting IR adjust VOLOME
- 10: The power-off memory function, automatically switch to the last used signal channel, USB broadcast memory before the power-off.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
9: Supporting IR adjust VOLOME
10: The power-off memory function, automatically switch to the last used signal channel, USB broadcast memory before the power-off.
11: Users can upgrade firmware when manufacturers have updated.
Specification:
Item Type: HD Multimedia Interface Sound Decoder
Model: UD851B
Material: Metal
HD Multimedia Interface Support Version: HD Multimedia Interface 2.0 b, HDCP 2.3
HD Multimedia Interface Resolution Support: 4Kx2K 1080p 1080i 720p 576p 576i 480p 480i At 24 50 60fs
HD Multimedia Interface Maximum Data Rate: 6Gbps
HD Multimedia Interface Input And Output TDMS Signal: 0.5 - 1.5V olts P-P (TTL)
HD Multimedia Interface Input And Output DDC Signal: 5Volts P-P (TTL)
Support Sound Formats: DTS, DTS ES, AC3, FLAC, APE, WAV, HDCD, AAC, WMV, MP3, M4A, Etc.
DSP Sampling Rate Sampling Frequency: 24bit 192KHz
Digital Input Level: 0.1 -1V P-P
5.1 Analog Output: 2V RMS (1KHz At 0dB)
Signal To Noise Ratio: 90dB
Distortion: 0.03 %
Frequency Response: 20Hz to 20KHz
Reception Distance: 15m/ 49.2 ft
Power Adapter Specification: AC 100-240V 50/60Hz, DC 12V 1A
Remote Control Battery: 2 x AAA Batteries (Not Included)

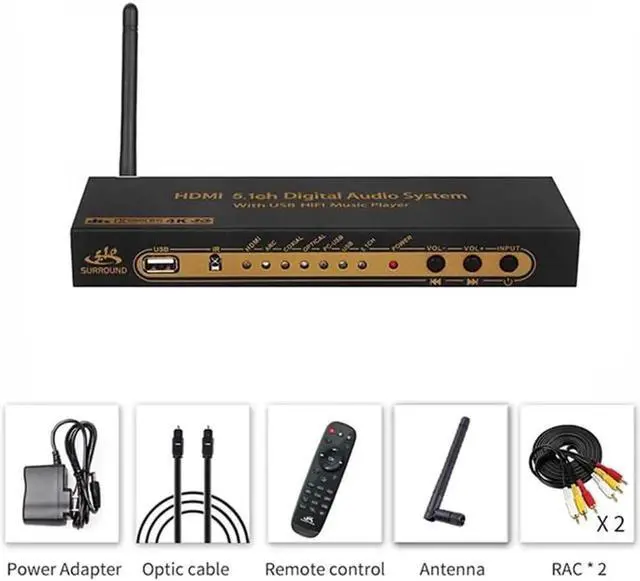

Package included:
1: Decoder machine x1
2: Infrared remote controller x1
3: DC-12V/1A power adapter x1
4: Digital optical fiber cable x1
5: Bluetooth Antenna x1
6: User manual x1
