HDMI ARC Audio Extractor DAC Converter Digital to Analog Converter 192KHz 24-Bit PCM/LPCM 3-Input Optical Toslink SPDIF/Coaxial/HDMI ARC Optical SPDIF Coaxial and 3.5mm Stereo L/R Outputs
- Converts digital PCM/LPCM audio to analogue output, with HDMI ARC, Optical Toslink/SPDIF, and Coaxial inputs selected by a convenient input switch.
- Provides simultaneous Optical/Toslink/SPDIF, Coaxial, stereo L/R, and 3.5mm outputs for flexible audio signal routing through the DAC converter.
- Supports 32, 44.1, 48, 96, and 192 KHz sampling rates, along with 24-bit SPDIF input bitstreams for left and right channels.
- In HDMI ARC mode, the RCA and 3.5mm headphone output volume can be controlled using the TV remote through the CEC function.
- Use an HDMI 1.4 cable with a 19+1 configuration for ARC operation and connection to compatible HDMI equipment.

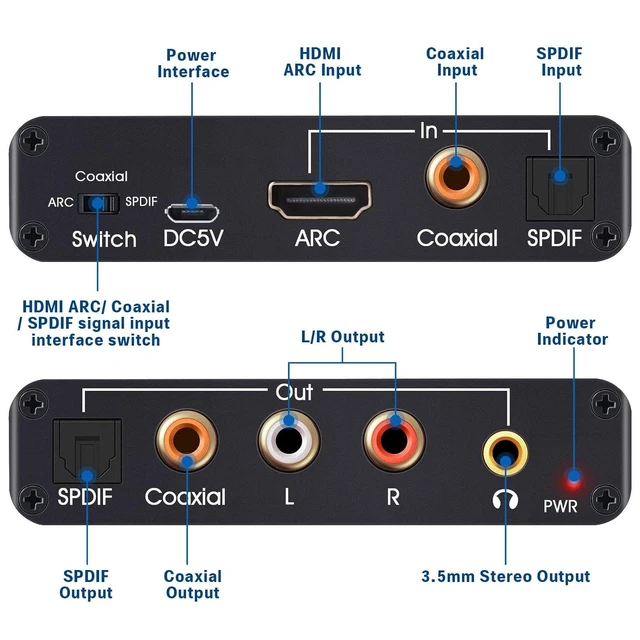

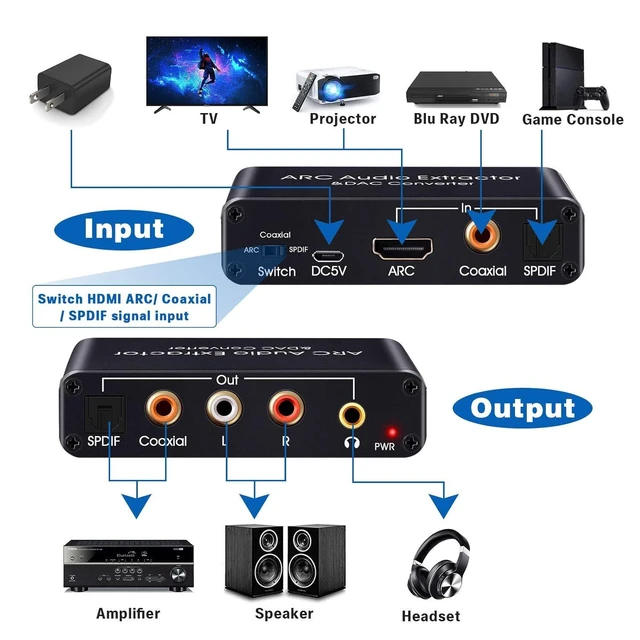

- The HDMI ARC, Optical/Toslink/SPDIF, and Coaxial inputs can be converted to Optical/Toslink/SPDIF, Coaxial, and 3.5mm L/R outputs.
- The converter is not compatible with Dolby AC3, Dolby Digital Plus, or similar audio formats; use supported PCM/LPCM audio signals.
- Features an HDMI interface with 19 pins, cable mounting, and a maximum supply voltage of 5 volts for installation and power requirements.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:

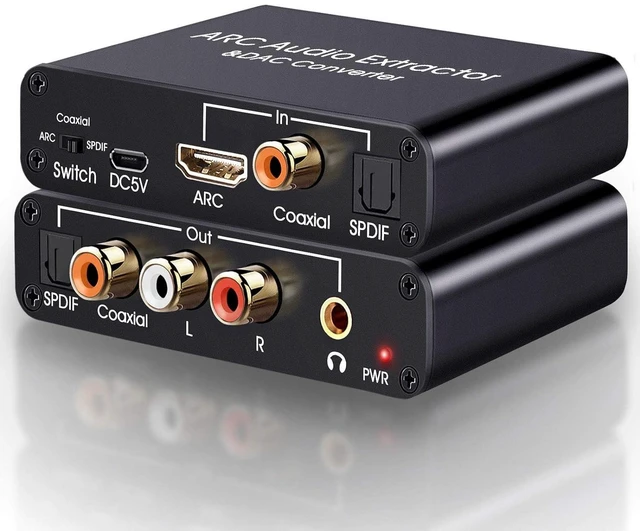

HDMI ARC audio extractor and DAC converter for converting digital audio signals from HDMI ARC, Optical Toslink/SPDIF, or Coaxial inputs into analogue audio output. It supports simultaneous Optical/Toslink/SPDIF, Coaxial, and stereo L/R 3.5mm outputs for compatible audio setups.
Core Selling Points:
Three selectable input methods, including HDMI ARC, Optical Toslink/SPDIF, and Coaxial, help simplify switching between audio sources. Optical Toslink/SPDIF, Coaxial, and stereo L/R 3.5mm outputs can operate simultaneously. In ARC mode, RCA and 3.5mm headphone output volume can be controlled through the TV remote using the CEC function.
Technical Specifications:
Product type: HDMI ARC audio extractor and digital-to-analogue audio converter. Maximum supply voltage: 5 V. Mounting type: Cable mount. Interface type: HDMI interface. Number of pins: 19. Sampling rates: 32, 44.1, 48, 96, and 192 KHz. Supports 24-bit SPDIF input bitstreams for left and right channels. Audio signal support: digital PCM/LPCM input to analogue output. Outputs: Optical/Toslink/SPDIF, Coaxial, and stereo L/R 3.5mm.
Before Purchase:
Use an HDMI 1.4 cable with a 19+1 configuration. The converter is intended for digital PCM/LPCM audio signals and is not compatible with Dolby AC3 or Dolby Digital Plus. Confirm that the source device and display support HDMI ARC and that the required Optical, Coaxial, or 3.5mm connection is available.
