Panorama Antennas MAKO L[G]M[H]M4[B]-6-60[-24-58] Antenna - 617MHz to 960MHz, 1710MHz to 3800MHz, 4900MHz to 6000MHz - 26 dB - 9 dBi - Cellular Network, GLONASS, Router, Vehicle, Utility Box, GPS, Wir

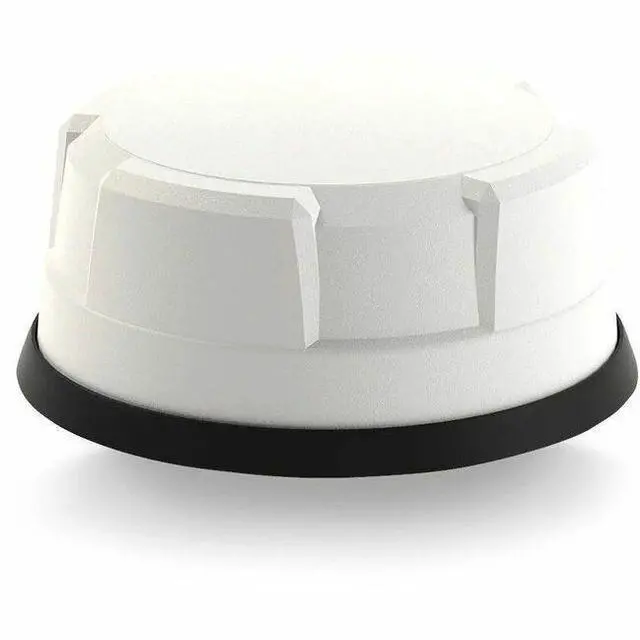

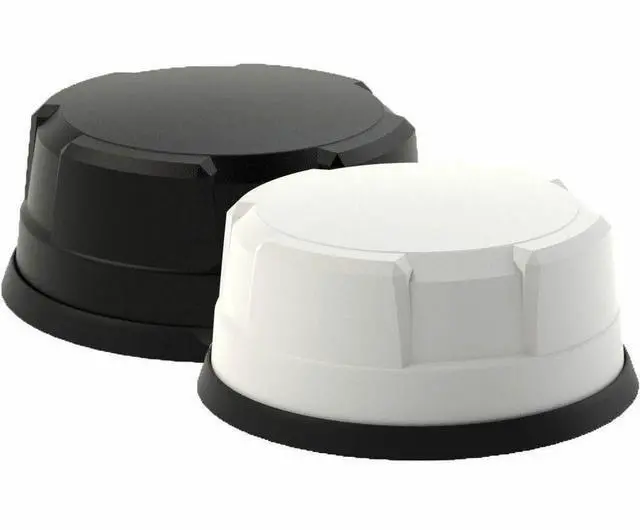

The MAKO (r) 5G Dome is a range of high-performance 4? 4 MiMo antennas covering 617-960/1710-6000MHz with optional GPS/GNSS and optional 2? 2, 3? 3 or 4? 4, or 6? 6 MiMo/Diversity at 2.4 / 5.0 / 7.2GH z. The MAKO (r) 5G Dome consists of up to 11 elements; four isolated high-performance antenna elements covering 617-960/1710-6000MHz offer MiMo/Diversity at cellular/LTE frequencies, up to 6 optional dual band elements covering 2.4 & 5.0 / 7.2GH z support MiMo/Diversity operation for WiFi and optional high-performance GPS/GNSS antenna with an integrated 26dB gain LNA and high-quality filtering offers unparalleled positioning accuracy.

None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces. Although the LTE elements are designed for 4? 4 MiMo operation, it is possible to utilize these as 2 pairs of 2? 2 MiMo for a router that has 2 SIMS (radio) in a failover configuration (i. e. only one SIM active at any time). As this
