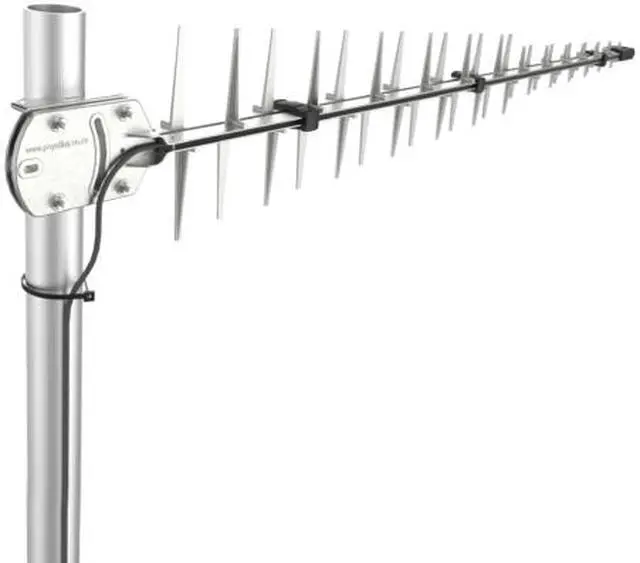

Poynting 698MHz-3000Mhz Cellular Directional High Gain Outdoor Antenna - SMA
- Futureproof wideband LTE antenna and Wi-Fi operational frequencies
- Compatible with 4G, 3G and 2G technologies
- Improves mobile network subscriber's user experience
- Connector: SMA (Male)
- Cable Length: 7 meter (23 feet).
- Increased connectivity stability
- Weather- and vandal resistant
- Used in extreme weather environment
- Using the High-Gain All Band Antenna can support wireless data in weak signal areas and it has been successful in offering wireless services in more remote and even rural areas

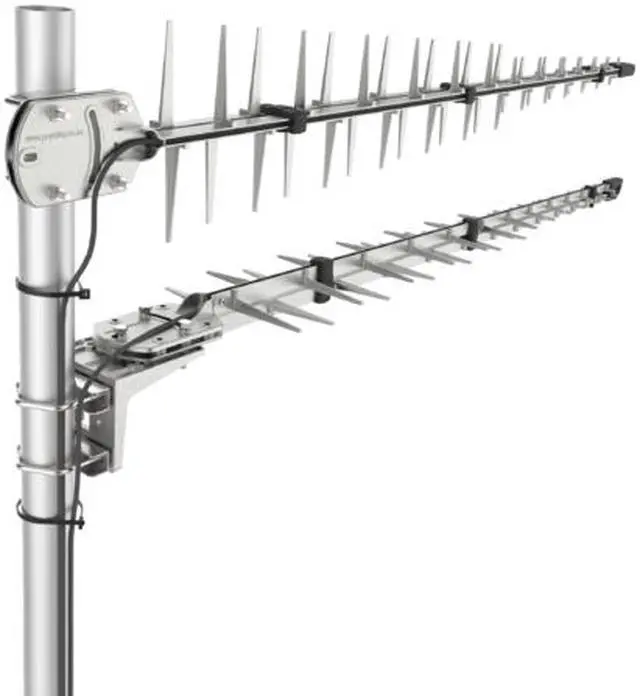

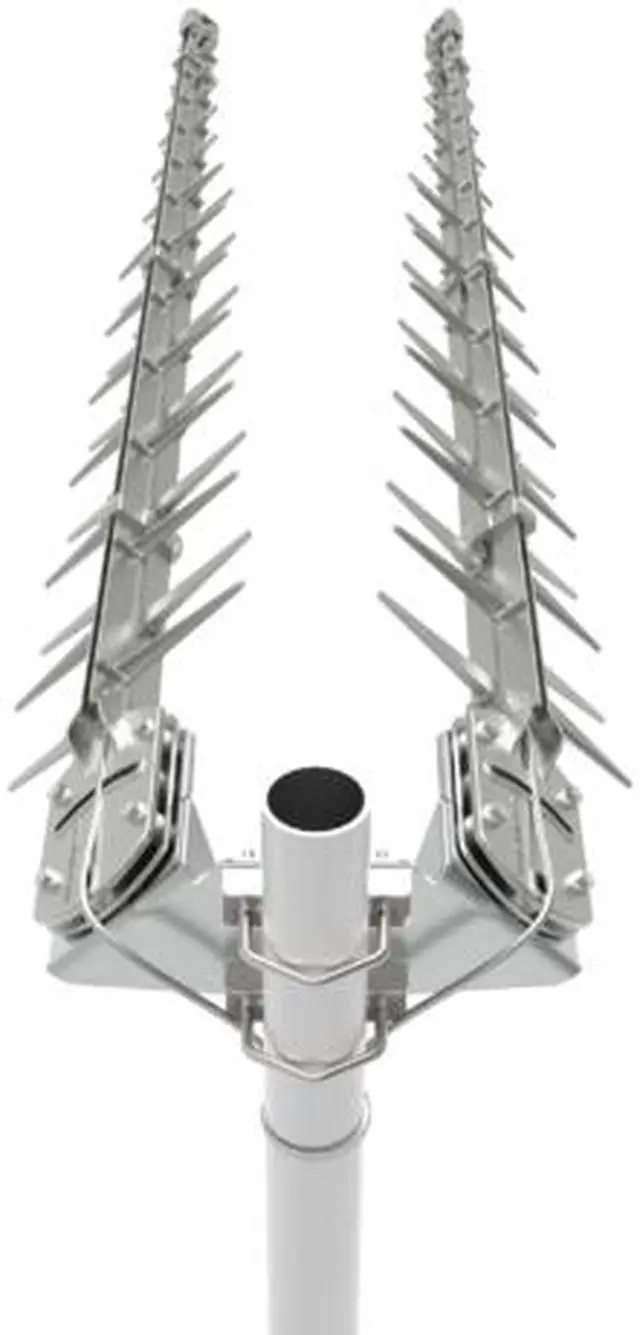

- Note: When dual mounted (either 2 x 45 degrees or 1 x horizontal plus 1 x vertical the product can be used for LTE) - (Sold as single units)
- Flammability rating: UL 94-HB
- Water Ingress Protection Ratio/Standard: IP 65 (NEMA 4X)
- Impact resistance: IK 08
- Salt Spray: MIL-STD 810F/ASTM B117
- Product Safety: Complies with UL, CE, EN, CSA and IEC standards
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This high-gain all band antenna is one of our most popular products. The antenna covers virtually all of the international wireless, cellular and mobile data bands. These bands include GSM 900, GSM 1800, UMTS and LTE and therefore it can be configured for a wide variety of wireless communication systems.
To further enhance the functionality of this antenna, Poynting has added a range of extended cellular and WiMAX bands. This includes the so-called Digital Divergent Bands for European markets and the USA and the licensed and unlicensed bands in the 2.3 to 2.7 GHz data bands.
The High-Gain All Band Antenna has proven highly successful in a wide variety of climates and conditions, including the tropics, desert climates and the cold of Nordic winters. The antenna is weather resistant and highly robust in design.
Frequencies: 698 - 960 MHz 1710 - 2700 MHz 3400 - 3800 MHz
Gain @ 698 - 960 MHz: 11 dBi
Gain @ 1710 - 2700 MHz: 11 dBi
Gain @ 3400 - 3800 MHz: 3 dBi
Flammability rating: UL 94-HB
Water Ingress Protection Ratio/Standard: IP 65 (NEMA 4X)
Impact resistance: IK 08
Salt Spray: MIL-STD 810F/ASTM B117
Product Safety: Complies with UL, CE, EN, CSA and IEC standards
Cable Type: HDF 195
Connector: SMA (Male)
Cable Length: 7 meter (23 feet).
