Poynting 5 in 1 2 x MiMo LTE, 2 x MiMo WIFI & GPS / GLONASS - 690MHZ-960MHZ, 1710MHZ2700MHZ, 3400-3800MHZ Antenna - Thread Mount

The MIMO-3-V2-15 consists of a 5-in-1 antenna system within a single housing, providing 2x Cellular, 2x Wi-Fi and a GPS/GLONASS. This antenna is specifically designed for the transportation and marine industry. The 2x Cellular MIMO antennas cover the contemporary 690MHz to 2700MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which are becoming popular for LTE. This antenna, due to its wide band capabilities, can be used across different operators and technologies and is ready for future cellular technologies such as 5G up to 3.8GHz.

The antenna provides two separate dual-band Wi-Fi antennas, providing concurrent 2.4GHz and 5GHz on each antenna with 2×2 MIMO capability.

The fifth antenna is a high-performance active GPS/GLONASS system operating down to -40 degrees. The radiation patterns of all elements provide an excellent balance between omnidirectionality, pattern diversity, and radiation abilities. The MIMO-3-15 main applications are commercial and industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies.

,li> Ultra-wideband 410MHz to 470MHz, 690MHz to 2700MHz and 3400MHz to 3800MHz bands
• Cleverly designed decorrelated antennas give superior MIMO performance in the cellular bands
• Above features maintained from 698MHz to 5800MHz in relevant bands, including the 450MHz band

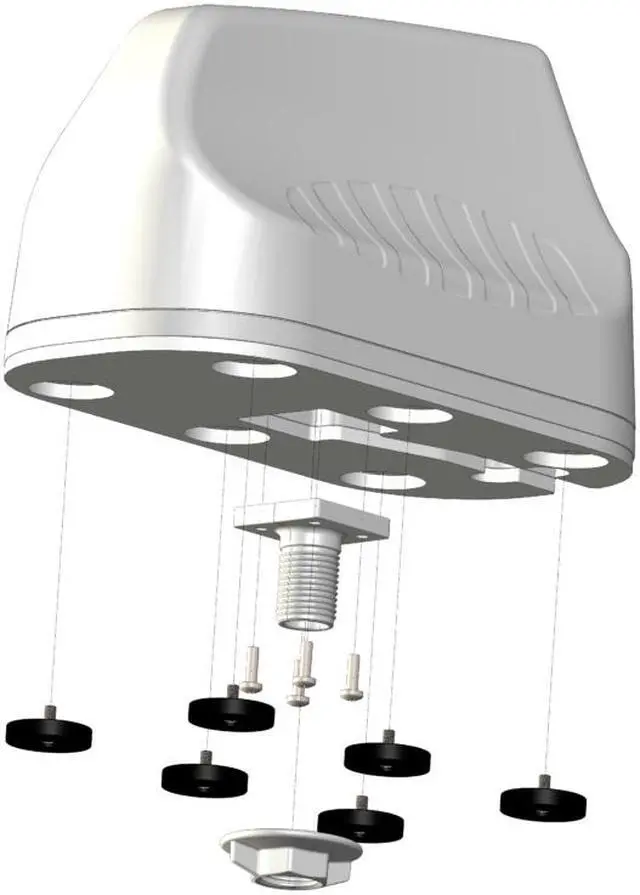

• Careful mechanical design provides ruggedness, corrosion, water, dust resistance (IP68)

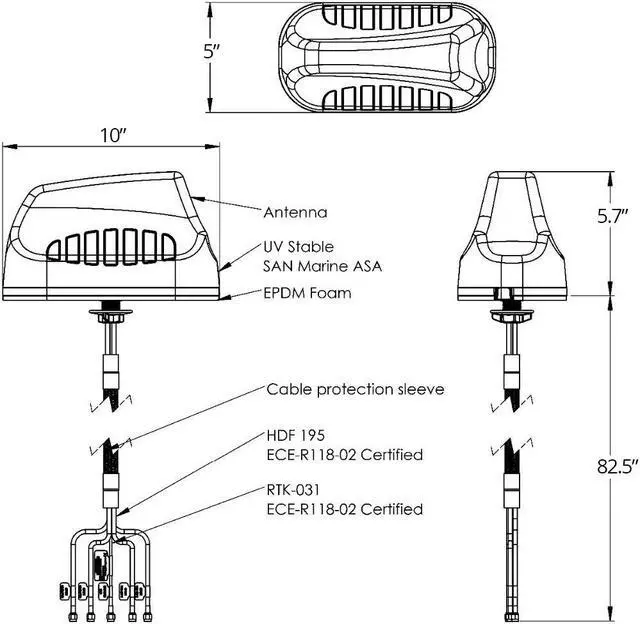

• Cable type and Length: Twin HDF 195 / RTK-031 / 2 meters
•
  Connector Type: SMA Male
