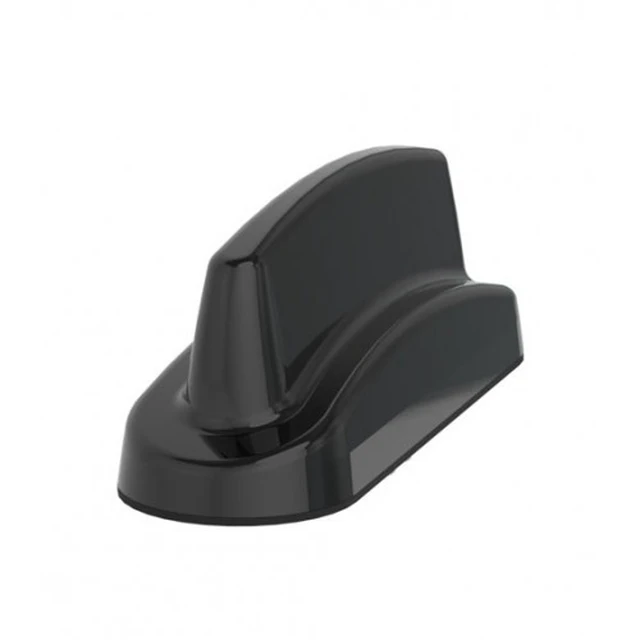

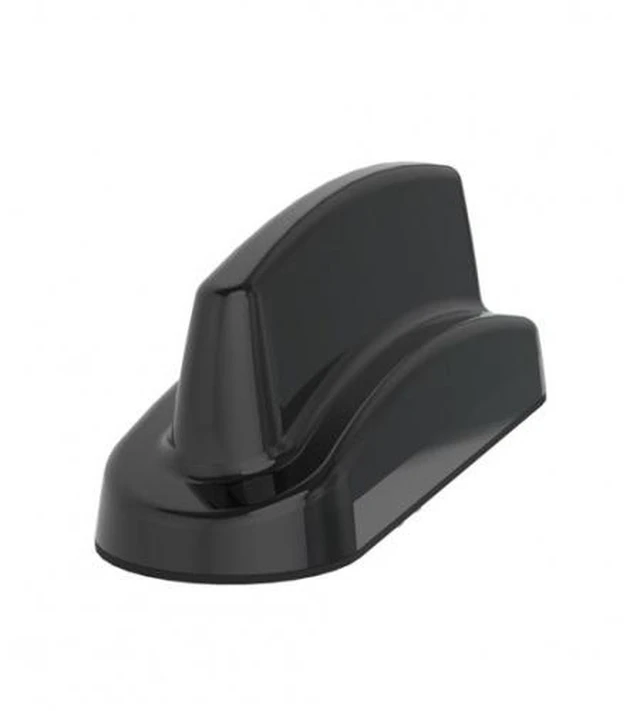

Panorama 2 x 2 MiMo 3G/4G/5G Antenna with 3m Cable Model LPAM-BC3G-26-3SP

Brand Panorama,

Model LPAM-BC3G-26-3SP

Description:

The LPAM range has been designed to provide MiMo Cellular / LTE antenna function for IOT and M2M applications.

The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTE bands in freq. range 698-960/1710-3800MHz.

The antenna can be fitted on a non-conductive panel if required* and offers easy, quick, secure, and weatherproof installation with the single hole mounting bush and acrylic adhesive sealing pad. Supplied with integrated 1m (3.3) or 3m (10) cable and SMA plug connectors, the antenna will offer plug and play connectivity with many different terminals.

Product Features:

Compact low profile MiMo LTE antenna,

High performance in a distinctive design,

Optional GNSS version available

Performance Features:

Covers all 2G/3G/4G/5G LTE cellular bands,

Weatherproof design,

Single hole mount with a small footprint

Benefits:

Provides MiMo LTE capability in a compact antenna,

Easy to install with integrated cables,

Can perform on or off a conductive surface

Application:

Static M2M & IoT devices,

Remote monitoring, smart metering,

Vending machines

Electrical Data:

LTE Frequencies 698-960/1710-3800MHz,

Global Positioning N/A,

LTE MiMo 2×2,

Max Input Power (W) 20,

Pattern Omni-directional,

Ground Plane Independent Yes,

Mechanical Data:

Available Colours Black,

Length (mm) 150,

Width (mm) 45,

Height (mm) 49,

Operating Temperature -30 / + 70°C,

Mounting Data:

Mounting Type Panel Mount,

Mounting Method 18mm (3/4) Mounting Bush,
