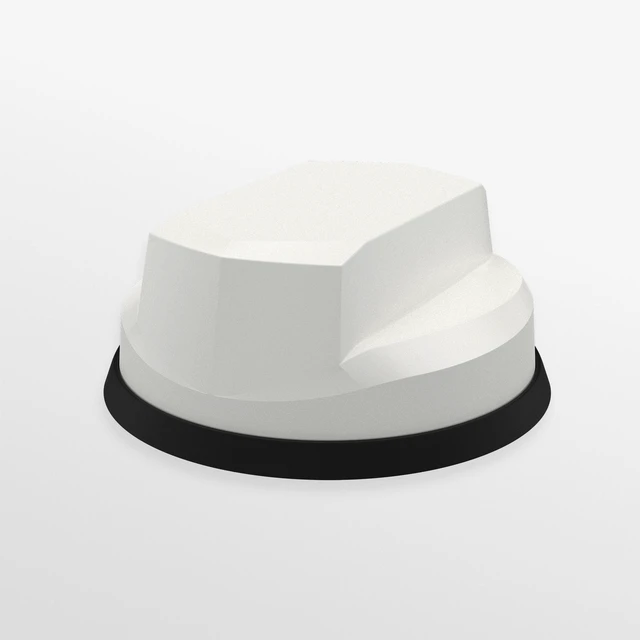

Panorama Great White 5G 2x2 MIMO Dome Antenna for Cradlepoint IBR900, White Model LP-IN2455-W

Brand Panorama ,

Model LP-IN2455-W

Cable Type Lte Flame-retardant RG174,

Cable Length Lte 5 m (16.4 ft),

Cable Termination Connectors factory-fitted,

Quantity Of Cell Cables 2,

Product Type 2x2 MIMO 4G/5G Vehicle Dome Antenna,

Product Family Great White (L[G]M[H]M-6-60),

Ground Plane Ground-plane independent (conductive or non-conductive panel),

Mounting Type Fixed Panel,

Mounting Type Temporary Magnetic,

Ip Rating IP69K,

Impact Rating IK10 (radome),

Cable Flammability EN45545-2 HL3, UN ECE R118, EN6722,

Pattern Omnidirectional

Uhf Elements No,

Wifi Elements None on this model,

Max Input Power 20 W,

Gain 617 960 Mhz 617960 MHz: 5 dBi,

Gain 1710 3800 Mhz 17103800 MHz: 9 dBi,

Gain 4900 6000 Mhz 49006000 MHz: 10 dBi,

Cellular Lte Elements 2 x 2 MIMO,

Colour White,

Height 75 mm (2.95 in),

Diameter 180 mm (7.09 in),

Operating Temperature -40 °C to +80 °C (-40 °F to +176 °F),

Technology 2G/3G/4G/5G, Band 71 600 MHz ready, FirstNet,

Connector Lte SMA (male),

Routers Cradlepoint COR IBR900 Series Routers

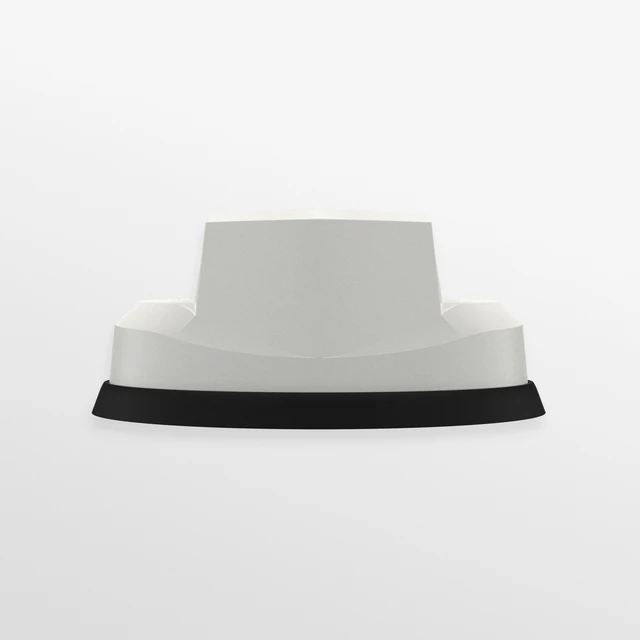

The Panorama LP-IN2455-W is a 2x2 MIMO 4G/5G vehicle antenna from Panorama's Great White range, built for in-vehicle routers such as the Cradlepoint COR IBR900 Series. This part number is the cellular-only configuration in a white radome, with no GPS or Wi-Fi elements. It suits fleets that already handle positioning and Wi-Fi elsewhere, or that only need a strong external LTE/5G signal. The two cellular elements give an omnidirectional pattern with 5 dBi gain at 617960 MHz, 9 dBi at 17103800 MHz and 10 dBi at 49006000 MHz. Panorama lists the range as Band 71 600 MHz ready and suitable for FirstNet (USA) and ESN (UK) public-safety networks. Maximum input power is 20 W. The antenna is ground-plane independent, so it performs on conductive or non-conductive panels. It is designed for panel mounting, with magnetic mounting listed for temporary installs. Two 5 m (16.4 ft) FR RG174 cables come fitted with SMA (m) connectors, and the cabling meets UN ECE R118, EN45545-2 HL3 and EN6722 flammability requirements. The halogen-free, flame-retardant radome is rated IP69K for ingress protection and IK10 for vandal resistance. The housing measures 180 mm (7.09 in) in diameter by 75 mm (2.95 in) high and operates from -40 °C to +80 °C. Panorama publishes a datasheet, installation instructions, and IP69K and IK10 test certificates for this range.
