Panorama Antenna 617MHz to 960MHz 1710MHz to 6000MHz 9dBi Wireless Router Cellular Network GPS Wireless Data Network Panel Omni-directional SMA Connector TAA Compliant Black Model LG-IN2457

Brand Panorama ,

Model LG-IN2457

Product Type: Antenna,

Directivity: Omni-directional,

Operating Frequency Range: 617 MHz to 960 MHz, 1710 MHz to 6000 MHz, 2.4 GHz, 4.9 GHz to 6.0 GHz, 1562 MHz to 1612 MHz,

Antenna Gain (Isotropic): 9 dBi,

Connector Type: SMA,

Color Family: Black,

Product Color: Black,

Height: 3.15" (80 mm),

Diameter: 7.09" (180 mm),

Form Factor: Panel,

Application/Usage: Wireless Router, Cellular Network, GPS, Wireless Data Network,

Compatibility: Cradlepoint COR IBR900 Series Routers,

Environmentally Friendly: Yes,

TAA Compliant: Yes,

Environmental Compliance: Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),

Panorama Antennas LG-IN2457 Antenna - 617 MHz to 960 MHz, 1710 MHz to 6000 MHz, 2.4 GHz, 4.9 GHz to 6.0 GHz, 1562 MHz to 1612 MHz - 9 dBi - Wireless Router, Cellular Network, GPS, Wireless Data Network - Black - Panel - Omni-directional - SMA Connector - TAA Compliant

Overview:

Panorama Antennas LG-IN2457 Antenna,

617 MHz to 960 MHz, 1710 MHz to 6000 MHz, 2.4 GHz, 4.9 GHz to 6.0 GHz, 1562 MHz to 1612 MHz - 9 dBi - Wireless Router, Cellular Network, GPS, Wireless Data Network - Black - Panel - Omni-directional - SMA Connector - TAA Compliant,

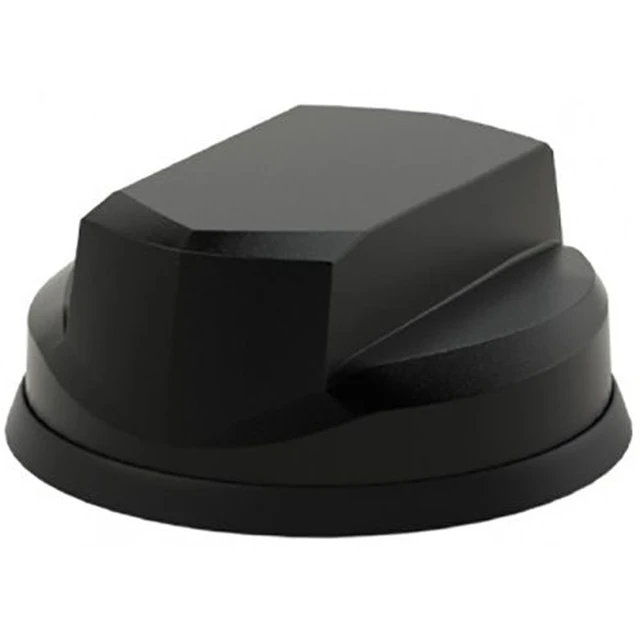

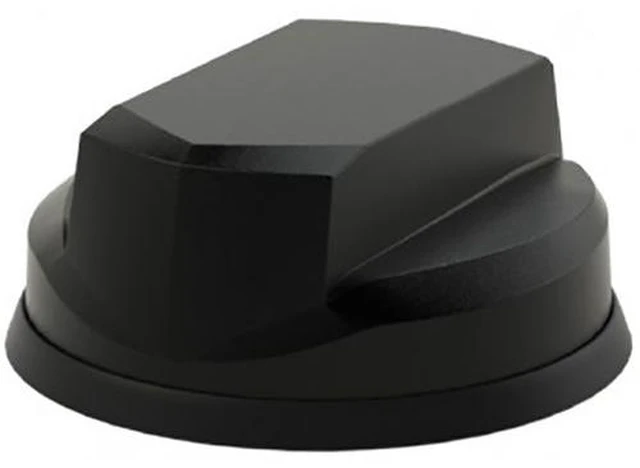

The LG-IN2457 is a high performance 2x2 MiMo LTE, 2x2 MiMo Dual Band WiFi and GPS/GNSS active antenna covering 617-960/1710-6000MHz.

Low profile antenna with 5 functions in 1

2x2 MiMo 4G/5G LTE cellular, 2x2 MiMo Dual Band WiFi and GPS/GNSS in one housing,

Kits with extension cables available for a range of LTE routers

Suitable for Cradlepoint COR IBR900 Series Routers,

The LG-IN2457 range has been designed to provide 2x2 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and 2x2 MiMo WiFi 2.4/5.0GHz.

The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
