MASWELL 2 Combo LTE+WIFI Combination Antenna 4G Cellular Antenna Screw Mount Dual Antenna Combo Antenna Wide Band Frequency 830MHz, 1.94GHz, 2.44GHz
- GSM/3G/4G Frequency: 700~960MHz/1710~2170MHz
- two leads with 5 meters andSMA male for LTE,RP-SMA plug for WiFi
- Screw mount design and Waterproof IP 67
- Ideal for equipment wireless upgrade or car roof top assembly to receive GSM/3G/4G and WiFi signal.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ITEM ID:AN_LTE_GSM_WF_046LM
MASWELL 2 Combo LTE+WIFI Combination Antenna Screw Mount Dual Antenna Combo Antenna

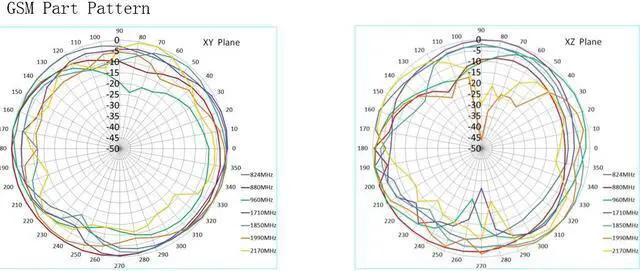

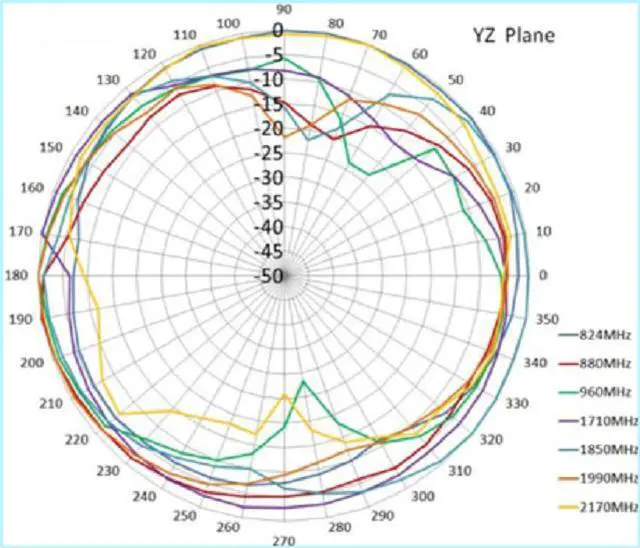

GSM Antenna
Frequency Range: 698~960MHz/1710~2690MHz
V.S.W.R: <3.0
Polarization: Linear
Gain: 2.5dBi(Zenith)
Impendance: 50Ohms

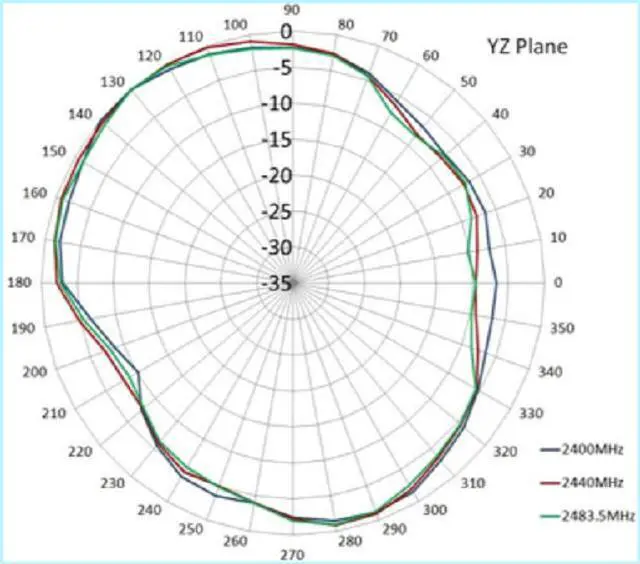

WIFI Antenna
Frequency Range: 2400~2483.5MHz/4900~5825MHz
Band Width: 83.5MHz
Polarization: Linear
Gain: 3dBi
V.S.W.R: <2.0
Impendance: 50Ohms

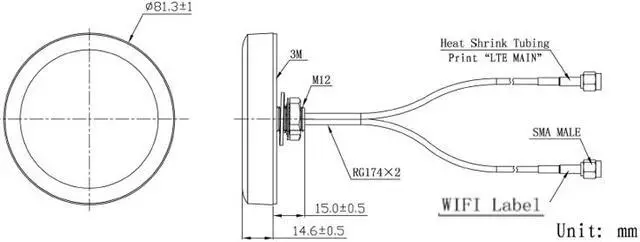

Mechanical
Cable: RG174
Connector: SMA male for LTE, RP-SMA plug for WIFI
Material: ABS
Mounting Method: Screw
Environmental
Operating Temperature: -40°C~+85°C
Relative Humidity: Up to 95%
Ingress Protection: IP65~IP66(exclude cable outlet)
Vibration: 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
MASWELL 2 Combo LTE+WIFI Combination Antenna Screw Mount Dual Antenna Combo Antenna
GSM Antenna
Frequency Range: 698~960MHz/1710~2690MHz
V.S.W.R: <3.0
Polarization: Linear
Gain: 2.5dBi(Zenith)
Impendance: 50Ohms
WIFI Antenna
Frequency Range: 2400~2483.5MHz/4900~5825MHz
Band Width: 83.5MHz
Polarization: Linear
Gain: 3dBi
V.S.W.R: <2.0
Impendance: 50Ohms
Mechanical
Cable: RG174
Connector: SMA male for LTE, RP-SMA plug for WIFI
Material: ABS
Mounting Method: Screw
Environmental
Operating Temperature: -40°C~+85°C
Relative Humidity: Up to 95%
Ingress Protection: IP65~IP66(exclude cable outlet)
Vibration: 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
