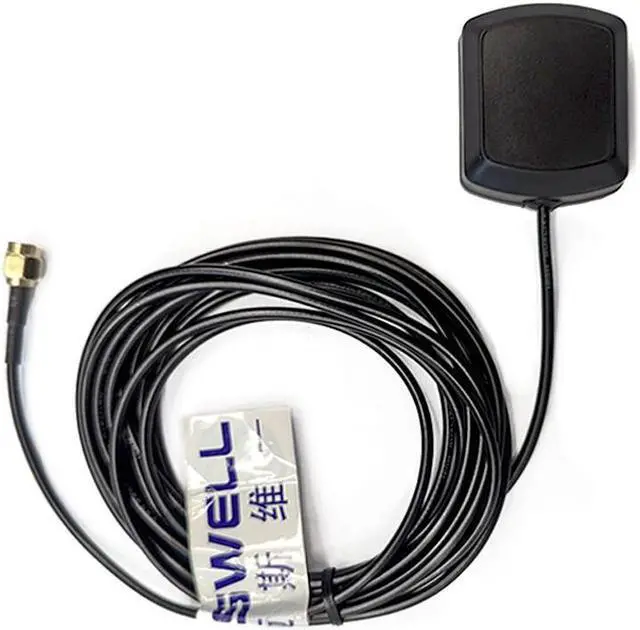

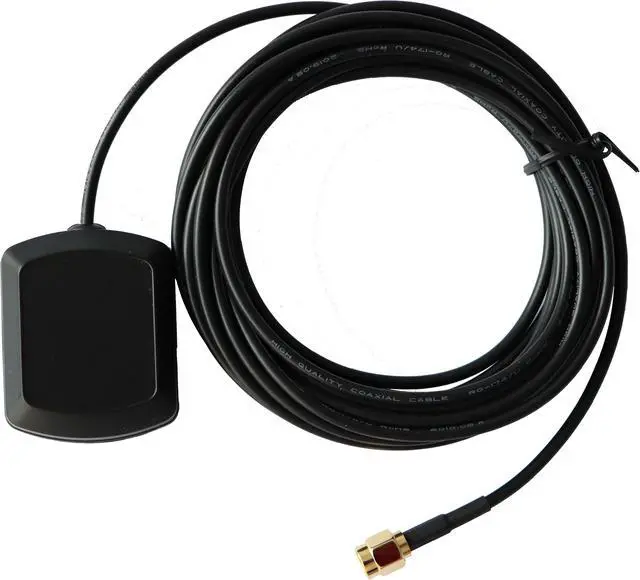

MASWELL Active GPS and GLONASS Antenna Rectangular Shape with Frenquecy Range 1.561GHz ~ 1.610GHz SMA Male connector Antenna
- rectangular shape with magnet mounting on back side.
- ideal for car roof top or top box GPS signal boosting.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ITEM ID: AN_GPS_A002

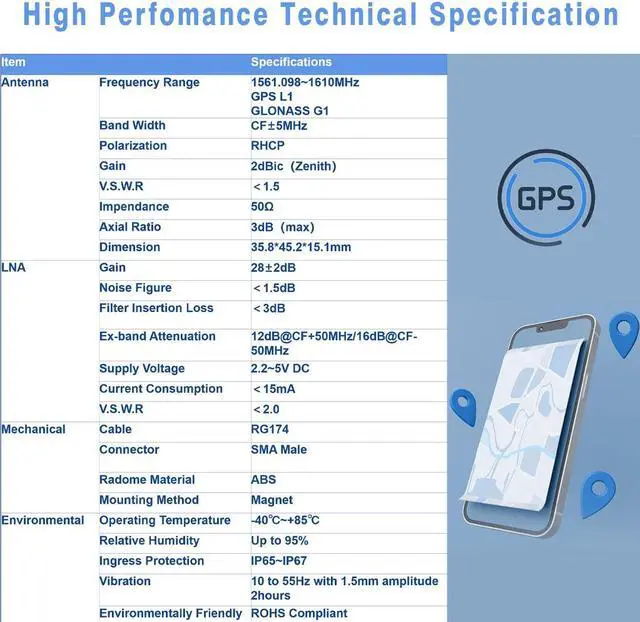

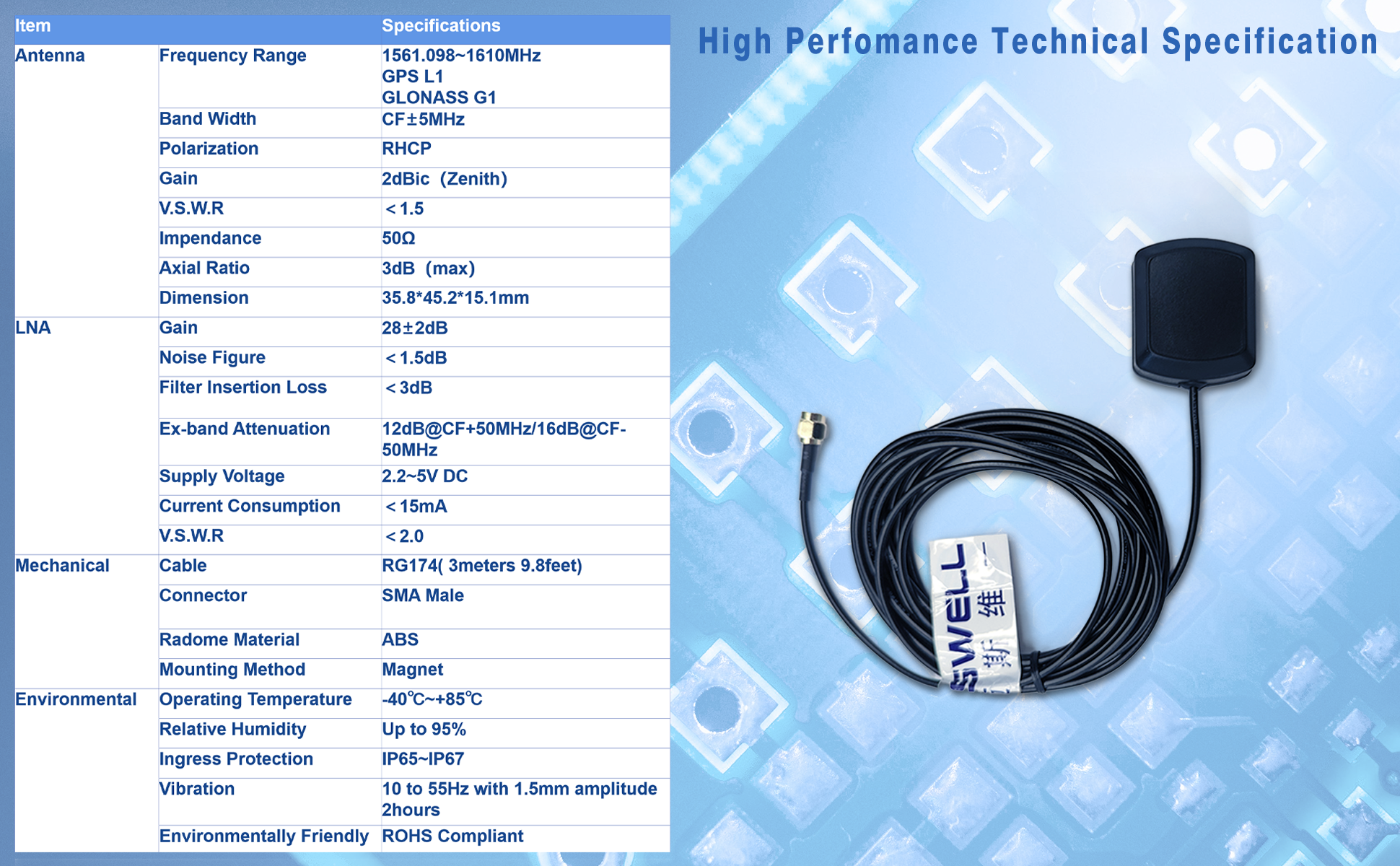

MASWELL Active GPS and GLONASS Antenna Rectangular Shape
Antenna
Center Frequency: 1561.098~1610MHz
Band Width: CF±5MHz
Polarization: RHCP
Gain: 2dBic(Zenith)
V.S.W.R: <1.5
Impendance: 50Ohms
Axial Ratio: 3dB(max)
Dimension: 25*25*4mm
LNA
Gain: 28±2dB
Noise Figure: <1.5
Filter Insertion Loss:<3dB
Ex-band Attenuation: 12dB@CF+50MHz/16dB@CF-50MHz
Supply Voltage : 2.2~5V DC
Current Consumption: 5~15mA
V.S.W.R: <2.0

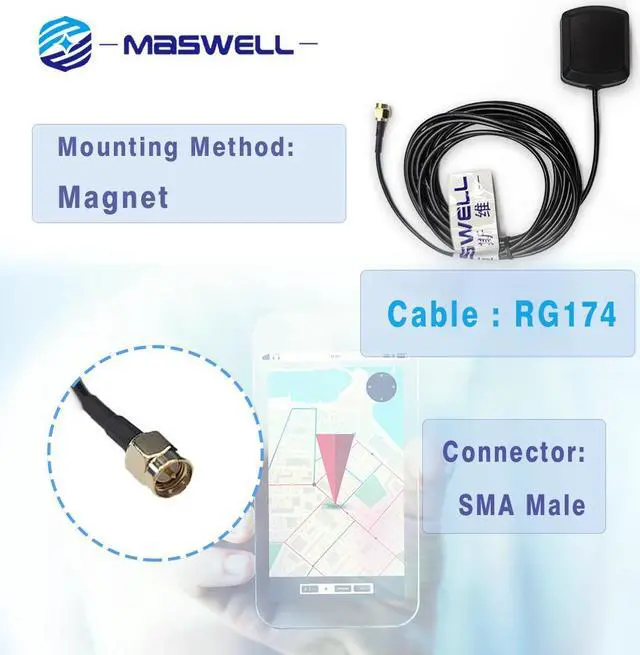

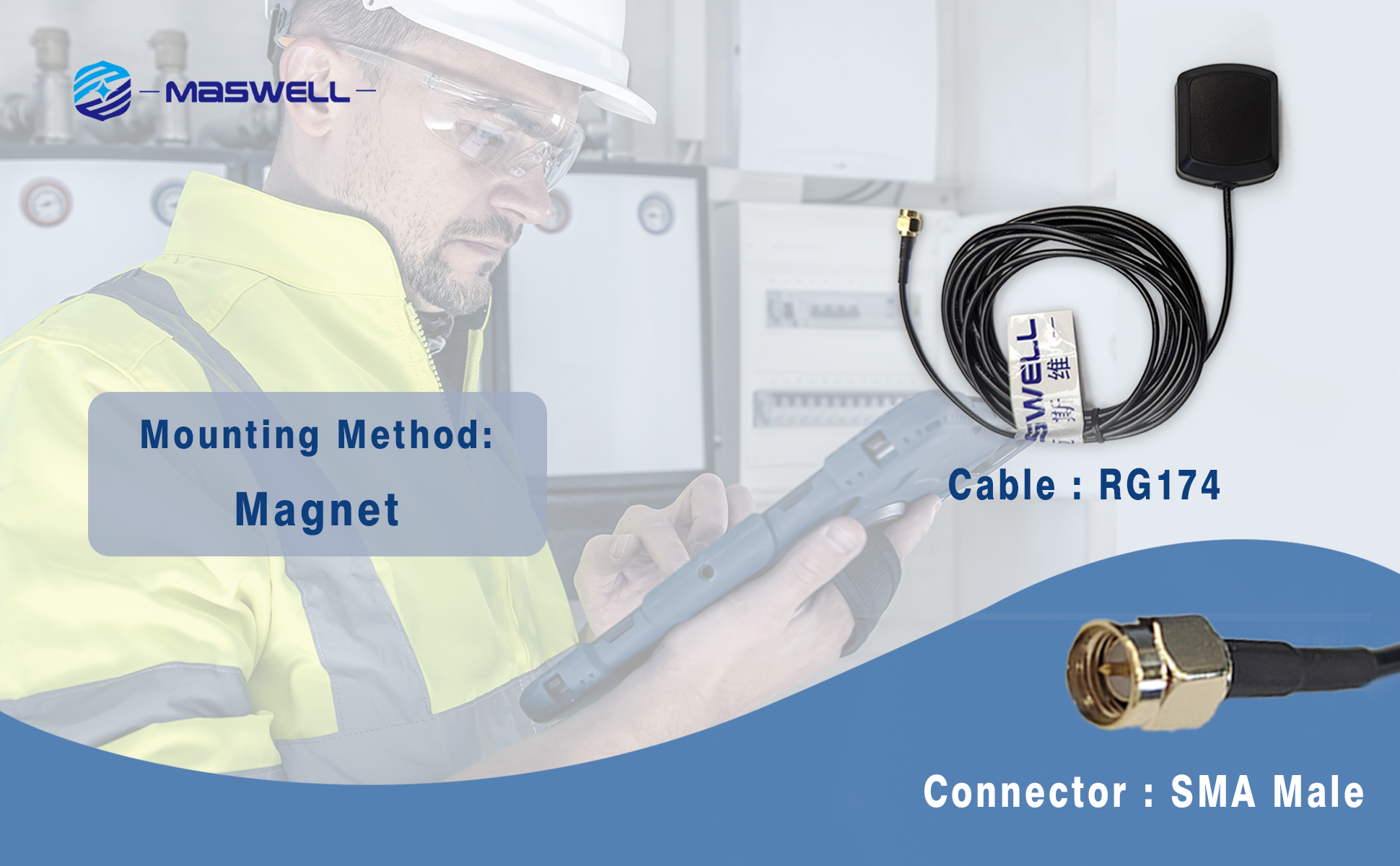

Mechanical
Cable: RG174
Connector: SMA
Radome Material: ABS
Mounting Method: Magnet
Environmental
Operating Temperature: -40°C~+85°C
Relative Humidity: Up to 95%

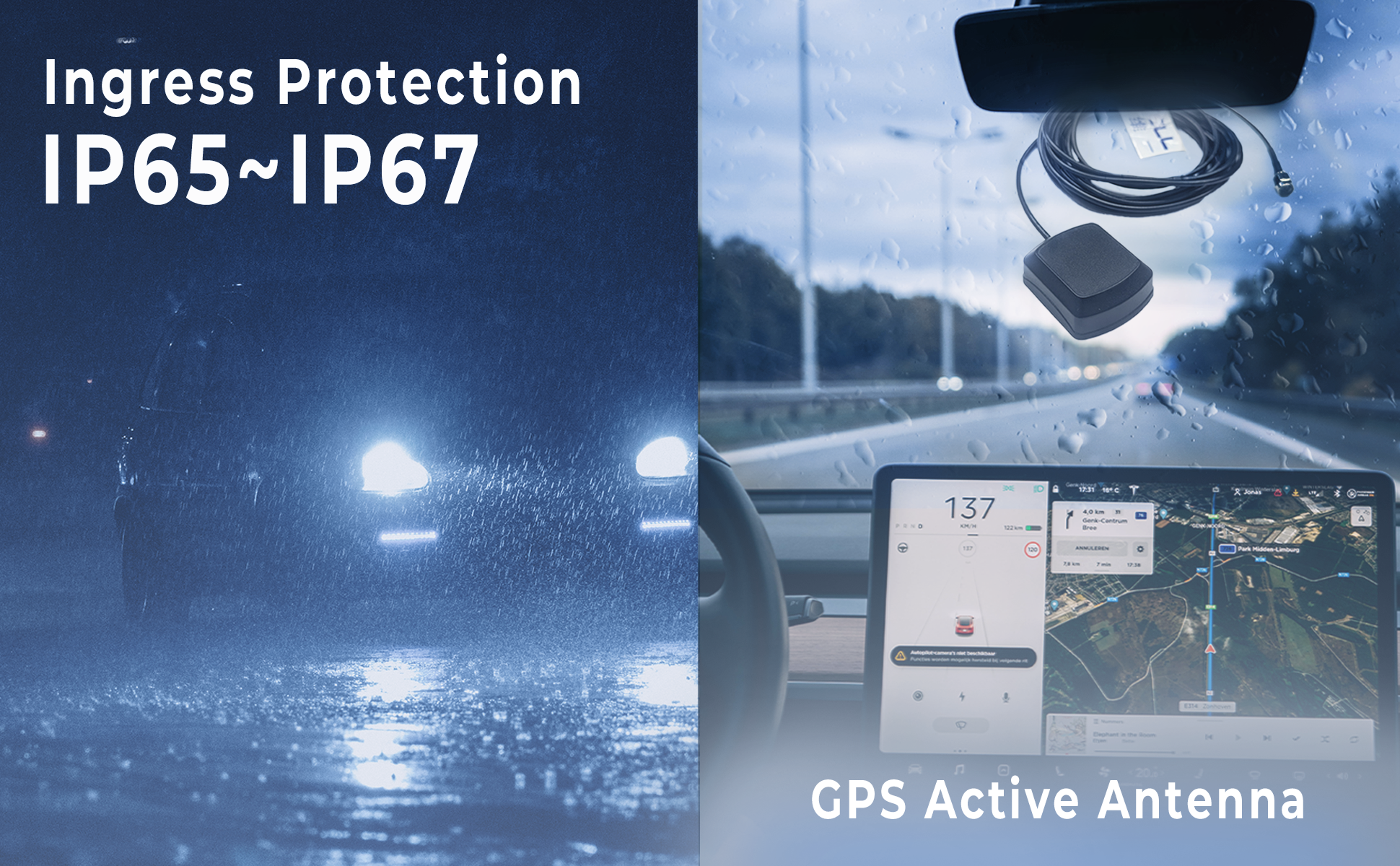

Ingress Protection: IP65~IP67
Vibration: 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
MASWELL Active GPS and GLONASS Antenna Rectangular Shape
Antenna
Center Frequency: 1561.098~1610MHz
Band Width: CF±5MHz
Polarization: RHCP
Gain: 2dBic(Zenith)
V.S.W.R: <1.5
Impendance: 50Ohms
Axial Ratio: 3dB(max)
Dimension: 25*25*4mm
LNA
Gain: 28±2dB
Noise Figure: <1.5
Filter Insertion Loss:<3dB
Ex-band Attenuation: 12dB@CF+50MHz/16dB@CF-50MHz
Supply Voltage : 2.2~5V DC
Current Consumption: 5~15mA
V.S.W.R: <2.0
Mechanical
Cable: RG174
Connector: SMA
Radome Material: ABS
Mounting Method: Magnet
Environmental
Operating Temperature: -40°C~+85°C
Relative Humidity: Up to 95%
Ingress Protection: IP65~IP67
Vibration: 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
