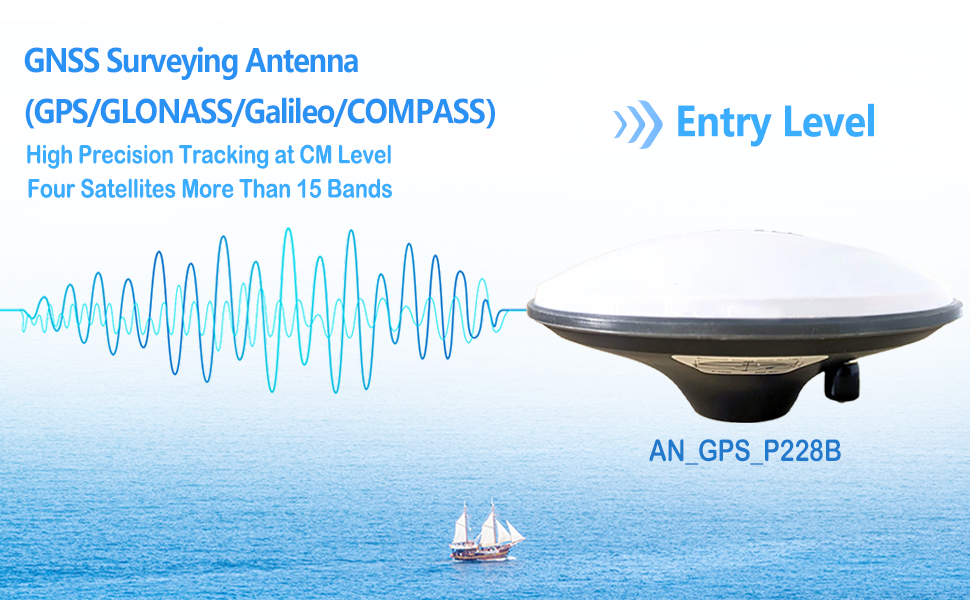

MASWELL GNSS Surveying Antenna (GPS/GLONASS/Galileo/COMPASS) entry level with Frequency Range 1.574GHz ~ 1.576GHz
- Circular shape with screw mounting on back side
- ideal for precise GNSS survery or UAV survey
- GPS, GLONASS, Compass, Galileo All Bands included!
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ITEM ID:AN_GPS_P228B

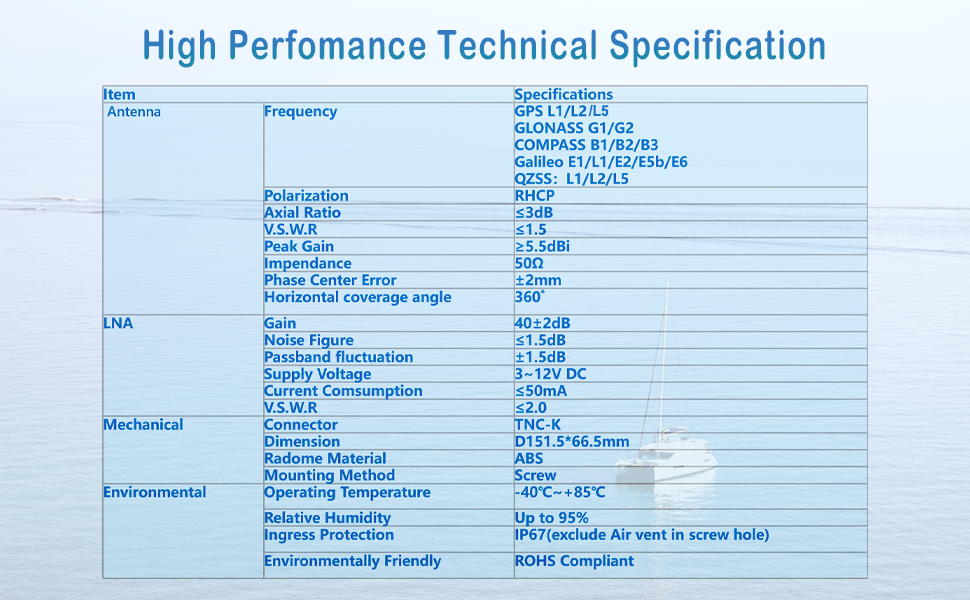

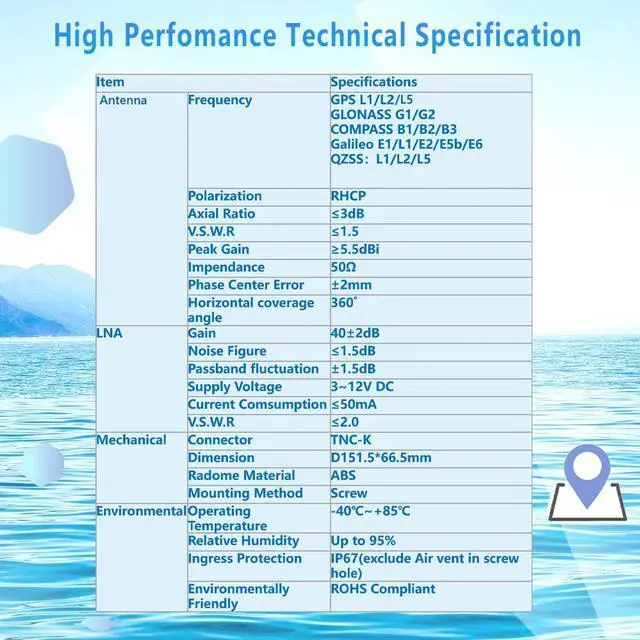

MASWELL GNSS Surveying Antenna (GPS/GLONASS/Galileo/COMPASS)
Antenna

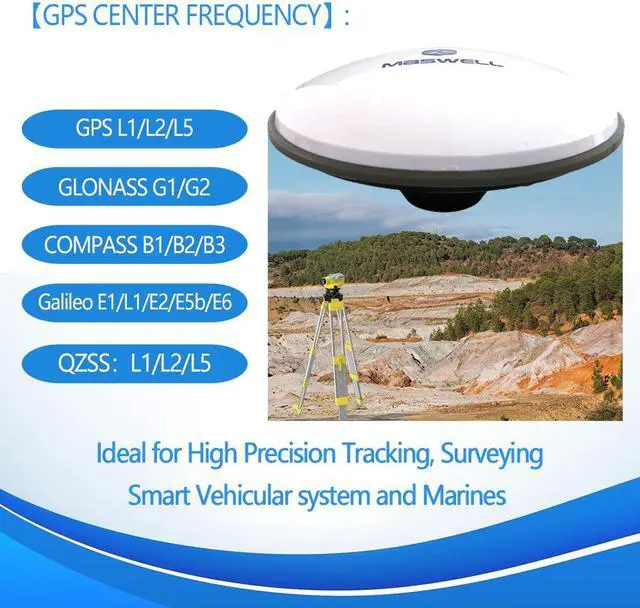

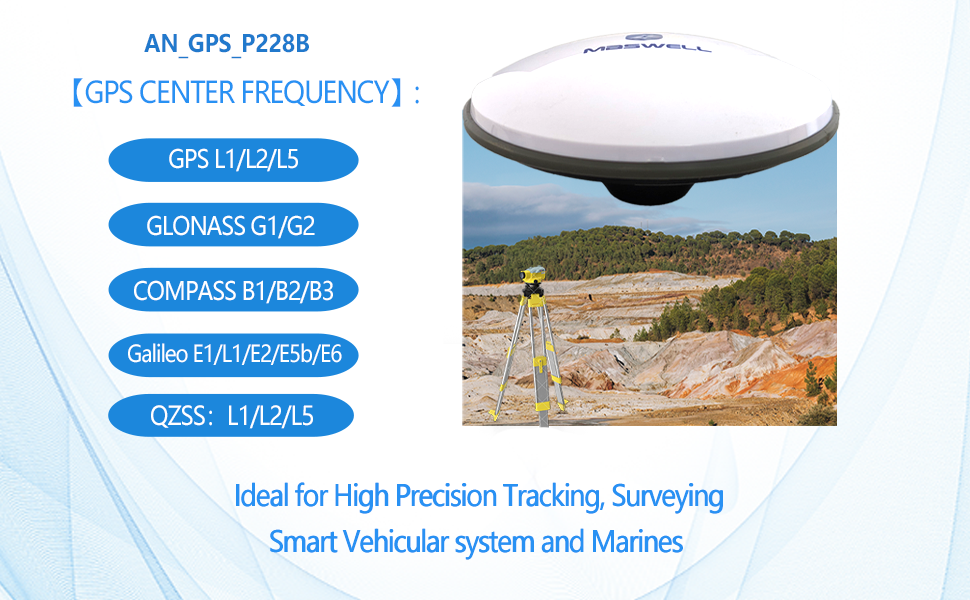

Frequency: GPS L1/L2
GLONASS G1/G2
COMPASS B1/B2/B3
Galileo E1/L1/E2/E5b/E6
Polarization: RHCP
Axial Ratio: 3dB
V.S.W.R: 1.5
Peak Gain: 5dBi
Impendance: 50Ohms
Phase Center Error: ±2mm
Horizontal coverage angle: 360°
LNA
Gain: 40±2dB
Noise Figure: 1.5dB
Passband fluctuation: ±1.5dB
Supply Voltage: 3~12V DC
Current Consumption: 50mA
V.S.W.R: 2.0
Mechanical

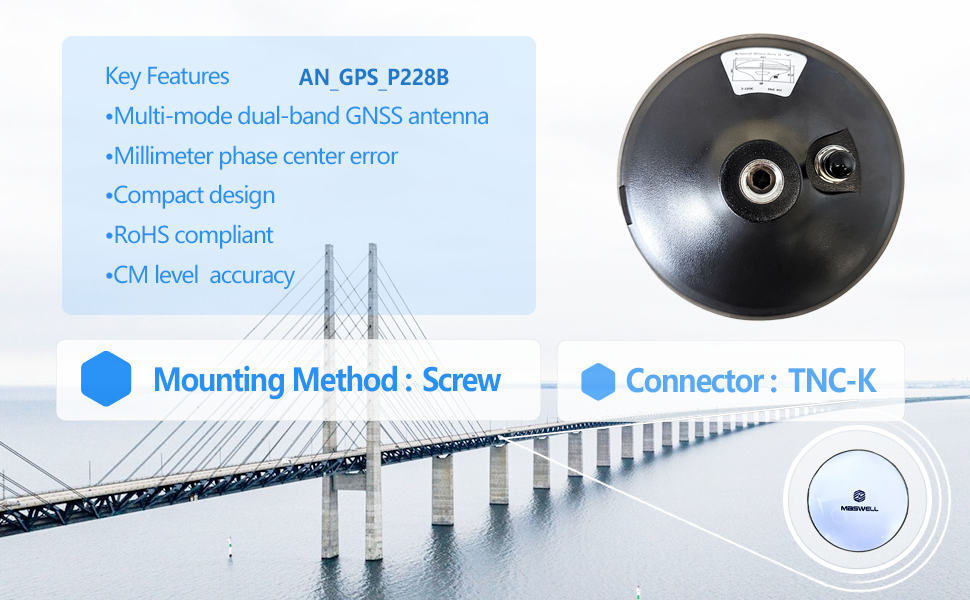

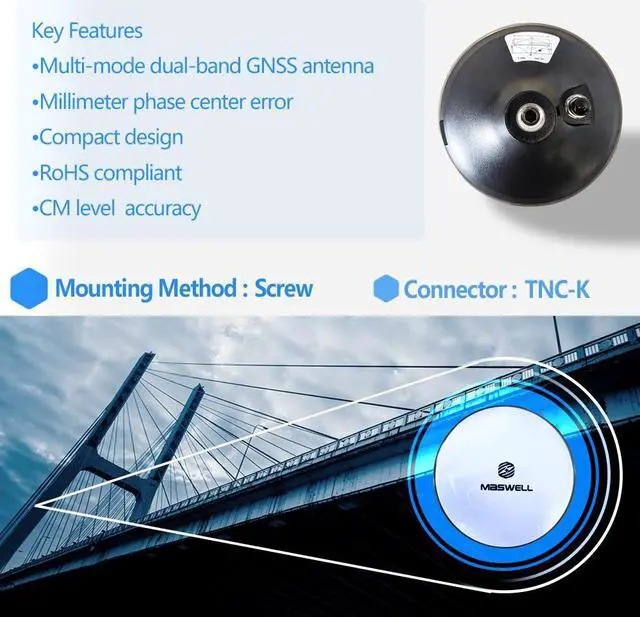

Connector: TNC-K
Dimension: D151.5*61.5mm
Radome Material: ABS
Mounting Method: Screw
Environmental
Operating Temperature: -40°C~+85°C
Relative Humidity: Up to 95%

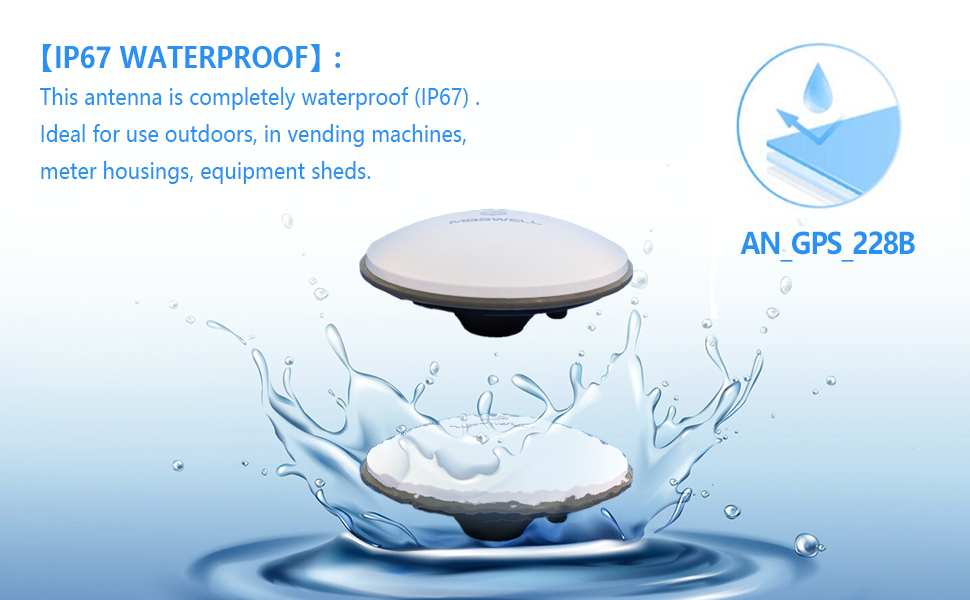

Ingress Protection: IP67(exclude Air vent in screw hole)
Environmentally Friendly: ROHS Compliant
MASWELL GNSS Surveying Antenna (GPS/GLONASS/Galileo/COMPASS)
Antenna
Frequency: GPS L1/L2
GLONASS G1/G2
COMPASS B1/B2/B3
Galileo E1/L1/E2/E5b/E6
Polarization: RHCP
Axial Ratio: 3dB
V.S.W.R: 1.5
Peak Gain: 5dBi
Impendance: 50Ohms
Phase Center Error: ±2mm
Horizontal coverage angle: 360°
LNA
Gain: 40±2dB
Noise Figure: 1.5dB
Passband fluctuation: ±1.5dB
Supply Voltage: 3~12V DC
Current Consumption: 50mA
V.S.W.R: 2.0
Mechanical
Connector: TNC-K
Dimension: D151.5*61.5mm
Radome Material: ABS
Mounting Method: Screw
Environmental
Operating Temperature: -40°C~+85°C
Relative Humidity: Up to 95%
Ingress Protection: IP67(exclude Air vent in screw hole)
Environmentally Friendly: ROHS Compliant
