ITEM ID: AN_GPS_A003 FAKRA
MASWELL GPS Active Antenna fakra Connector Cylinder Screw Mount Fakra C Connector Signal Blue
Antenna
Center Frequency: 1575.42±1MHz
Band Width: CF±5MHz
Polarization: RHCP
Gain: 2dBic(Zenith)
V.S.W.R: <1.5
Impendance: 50Ohms
Axial Ratio: 3dB(max)
Dimension: 46.6*14.5mm
LNA
Gain: 28±2dB
Noise Figure: <1.5
Filter Insertion Loss : <3dB
Ex-band Attenuation: 12dB@CF+50MHz/16dB@CF-50MHz
Supply Voltage: 2.2~5V DC
Current Consumption: 5~15mA
V.S.W.R: <2.0
Mechanical
Cable: RG174
Connector: FAKRA
Radome Material: ABS

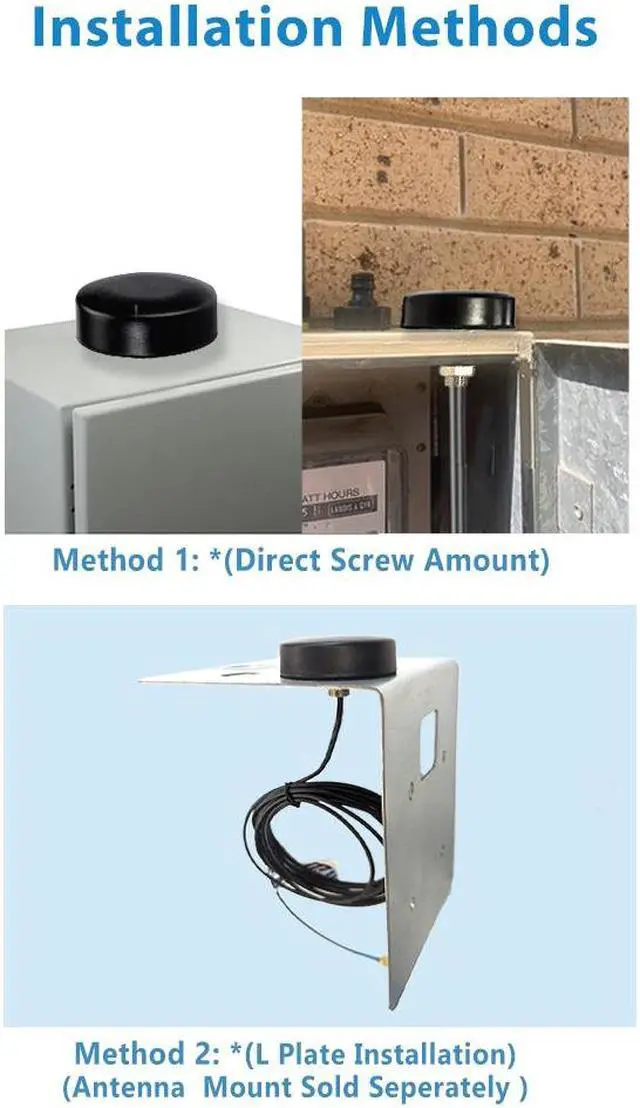

Mounting Method: Screw
Environmental
Operating Temperature: -40°C~+85°C
Relative Humidity: Up to 95%
Ingress Protection: IP65~IP67 (exclude cable outlet)
Vibration: 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
Compatible with Navigation System:
2008-2010 Chrysler Town & Country
2008-2010 Dodge Grand Caravan
2008-2010 Dodge Journey
2007-2010 Dodge Nitro
2008-2010 Chrysler 300
2008-2009 Chrysler Aspen
2007-2010 Chrysler Sebring
2007-2010 Dodge Avenger
2008-2010 Jeep Commander
2009-2010 Jeep Compass
2008-2010 Jeep Grand Cherokee
