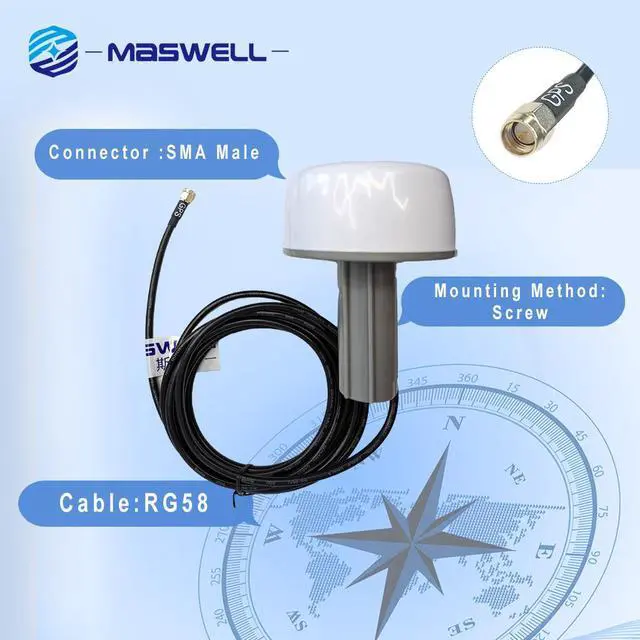

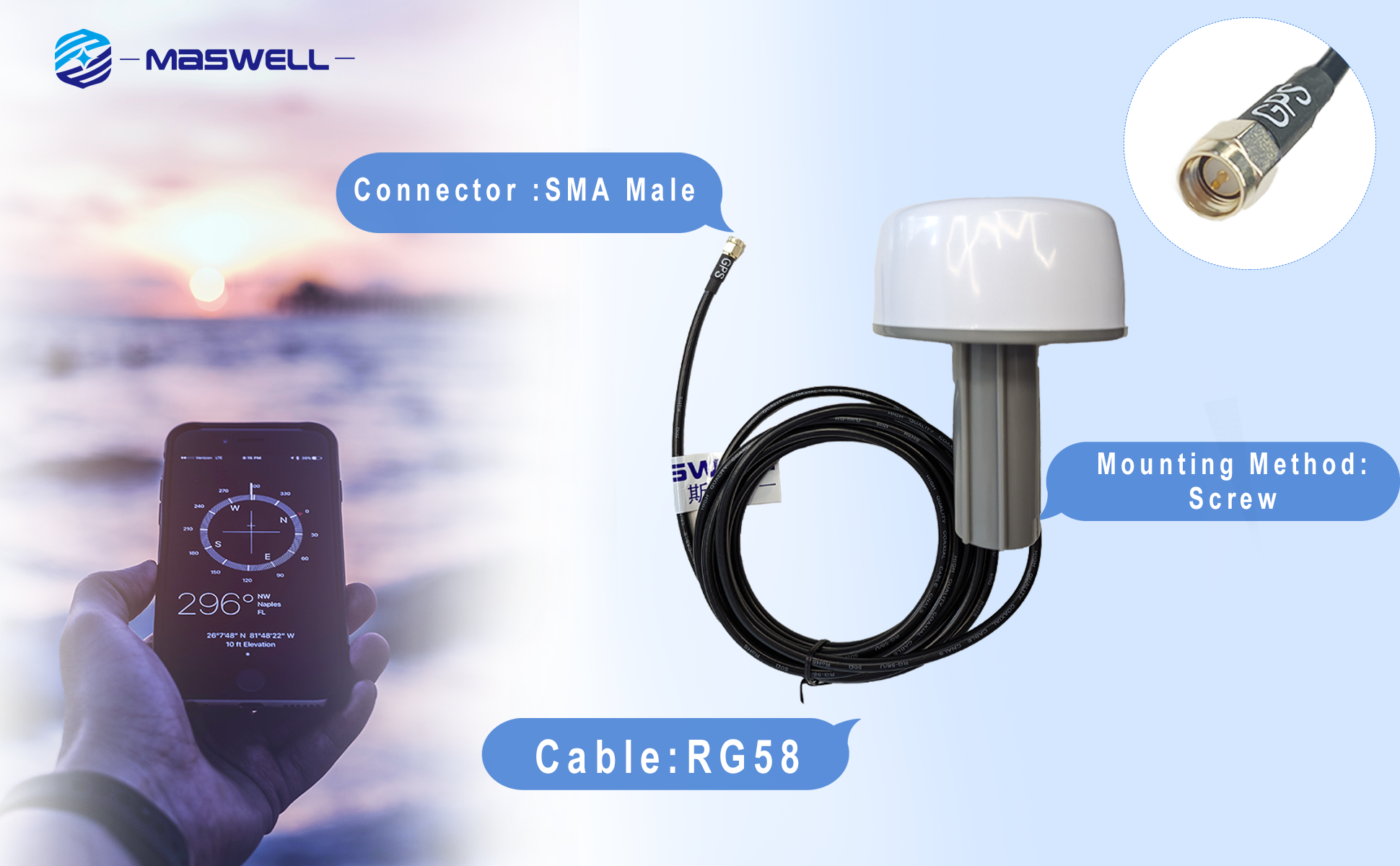

MASWELL Heavy Duty GPS Active Navigation Antenna Screw Mount SMA Male connector Antenna with Frequency Range 1.574GHz ~ 1.576GHz
- GPS Center Frequency :1575.42±3MHz
- One lead with 5 meters and SMA male

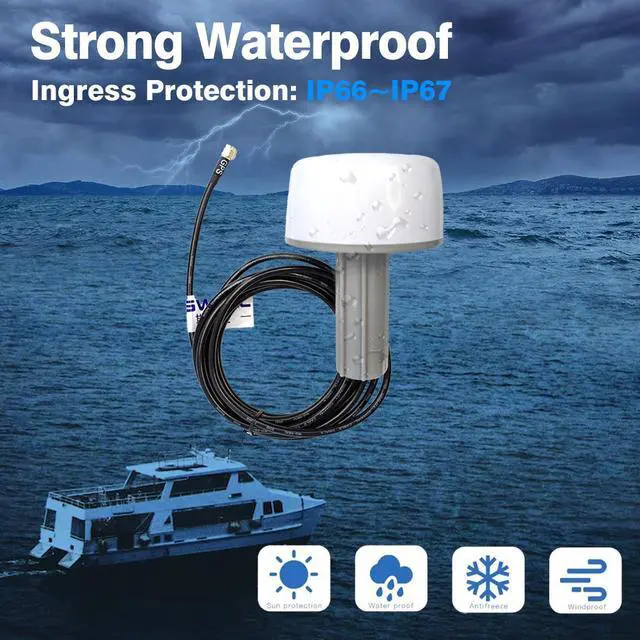

- Screw mount design and Waterproof IP 67

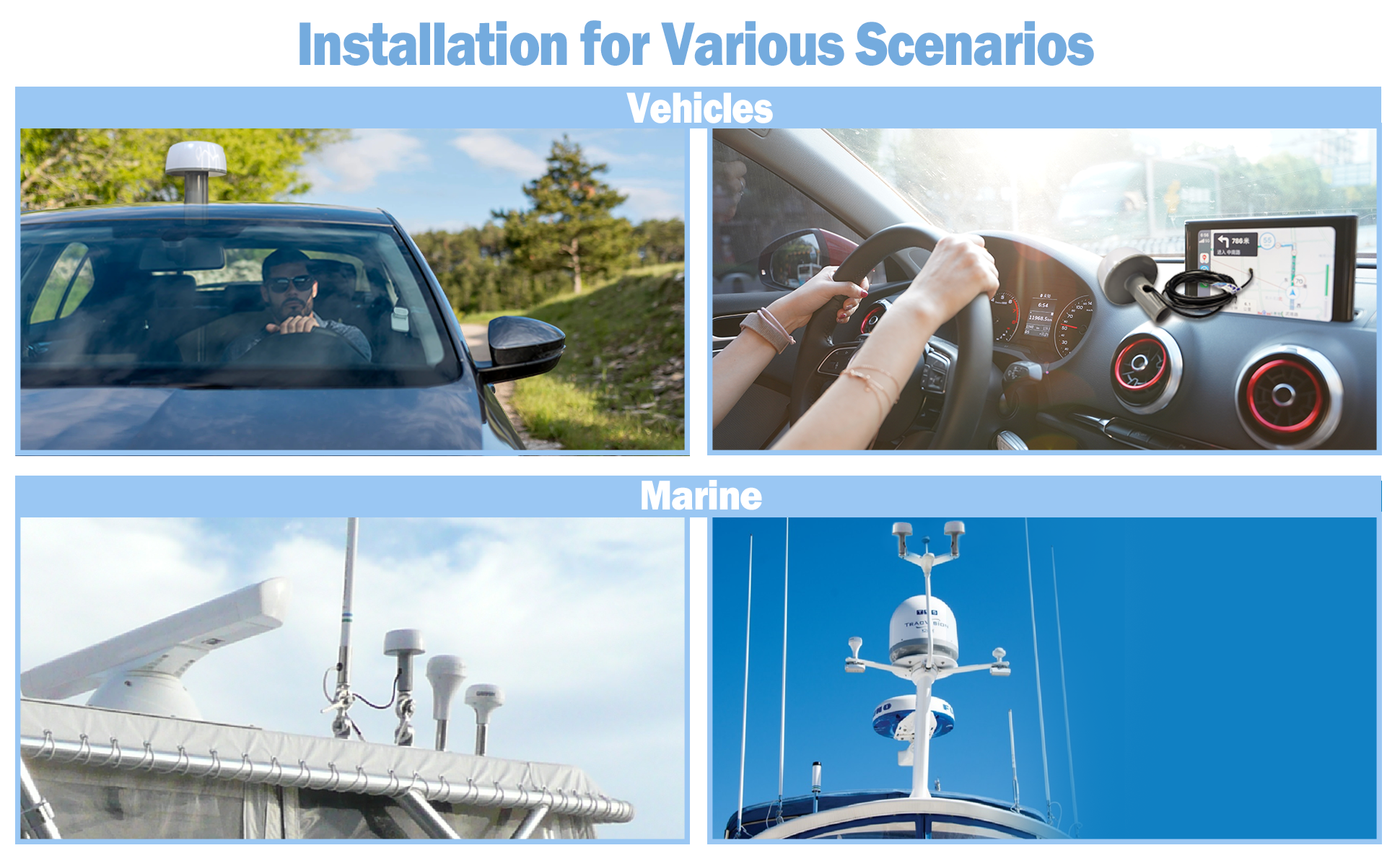

- Ideal for equipment wireless upgrade or marine roof top assembly to receive both GSM/3G/4G and GPS signal.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ITEM ID: AN_GPS_A005

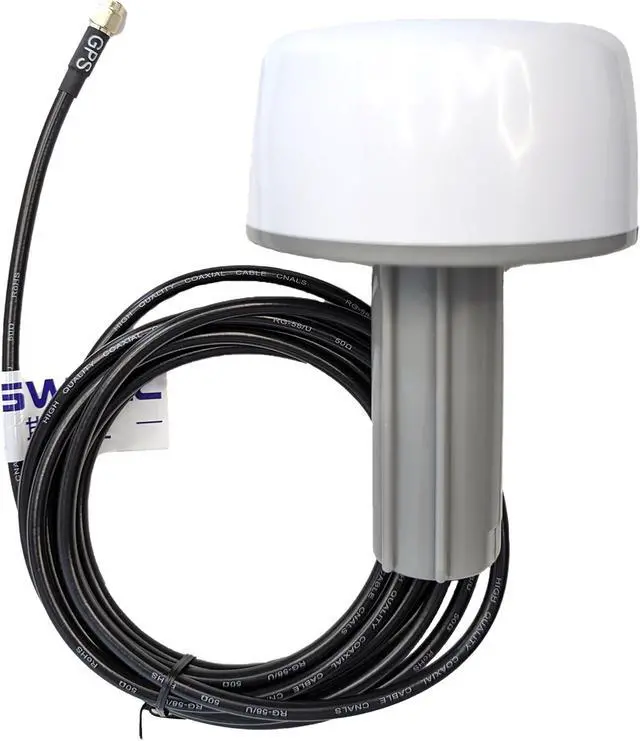

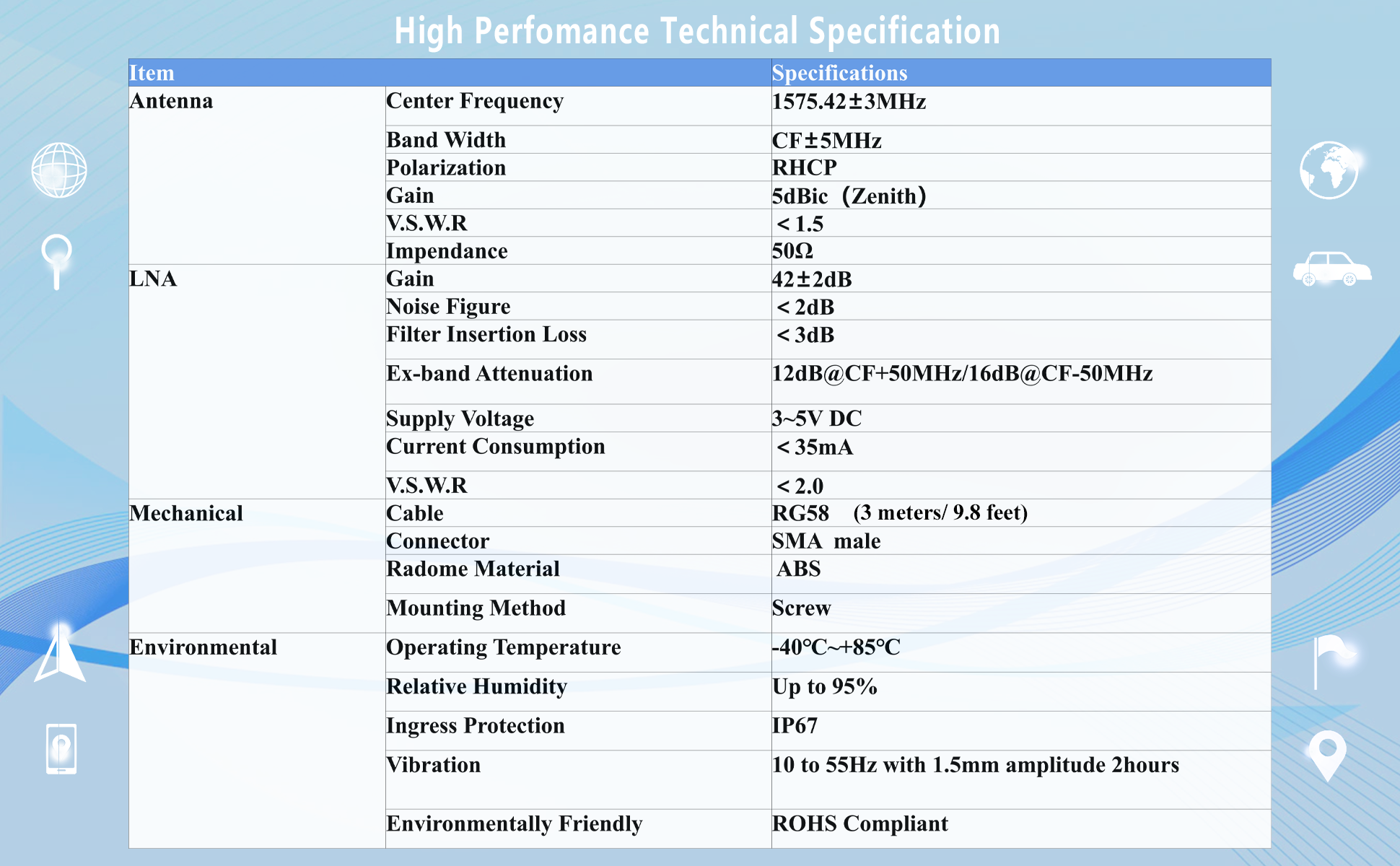

MASWELL Heavy Duty GPS Active Navigation Antenna
Antenna
Center Frequency: 1575.42±1MHz
Band Width: CF±5MHz
Polarization: RHCP
Gain: 5dBic(Zenith)
V.S.W.R :<1.5
Impendance: 50Ohms
LNA
Gain: 42±2dB
Noise Figure: <1.5dB
Filter Insertion Loss: <3dB
Ex-band Attenuation: 12dB@CF+50MHz/16dB@CF-50MHz
Supply Voltage: 3~5V DC
Current Consumption: 18~35mA
V.S.W.R: <2.0
Mechanical
Cable: RG58
Connector: SMA
Radome Material: ABS
Mounting Method: Screw
Environmental
Operating Temperature: -40°C~+85°C
Relative Humidity: Up to 95%

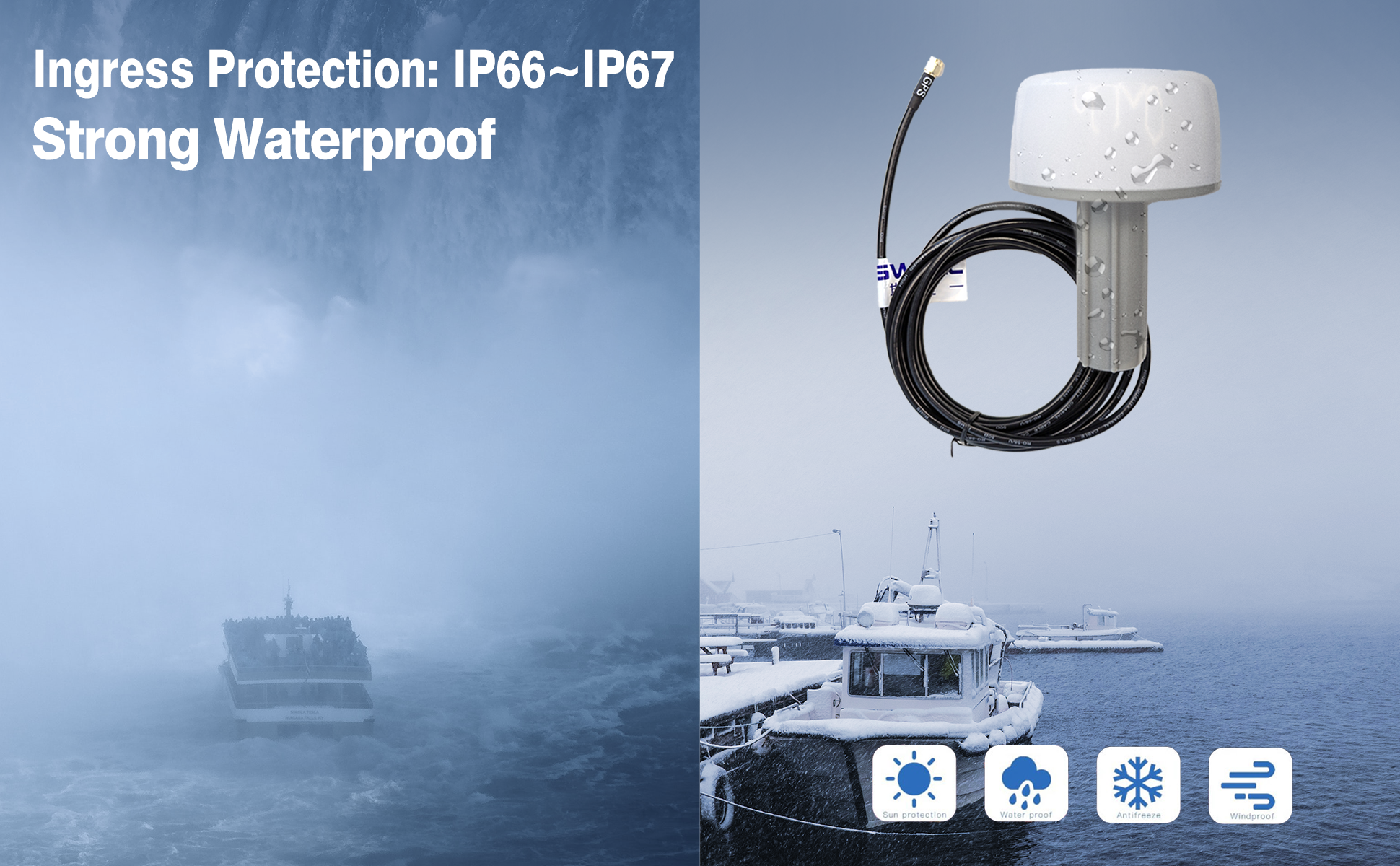

Ingress Protection: IP67
Vibration: 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly: ROHS Compliant

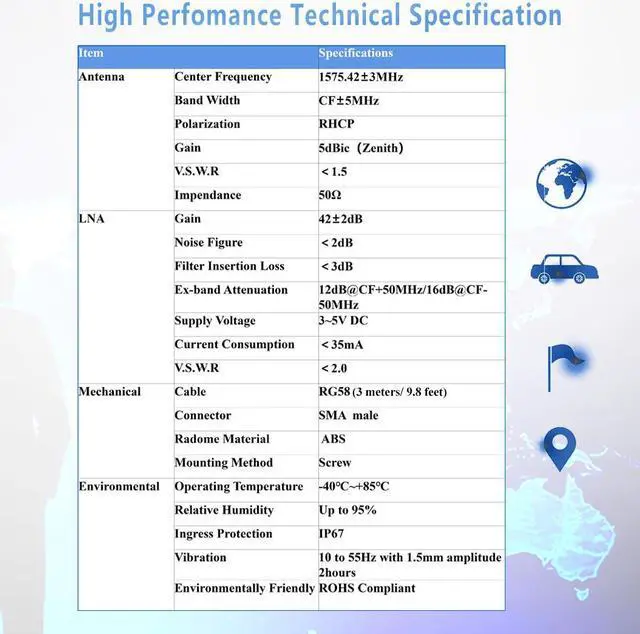

MASWELL Heavy Duty GPS Active Navigation Antenna
Antenna
Center Frequency: 1575.42±1MHz
Band Width: CF±5MHz
Polarization: RHCP
Gain: 5dBic(Zenith)
V.S.W.R :<1.5
Impendance: 50Ohms
LNA
Gain: 42±2dB
Noise Figure: <1.5dB
Filter Insertion Loss: <3dB
Ex-band Attenuation: 12dB@CF+50MHz/16dB@CF-50MHz
Supply Voltage: 3~5V DC
Current Consumption: 18~35mA
V.S.W.R: <2.0
Mechanical
Cable: RG58
Connector: SMA
Radome Material: ABS
Mounting Method: Screw
Environmental
Operating Temperature: -40°C~+85°C
Relative Humidity: Up to 95%
Ingress Protection: IP67
Vibration: 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
