MASWELL GPS Active Antenna Cylinder Screw Mount (Connector Type: MCX)
- GPS CENTER FREQUENCY: 1575.42±1MHz.Ideal for GPS signal boosting of the GPS device and other CPE devices! Ideal for car roof top or top box GPS signal boosting.
- PREMIUM QUALITY ANTENNA: Our Omni-Directional Screw Mount Antenna is made from durable material - reinforced plastic, copper wire. It will be a professional, durable accessory!
- MULTIPLE Applications: IoT, industrial controls, Smart power meter, Smart water meter, GNSS system.
- IP67 WATERPROOF: This antenna is completely waterproof (IP67) . Ideal for use outdoors, in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna.
- 100% Satisfaction Guarantee: We are committed to providing customers with the best product and services. If you have any question, please feel free to contact us and if the good is with any quality issue, we're happy to offer you a new one!
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

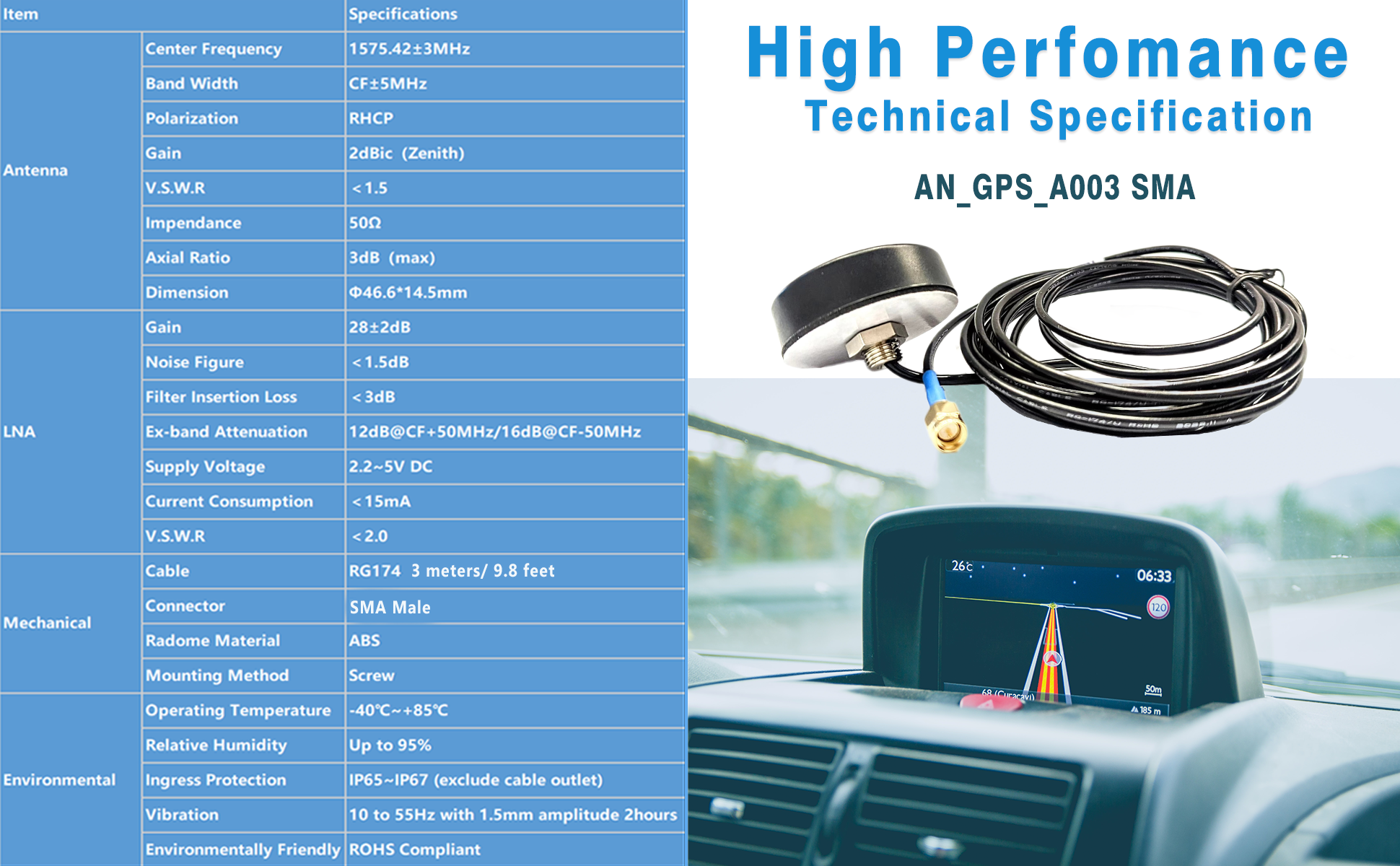

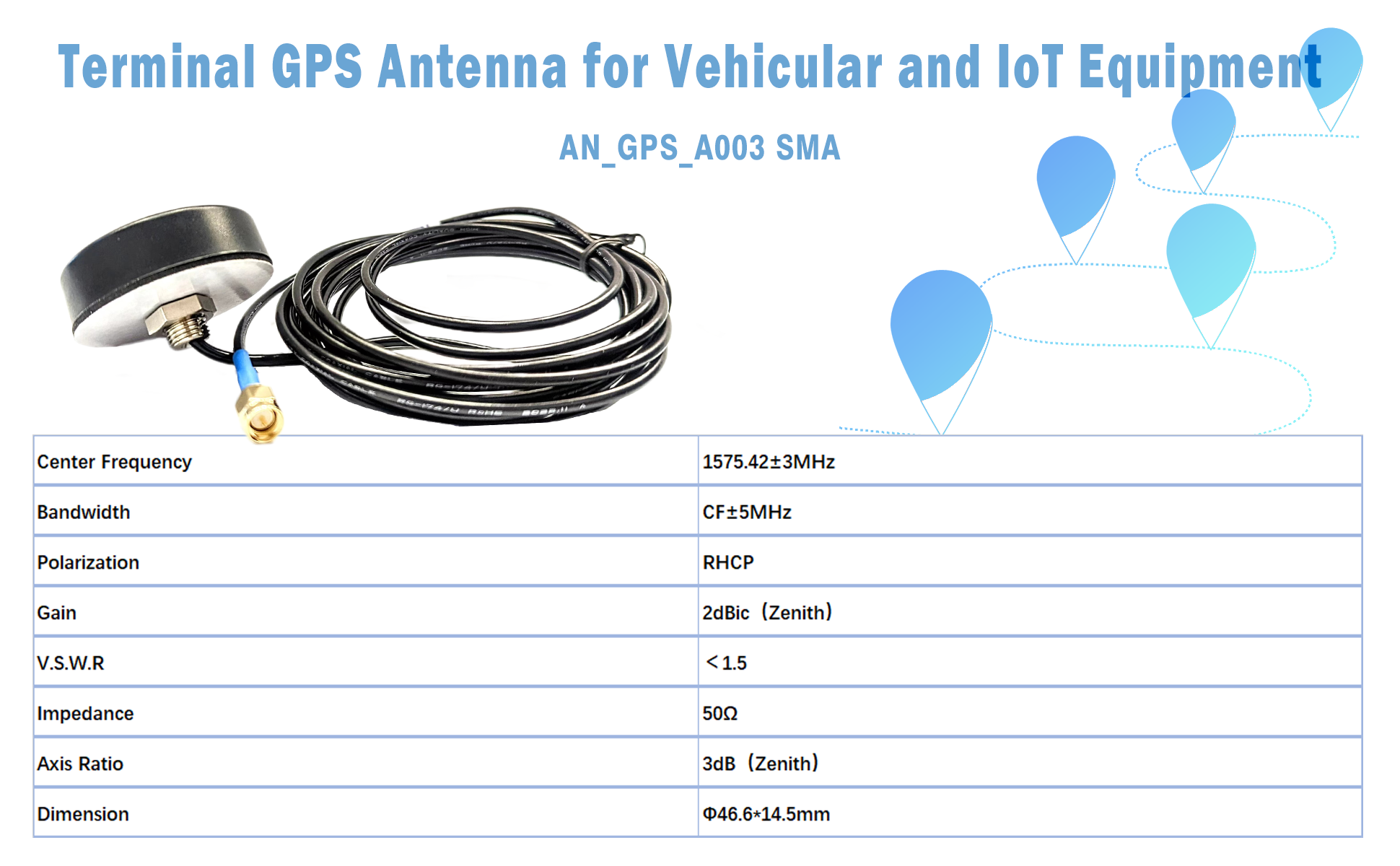

ITEM ID:AN_GPS_A003 SMA
MASWELL GPS Active Antenna Cylinder Screw Mount
Antenna
Center Frequency: 1575.42±1MHz
Band Width: CF±5MHz
Polarization: RHCP
Gain: 2dBic(Zenith)
V.S.W.R: LNA
Gain: 28±2dB
Noise Figure: Mechanical
Cable: RG174
Connector: SMA
Radome Material: ABS

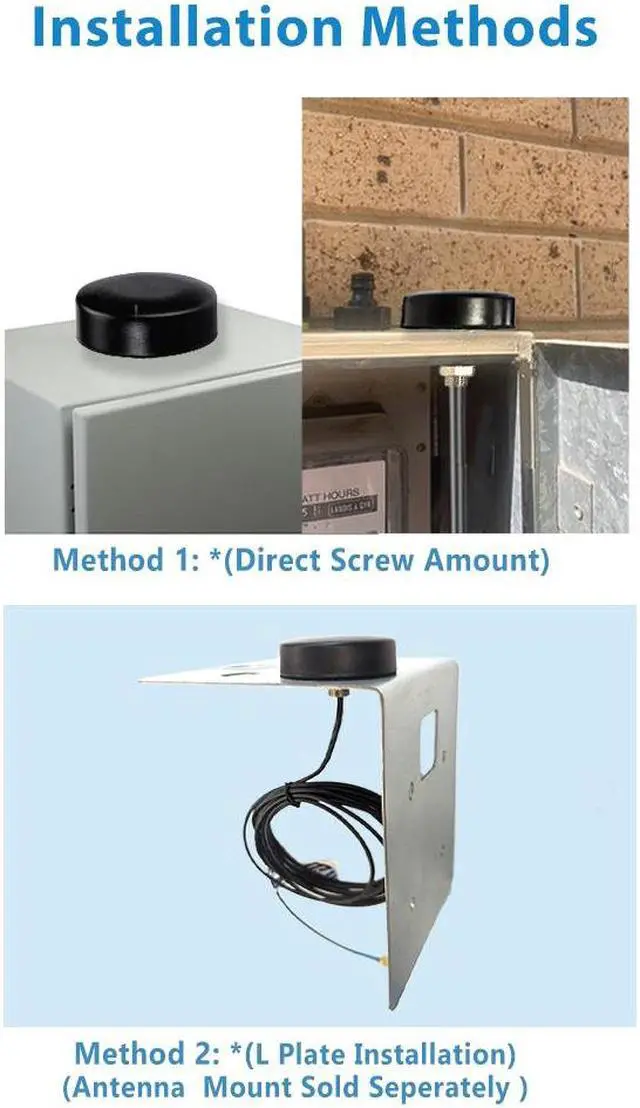

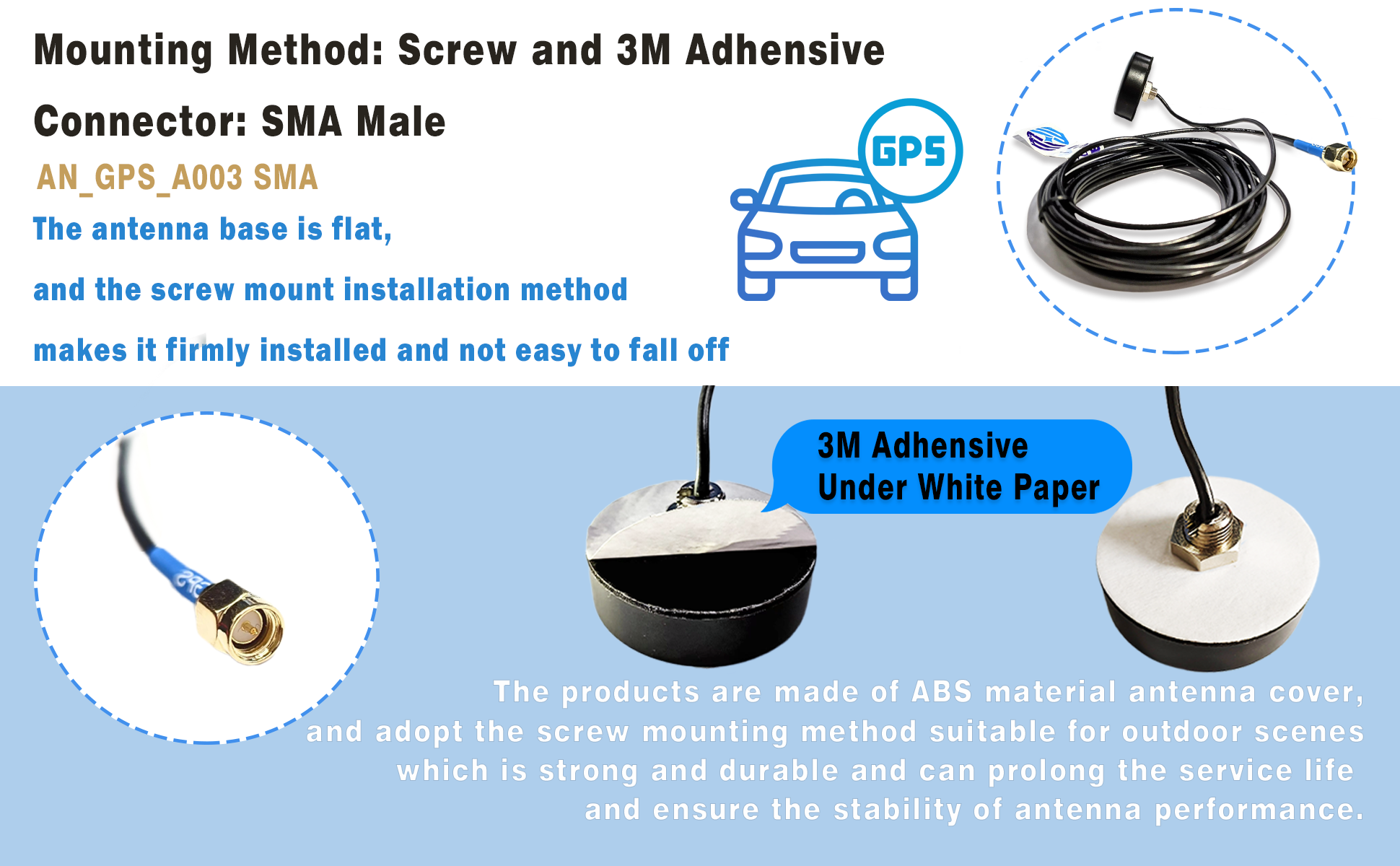

Mounting Method: Screw
Environmental
Operating Temperature: -40°C~+85°C
Relative Humidity: Up to 95%
Ingress Protection: IP65~IP67 (exclude cable outlet)
Vibration: 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
MASWELL GPS Active Antenna Cylinder Screw Mount
Antenna
Center Frequency: 1575.42±1MHz
Band Width: CF±5MHz
Polarization: RHCP
Gain: 2dBic(Zenith)
V.S.W.R: LNA
Gain: 28±2dB
Noise Figure: Mechanical
Cable: RG174
Connector: SMA
Radome Material: ABS
Mounting Method: Screw
Environmental
Operating Temperature: -40°C~+85°C
Relative Humidity: Up to 95%
Ingress Protection: IP65~IP67 (exclude cable outlet)
Vibration: 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
