ITEM ID:AN_GPS_LTE_MIMO_046

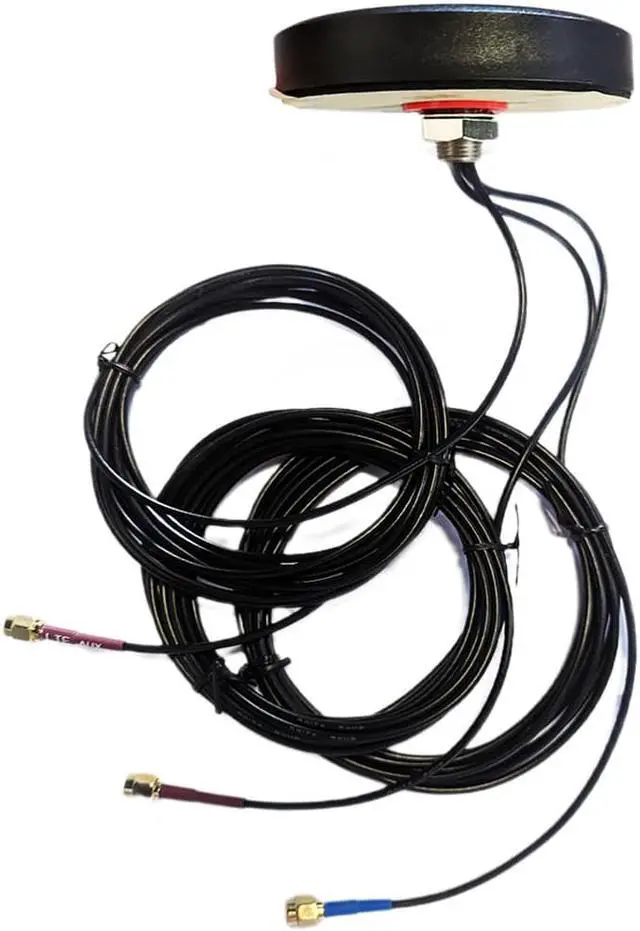

Maswell GPS+LTE MIMO Combination Antenna

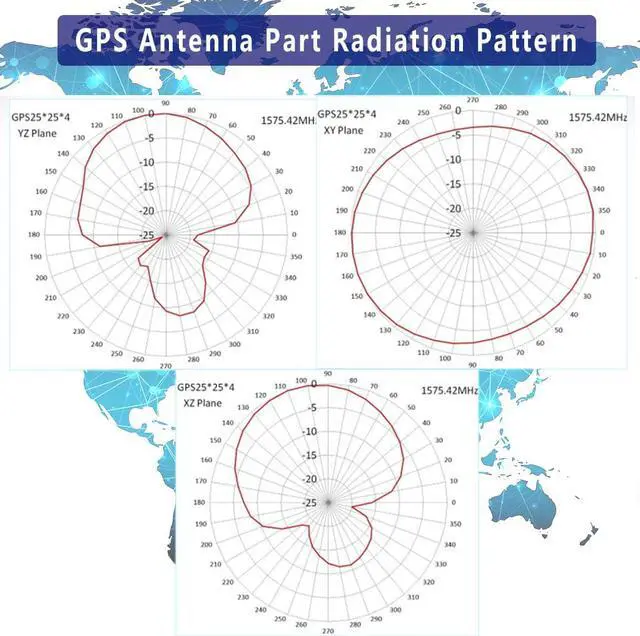

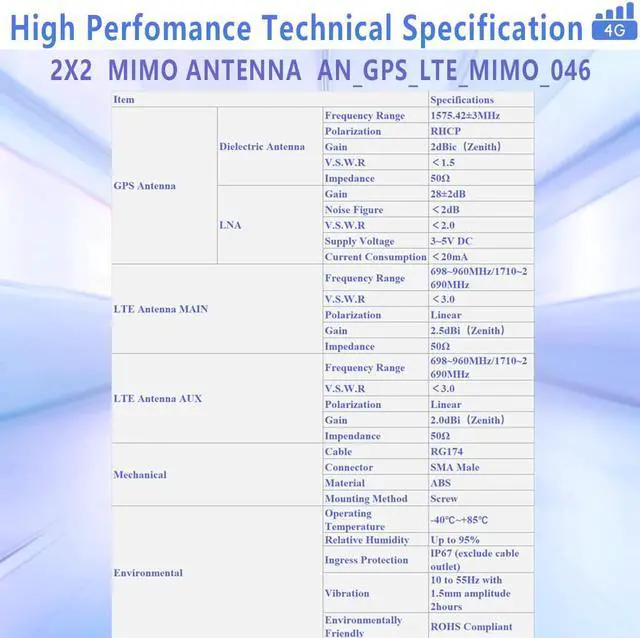

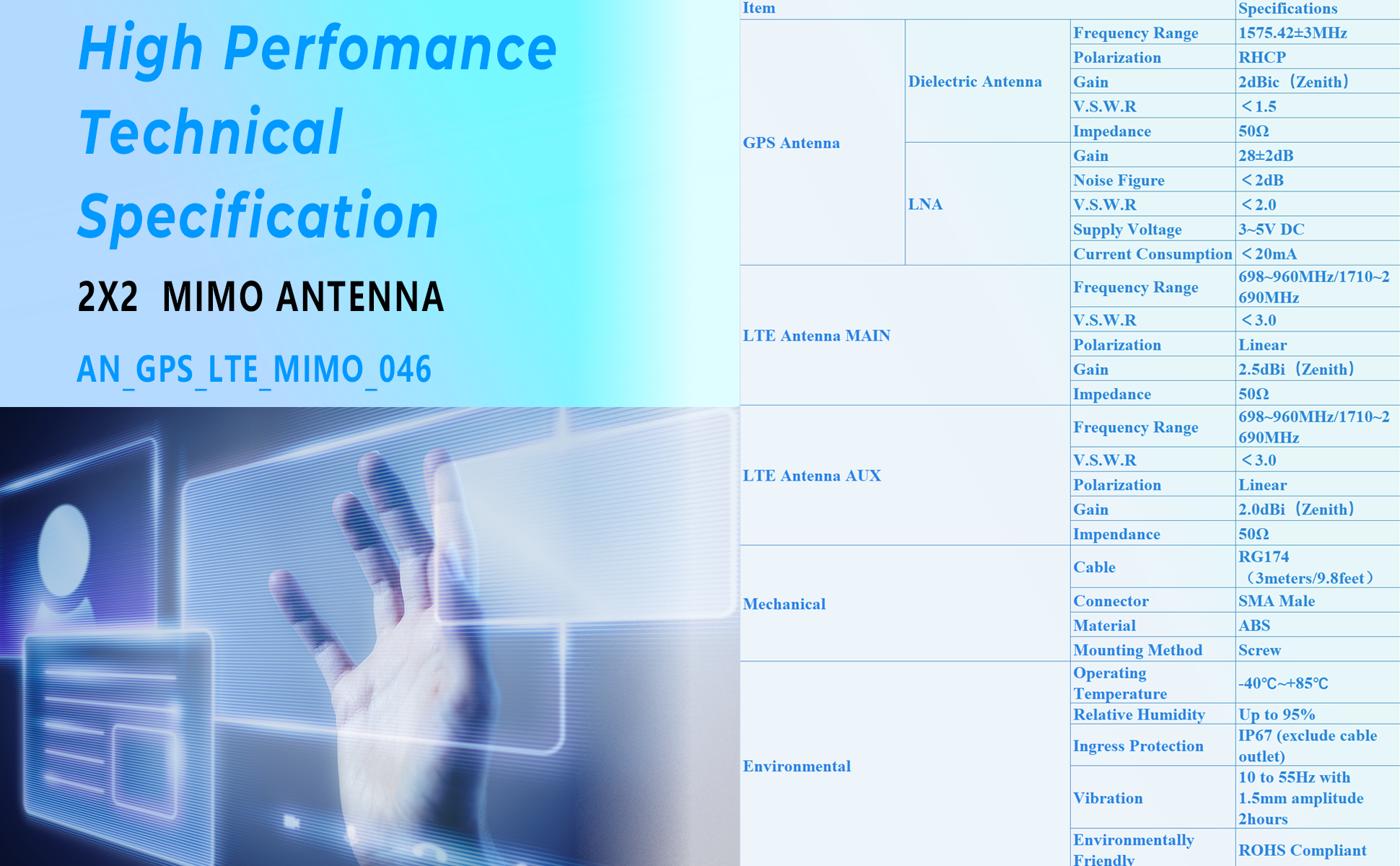

GPS Antenna
Dielectric Antenna
Center Frequency: 1575.42±3MHz
Polarization: RHCP
Gain: 2dBic (Zenith)
V.S.W.R: <1.5
Impendance: 50Ohms
LNA
Gain: 28±2dB
Noise Figure: <2dB
V.S.W.R: <2.0
Supply Voltage: 3~5V DC
Current Consumption: <20mA

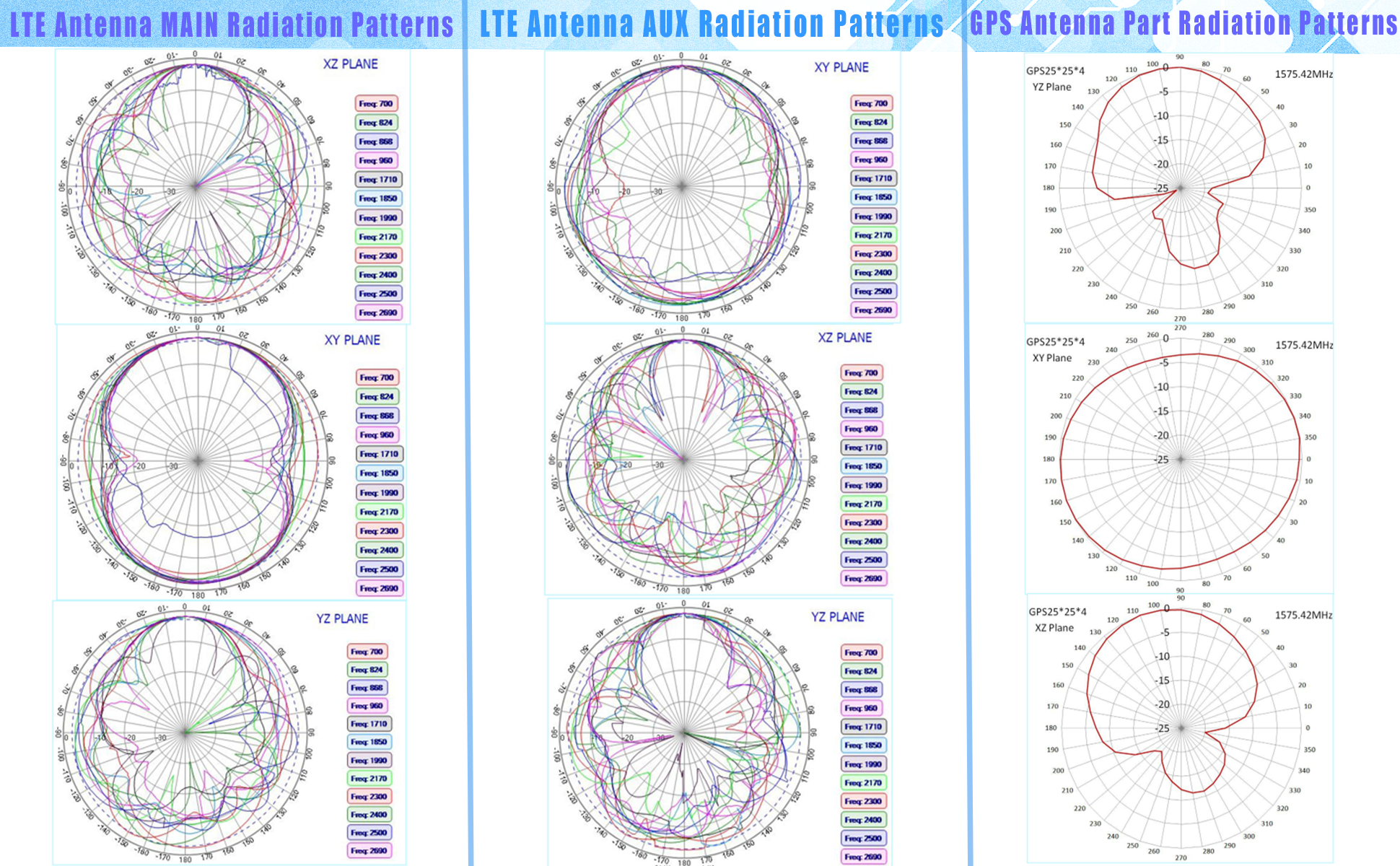

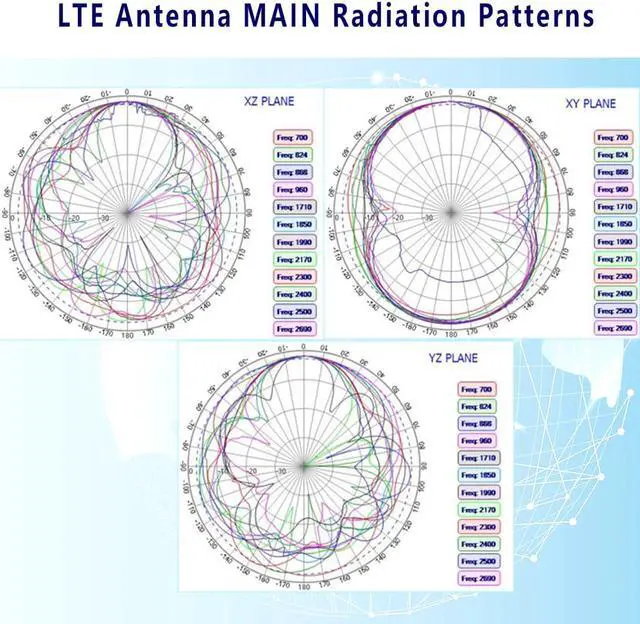

LTE Antenna MAIN
Frequency Range: 698~960MHz/1710~2690MHz
V.S.W.R: <3.0
Polarization: Linear
Gain: 2.5dBi (Zenith)
Impedance: 50O

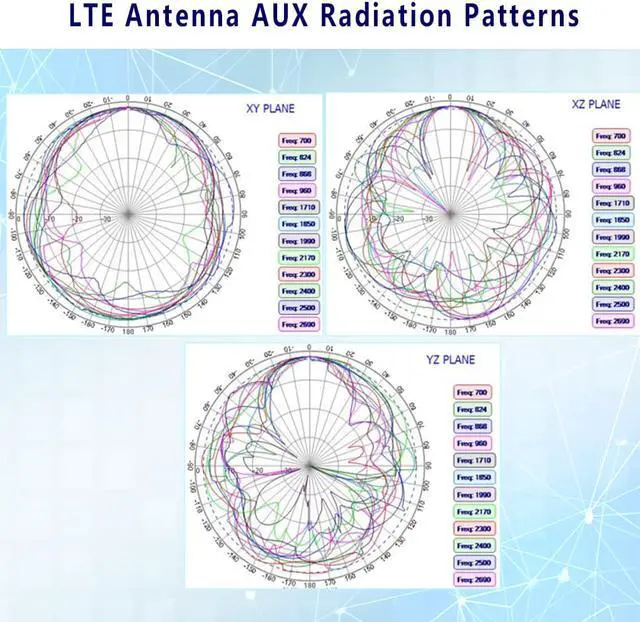

LTE Antenna AUX
Frequency Range: 698~960MHz/1710~2690MHz
V.S.W.R: <3.0
Polarization: Linear
Gain: 2.0dBi (Zenith)
Impendance: 50O

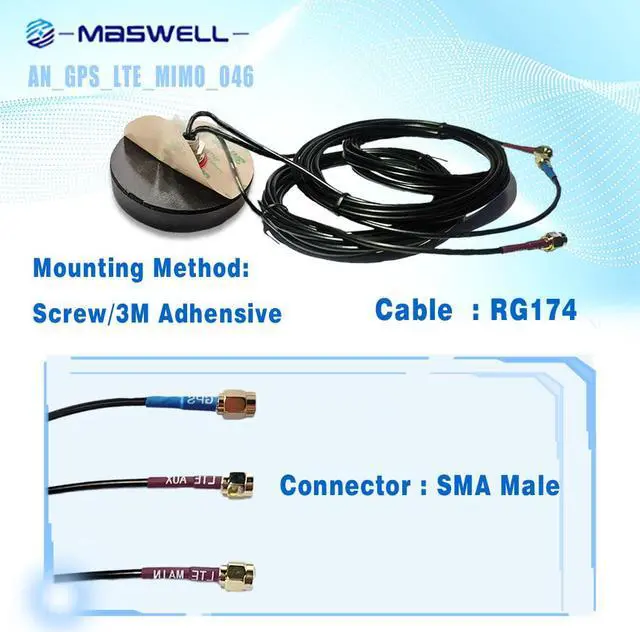

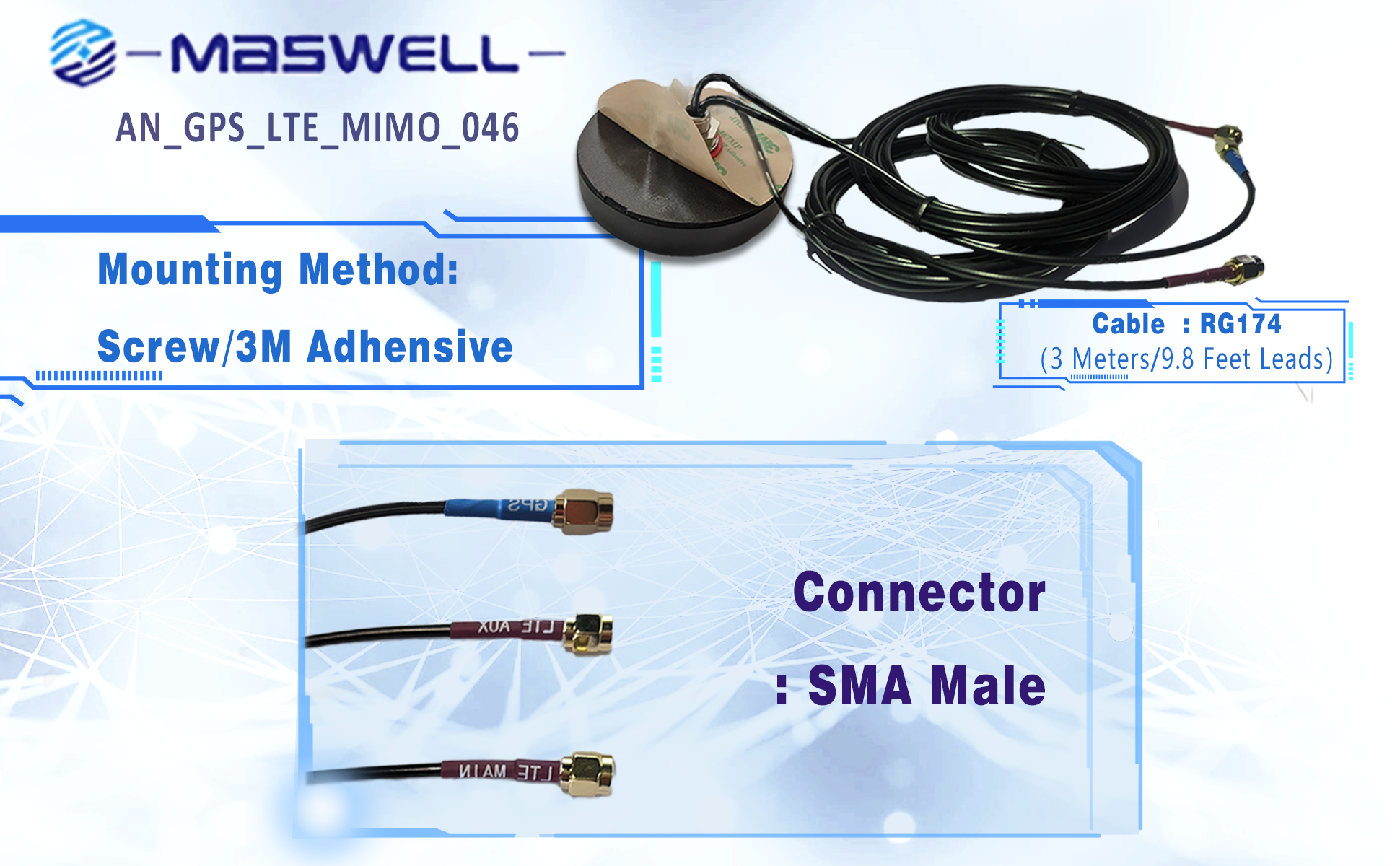

Mechanical
Cable: RG174
Connector: SMA
Material: ABS
Mounting Method: Screw
Environmental
Operating Temperature: -40°C~+85°C
Relative Humidity: Up to 95%

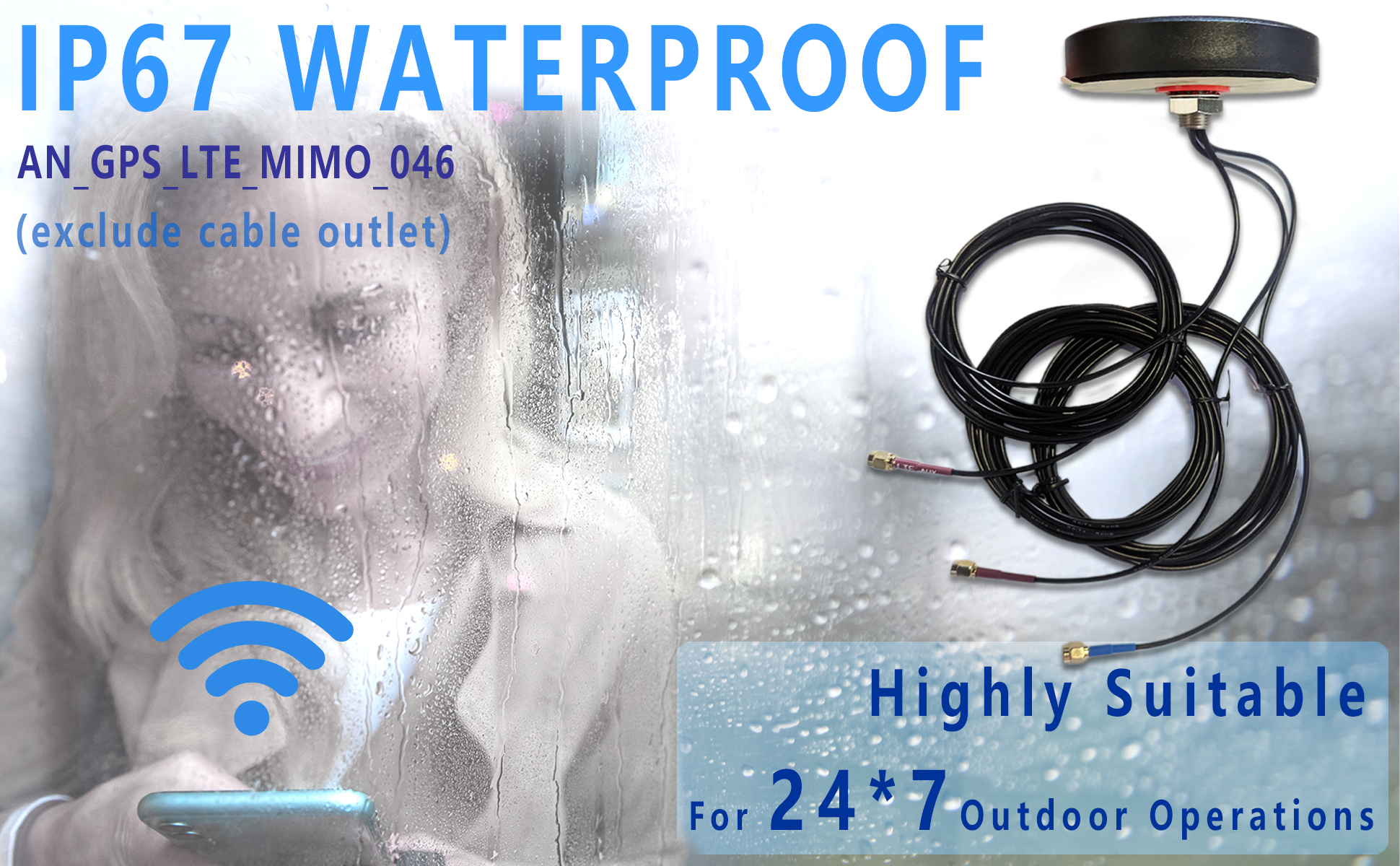

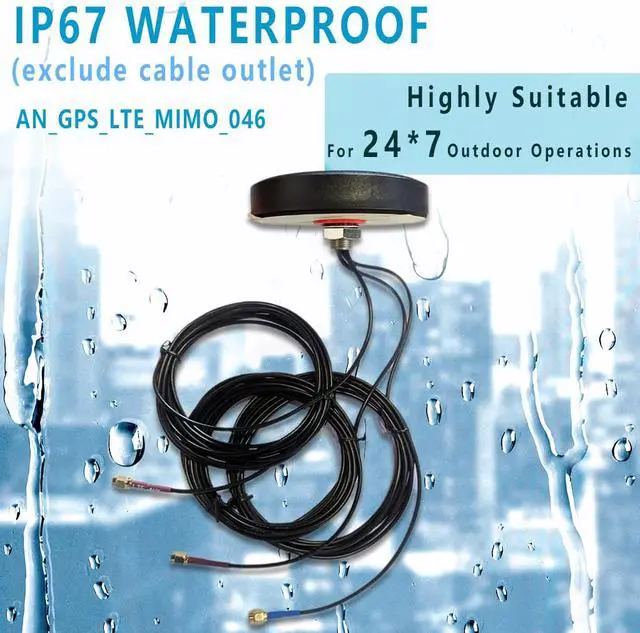

Ingress Protection: IP67 (exclude cable outlet)
Vibration: 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
