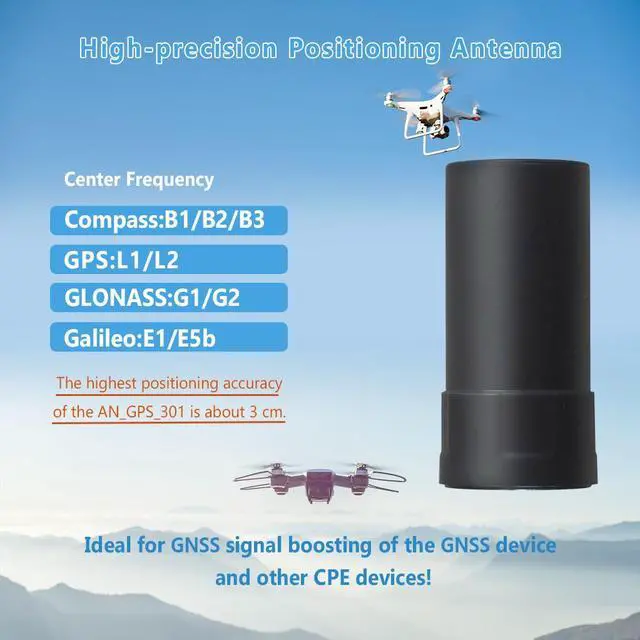

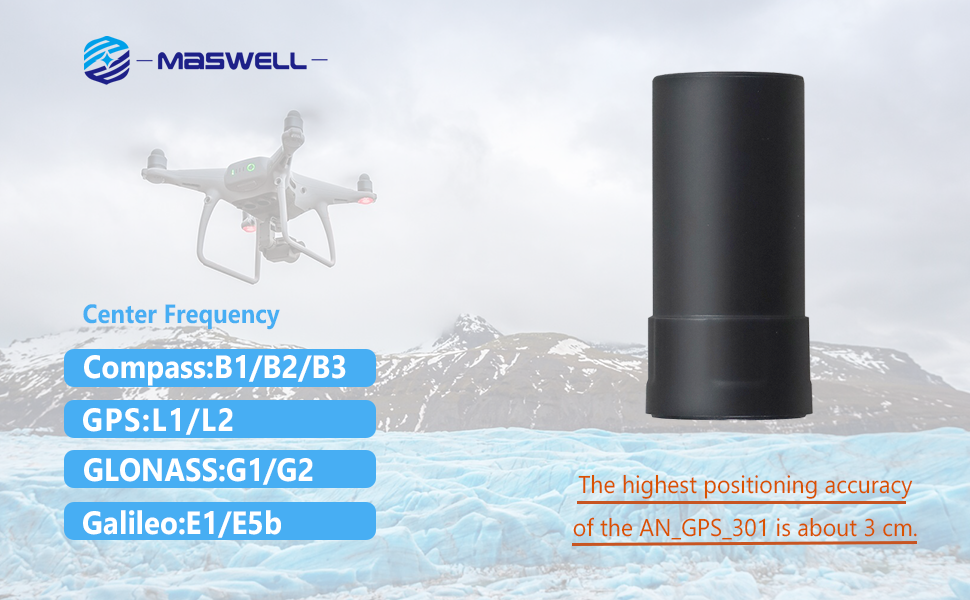

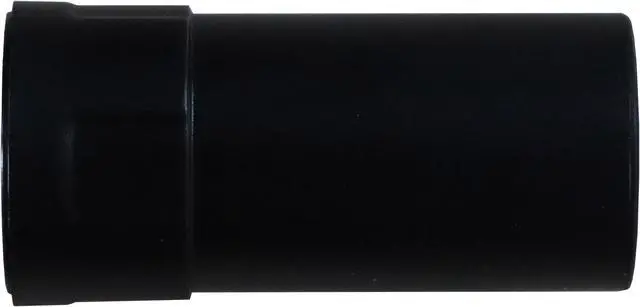

GNSS Helical Antenna for Galileo, GLONASS, GPS
- Support:Compass:B1/B2/B3; GPS:L1/L2; GLONASS:G1/G2; Galileo:E1/E5b
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

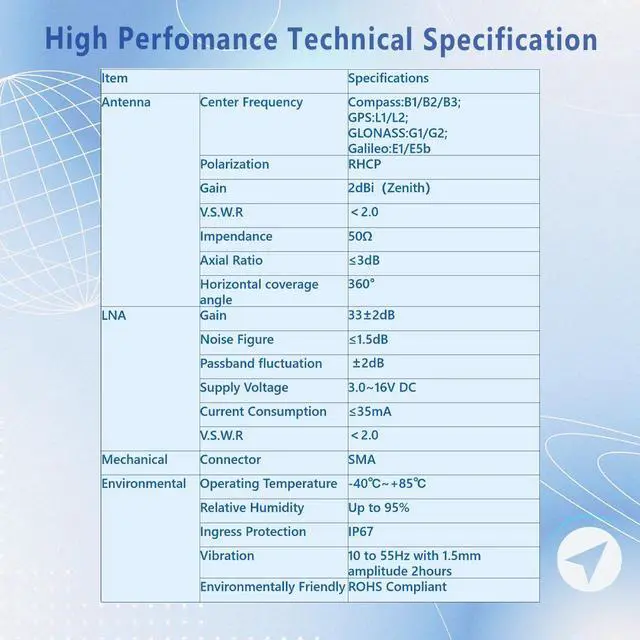

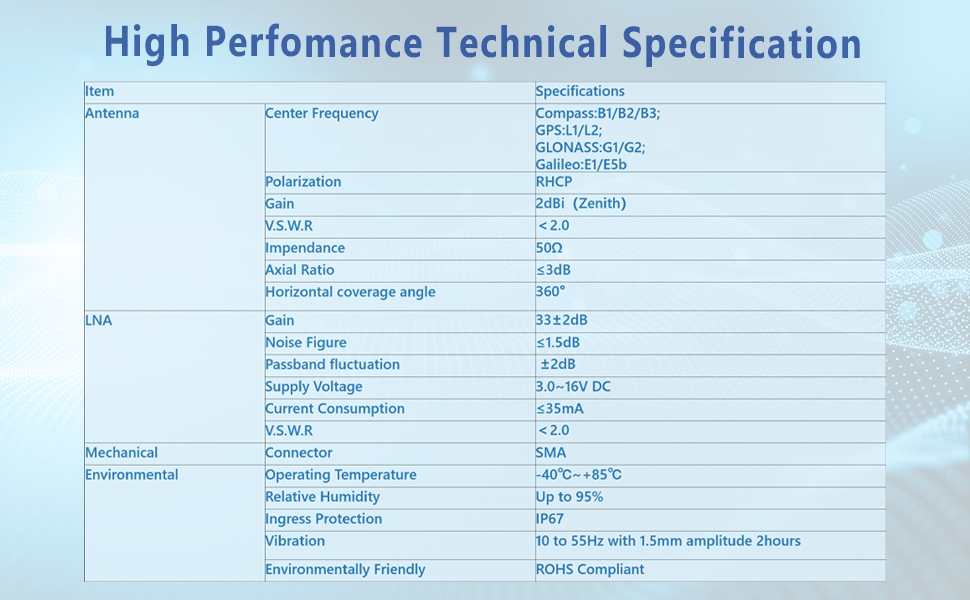

Center Frequency Compass: B1/B2/B3;
GPS: L1/L2; GLONASS: G1/G2; Galileo: E1/E5b
Polarization: RHCP
Gain: 2dBi (Zenith)
V. S. W.
R: <2.0
Impendance: 50O
Axial Ratio: 3dB
Horizontal coverage angle: 360°
LNA
Gain: 33±2dB
Noise Figure: 1.5 dB
Passband fluctuation: ±2dB
Supply Voltage: 3.0 ~16V DC
Current Consumption: 35mA
V. S. W.
R: <2.0
Mechanical

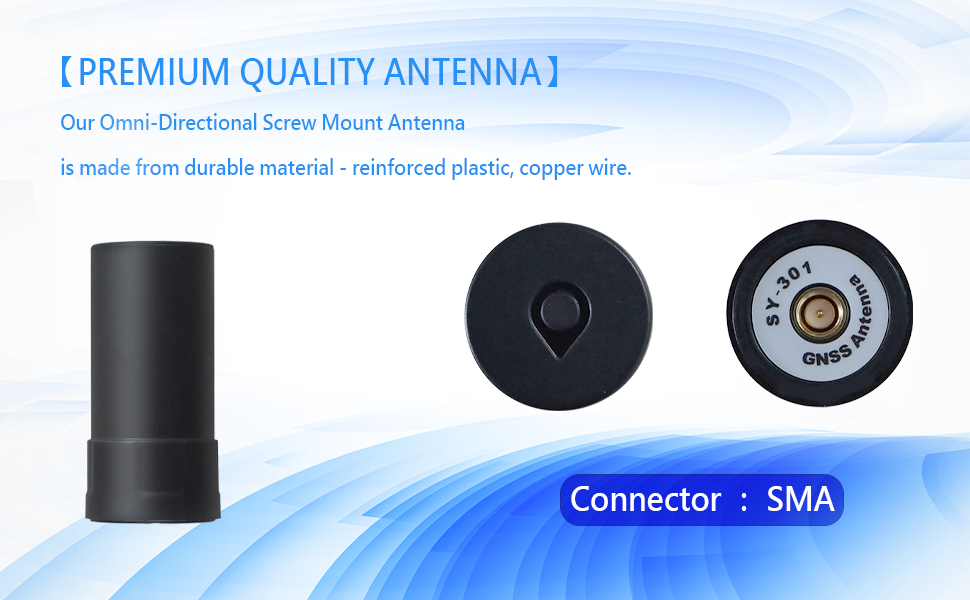

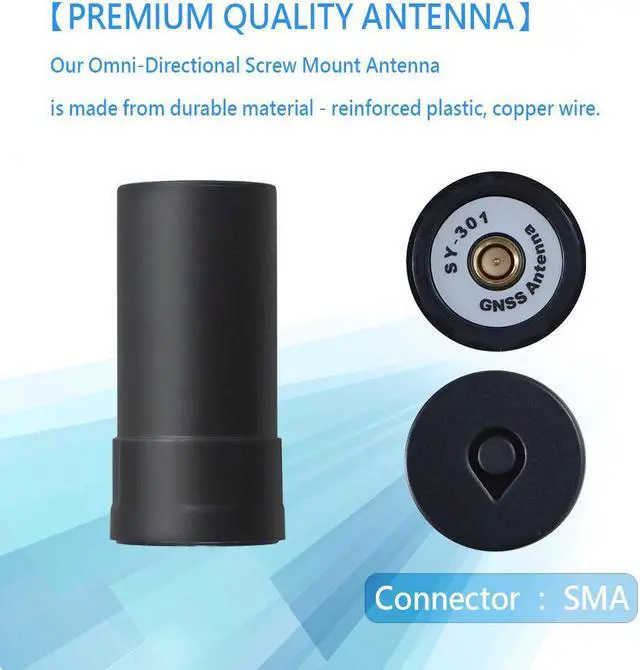

Connector: SMA
Environmental
Operating Temperature: -40°C~+85°C
Relative Humidity: Up to 95%

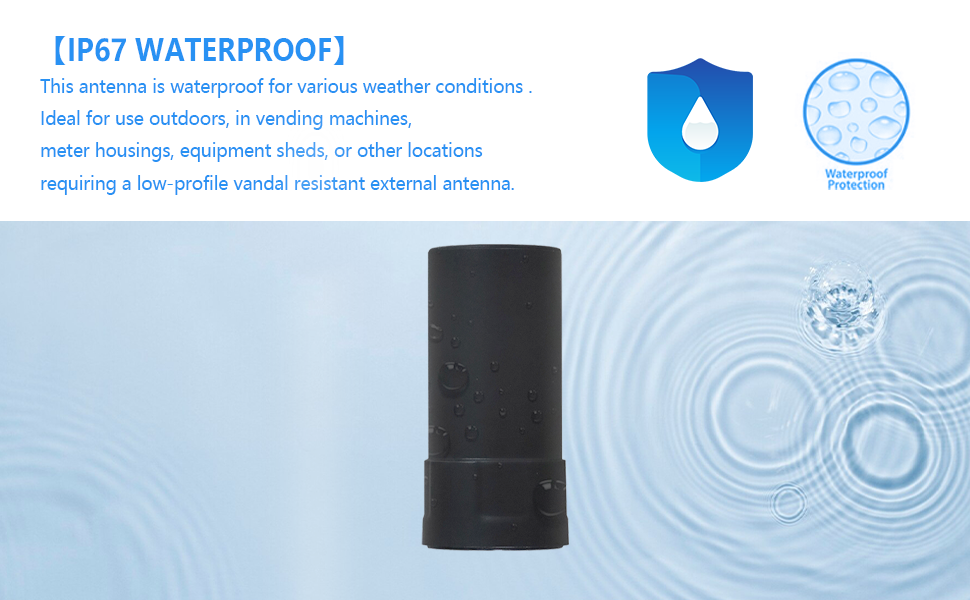

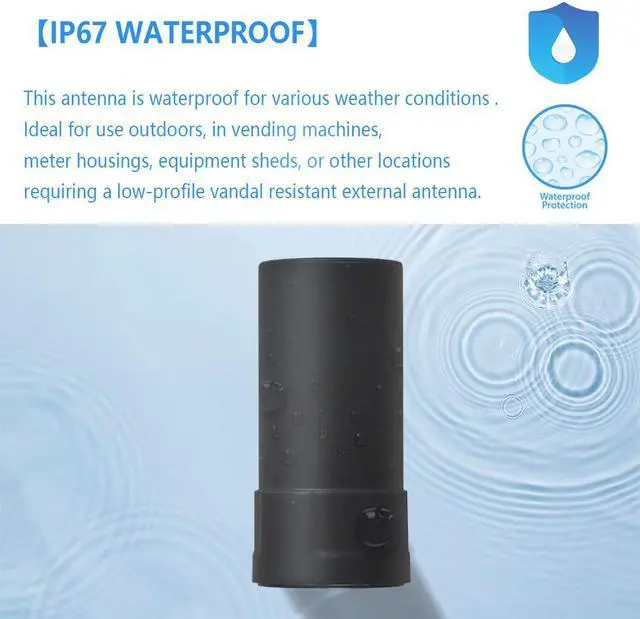

Ingress Protection: IP67
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
GPS: L1/L2; GLONASS: G1/G2; Galileo: E1/E5b
Polarization: RHCP
Gain: 2dBi (Zenith)
V. S. W.
R: <2.0
Impendance: 50O
Axial Ratio: 3dB
Horizontal coverage angle: 360°
LNA
Gain: 33±2dB
Noise Figure: 1.5 dB
Passband fluctuation: ±2dB
Supply Voltage: 3.0 ~16V DC
Current Consumption: 35mA
V. S. W.
R: <2.0
Mechanical
Connector: SMA
Environmental
Operating Temperature: -40°C~+85°C
Relative Humidity: Up to 95%
Ingress Protection: IP67
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
