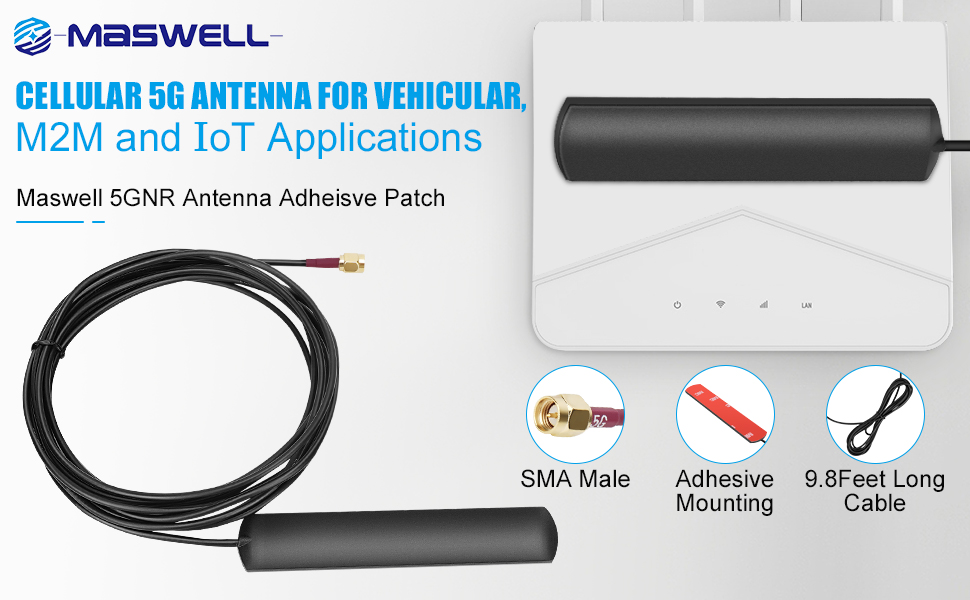

Maswell 5G NR Antenna Adhesive Patch for 3G, 4G, 5G, LTE, Wi-Fi Antenna with Wide Frenquency Range 617~960/1710~2690/3300~3800/4400~4900MHz
- Frequency Range: 617~960/1710~2690/3300~3800/4400~4900MHz
- Gain: 2.0dBi(Zenith)

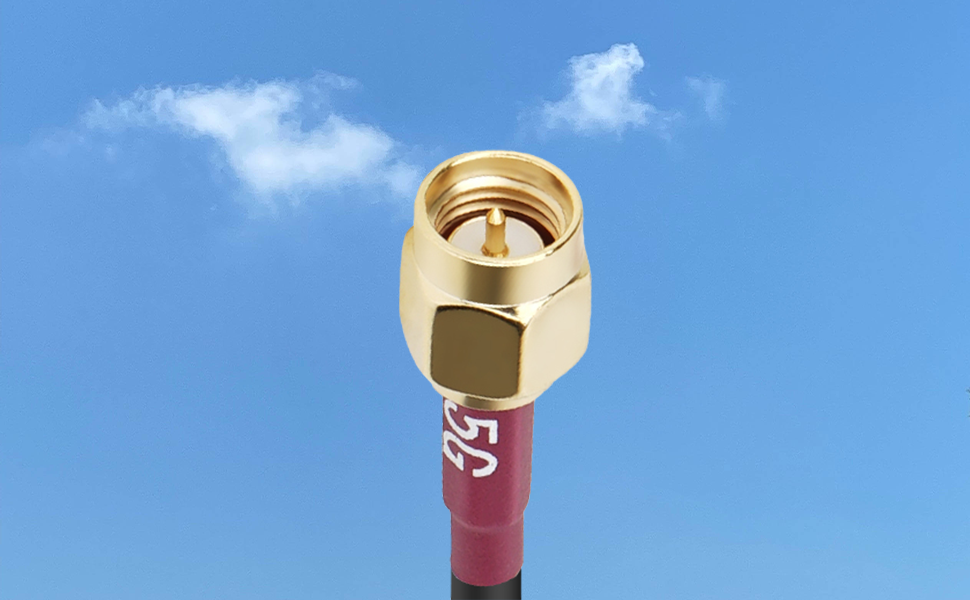

- Connector: SMA ( accept customization)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

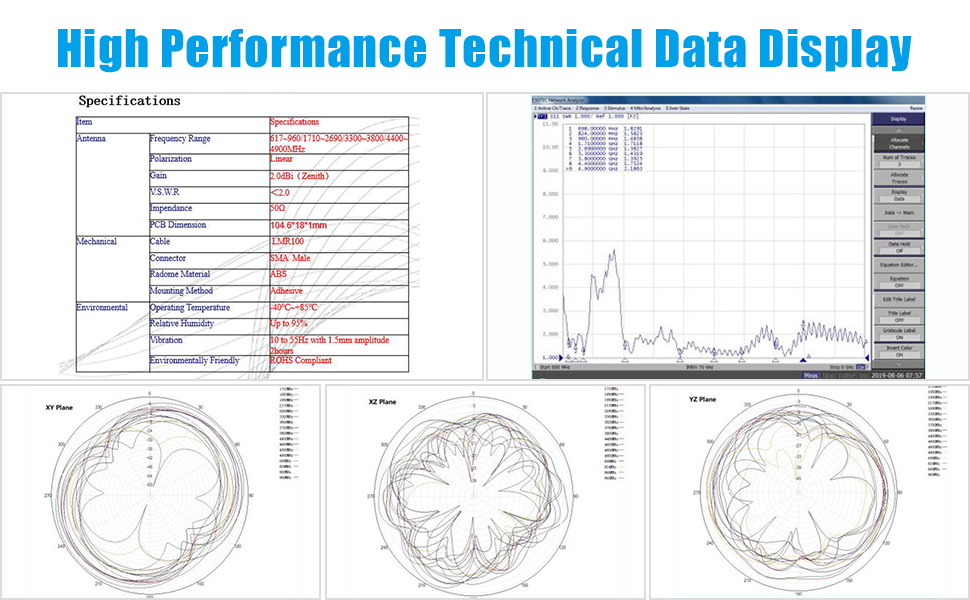

Antenna

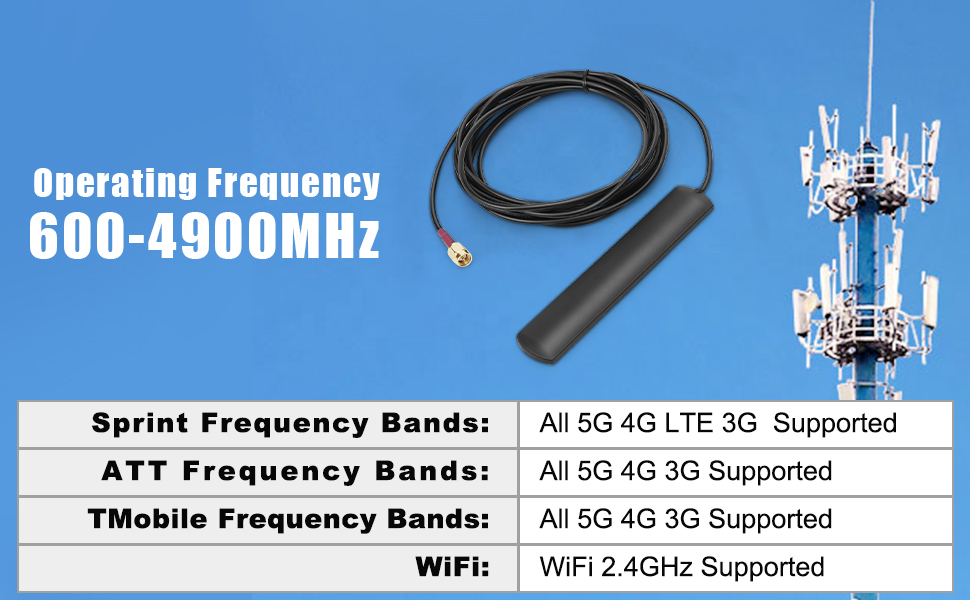

Frequency Range: 617~960/1710~2690/3300~3800/4400~4900MHz
Polarization: Linear
Gain: 2.0 dBi (Zenith)
V. S. W.
R: <2.0
Impendance: 50

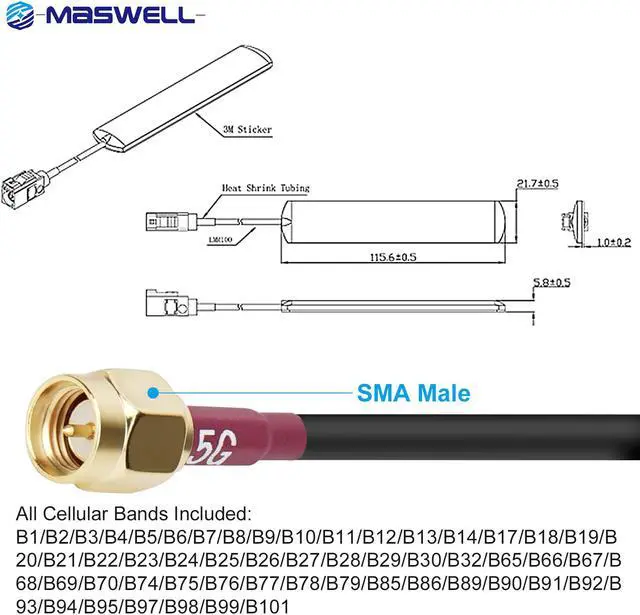

PCB Dimension: 104.6 *18*1mm
Mechanical

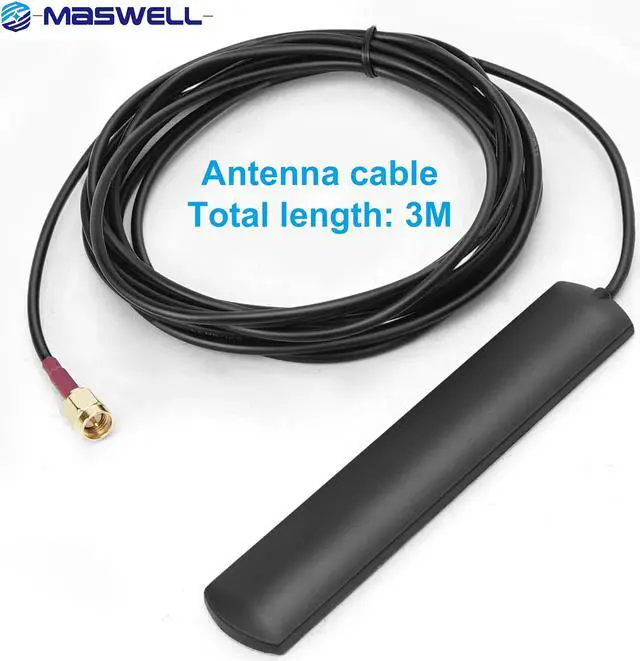

Cable: LMR100 or others
Connector: FAKRA/SMA
Radome Material: ABS

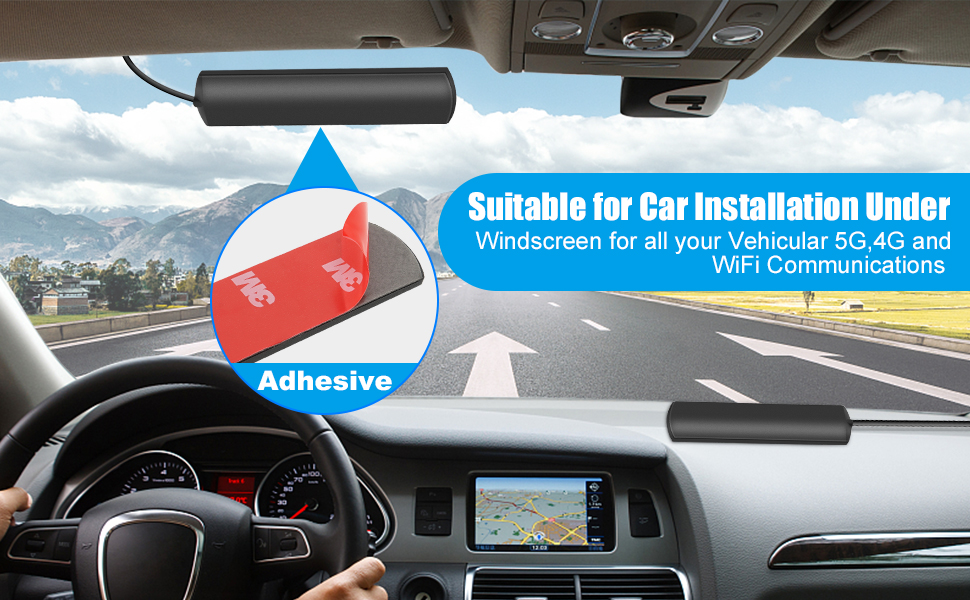

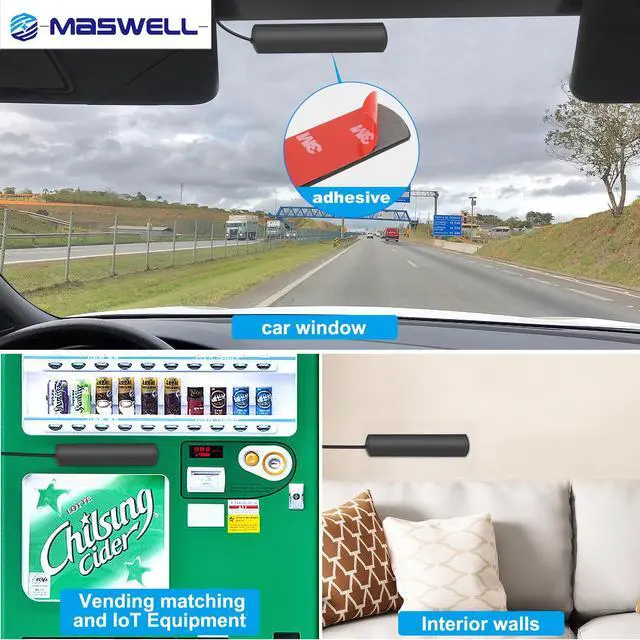

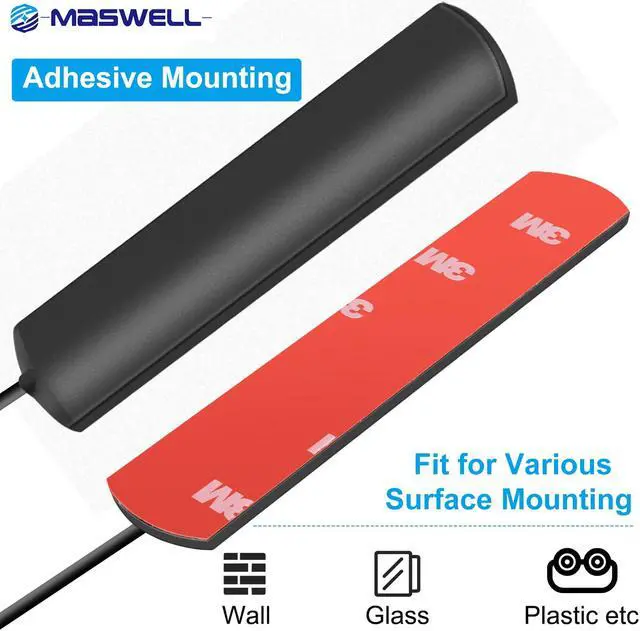

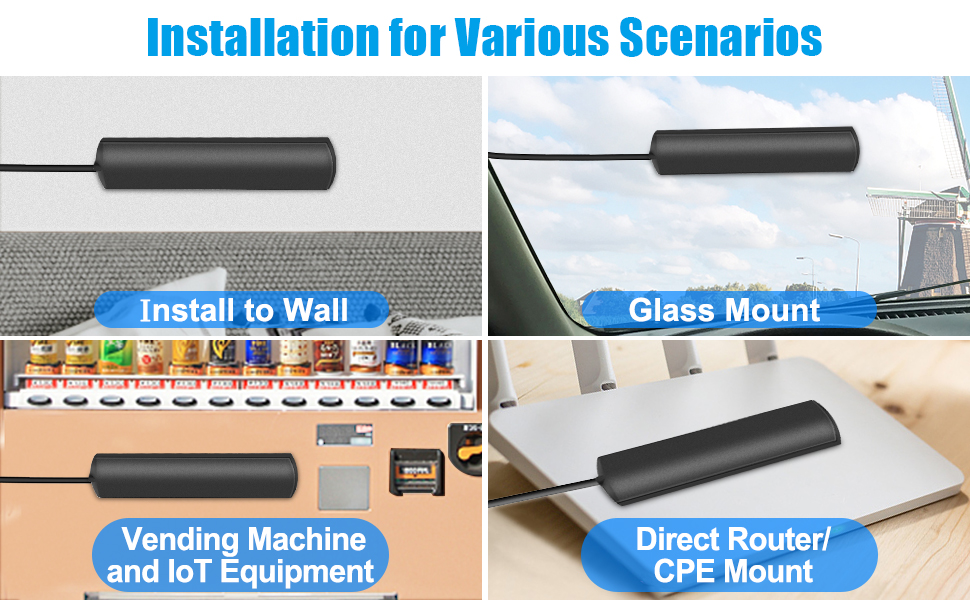

Mounting Method: Adhesive
Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
Frequency Range: 617~960/1710~2690/3300~3800/4400~4900MHz
Polarization: Linear
Gain: 2.0 dBi (Zenith)
V. S. W.
R: <2.0
Impendance: 50
PCB Dimension: 104.6 *18*1mm
Mechanical
Cable: LMR100 or others
Connector: FAKRA/SMA
Radome Material: ABS
Mounting Method: Adhesive
Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
