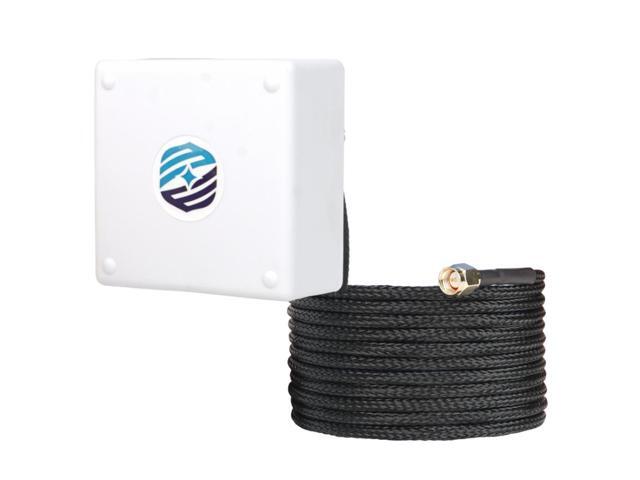

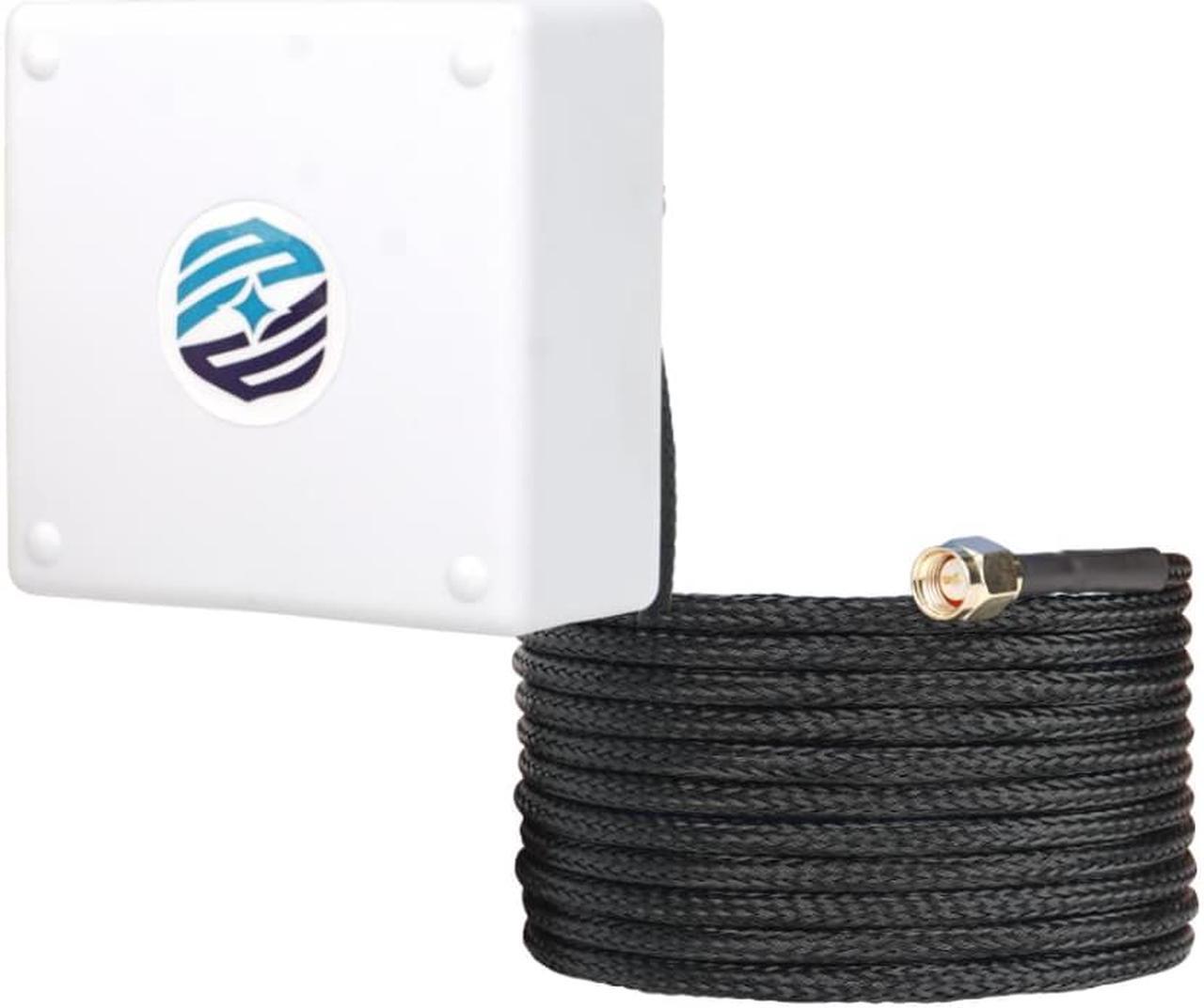

GNSS IP67 Waterproof GNSS High Gain Positioning Antenna
- IP 67, fully waterproof.
- ASA material has strong weather resistance.
- It is UV resistant.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

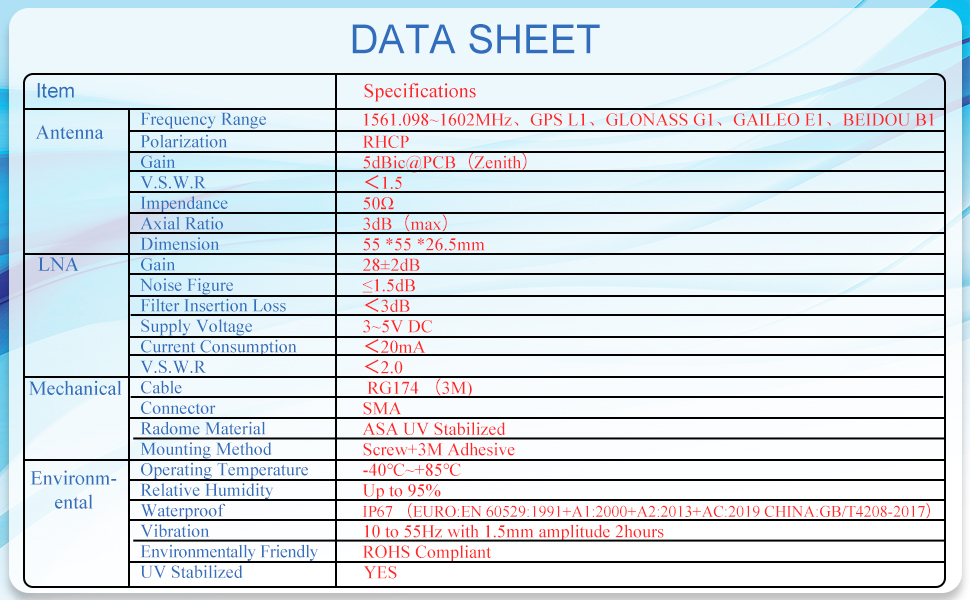

Frequency Range: 1561.098 ~1602MHz/GPS L1/GLONASS G1/GAILEO E1/BEIDOU B1
Polarization: RHCP
Gain: 5dBic@PCB (Zenith)
V. S. W. R: <1.5
Impendance: 50
Axial Ratio: 3dB (max)

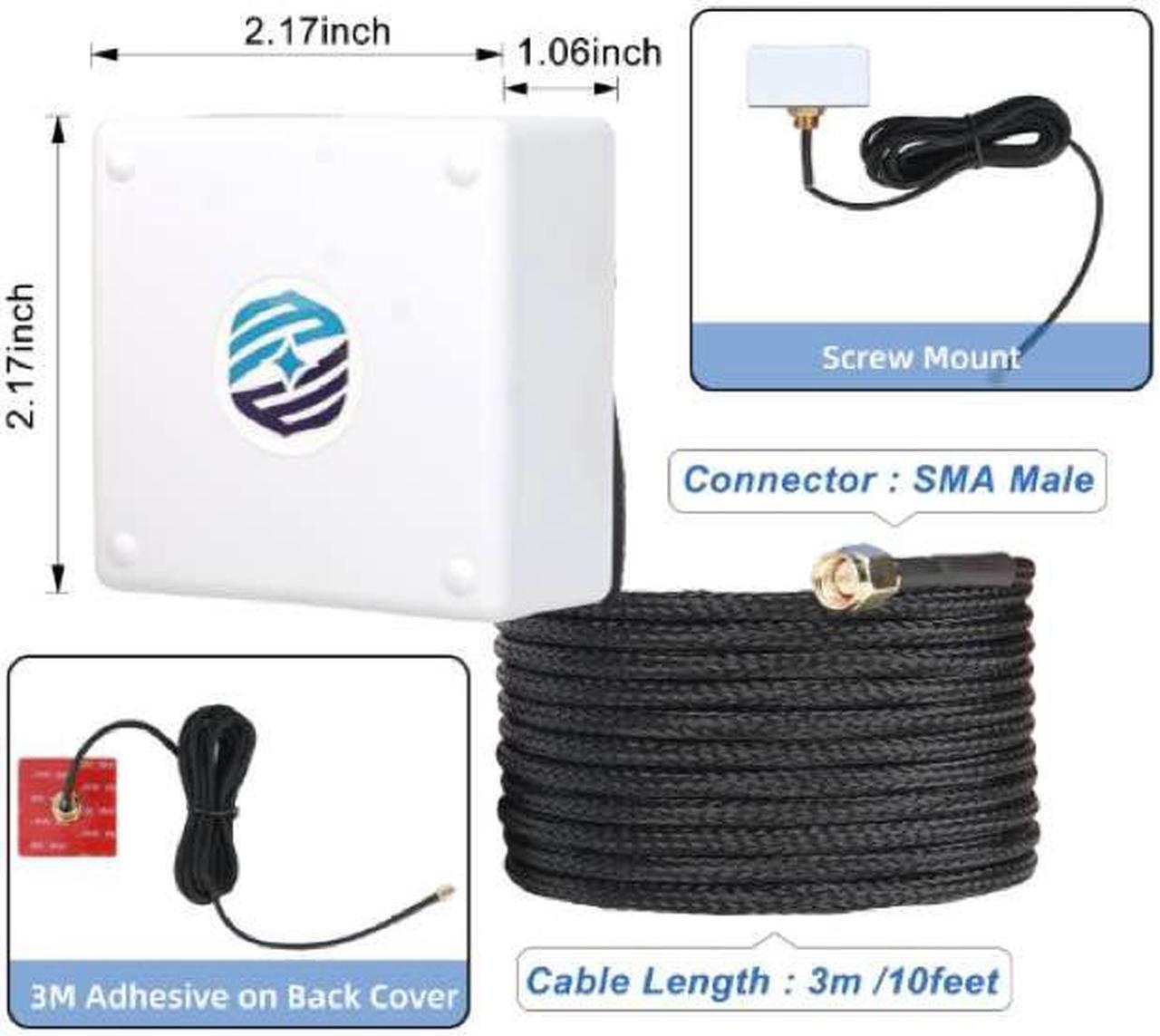

Dimension: 55 *55 * 26.5 mm
Gain: 28±2dB
Noise Figure: 1.5 dB
Filter Insertion Loss: <3dB
Supply Voltage: 3~5V DC
Current Consumption: <20mA
V. S. W. R: <2.0
Cable: RG174 (3M)
Connector: SMA
Radome Material: ASA

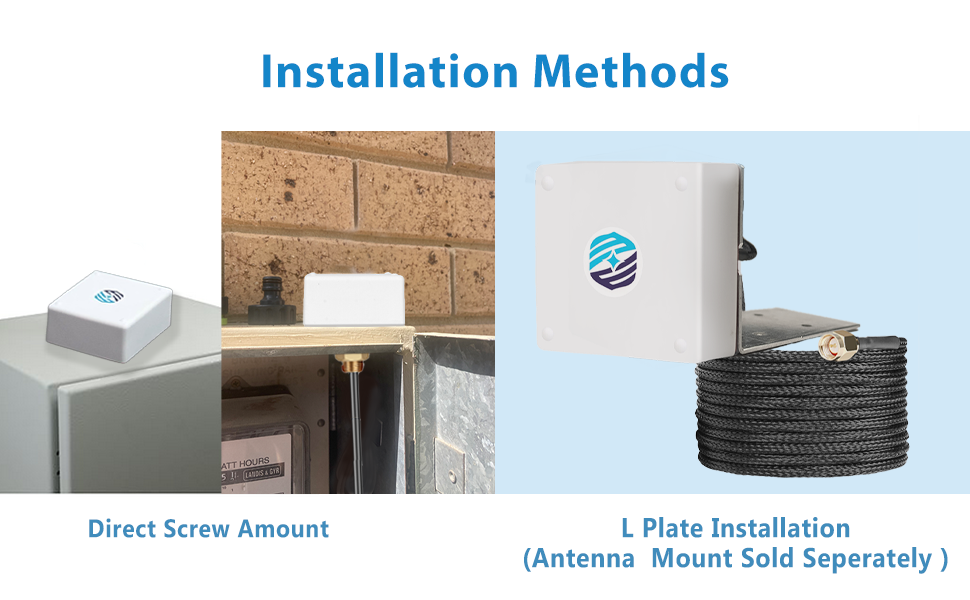

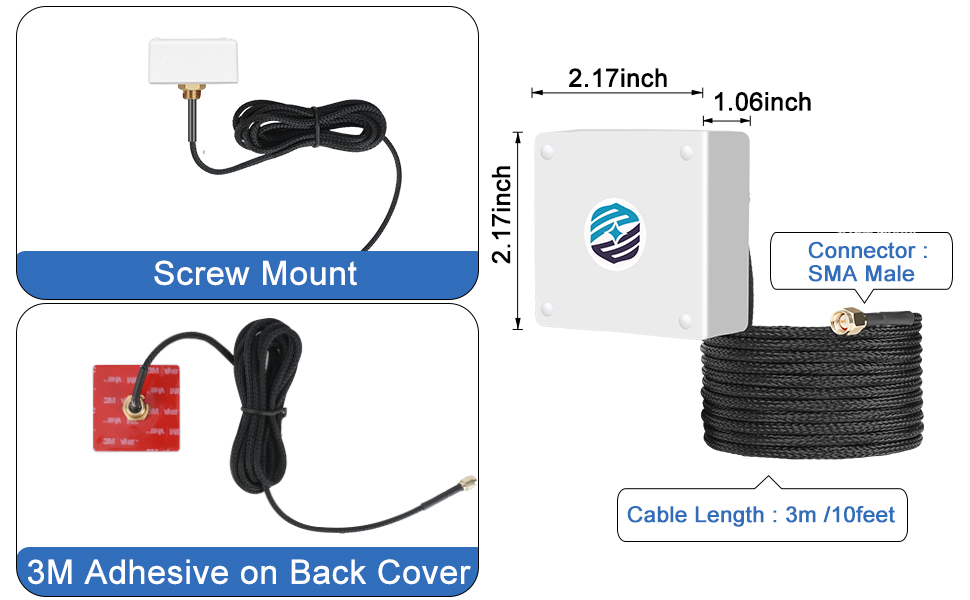

Mounting Method: Screw+3M Adhesive
Operating Temperature: -40~+85
Relative Humidity: Up to 95%

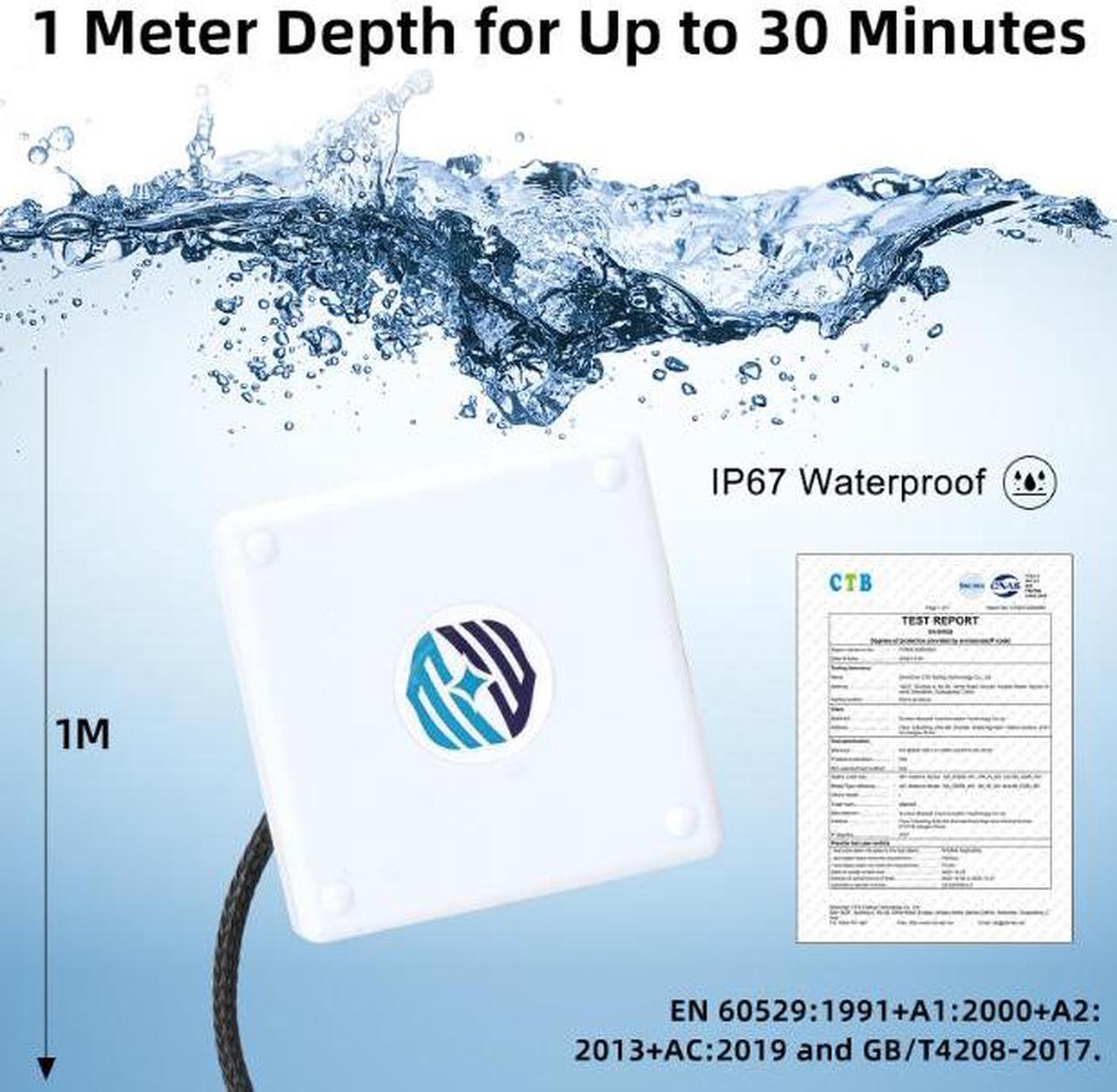

Waterproof: IP67 (EURO: EN 60529:1991 +A 1:2000 +A 2:2013 +AC: 2019 CHINA: GB/T4208-2017)
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant

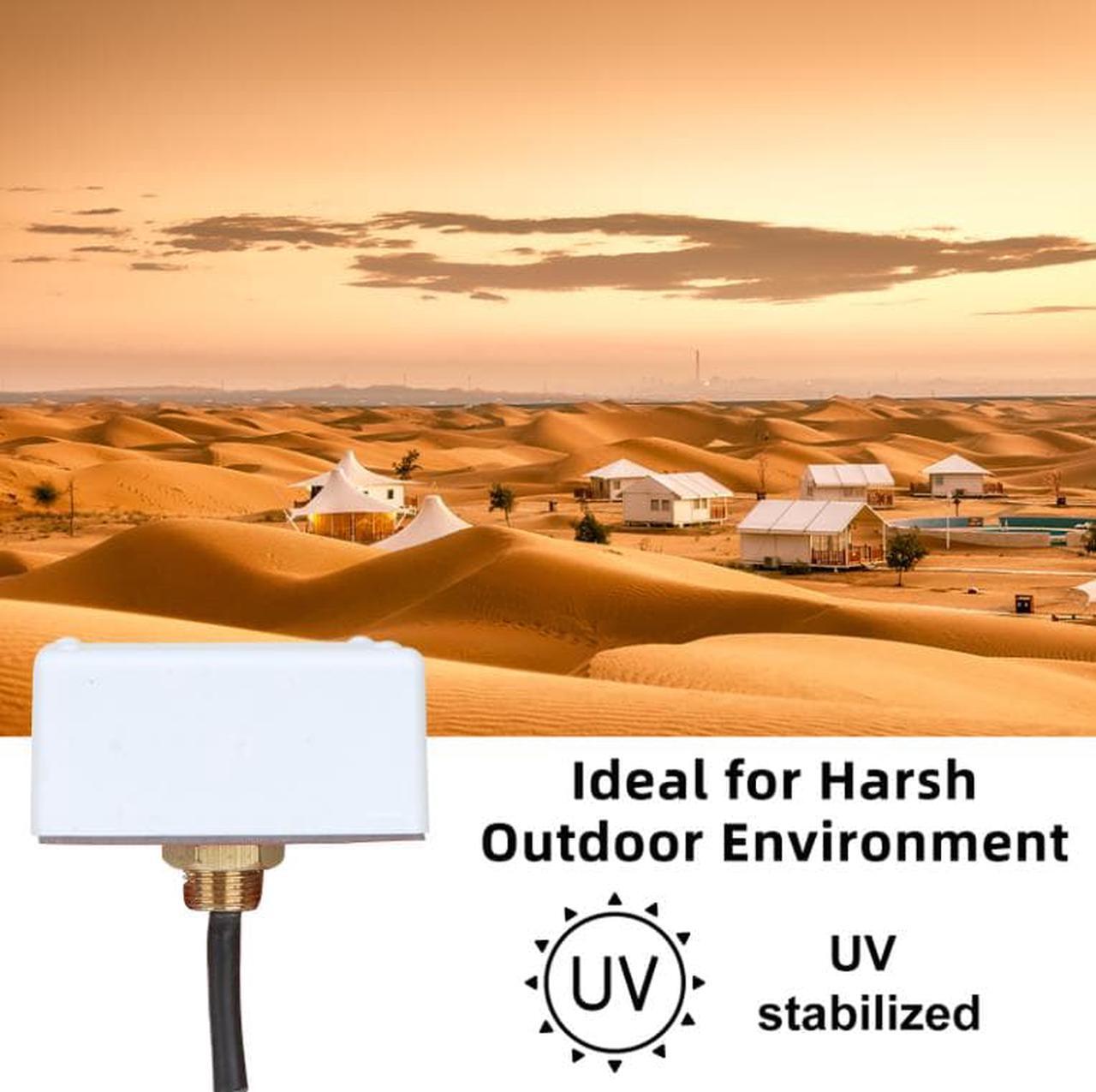

UV Stabilized: YES
Polarization: RHCP
Gain: 5dBic@PCB (Zenith)
V. S. W. R: <1.5
Impendance: 50
Axial Ratio: 3dB (max)
Dimension: 55 *55 * 26.5 mm
Gain: 28±2dB
Noise Figure: 1.5 dB
Filter Insertion Loss: <3dB
Supply Voltage: 3~5V DC
Current Consumption: <20mA
V. S. W. R: <2.0
Cable: RG174 (3M)
Connector: SMA
Radome Material: ASA
Mounting Method: Screw+3M Adhesive
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Waterproof: IP67 (EURO: EN 60529:1991 +A 1:2000 +A 2:2013 +AC: 2019 CHINA: GB/T4208-2017)
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
UV Stabilized: YES
