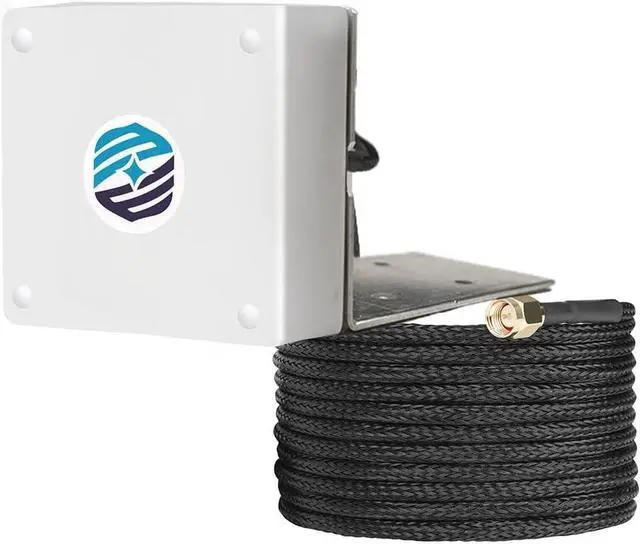

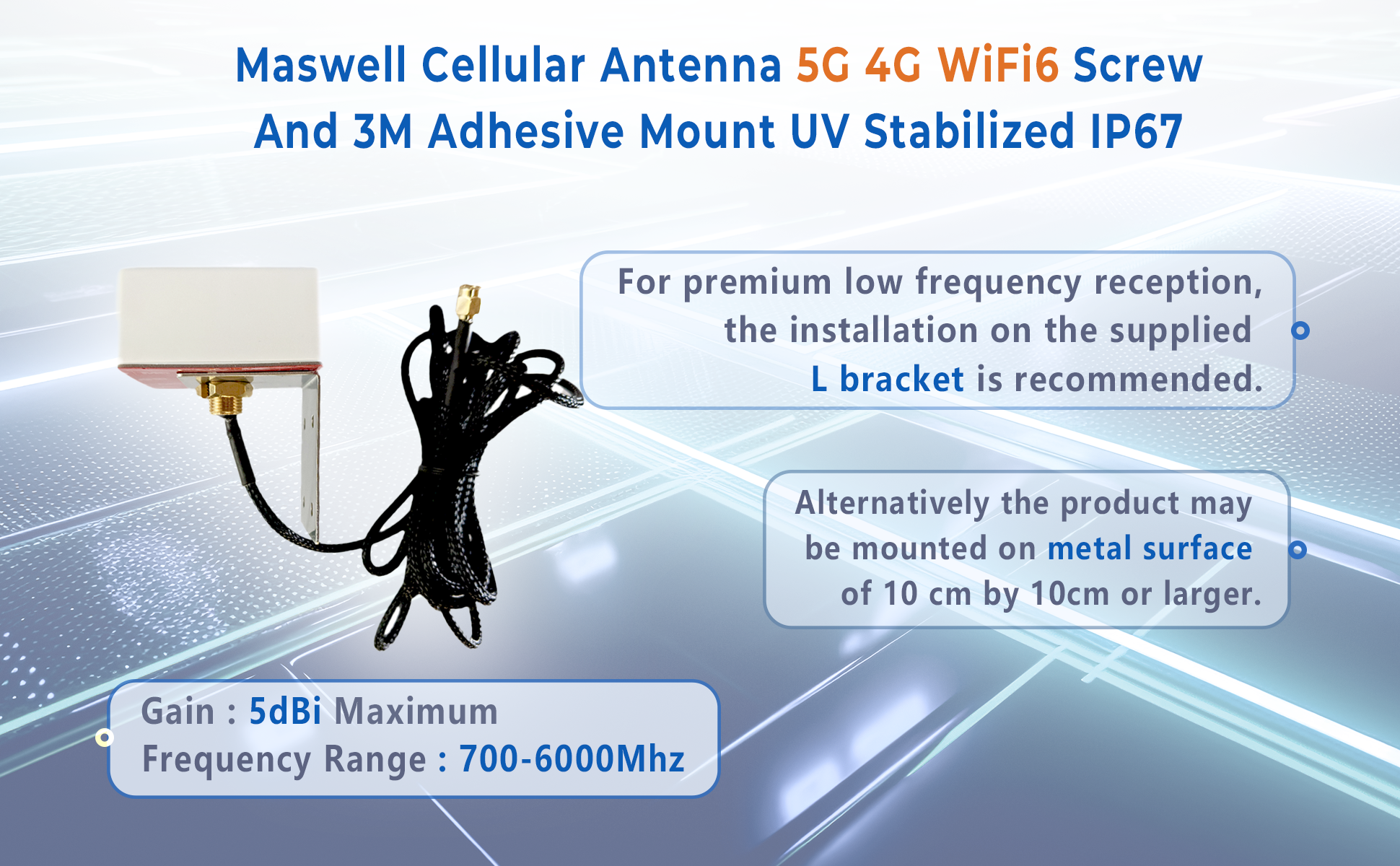

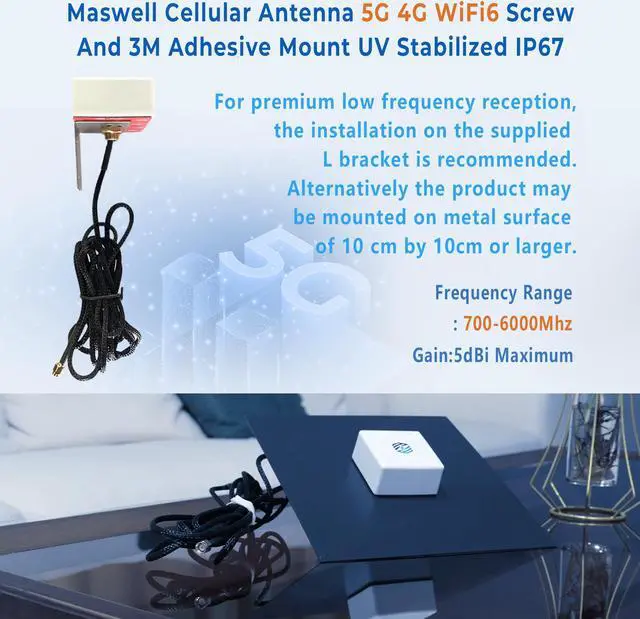

    Maswell Cellular Antenna 700MHz-6000Mhz 5G 4G WiFi6 Screw And 3M Adhesive Mount UV Stabilized IP67

    • Frequency Range: 700-6000MHz
    • Waterproof: IP67(EURO:EN60529:1991+A1:2000+A2:2013+AC:2019 CHINA: GB/T4208-2017)
    • Cellular Antenna 5G 4G WiFi6
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item

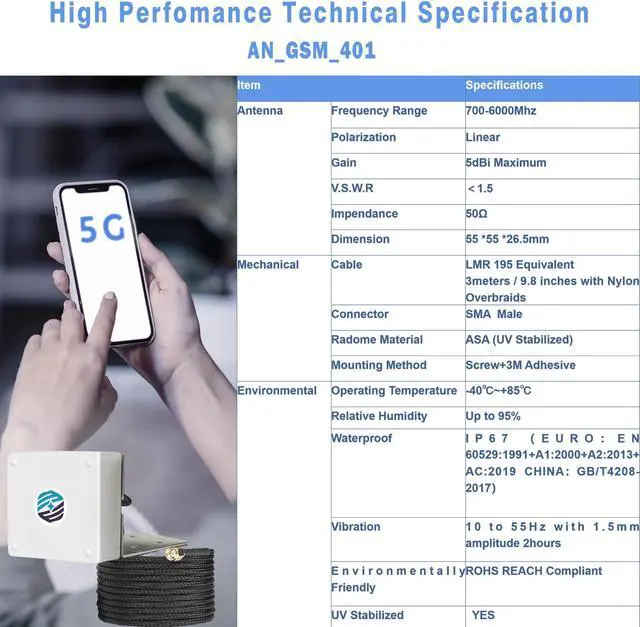

    AN_GSM_401
    Frequency Range: 700-6000MHz
    Polarization: Linear
    Gain: 5dBi Maximum

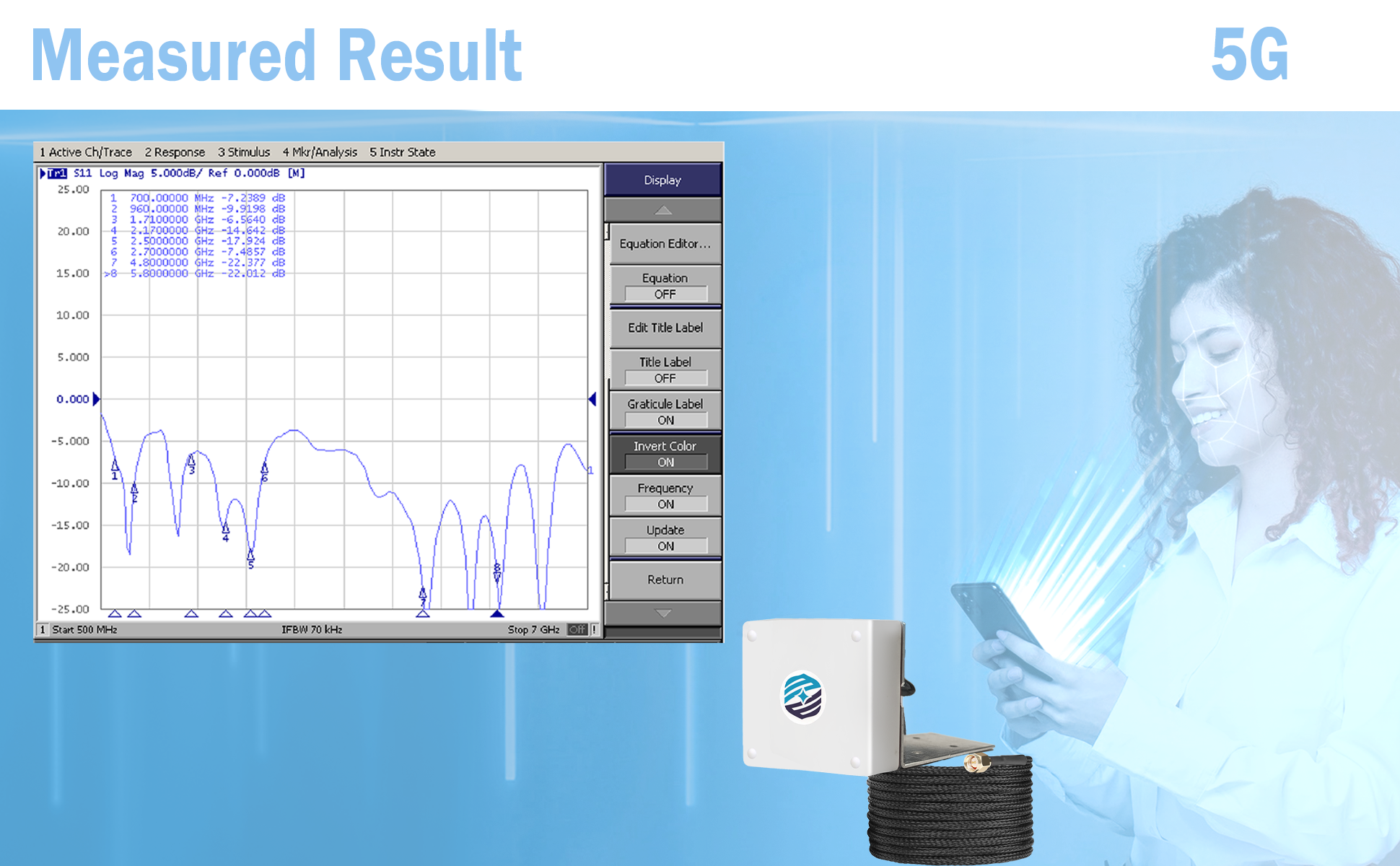

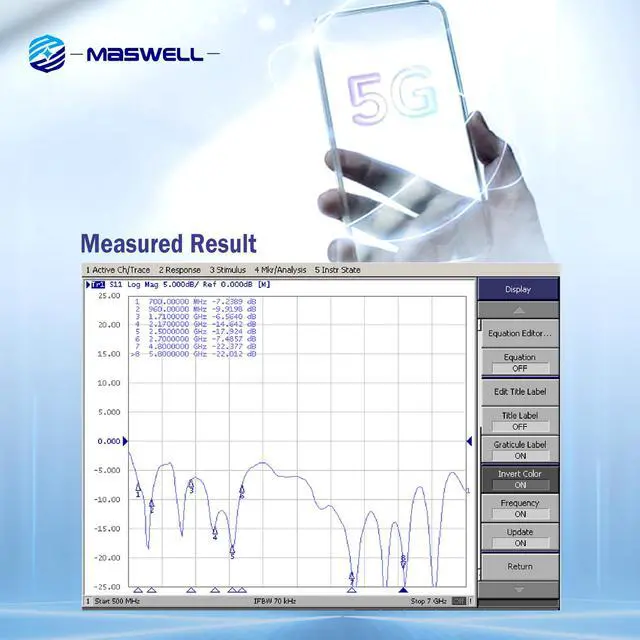

    V. S. W. R: <1.5
    Impendance: 50
    Dimension: 55 *55 * 26.5 mm

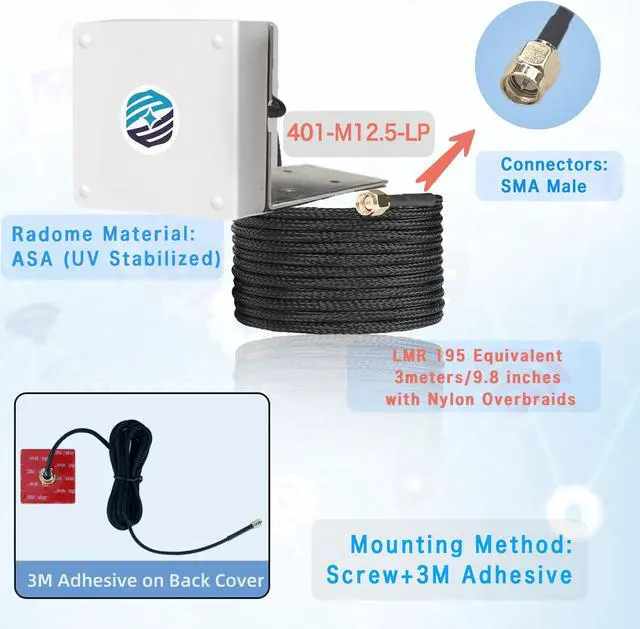

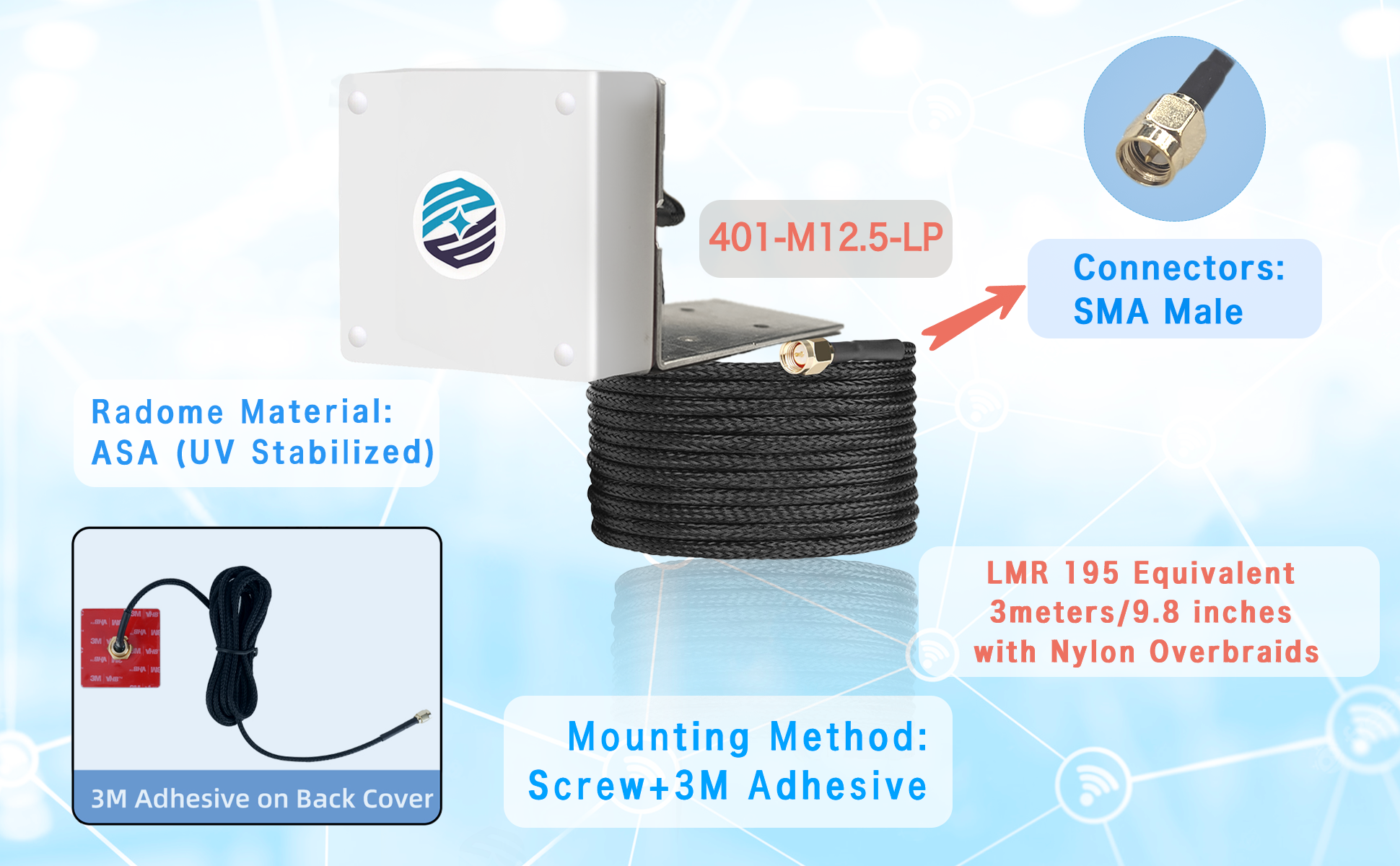

    Cable: RG174 (3M)
    Connector: SMA
    Radome Material: ASA UV Stabilized

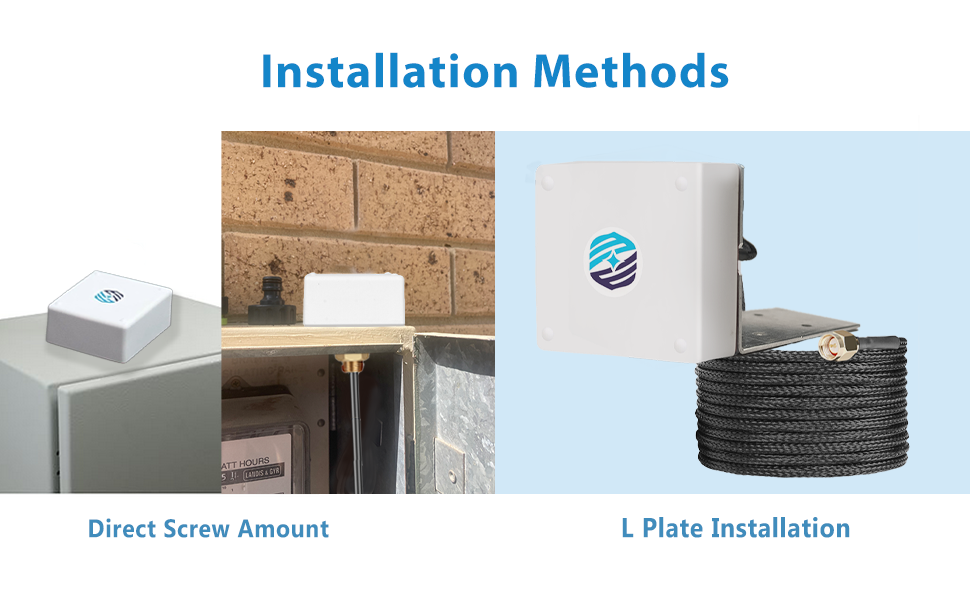

    Mounting Method: Screw+3M Adhesive
    Operating Temperature: -40~+85
    Relative Humidity: Up to 95%

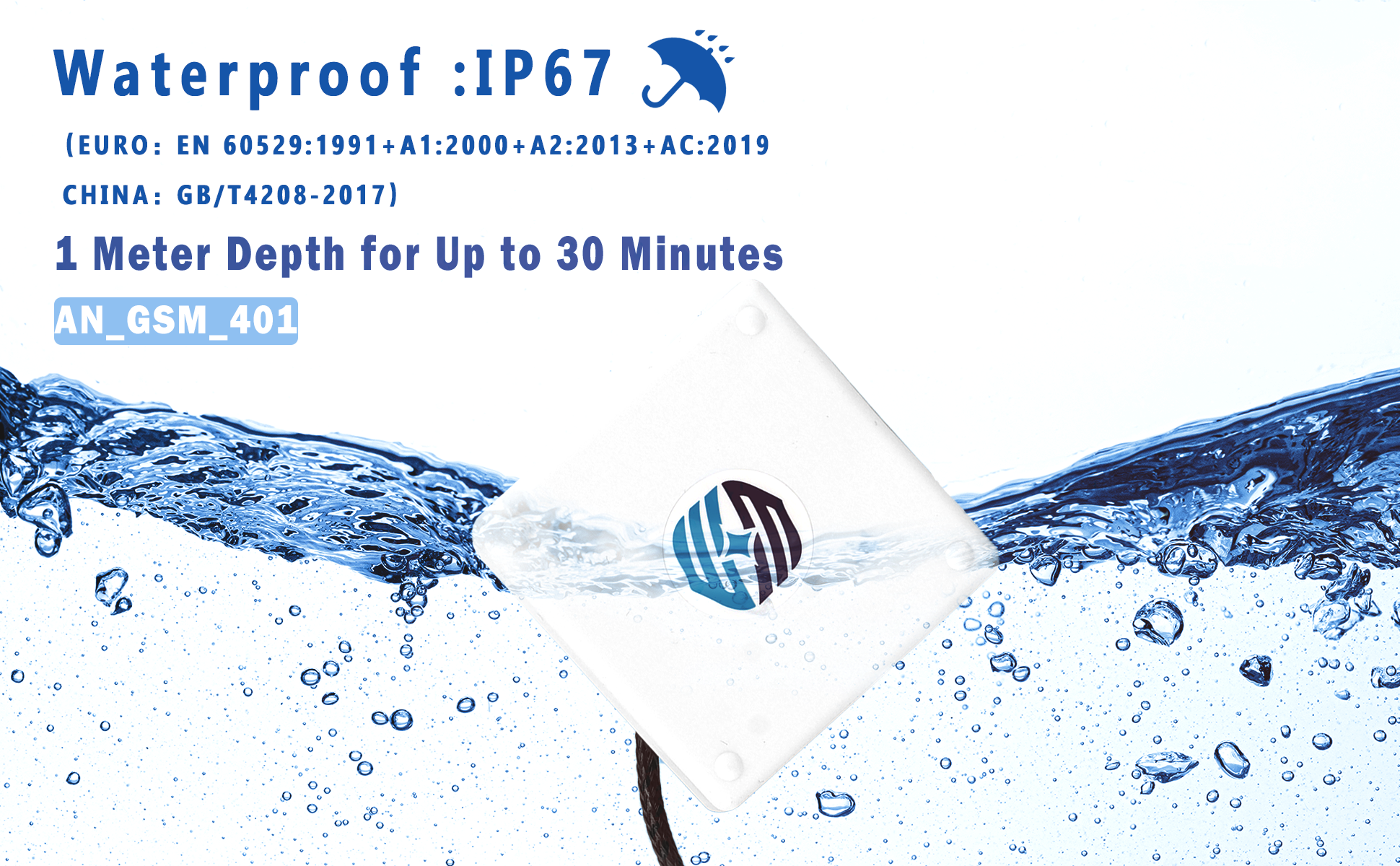

    Waterproof: IP67(EURO: EN 60529:1991 +A 1:2000 +A 2:2013 +AC: 2019 CHINA: GB/T4208-2017)
    Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
    Environmentally Friendly: ROHS Compliant
    UV Stabilized: YES
