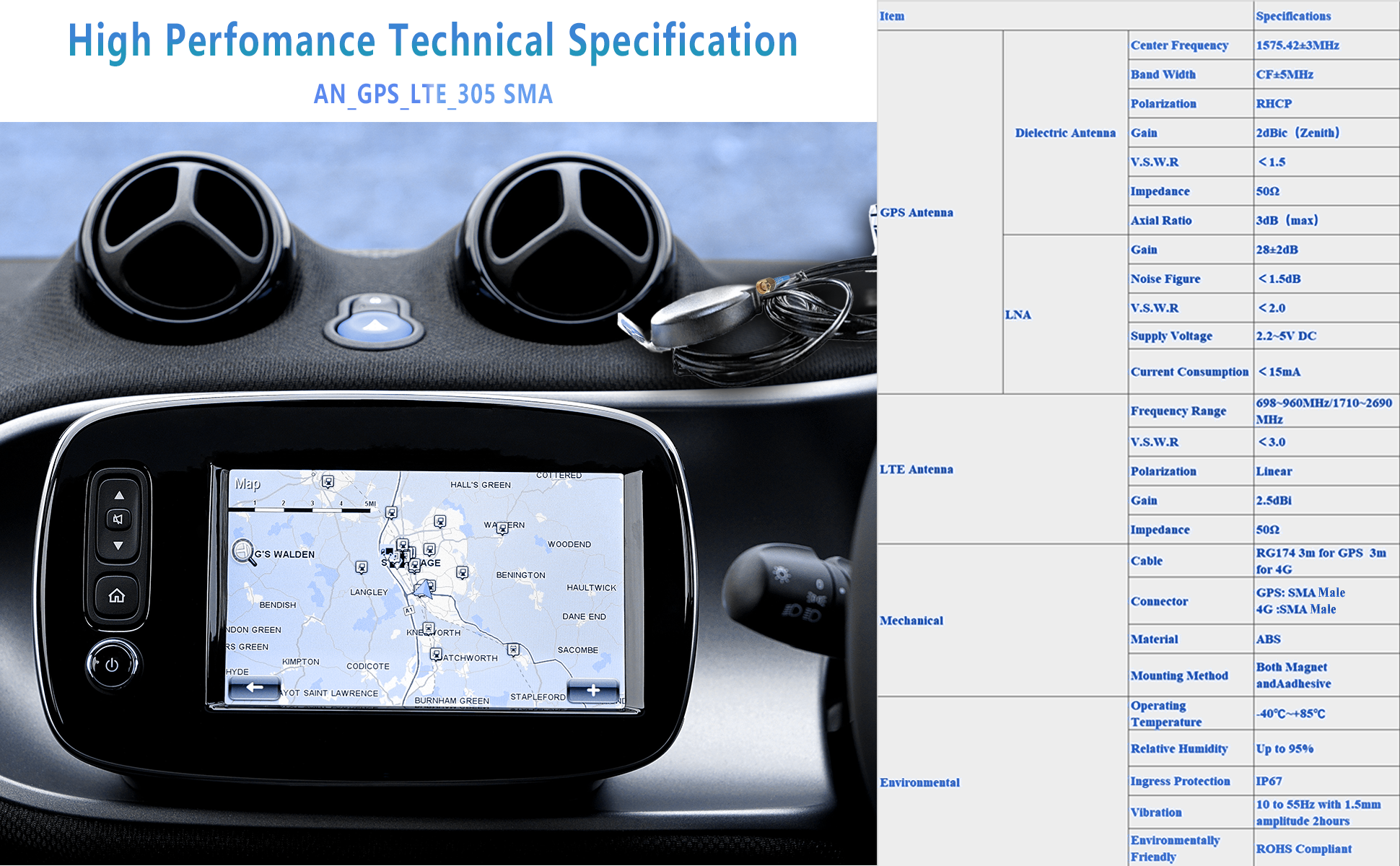

GPS Antenna
Dielectric Antenna

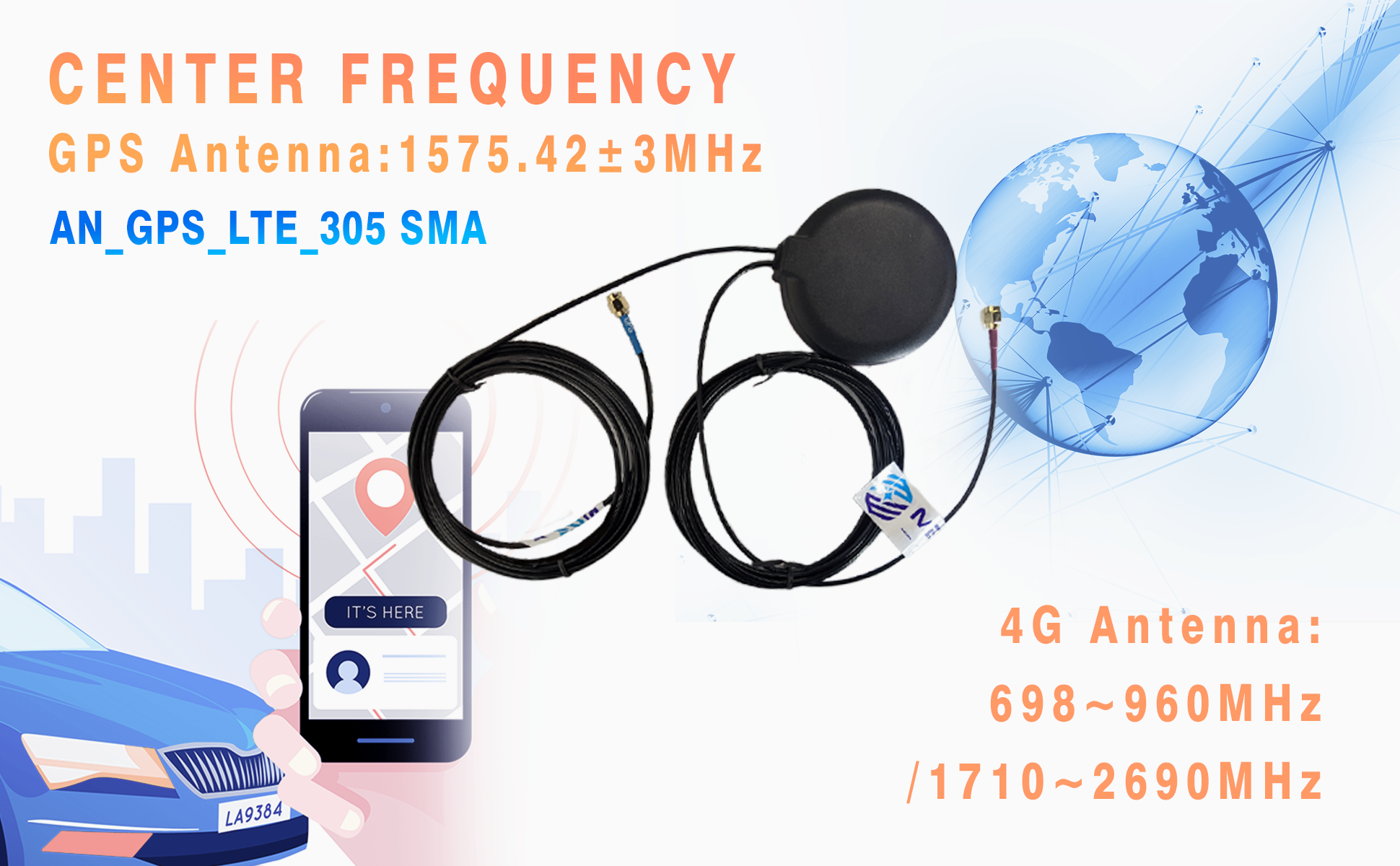

Center Frequency: 1575.42 ±3MHz
Band Width: CF±5MHz
Polarization: RHCP
Gain: 2dBic (Zenith)
V. S. W. R: <1.5
Impedance: 50
Axial Ratio: 3dB (max)
LNA
Gain: 28±2dB
Noise Figure: <1.5dB
V. S. W. R: <2.0
Supply Voltage: 2.2 ~5V DC
Current Consumption: <15mA
LTE Antenna
Frequency Range: 698~960MHz/1710~2690MHz
V. S. W. R: <3.0
Polarization: Linear
Gain: 2.5 dBi
Impedance: 50
Mechanical

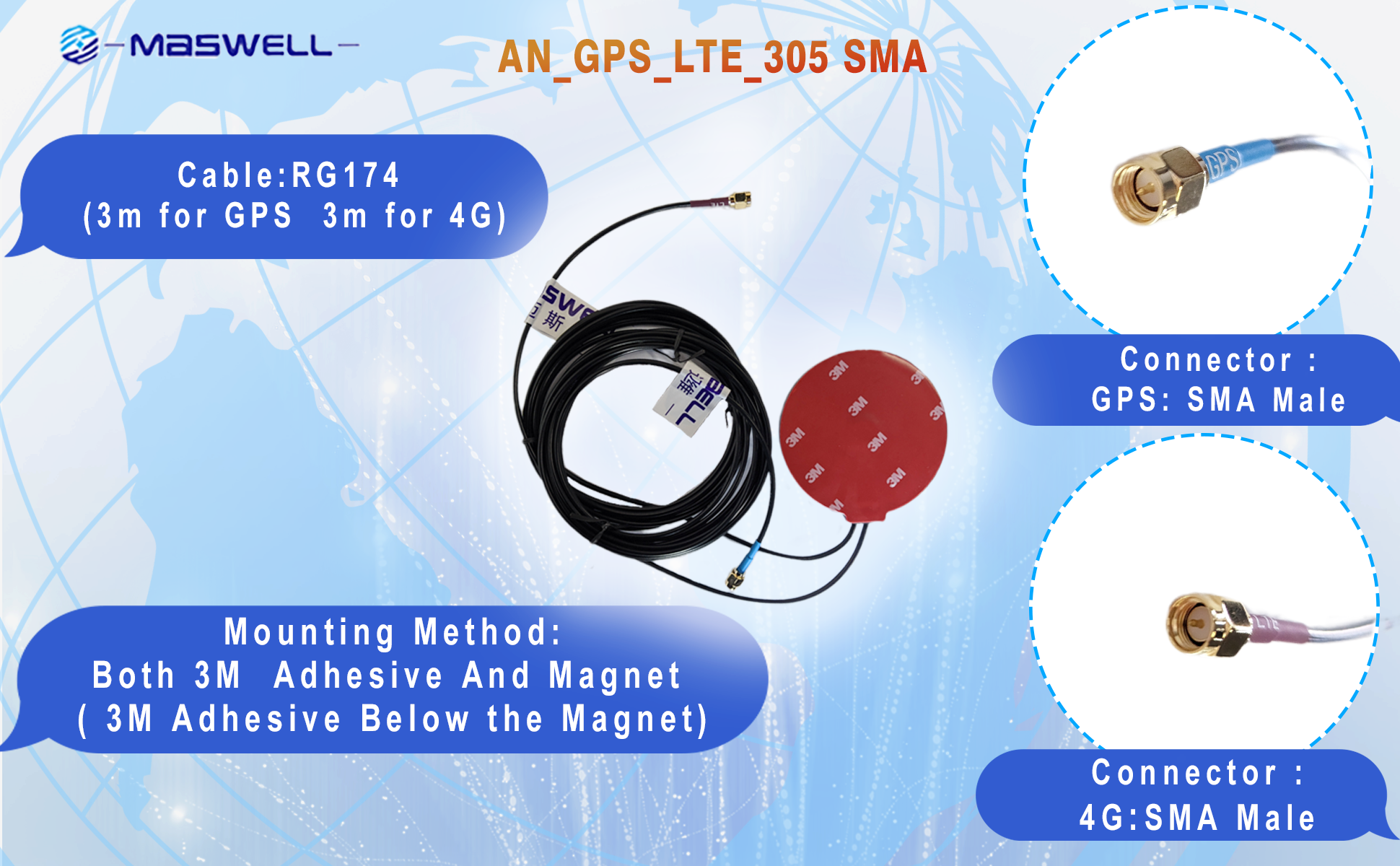

Cable: RG174 3 meters
Connector: SMA male
Material: ABS

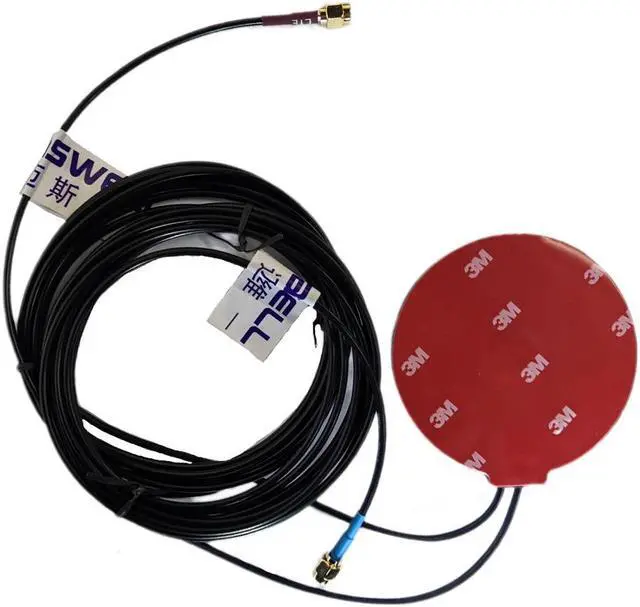

Mounting Method: Adhesive/Magnet
Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%

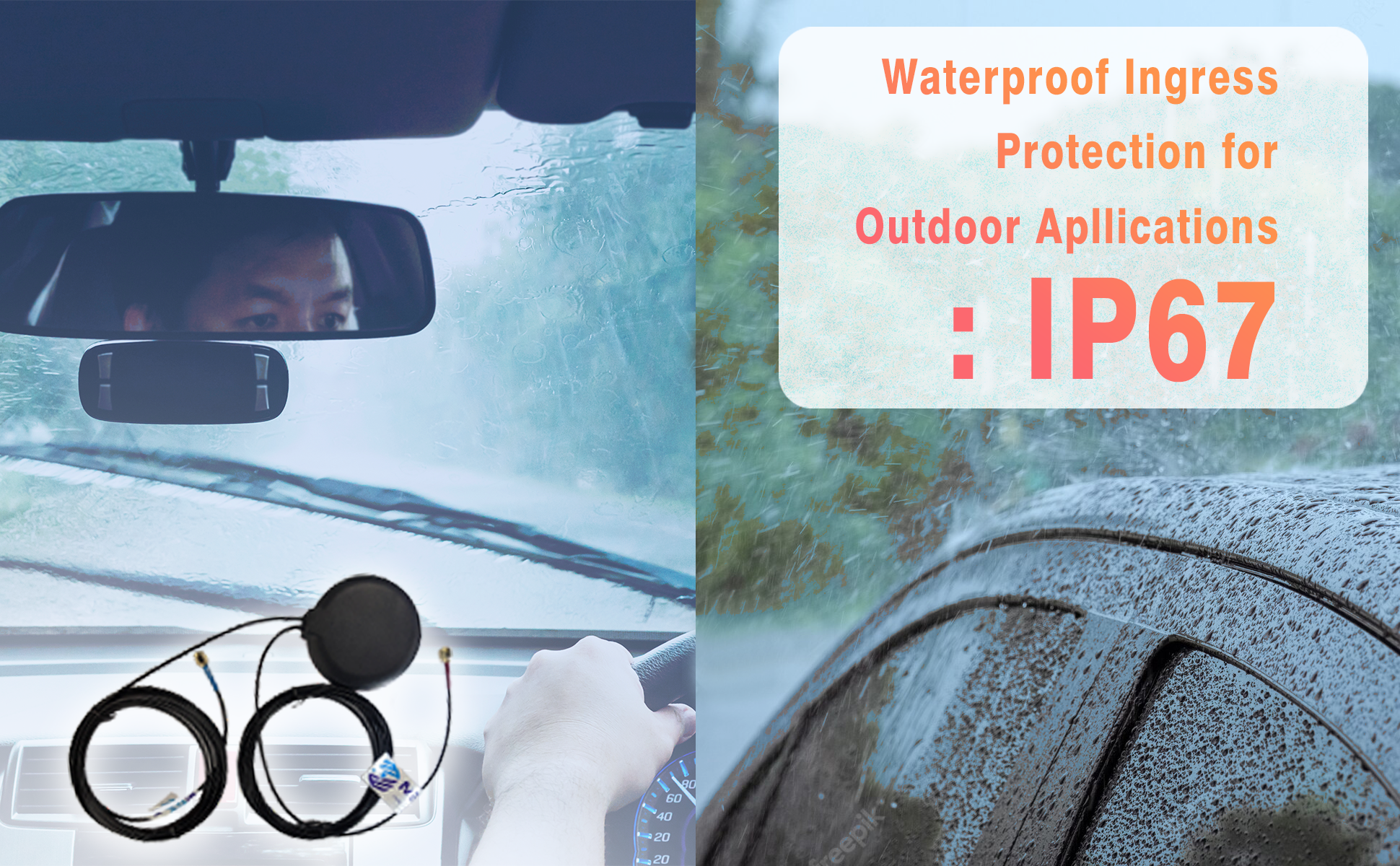

Ingress Protection: IP67
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
