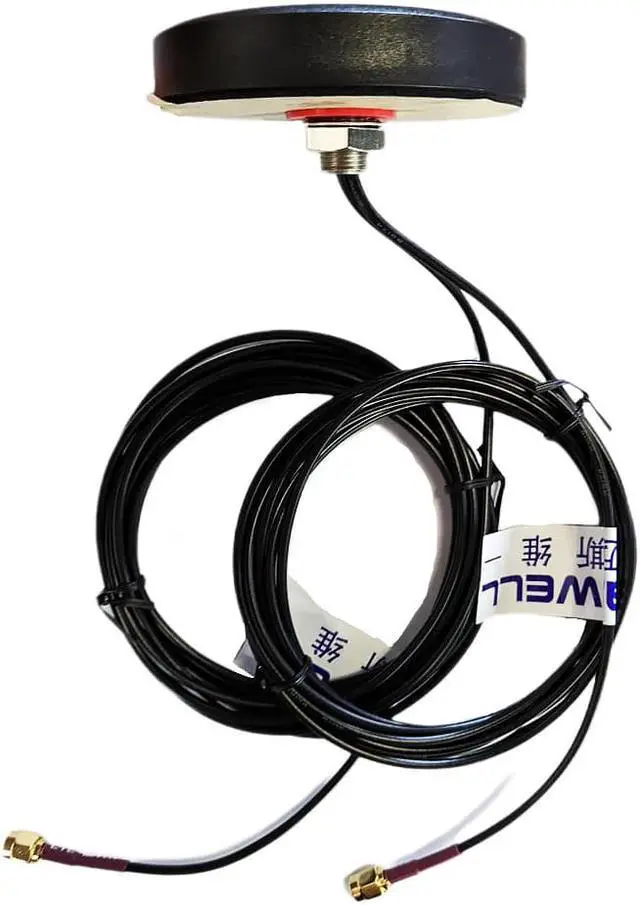

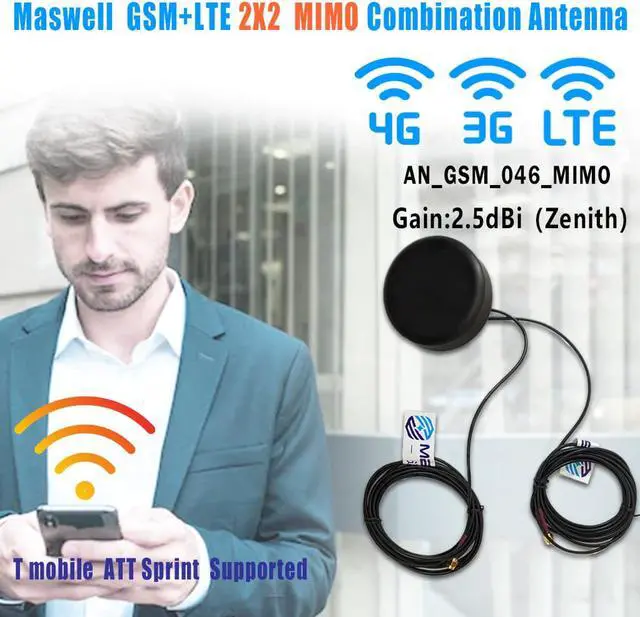

GSM+LTE MIMO Combination Antenna Screw Mount
- Two Leads 4G/3G/GSM Cellular FREQUENCY:4G Main 700-2690MHz 4G AUX 700-2690MHz Ideal for signal reception of GSM 2G/3G/4G LTE Cellular MIMO wireless devices.
- PREMIUM QUALITY ANTENNA: Our Omni-Directional Screw Mount Antenna is made from durable material - reinforced plastic, copper wire. It will be a professional, durable accessory!
- Multiple applications: For industrial, commercial and Internet of Things (IOT) applications such as: Hotspots, Kiosks, Vending, Point-of-Sale (POS), Machine-to-Machine (M2M), Video Surveillance (Cameras, DVRs, NVRs), Vehicles, SCADA, Telemetry, PLCs, RTUs, Digital Signage etc.

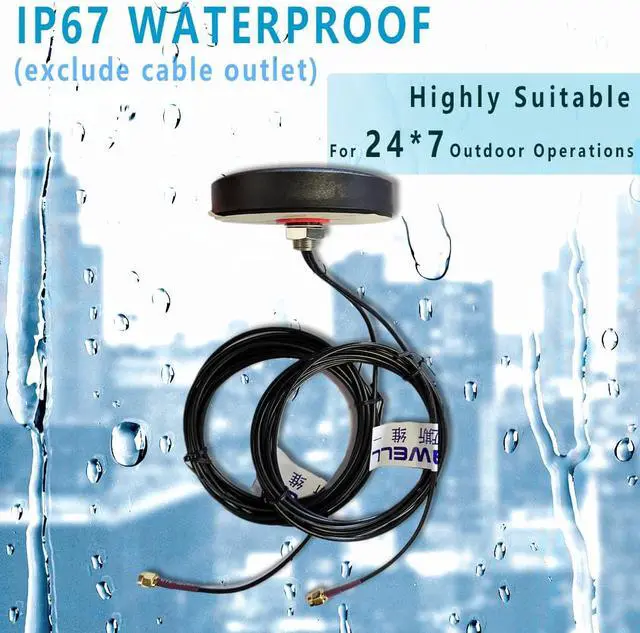

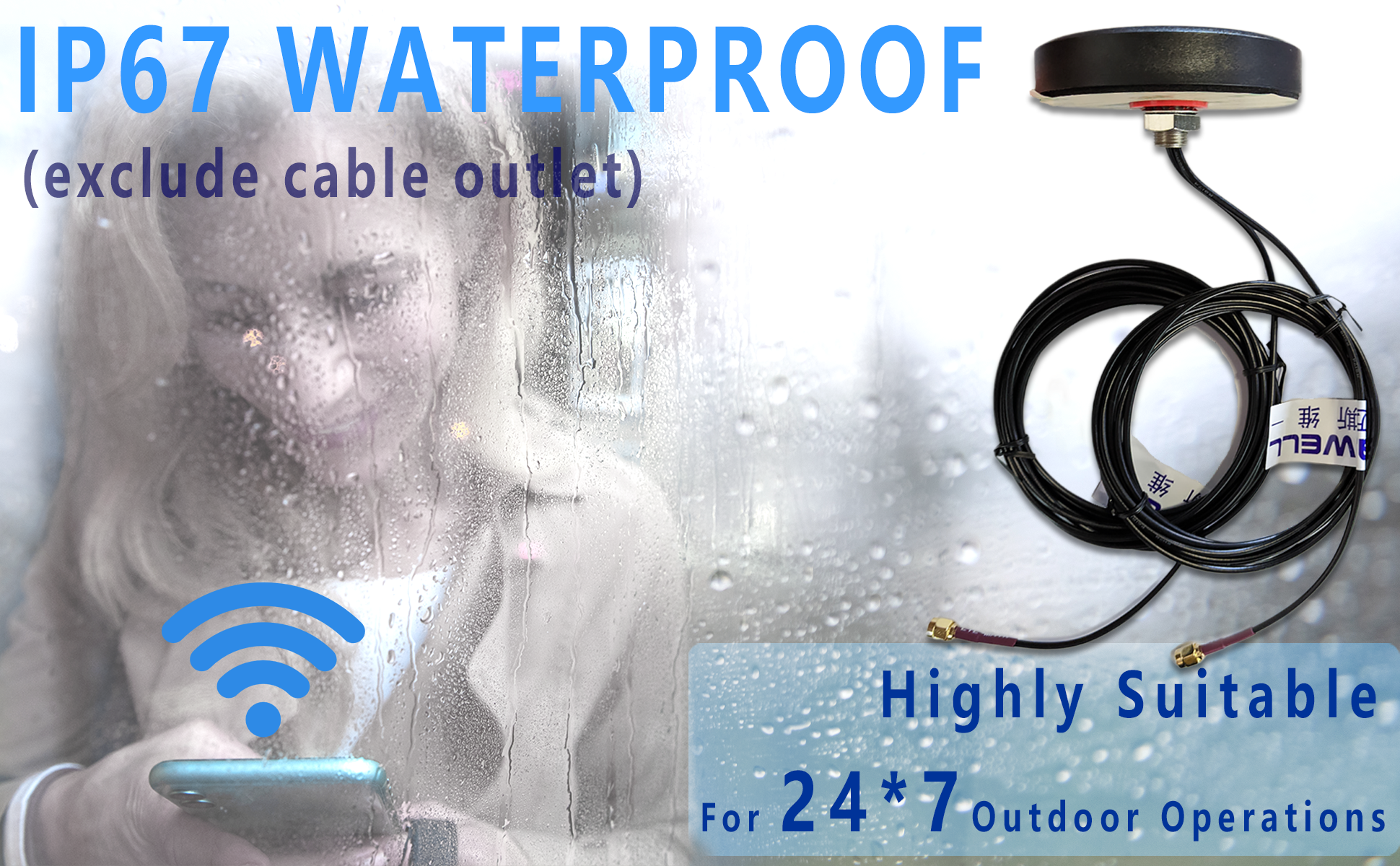

- IP67 WATERPROOF: This antenna is completely waterproof (IP67). Ideal for use outdoors, in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna.
- 100% Satisfaction Guarantee: We are committed to providing customers with the best product and services.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

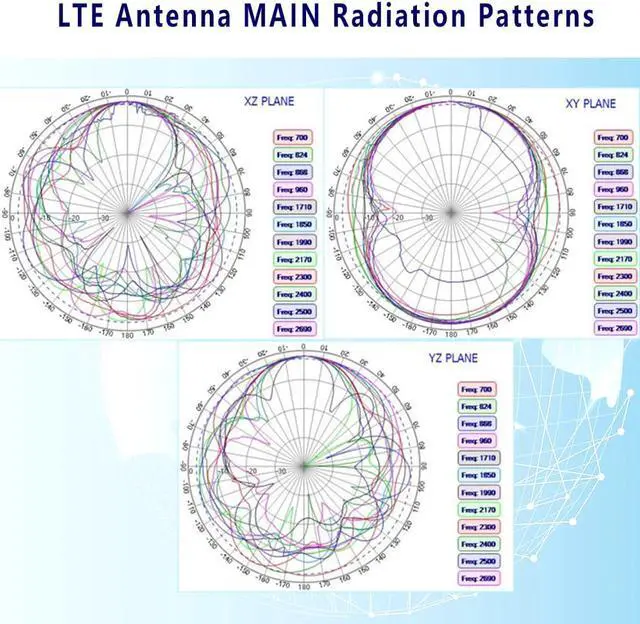

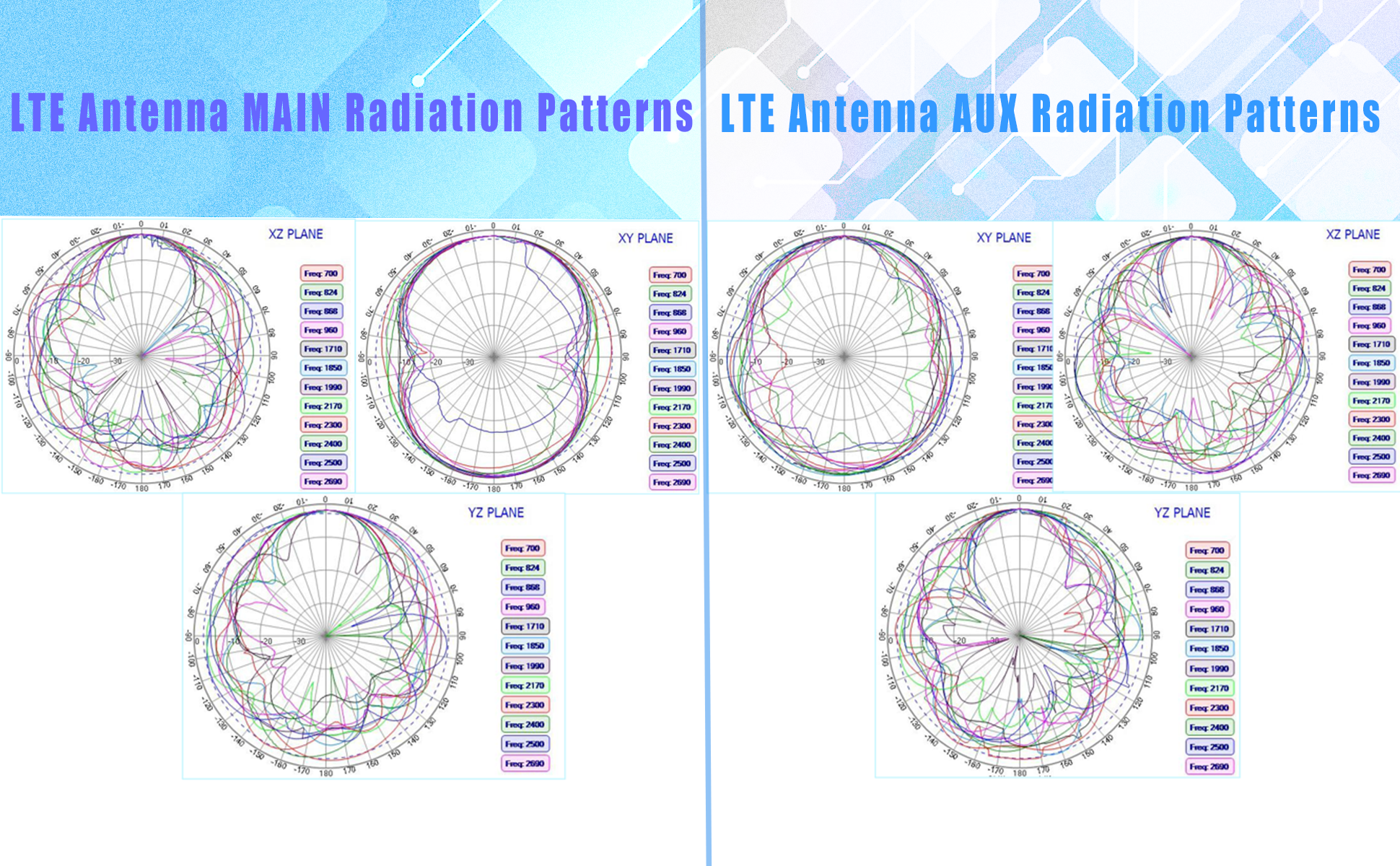

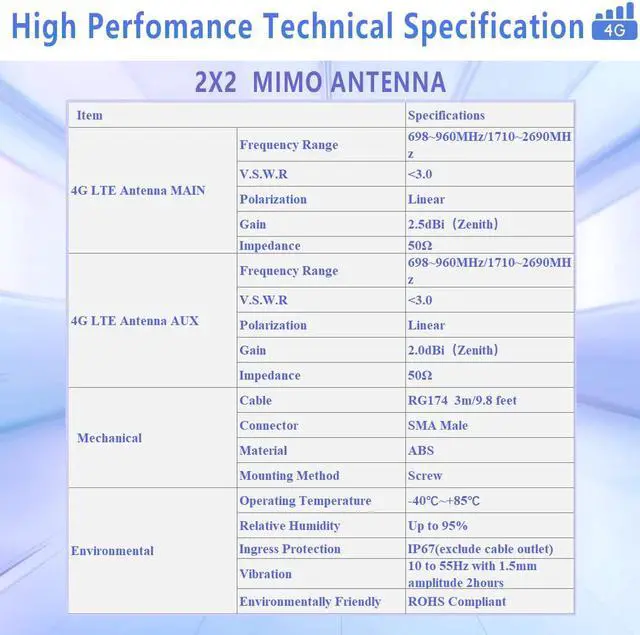

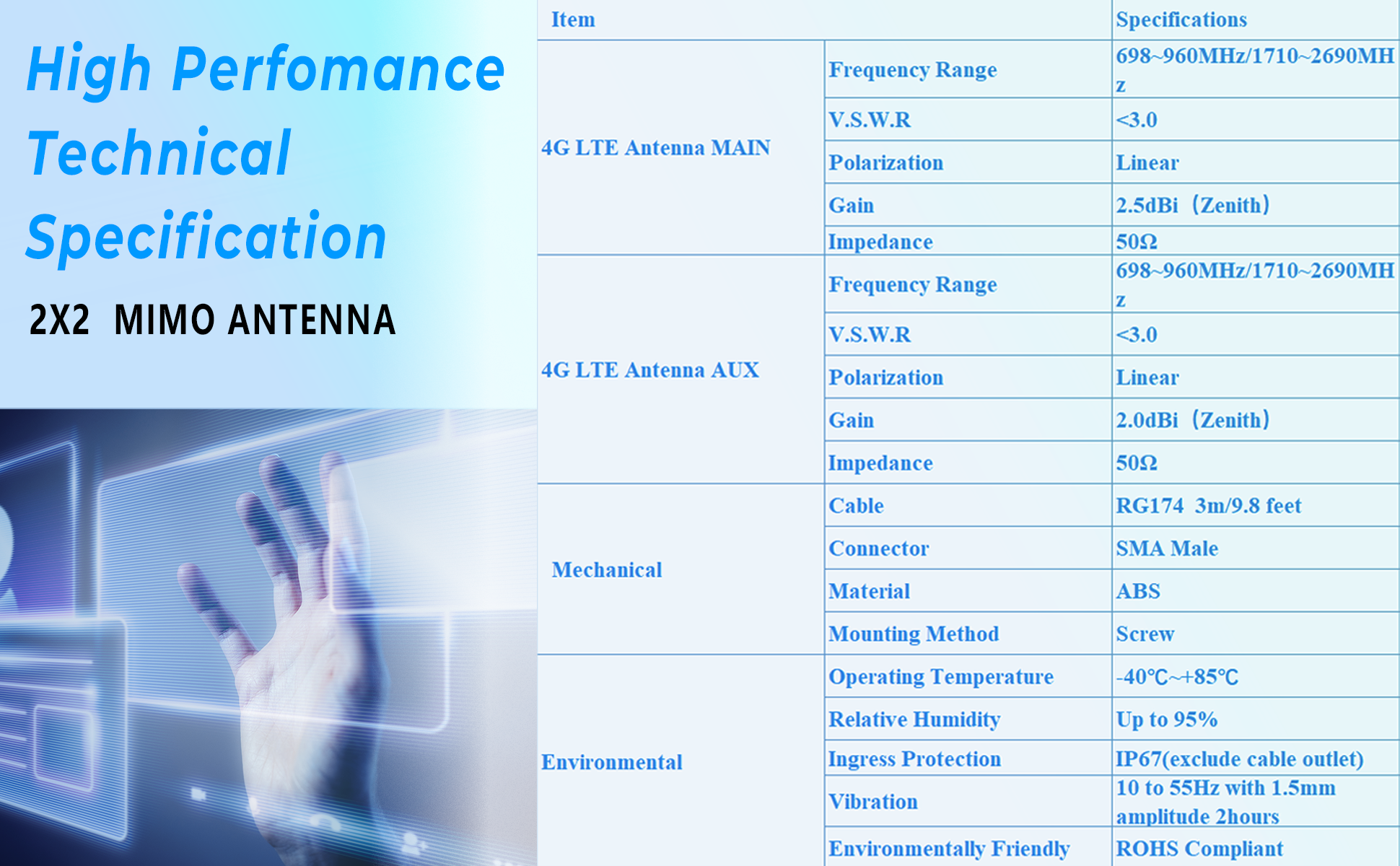

4G LTE Antenna MAIN
Frequency Range: 698~960MHz/1710~2690MHz
V. S. W. R: <3.0
Polarization: Linear
Gain: 2.5 dBi (Zenith)
Impedance: 50
4G LTE Antenna AUX
Frequency Range: 698~960MHz/1710~2690MHz
V. S. W. R: <3.0
Polarization: Linear
Gain: 2.0 dBi (Zenith)
Impedance: 50

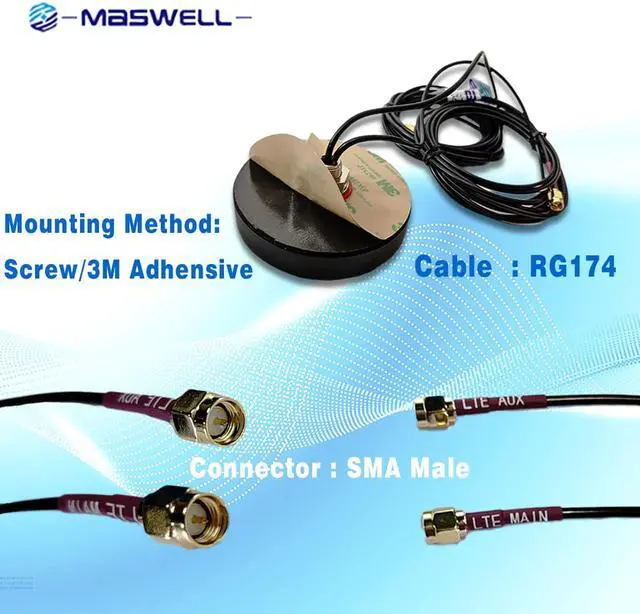

Mechanical

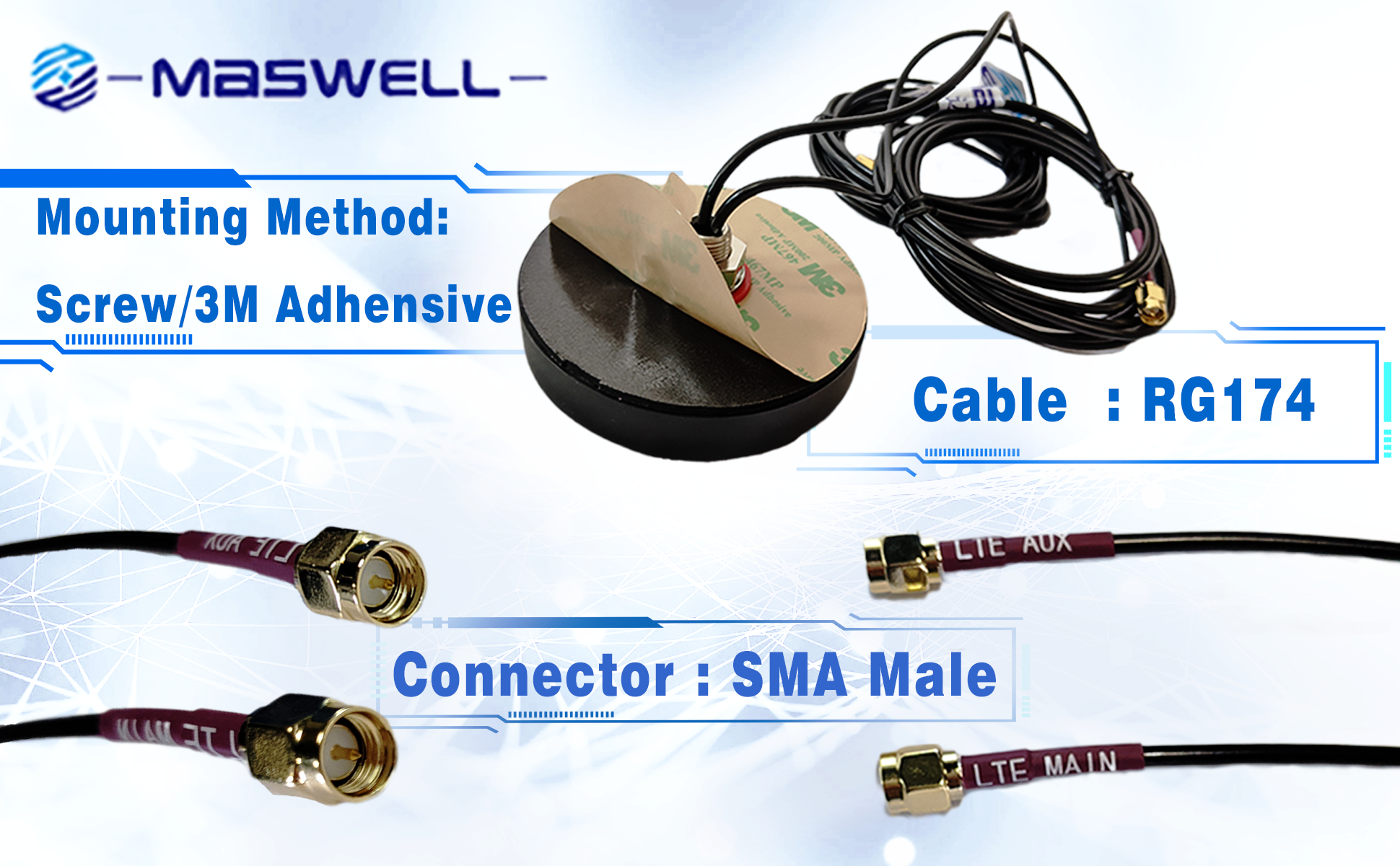

Cable: RG174
Connector: SMA
Material: ABS
Mounting Method: Screw
Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Ingress Protection: IP67 (exclude cable outlet)
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
Frequency Range: 698~960MHz/1710~2690MHz
V. S. W. R: <3.0
Polarization: Linear
Gain: 2.5 dBi (Zenith)
Impedance: 50
4G LTE Antenna AUX
Frequency Range: 698~960MHz/1710~2690MHz
V. S. W. R: <3.0
Polarization: Linear
Gain: 2.0 dBi (Zenith)
Impedance: 50
Mechanical
Cable: RG174
Connector: SMA
Material: ABS
Mounting Method: Screw
Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Ingress Protection: IP67 (exclude cable outlet)
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
