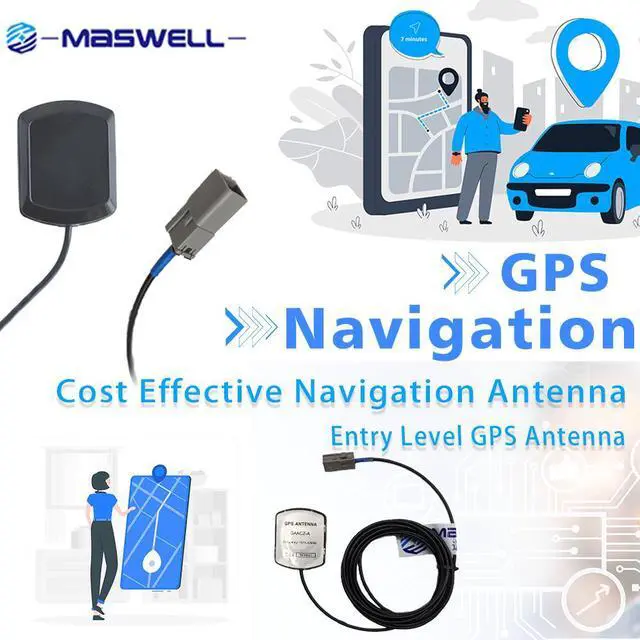

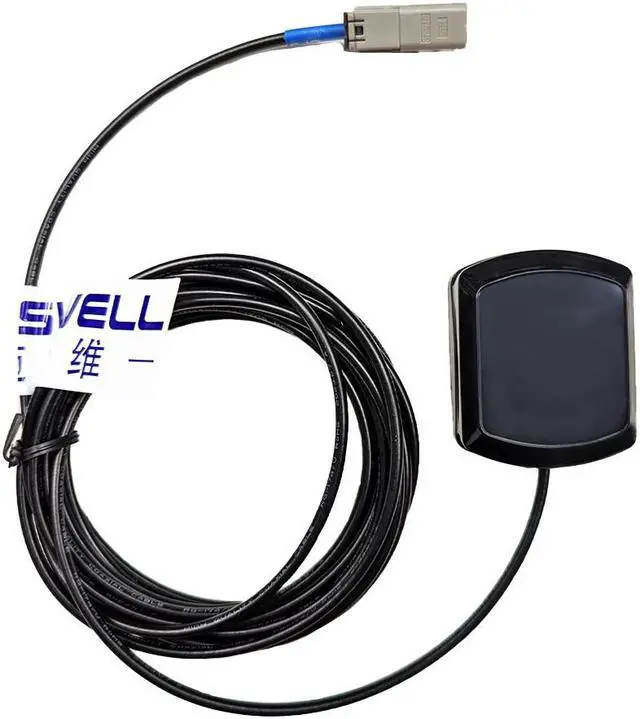

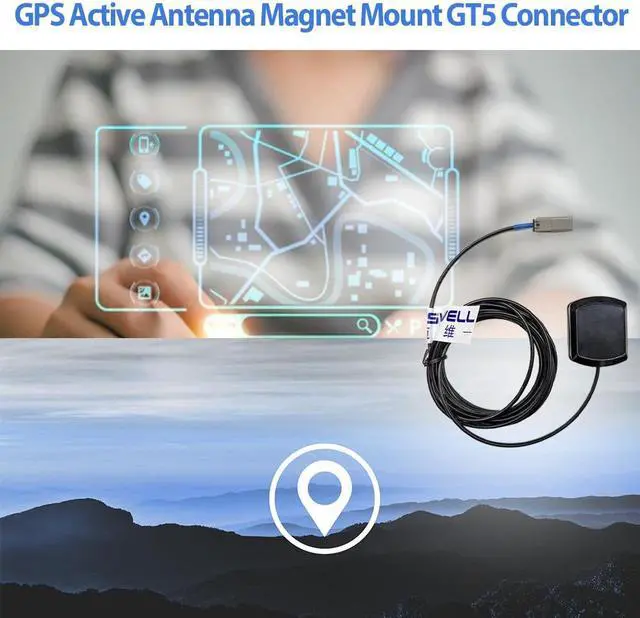

GPS Active Antenna Magnet Mount GT5 Connector

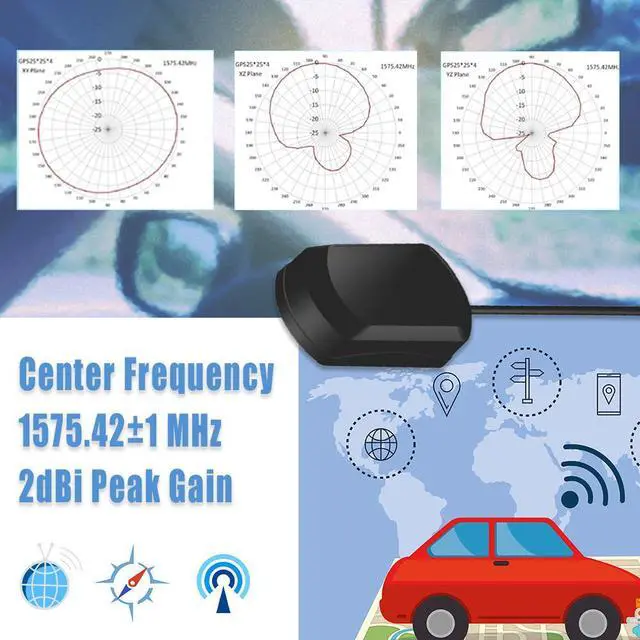

- 1.Maswell introduced the GT5 Connector magnet mount antenna AN_GPS_A001 GT5 with a center frequency of 1575.42±1MHz and a peak gain of 2dBi for vehicular applications.

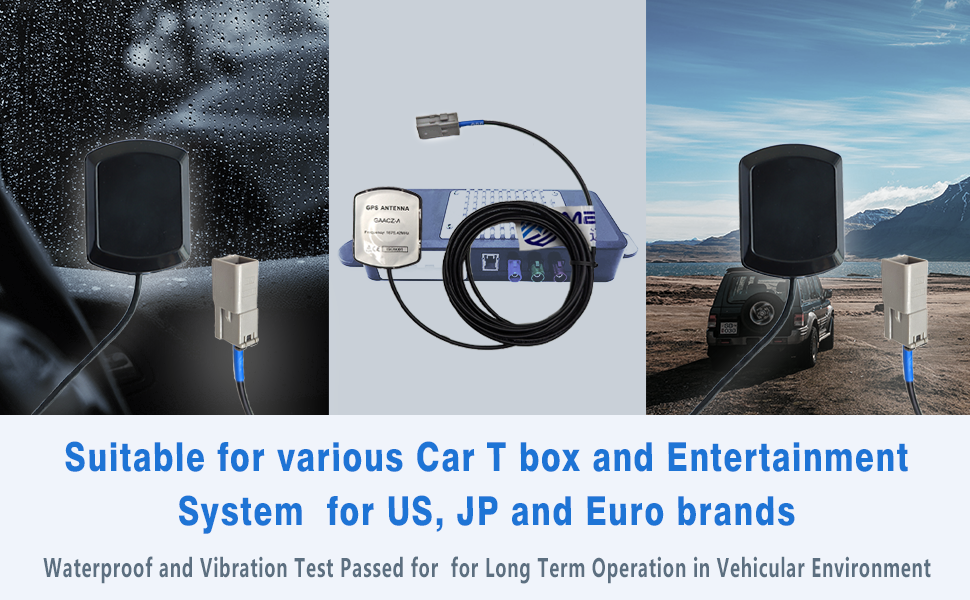

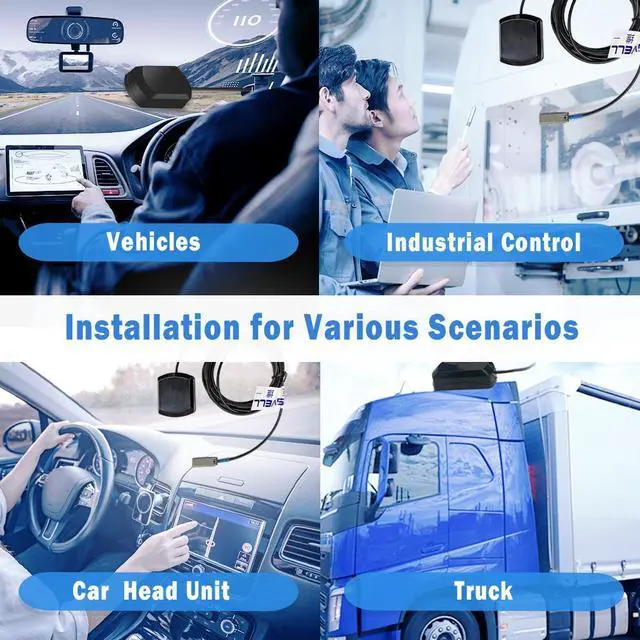

- 2.As a vehicle version GPS antenna, it can be mounted under the dashboard.
- 3.The connector of the antenna is GT5, which is compatible with many big brands cars/trucks.
- 4.The radome of the antenna is made of ABS material, which can extend the service life and guarantee the stability of antenna performance, suitable for vehicular 24/7 application scenarios.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

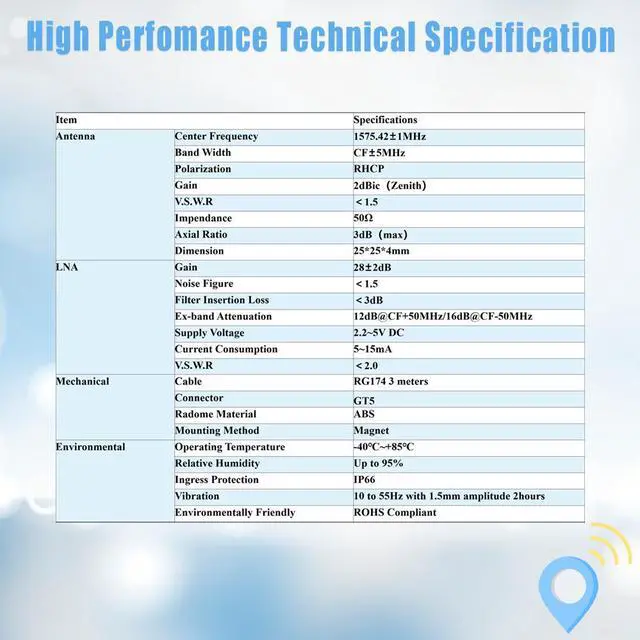

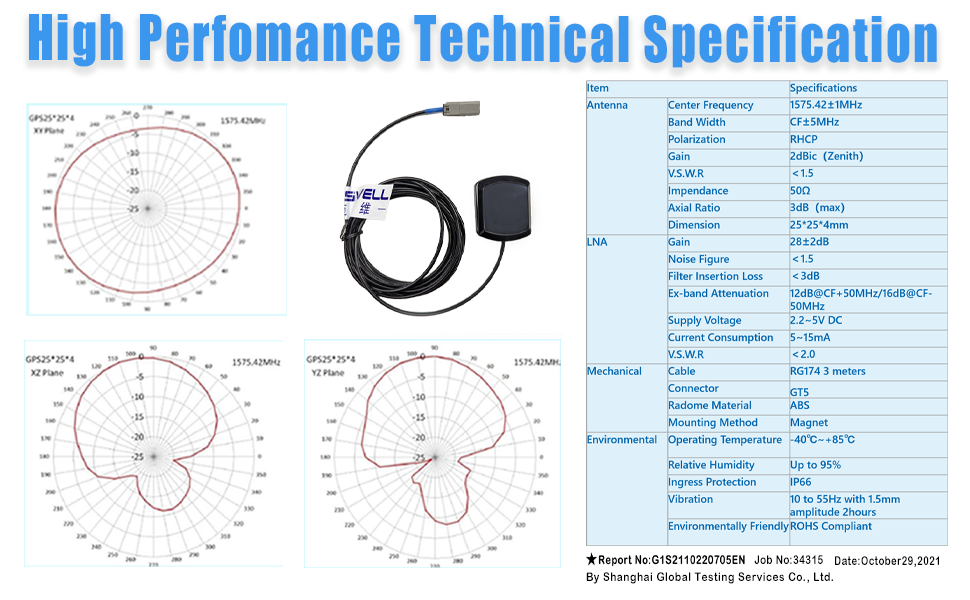

Antenna

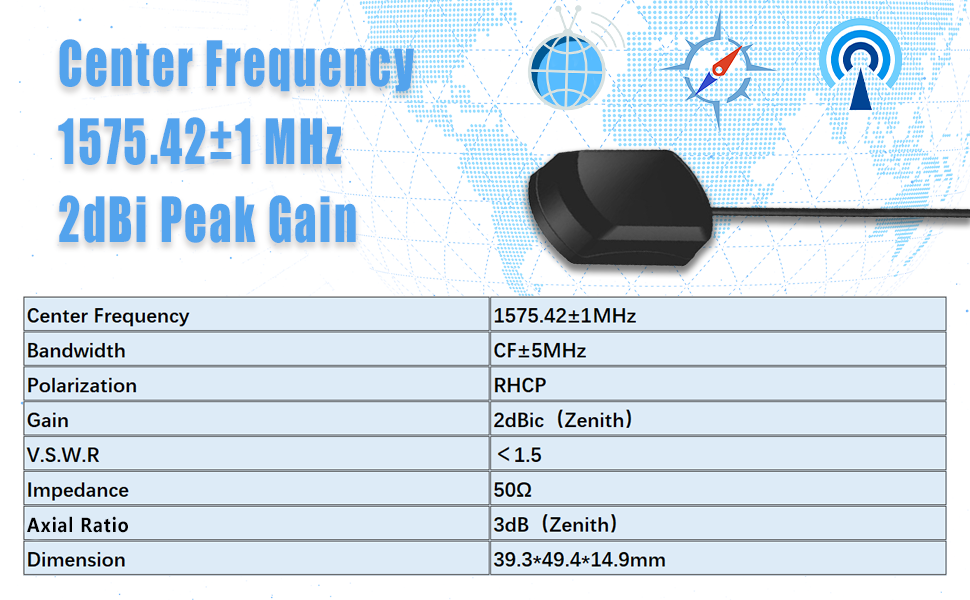

Center Frequency: 1575.42 ±1MHz
Band Width: CF±5MHz
Polarization: RHCP
Gain: 2dBic (Zenith)
V. S. W. R: <1.5
Impendance: 50
Axial Ratio: 3dB (max)
Dimension: 25*25*4mm
LNA
Gain: 28±2dB
Noise Figure: <1.5
Filter Insertion Loss: <3dB
Ex-band Attenuation: 12dB@CF+50MHz/16dB@CF-50MHz
Supply Voltage: 2.2 ~5V DC
Current Consumption: 5~15mA
V. S. W. R: <2.0
Mechanical
Cable: RG174 3 meters

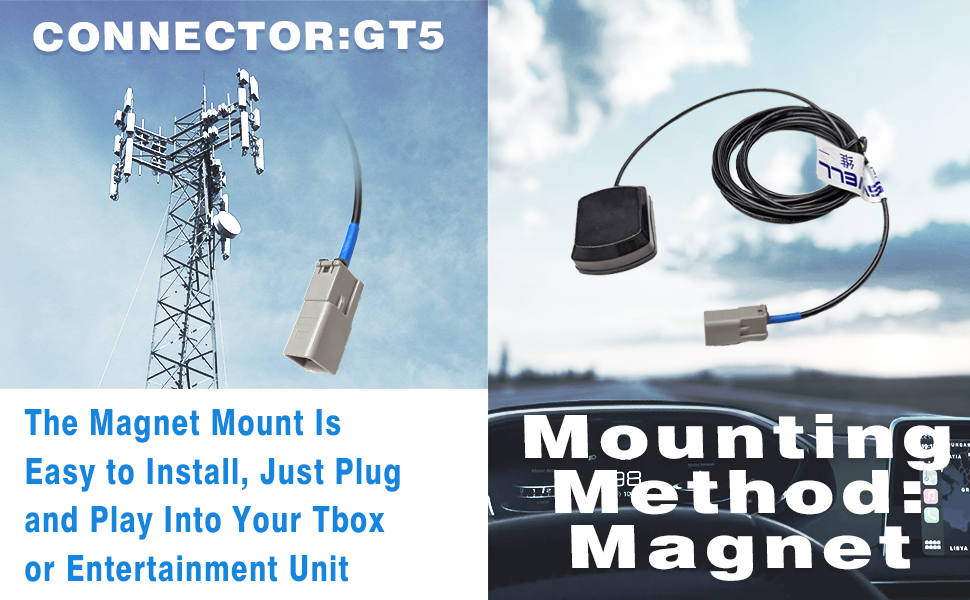

Connector: GT5
Radome Material: ABS

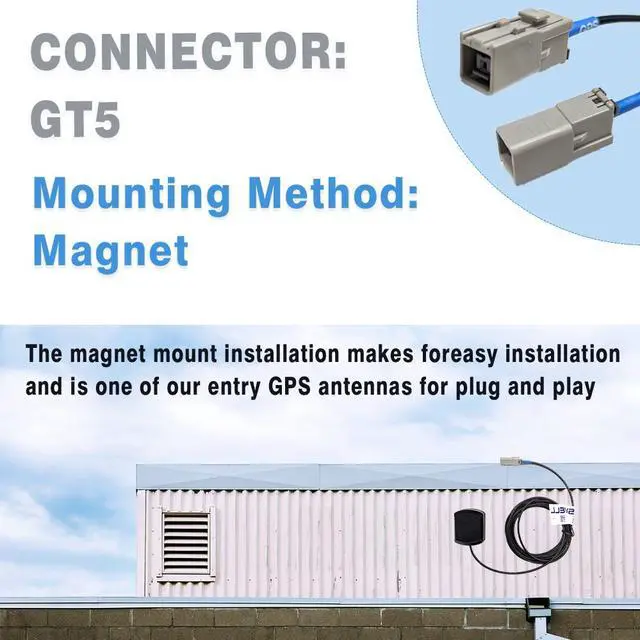

Mounting Method: Magnet
Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Ingress Protection: IP66
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally FriendlyL: ROHS Compliant
Center Frequency: 1575.42 ±1MHz
Band Width: CF±5MHz
Polarization: RHCP
Gain: 2dBic (Zenith)
V. S. W. R: <1.5
Impendance: 50
Axial Ratio: 3dB (max)
Dimension: 25*25*4mm
LNA
Gain: 28±2dB
Noise Figure: <1.5
Filter Insertion Loss: <3dB
Ex-band Attenuation: 12dB@CF+50MHz/16dB@CF-50MHz
Supply Voltage: 2.2 ~5V DC
Current Consumption: 5~15mA
V. S. W. R: <2.0
Mechanical
Cable: RG174 3 meters
Connector: GT5
Radome Material: ABS
Mounting Method: Magnet
Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Ingress Protection: IP66
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally FriendlyL: ROHS Compliant
