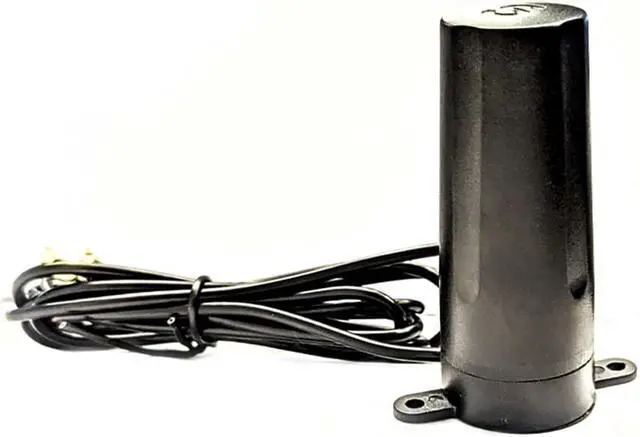

Maswell Cellular Antenna 5G 4G WiFi6 Magnet and Screw Mount
- 1.Maswell 5G 4G WiFi 6 cellular antenna AN_5G_095-Magnet, which covers a frequency range of 600-960/1710-6000MHz with a maximum gain of 6dBi.
- 2.The ABS material radome of the antenna is robust and weather-resistant, which protects the internal radiating structures.
- 3.The installation method of the antenna is magnet with screw holes option, which is for permanent outdoor or indoor installations.
- 4.The AN_5G_095-Magnet model supports multiple wireless communication protocols such as Cellular 5G/4G, WiFi6, Lora etc.

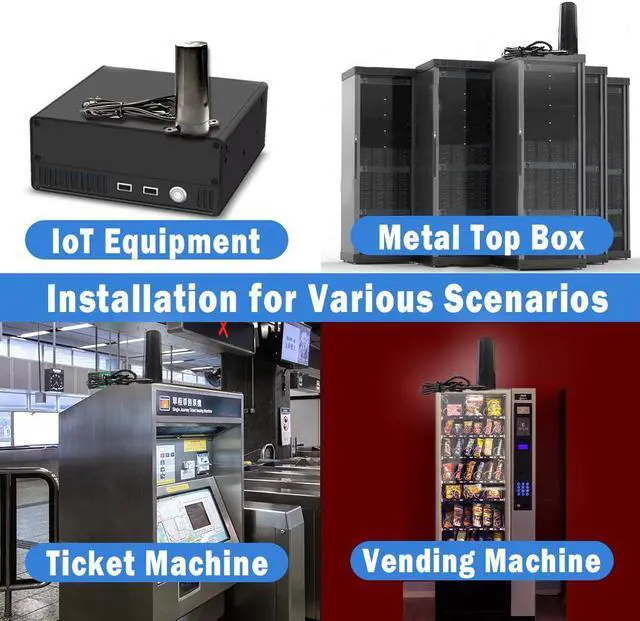

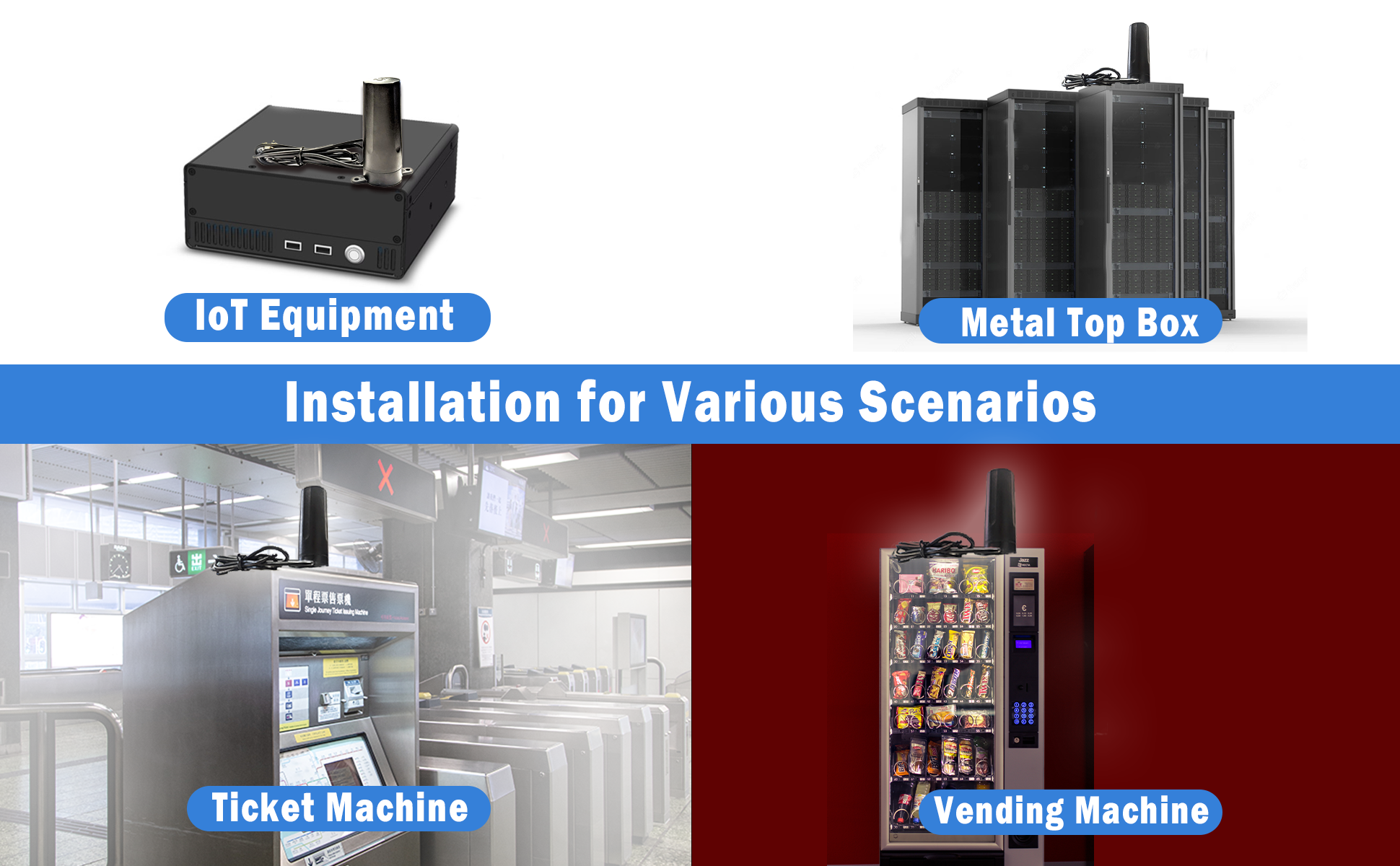

- 5.The radome design of the antenna is compatible with various IoT devices, vending machines, electricity top box etc. in various applications.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

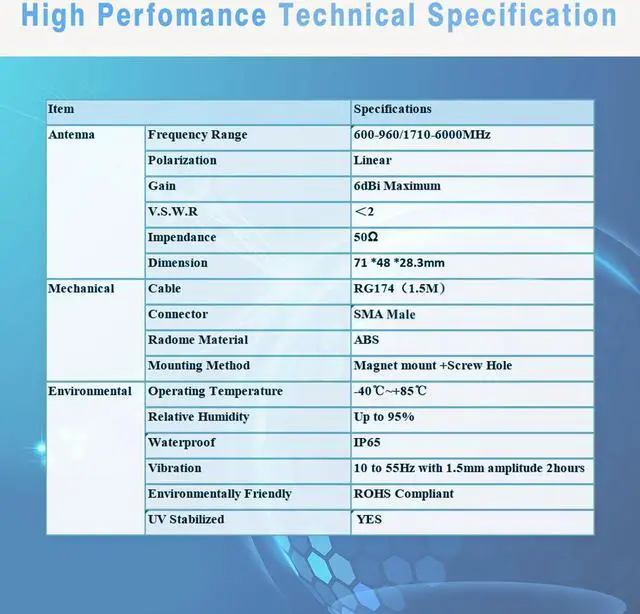

Antenna
Frequency Range: 600-960/1710-6000MHz
Polarization: Linear

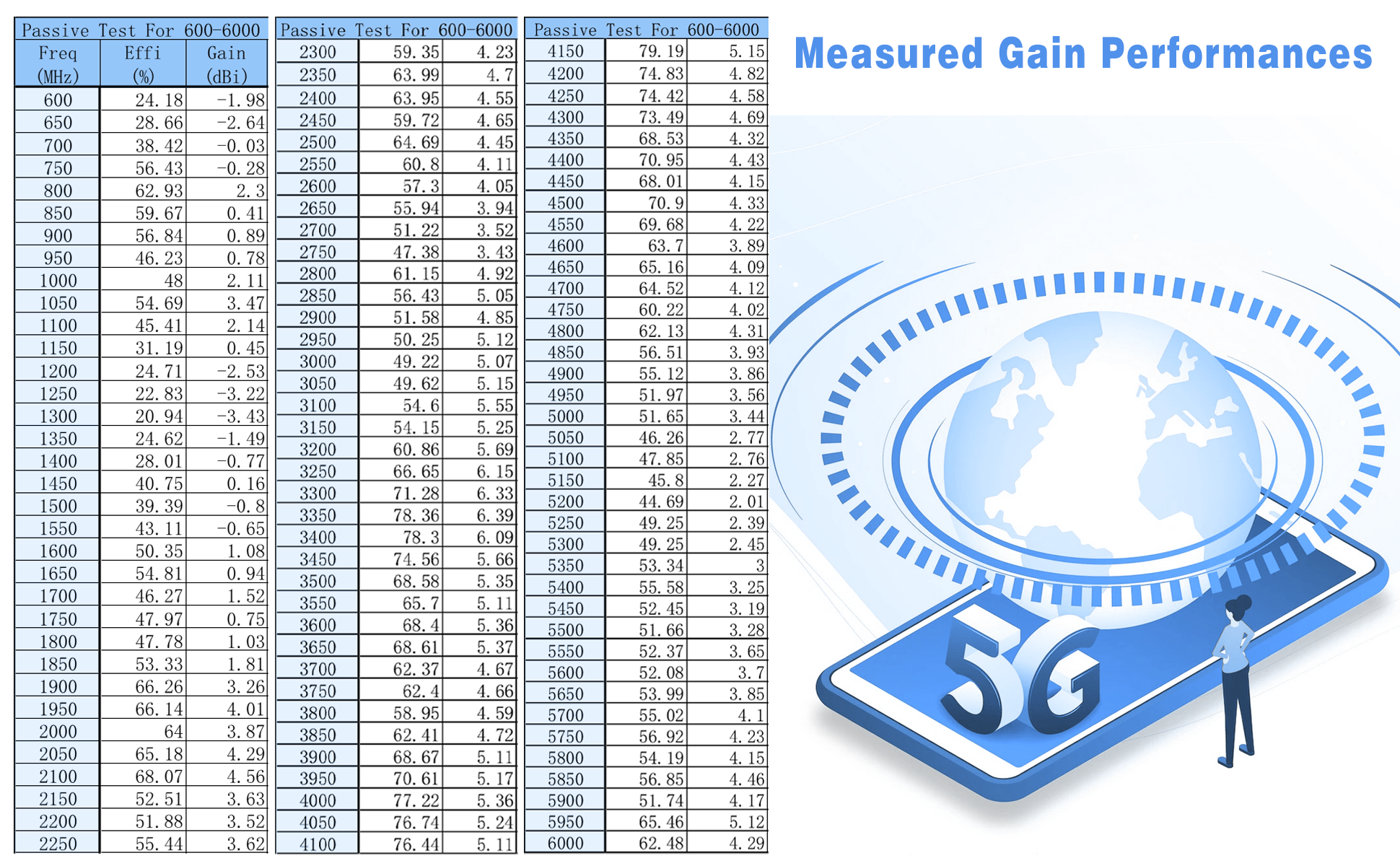

Gain: 6dBi Maximum

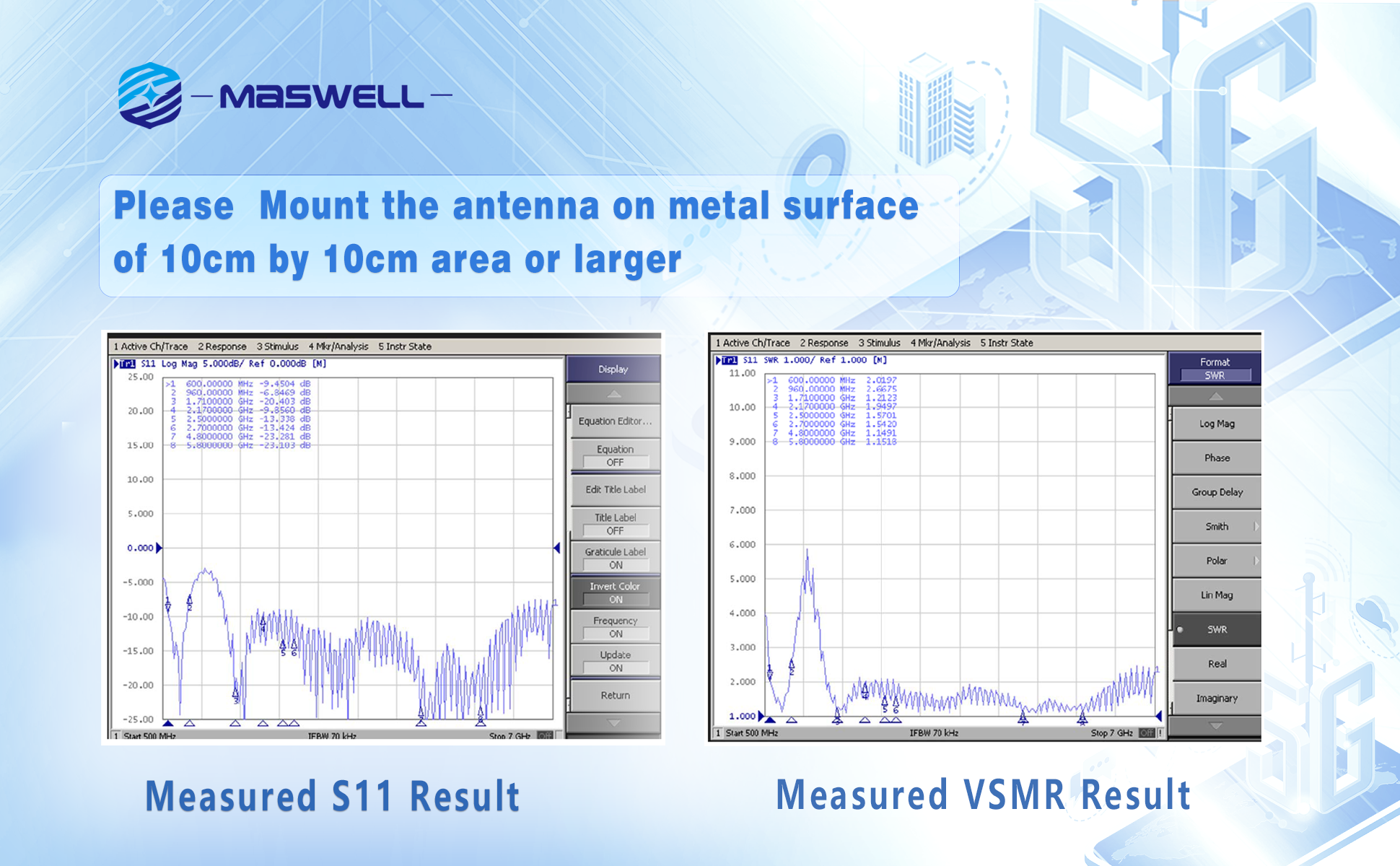

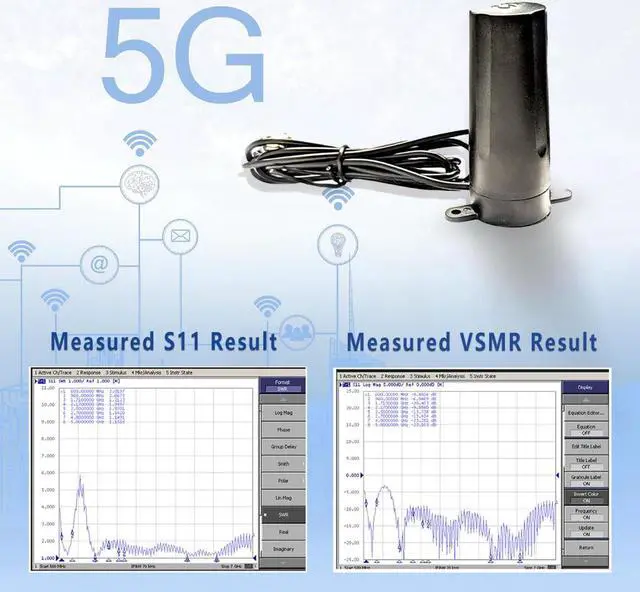

V. S. W. R: <2
Impendance: 50
Dimension: 71 *48 * 28.3 mm
Mechanical

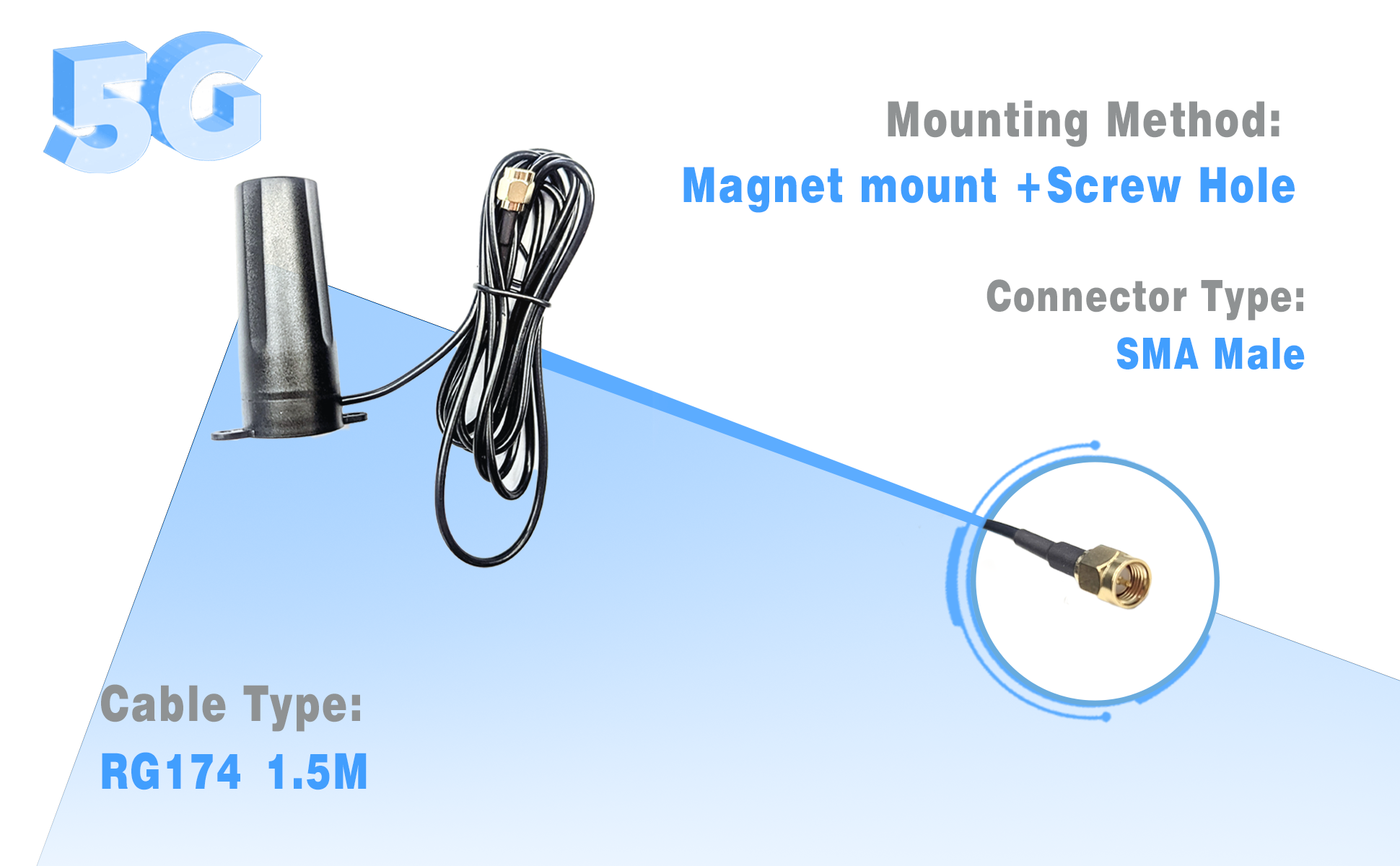

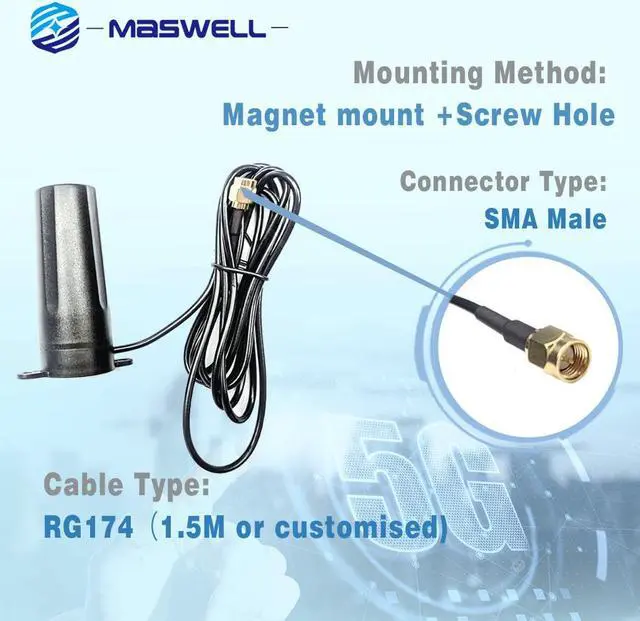

Cable: RG174( 1.5M or customised)
Connector: SMA
Radome Material: ABS
Mounting Method: Magnet mount +Screw Hole
Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Waterproof: IP65
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
UV Stabilized: YES
Frequency Range: 600-960/1710-6000MHz
Polarization: Linear
Gain: 6dBi Maximum
V. S. W. R: <2
Impendance: 50
Dimension: 71 *48 * 28.3 mm
Mechanical
Cable: RG174( 1.5M or customised)
Connector: SMA
Radome Material: ABS
Mounting Method: Magnet mount +Screw Hole
Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Waterproof: IP65
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
UV Stabilized: YES
