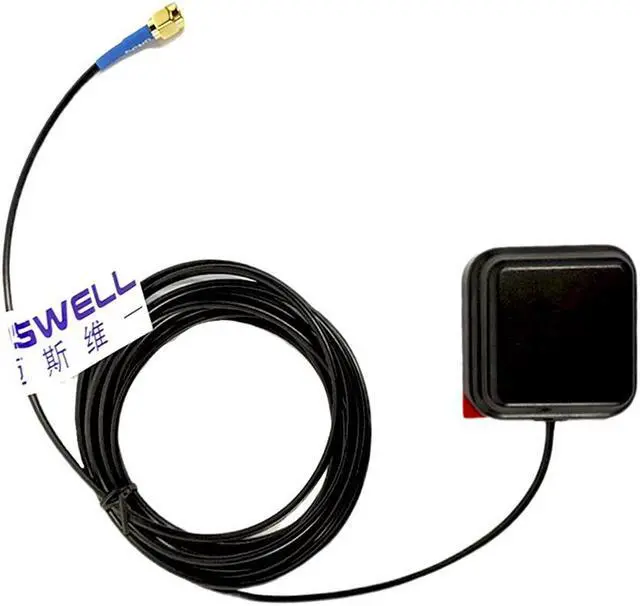

GNSS antenna square for GPS/GLONASS/Beidou/Gaileo
- Frequency Range: 1561.098~1602MHz
- Polarization: RHCP
- Gain: 5dBic@PCB(Zenith)
- Axial Ratio: 3dB(max)
- Cable: RG174
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

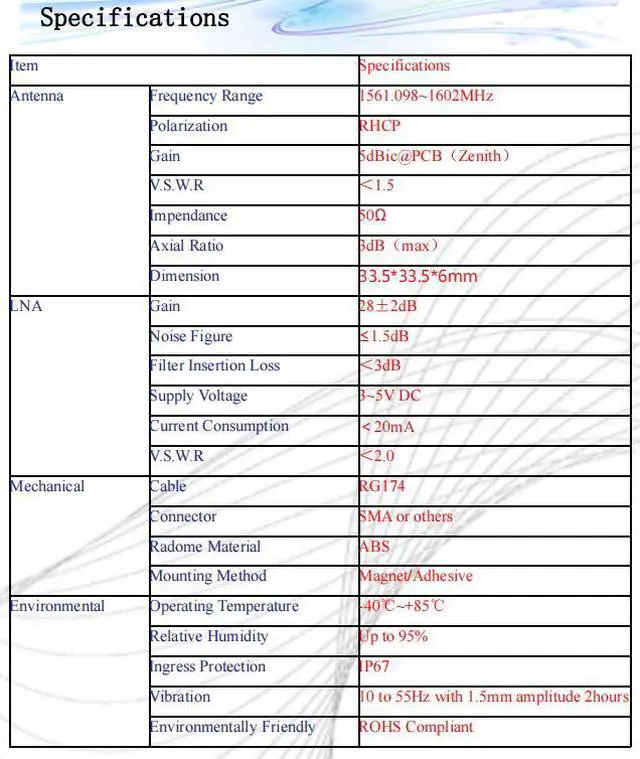

Antenna
Frequency Range: 1561.098 ~1602MHz
Polarization: RHCP
Gain: 5dBic@PCB (Zenith)
V. S. W. R: <1.5
Impendance: 50
Axial Ratio: 3dB (max)
Dimension: 33.5 * 33.5 *6mm
LNA
Gain: 28±2dB
Noise Figure: 1.5 dB
Filter Insertion Loss: <3dB
Supply Voltage: 3~5V DC
Current Consumption: <20mA
V. S. W. R: <2.0

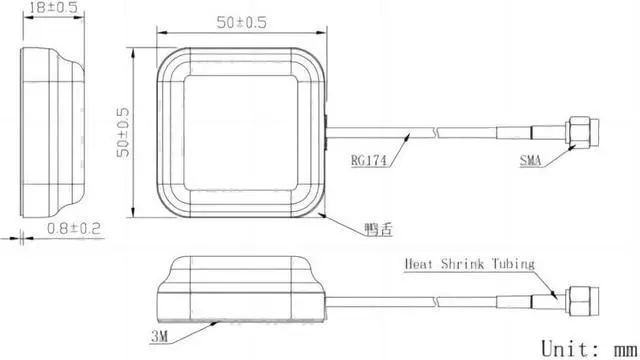

Mechanical
Cable: RG174
Connector: SMA
Radome Material: ABS
Mounting Method: Magnet/Adhesive
Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Ingress Protection: IP67
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
Frequency Range: 1561.098 ~1602MHz
Polarization: RHCP
Gain: 5dBic@PCB (Zenith)
V. S. W. R: <1.5
Impendance: 50
Axial Ratio: 3dB (max)
Dimension: 33.5 * 33.5 *6mm
LNA
Gain: 28±2dB
Noise Figure: 1.5 dB
Filter Insertion Loss: <3dB
Supply Voltage: 3~5V DC
Current Consumption: <20mA
V. S. W. R: <2.0
Mechanical
Cable: RG174
Connector: SMA
Radome Material: ABS
Mounting Method: Magnet/Adhesive
Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Ingress Protection: IP67
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
