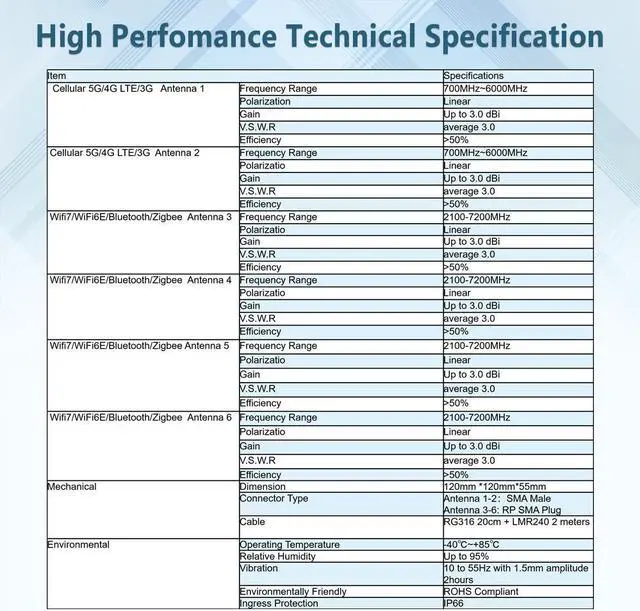

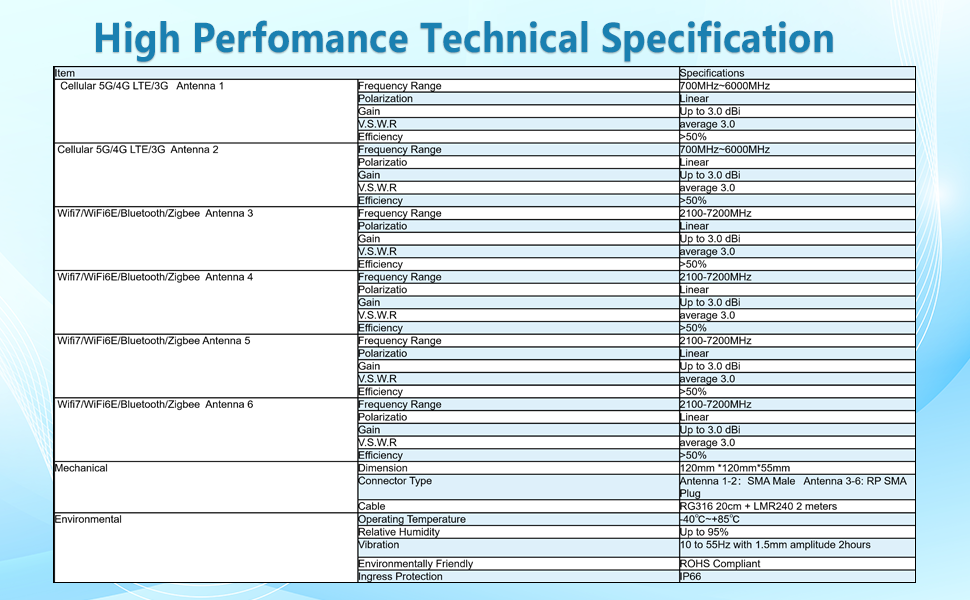

Cellular 5G/4G LTE/3G Antenna 1
Frequency Range: 700MHz~6000MHz
Polarization: Linear
Gain: Up to 3.0 dBi
V. S. W. R: average 3.0
Efficiency: >50%
Cellular 5G/4G LTE/3G Antenna 2
Frequency Range: 700MHz~6000MHz
Polarization: Linear
Gain: Up to 3.0 dBi
V. S. W. R: average 3.0
Efficiency: >50%
Wifi7/WiFi6E/Bluetooth/Zigbee Antenna 3
Frequency Range: 2100-7200MHz
Polarization: Linear
Gain: Up to 3.0 dBi
V. S. W. R: average 3.0
Efficiency: >50%
Wifi7/WiFi6E/Bluetooth/Zigbee Antenna 4
Frequency Range: 2100-7200MHz
Polarization: Linear
Gain: Up to 3.0 dBi
V. S. W. R: average 3.0
Efficiency: >50%
Wifi7/WiFi6E/Bluetooth/Zigbee Antenna 5
Frequency Range: 2100-7200MHz
Polarization: Linear
Gain: Up to 3.0 dBi
V. S. W. R: average 3.0
Efficiency: >50%
Wifi7/WiFi6E/Bluetooth/Zigbee Antenna 6
Frequency Range: 2100-7200MHz
Polarization: Linear
Gain: Up to 3.0 dBi
V. S. W. R: average 3.0
Efficiency: >50%
Mechanical
Dimension: 120mm *120mm*55mm

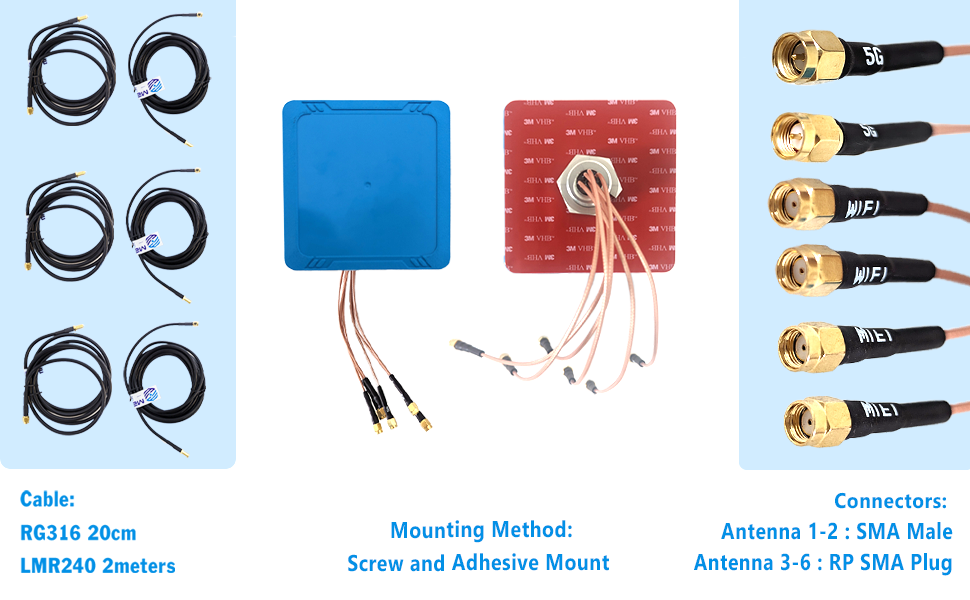

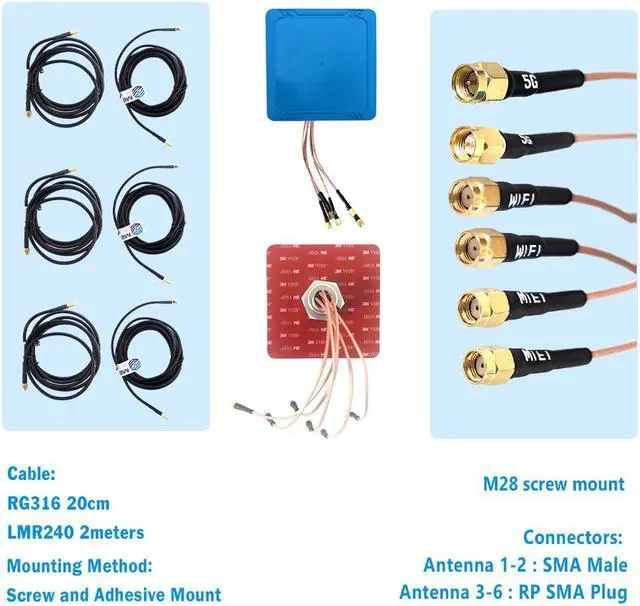

Connector Type: Antenna 1-2: SMA Male Antenna 3-6: RP SMA Plug
Cable: RG316 20cm + LMR240 2 meters
Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
Ingress Protection: IP66
