Maswell 4X4 5G MIMO Antenna 2X2 WiFi 7 Screw and Adhesive Mount 700-6000MHz

Be the first to review this product...
  • 4X4 5G MIMO Antenna
  • 2X2 WiFi7 Antenna
  • Cell Antenna Frequency Range: 700MHz~6000MHz
  • WiFi Antenna Frequency Range: 2100-7200MHz
  • Ingress Protection: IP66
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
AN.AG50.4Cell.2WiFi.2M
AN.AG50.4Cell.2WiFi.2M
AN.AG50.4Cell.2WiFi.2M
AN.AG50.4Cell.2WiFi.2M
AN.AG50.4Cell.2WiFi.2M
AN.AG50.4Cell.2WiFi.2M
AN.AG50.4Cell.2WiFi.2M
AN.AG50.4Cell.2WiFi.2M

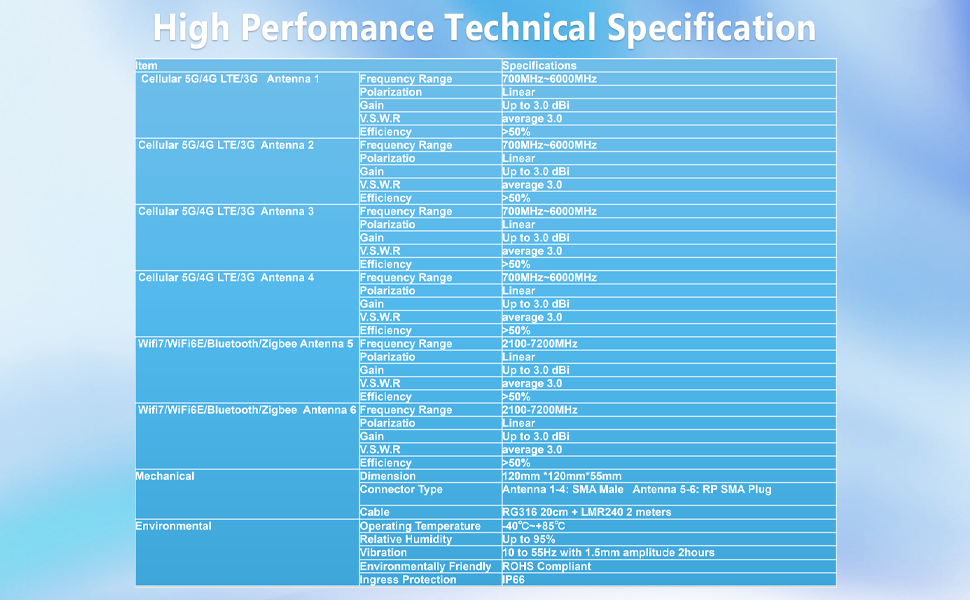

Cellular 5G/4G LTE/3G Antenna 1
Frequency Range: 700MHz~6000MHz
Polarization: Linear
Gain: Up to 3.0 dBi
V. S. W. R: average 3.0
Efficiency: >50%

Cellular 5G/4G LTE/3G Antenna 2
Frequency Range: 700MHz~6000MHz
Polarization: Linear
Gain: Up to 3.0 dBi
V. S. W. R: average 3.0
Efficiency: >50%

Cellular 5G/4G LTE/3G Antenna 3
Frequency Range: 700MHz~6000MHz
Polarization: Linear
Gain: Up to 3.0 dBi
V. S. W. R: average 3.0
Efficiency: >50%

Cellular 5G/4G LTE/3G Antenna 4
Frequency Range: 700MHz~6000MHz
Polarization: Linear
Gain: Up to 3.0 dBi
V. S. W. R: average 3.0
Efficiency: >50%

Wifi7/WiFi6E/Bluetooth/Zigbee Antenna 5
Frequency Range: 2100-7200MHz
Polarization: Linear
Gain: Up to 3.0 dBi
V. S. W. R: average 3.0
Efficiency: >50%

Wifi7/WiFi6E/Bluetooth/Zigbee Antenna 6
Frequency Range: 2100-7200MHz
Polarization: Linear
Gain: Up to 3.0 dBi
V. S. W. R: average 3.0
Efficiency: >50%

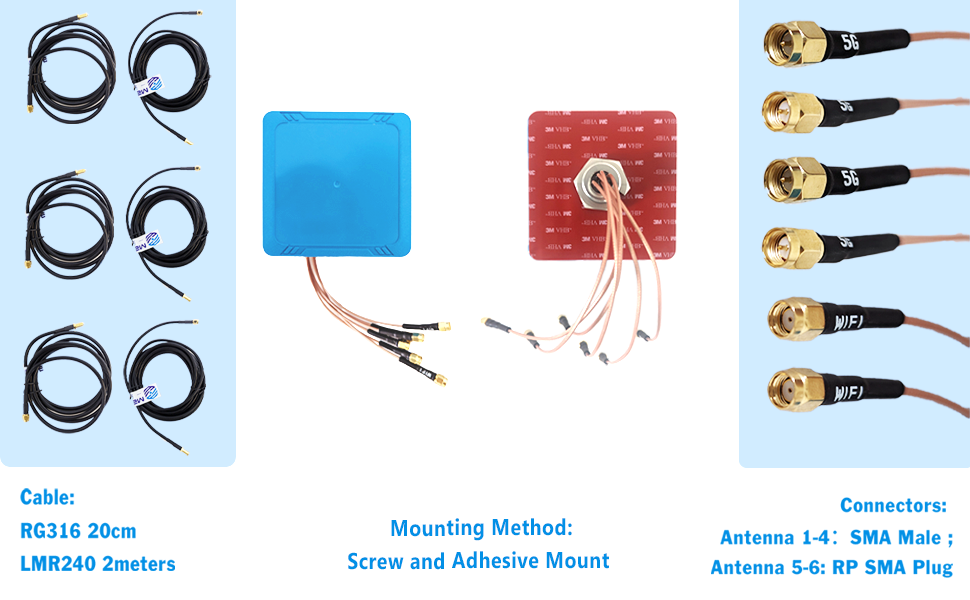

Mechanical

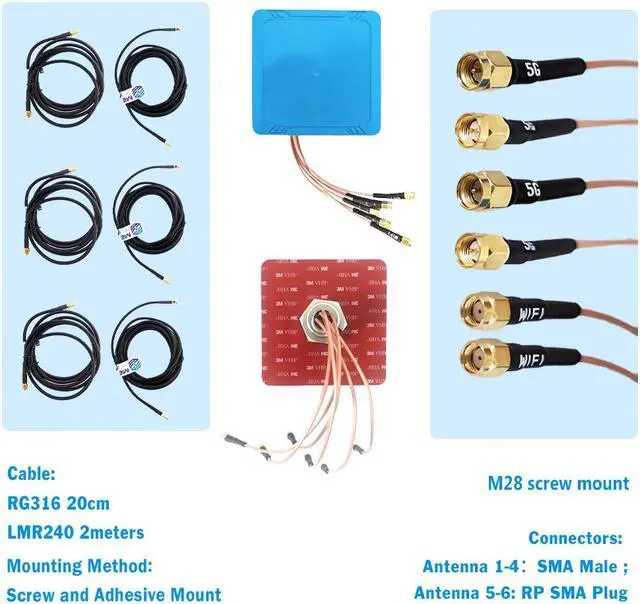

Dimension: 120mm *120mm*55mm

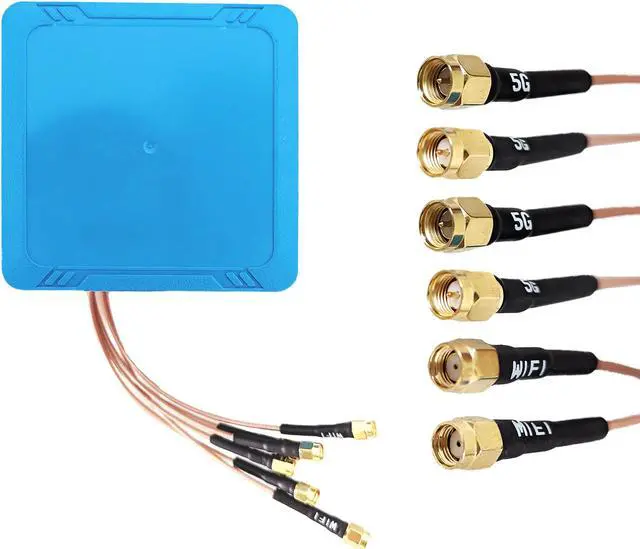

Connector Type: Antenna 1-4: SMA Male Antenna 5-6: RP SMA Plug
Cable: RG316 20cm + LMR240 2 meters

Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant

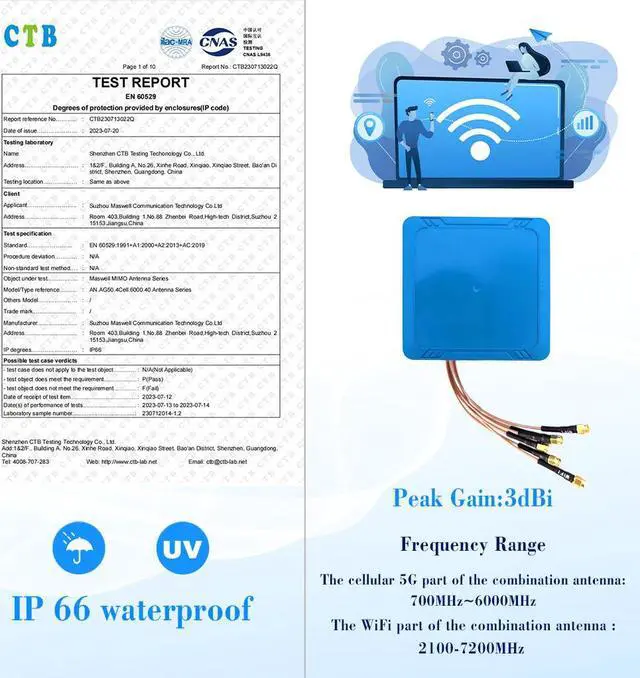

Ingress Protection: IP66
