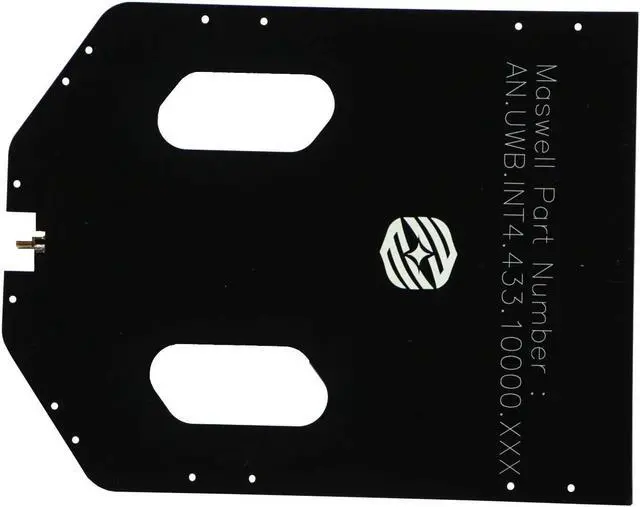

Maswell 5G Ultra Wideband Plate Antenna Directional
- Cellular Communications bands: 5G ,4G , 3G and GSM around the globe All Supported
- WiFi/Bluetooth/Zigbee applications: WiFi Harlow, WiFi 2.4GHz, WiFi 5GHz, WiFi 6, WiFi 6E All Supported
- UWB Communicaitons 3.1-10.6GHz All Supported
- CB Radios at 477MHz band: All Supported
- M2M communication, IOT, Helium communication All Supported LORA Communication All Supported
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

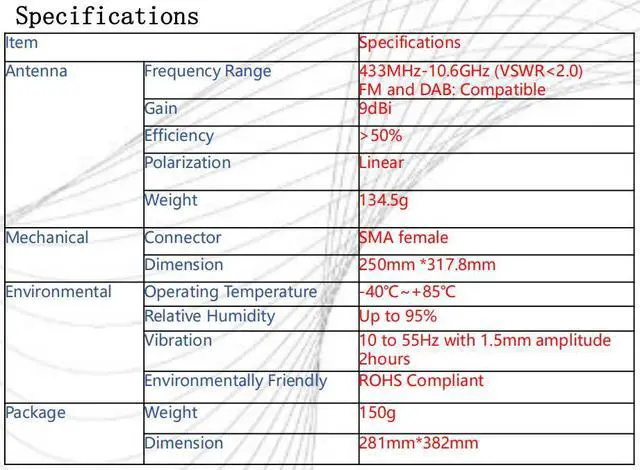

Antenna

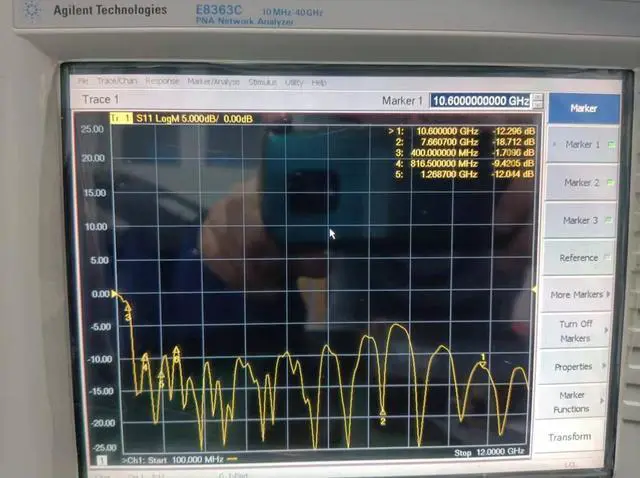

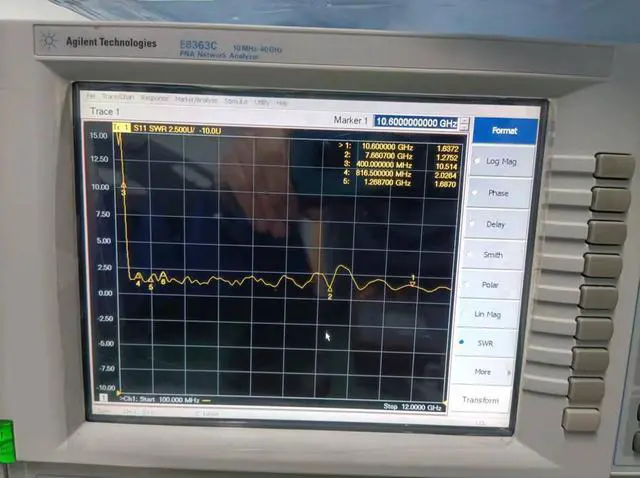

Frequency Range: 433MHz- 10.6GH z (VSWR <2.0)
FM and DAB: Compatible
Gain: 9dBi
Efficiency: >50%
Polarization: Linear
Weight: 134.5 g
Mechanical
Connector: SMA female

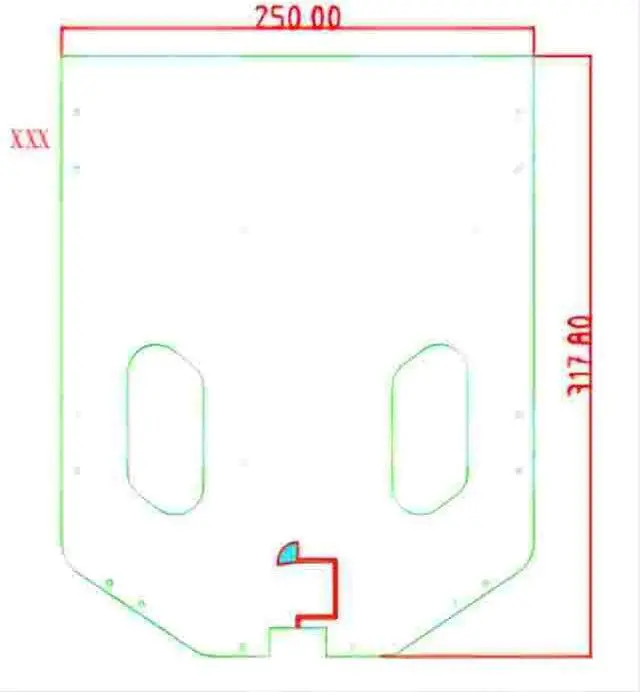

Dimension: 250mm * 317.8 mm
Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Vibration: 10 to 55Hz with 1.5 mm amplitude
2hours
Environmentally Friendly: ROHS Compliant
Package
Weight: 150g
Dimension: 281mm*382mm
Frequency Range: 433MHz- 10.6GH z (VSWR <2.0)
FM and DAB: Compatible
Gain: 9dBi
Efficiency: >50%
Polarization: Linear
Weight: 134.5 g
Mechanical
Connector: SMA female
Dimension: 250mm * 317.8 mm
Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Vibration: 10 to 55Hz with 1.5 mm amplitude
2hours
Environmentally Friendly: ROHS Compliant
Package
Weight: 150g
Dimension: 281mm*382mm
