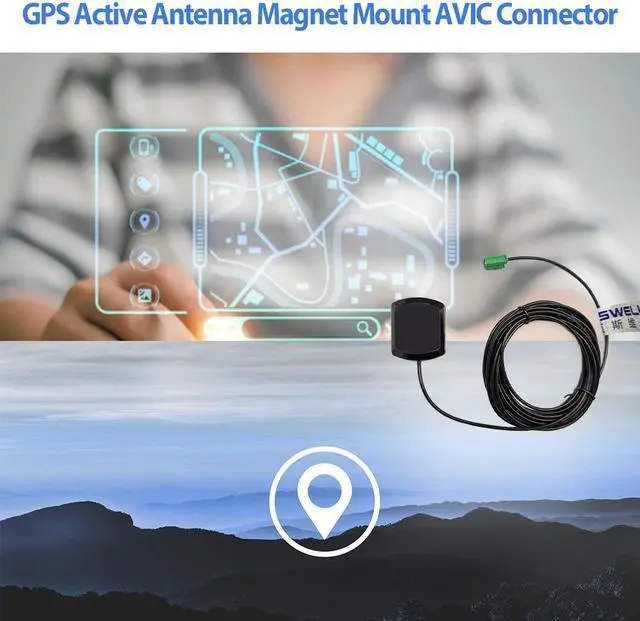

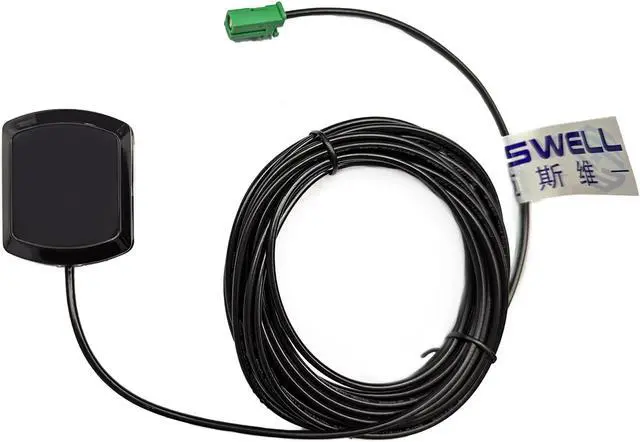

GPS Active Antenna Magnet Mount AVIC Connector
- GPS CENTER FREQUENCY: 1575.42±1MHz.Ideal for GPS signal boosting of the GPS device and other CPE devices!
- PREMIUM QUALITY ANTENNA: Our Omni-Directional Magnet Mount Antenna is made from durable material - reinforced plastic, copper wire. It will be a professional, durable accessory!

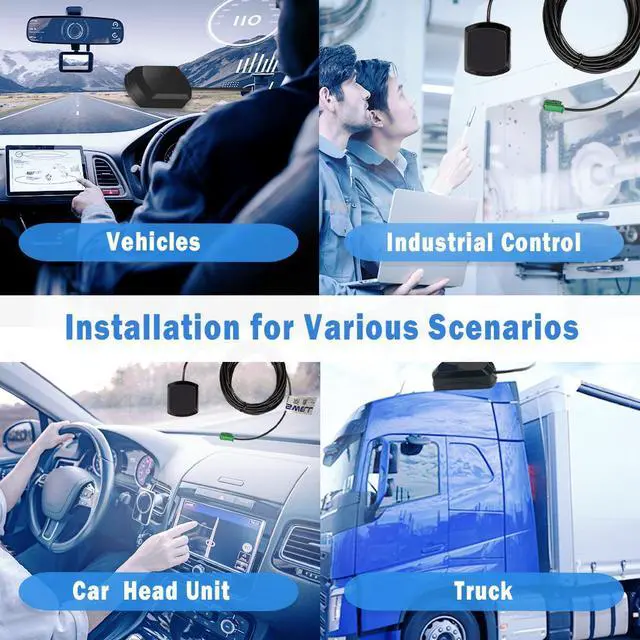

- MULTIPLE Applications: IoT, industrial controls, Smart power meter, Smart water meter, GNSS system.Ideal for car roof top or top box GPS signal boosting.
- IP66 WATERPROOF: This antenna is completely waterproof (IP66) . Ideal for use outdoors, in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna.
- 100% Satisfaction Guarantee: We are committed to providing customers with the best product and services. If you have any question, please feel free to contact us and if the good is with any quality issue, we're happy to offer you a new one!
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

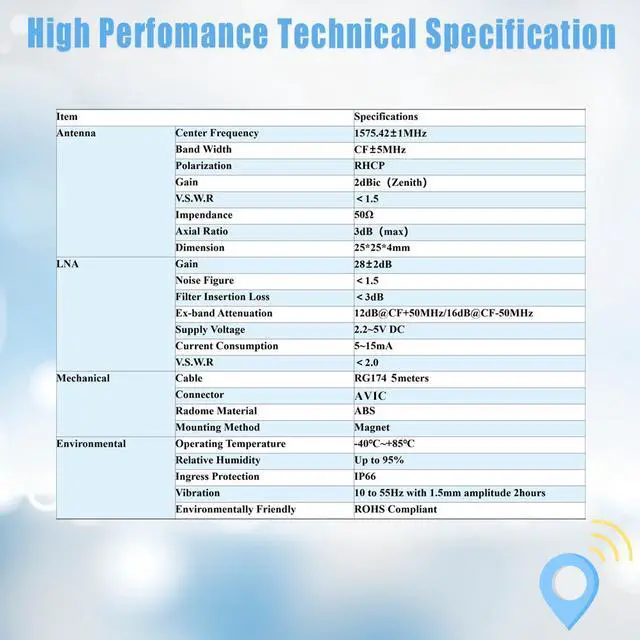

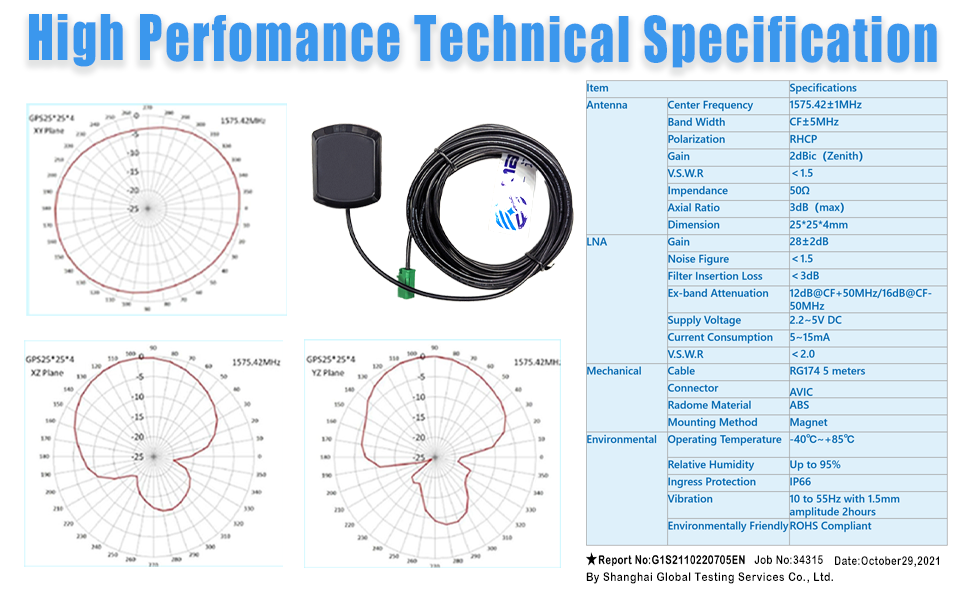

Antenna

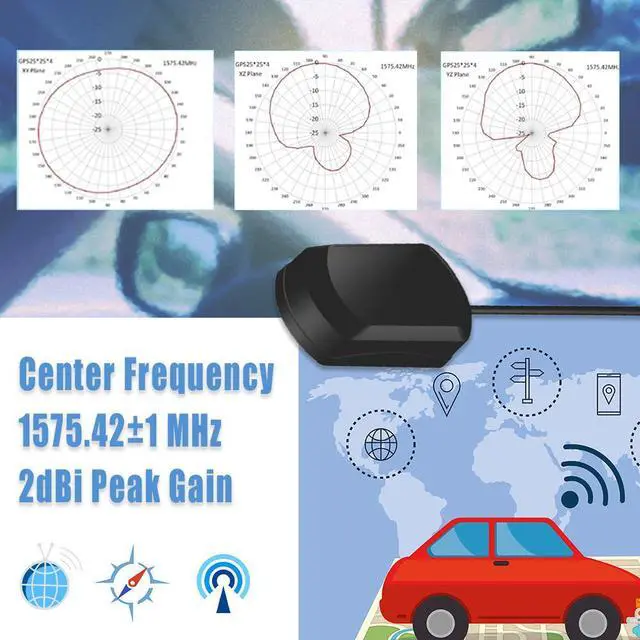

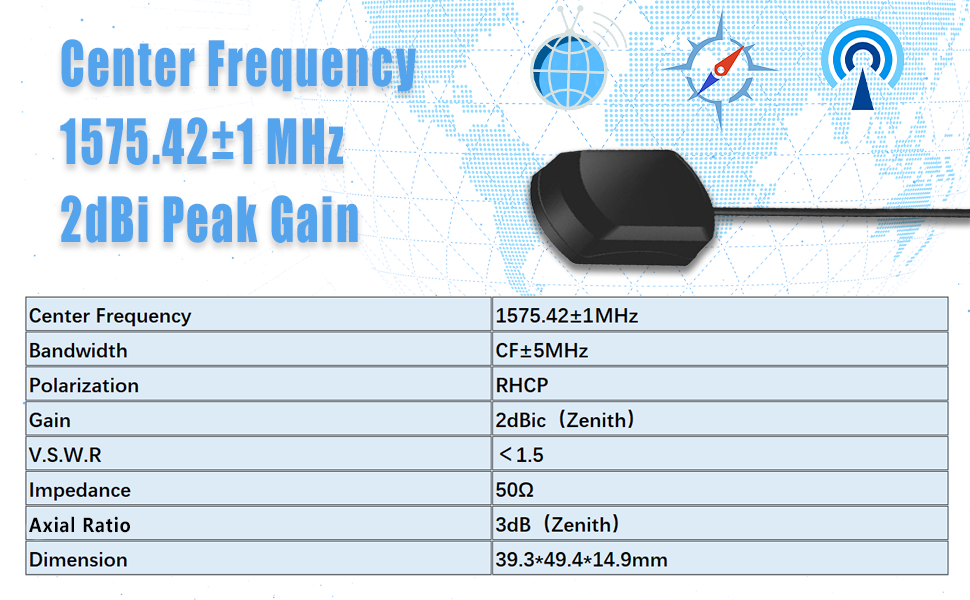

Center Frequency: 1575.42 ±1MHz
Band Width: CF±5MHz
Polarization: RHCP
Gain: 2dBic (Zenith)
V. S. W.
R: <1.5
Impendance: 50
Axial Ratio: 3dB (max)
Dimension: 25*25*4mm
LNA
Gain: 28±2dB
Noise Figure: <1.5
Filter Insertion Loss: <3dB
Ex-band Attenuation: 12dB@CF+50MHz/16dB@CF-50MHz
Supply Voltage: 2.2 ~5V DC
Current Consumption: 5~15mA
V. S. W.
R: <2.0
Mechanical
Cable: RG174 5 meters

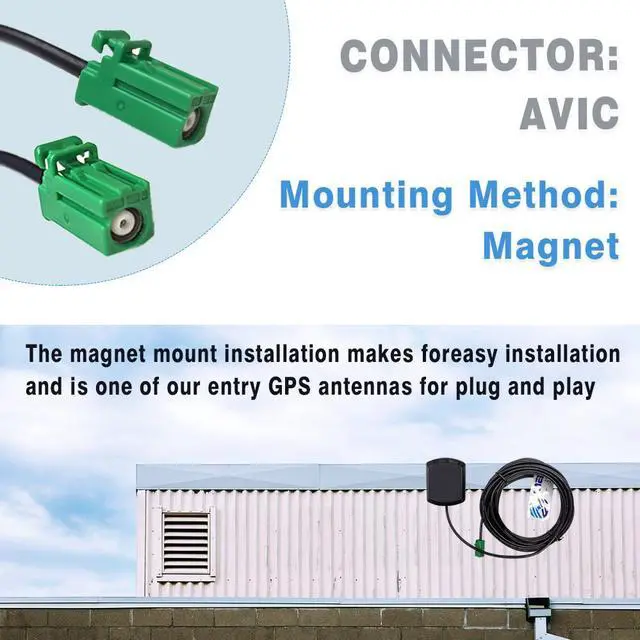

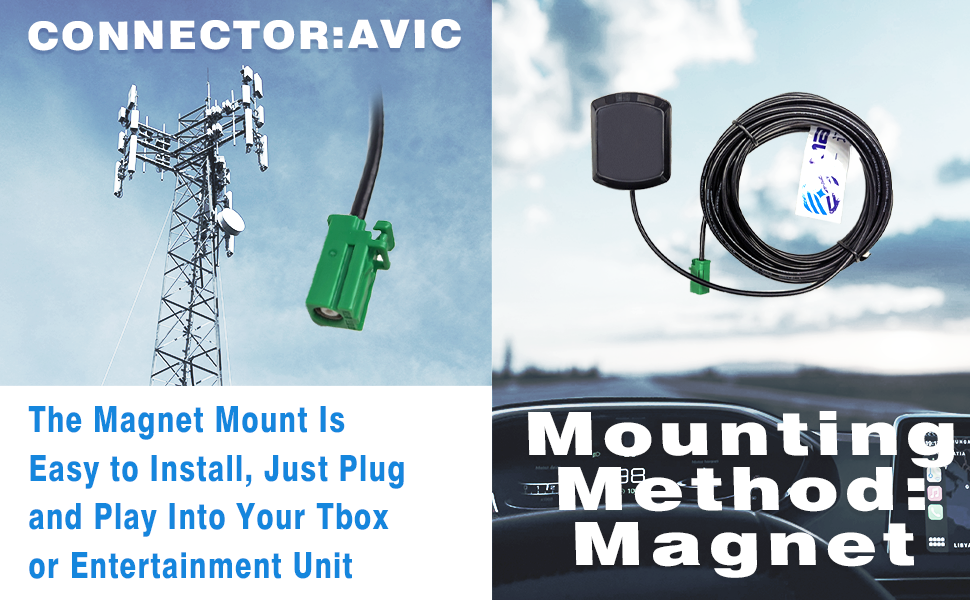

Connector: AVIC
Radome Material: ABS
Mounting Method: Magnet
Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Ingress Protection: IP66
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
Center Frequency: 1575.42 ±1MHz
Band Width: CF±5MHz
Polarization: RHCP
Gain: 2dBic (Zenith)
V. S. W.
R: <1.5
Impendance: 50
Axial Ratio: 3dB (max)
Dimension: 25*25*4mm
LNA
Gain: 28±2dB
Noise Figure: <1.5
Filter Insertion Loss: <3dB
Ex-band Attenuation: 12dB@CF+50MHz/16dB@CF-50MHz
Supply Voltage: 2.2 ~5V DC
Current Consumption: 5~15mA
V. S. W.
R: <2.0
Mechanical
Cable: RG174 5 meters
Connector: AVIC
Radome Material: ABS
Mounting Method: Magnet
Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Ingress Protection: IP66
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
