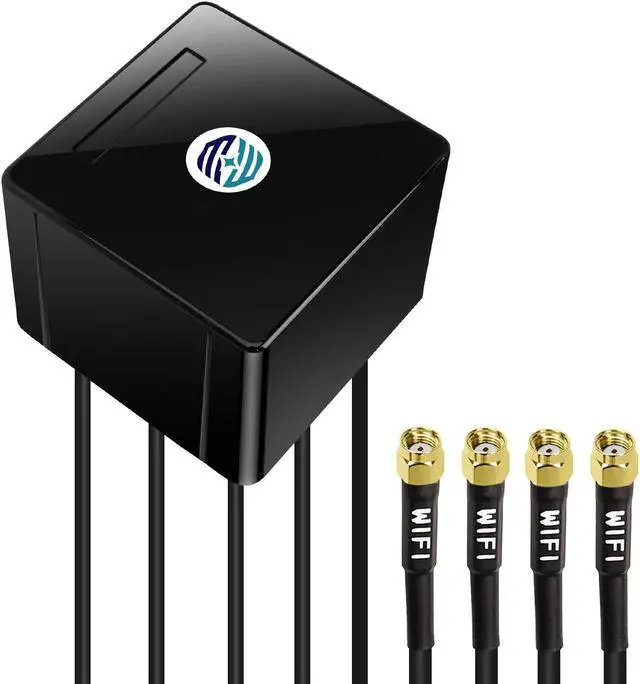

Maswell 5G Combination Antenna 4X4 MIMO WiFi 7

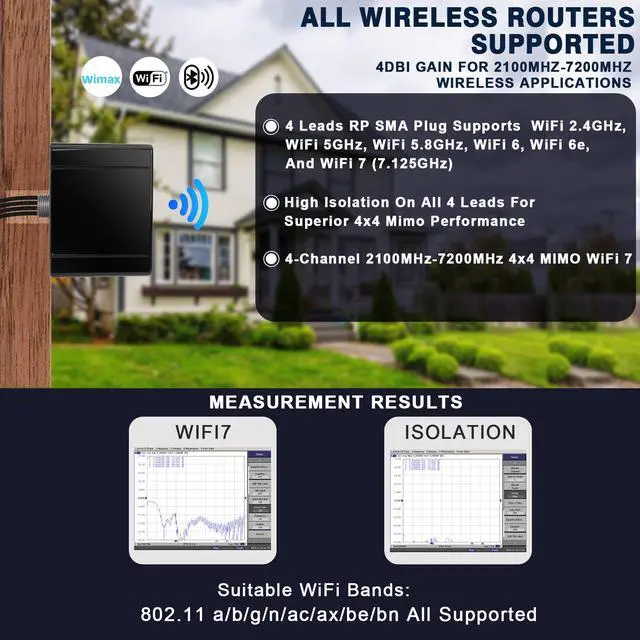

- Cellular/WIFI FREQUENCY: Wifi7/WiFi6E/Bluetooth/Zigbee:2100MHz~7200MHz .Ideal for signal reception of GSM LTE/3G/4G/5G Cellular MIMO Wifi7/WiFi6E/Bluetooth/Zigbee wireless devices.
- PREMIUM QUALITY ANTENNA: Our Omni-Directional Screw Mount Antenna is made from durable material - reinforced plastic, copper wire.It will be a professional, durable accessory!

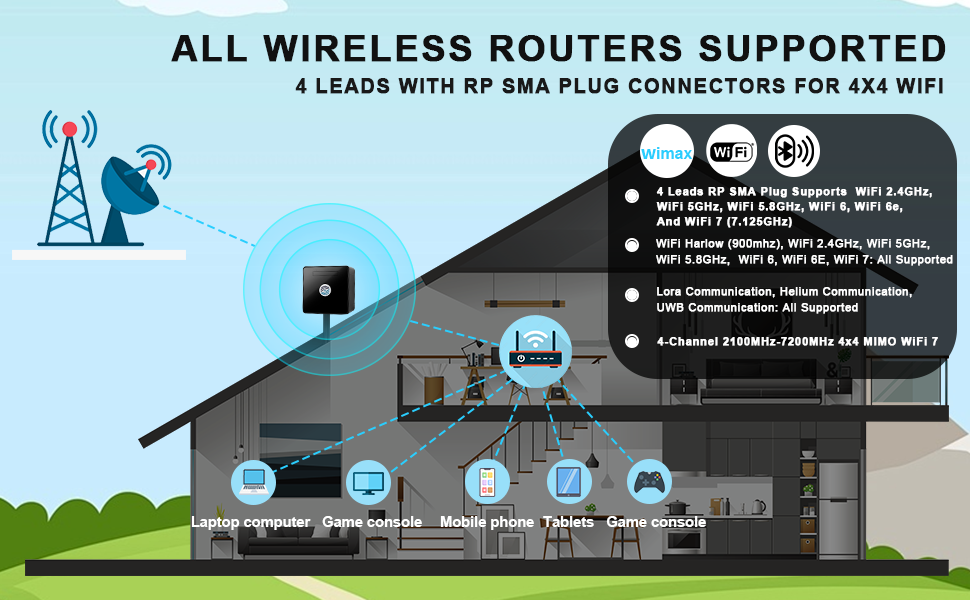

- Multiple applications: WIFI7 Antenna for Wifi7/WiFi6E/Bluetooth/Zigbee antenna. Suitable for Wifi7/WiFi6E/Bluetooth/Zigbee system, for industrial, commercial and IOT applications.

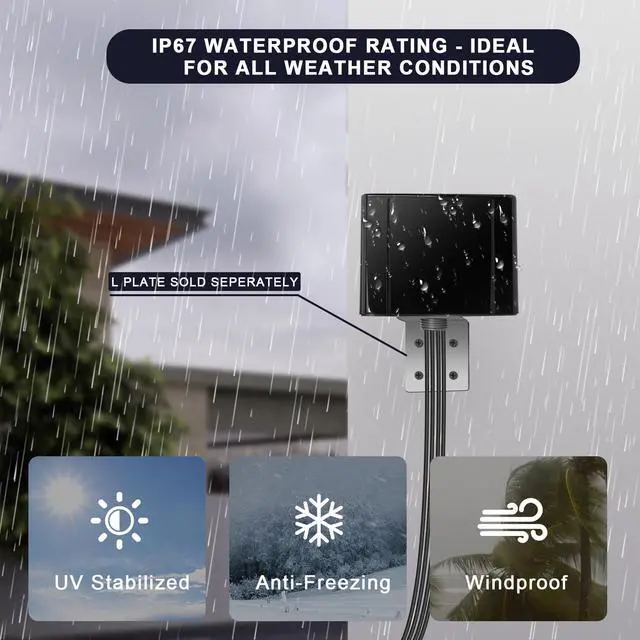

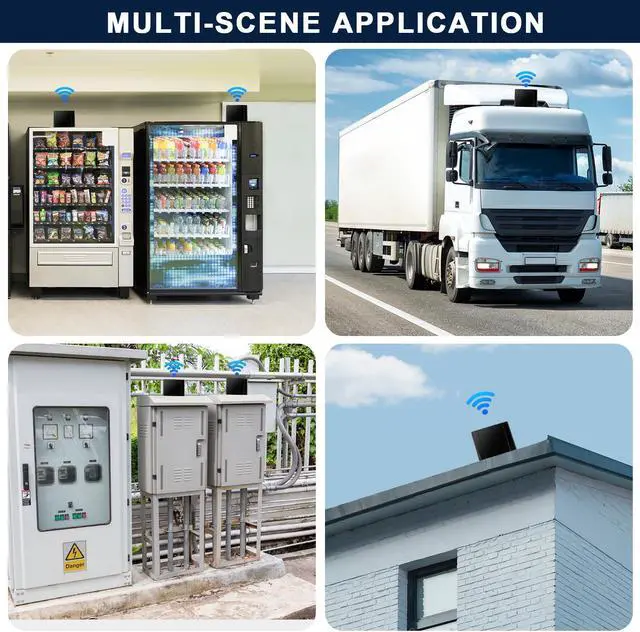

- IP67 WATERPROOF: This antenna is completely waterproof (IP67) . Ideal for use outdoors, in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

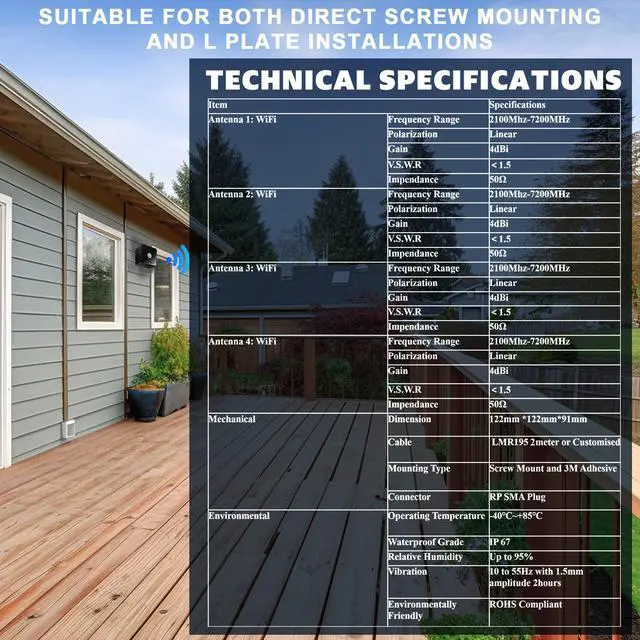

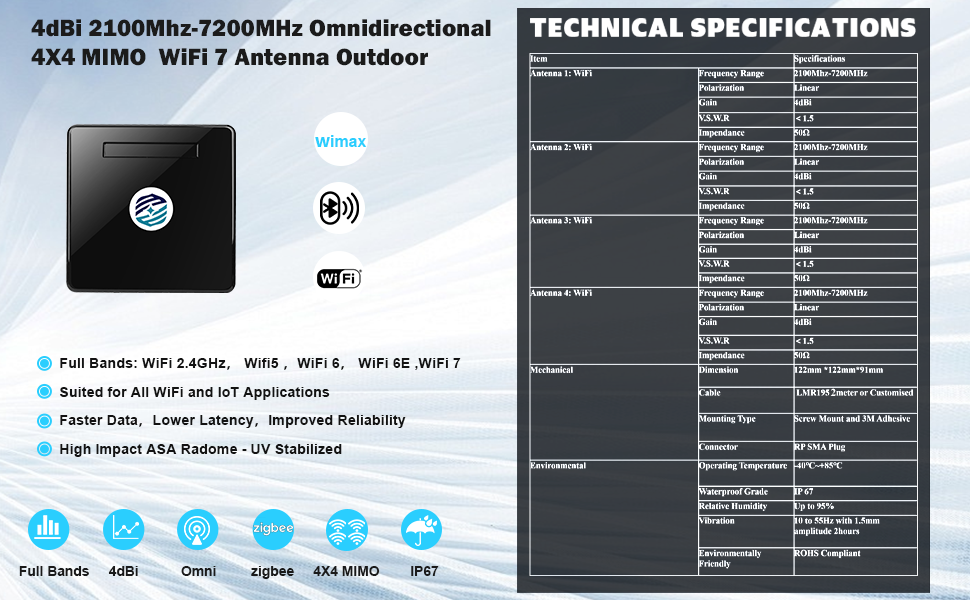

Antenna 1: WiFi
Frequency Range: 2100Mhz-7200MHz
Polarization: Linear
Gain: 4dBi
V.S.W.R: <1.5
Impendance: 50
Antenna 2: WiFi
Frequency Range: 2100Mhz-7200MHz
Polarization: Linear
Gain: 4dBi
V.S.W.R: <1.5
Impendance: 50
Antenna 3: WiFi
Frequency Range: 2100Mhz-7200MHz
Polarization: Linear
Gain: 4dBi
V.S.W.R: <1.5
Impendance: 50
Antenna 4: WiFi
Frequency Range: 2100Mhz-7200MHz
Polarization: Linear
Gain: 4dBi
V.S.W.R: <1.5
Impendance: 50
Mechanical
Dimension: 122mm *122mm*91mm

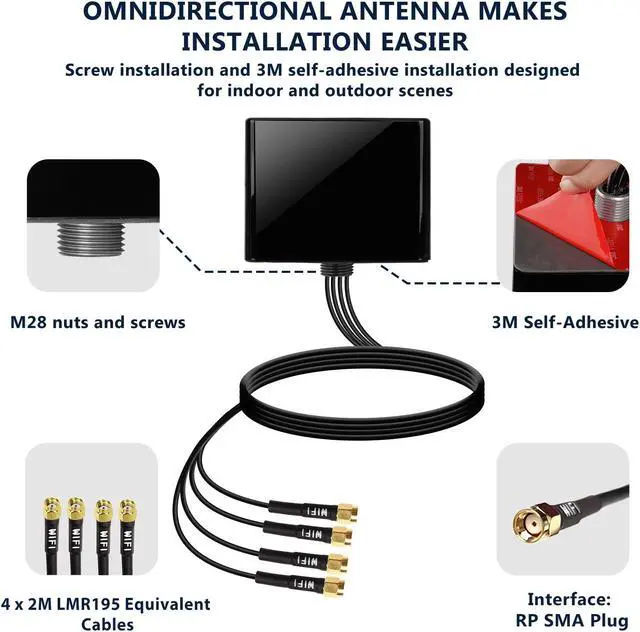

Connector: RP SMA Plug
Cable: LMR195 1meter or Customised
Environmental
Operating Temperature: -40~+85
Waterproof Grade: IP67
Relative Humidity: Up to 95%
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
Frequency Range: 2100Mhz-7200MHz
Polarization: Linear
Gain: 4dBi
V.S.W.R: <1.5
Impendance: 50
Antenna 2: WiFi
Frequency Range: 2100Mhz-7200MHz
Polarization: Linear
Gain: 4dBi
V.S.W.R: <1.5
Impendance: 50
Antenna 3: WiFi
Frequency Range: 2100Mhz-7200MHz
Polarization: Linear
Gain: 4dBi
V.S.W.R: <1.5
Impendance: 50
Antenna 4: WiFi
Frequency Range: 2100Mhz-7200MHz
Polarization: Linear
Gain: 4dBi
V.S.W.R: <1.5
Impendance: 50
Mechanical
Dimension: 122mm *122mm*91mm
Connector: RP SMA Plug
Cable: LMR195 1meter or Customised
Environmental
Operating Temperature: -40~+85
Waterproof Grade: IP67
Relative Humidity: Up to 95%
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
