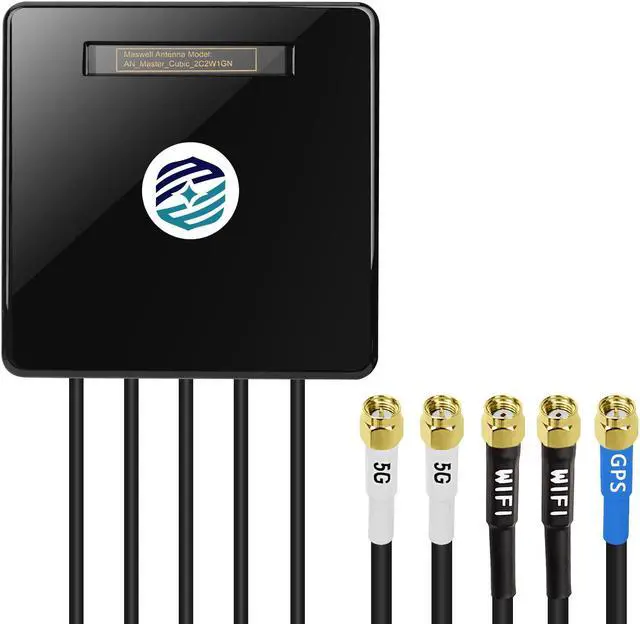

Maswell 5G Combination Antenna 2X2 MIMO 5G, 2X2 MIMO WiFi 7 and GNSS
- Cellular/WIFI GNSS FREQUENCY: Cellular 5G/4G LTE/3G WiFi6E/UWB :600~8.0GHz; GNSS Wifi7/WiFi6E/Bluetooth/Zigbee: 2100MHz~7200MHz. Ideal for signal reception of GSM LTE/3G/4G/5G Cellular MIMO GNSS Wifi7/WiFi6E/Bluetooth/Zigbee wireless devices.
- PREMIUM QUALITY ANTENNA: Our Omni-Directional Screw Mount Antenna is made from durable material-reinforced plastic, copper wire.It will be a professional, durable accessory!
- Multiple applications: High quality Cellular MIMO GNSS Antenna for 5G 4G 3G LTE, GNSS WIFI7 Antenna for Wifi7/WiFi6E/Bluetooth/Zigbee antenna. Suitable for GSM/3G/4G/5G LTE Wifi7/WiFi6E/Bluetooth/Zigbee GNSS system, for industrial, commercial and IOT applications.
- IP67 WATERPROOF: This antenna is completely waterproof (IP67). Ideal for use outdoors, in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

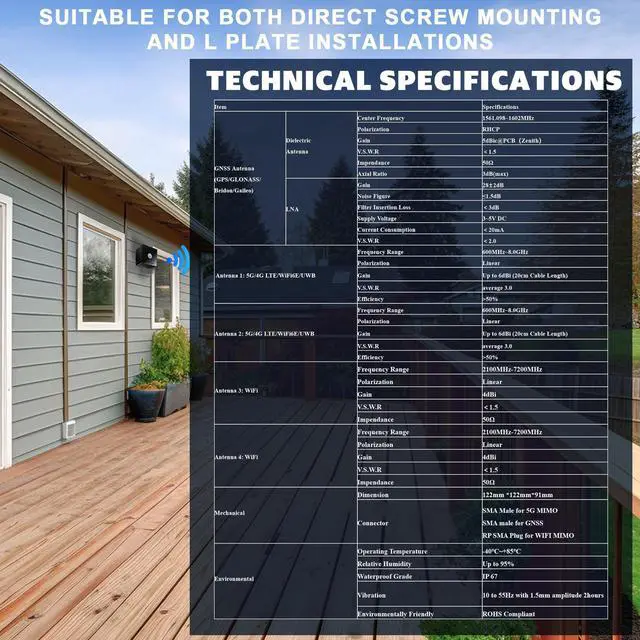

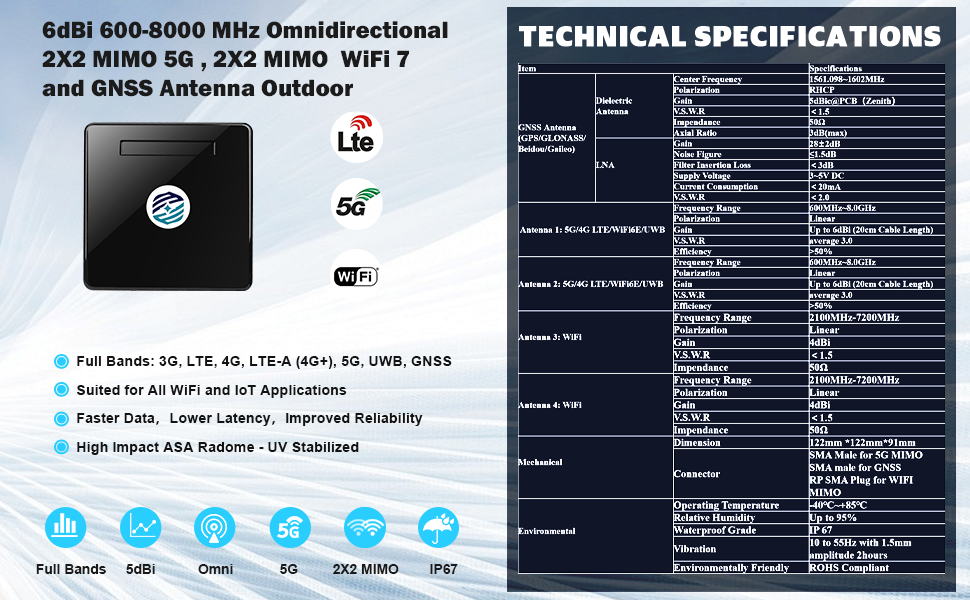

GNSS Antenna (GPS/GLONASS/ Beidou/Gaileo)
Dielectric Antenna
Center Frequency: 1561.098 ~1602MHz
Polarization: RHCP
Gain: 5dBic@PCB (Zenith)
V. S. W.
R: <1.5
Impendance: 50
Axial Ratio: 3dB (max)
LNA
Gain: 28±2dB
Noise Figure: 1.5 dB
Filter Insertion Loss: <3dB
Supply Voltage: 3~5V DC
Current Consumption: <20mA
V. S. W.
R: <2.0
Antenna 1: 5 G/4G LTE/WiFi6E/UWB
Frequency Range: 600MHz~ 8.0GH z
Polarization: Linear
Gain: Up to 6dBi (20cm Cable Length)
V. S. W.
R: average 3.0
Efficiency: >50%
Antenna 2: 5 G/4G LTE/WiFi6E/UWB
Frequency Range: 600MHz~ 8.0GH z
Polarization: Linear
Gain: Up to 6dBi (20cm Cable Length)
V. S. W.
R: average 3.0
Efficiency: >50%
Antenna 3: WiFi
Frequency Range: 2100MHz-7200MHz
Polarization: Linear
Gain: 4dBi
V. S. W.
R: <1.5
Impendance: 50
Antenna 4: WiFi
Frequency Range: 2100MHz-7200MHz
Polarization: Linear
Gain: 4dBi
V. S. W.
R: <1.5
Impendance: 50
Mechanical
Dimension: 122mm *122mm*91mm

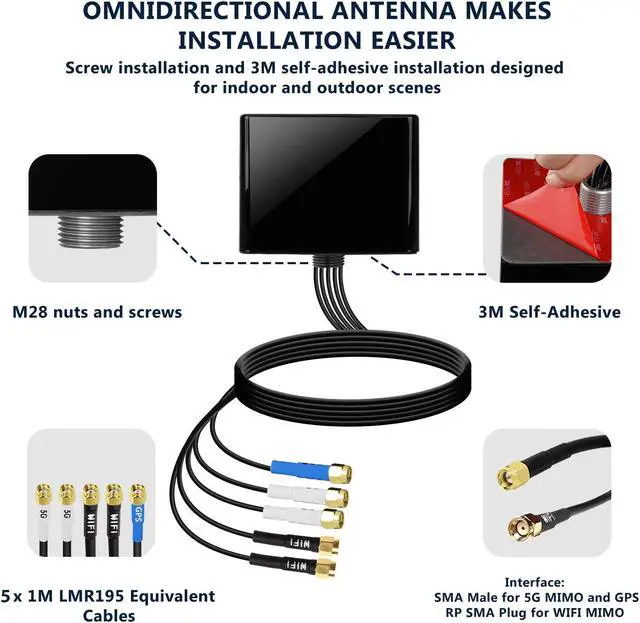

Connector:
SMA Male for 5G MIMO
SMA male for GNSS
RP SMA Plug for WIFI MIMO
Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Waterproof Grade: IP 67
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
Dielectric Antenna
Center Frequency: 1561.098 ~1602MHz
Polarization: RHCP
Gain: 5dBic@PCB (Zenith)
V. S. W.
R: <1.5
Impendance: 50
Axial Ratio: 3dB (max)
LNA
Gain: 28±2dB
Noise Figure: 1.5 dB
Filter Insertion Loss: <3dB
Supply Voltage: 3~5V DC
Current Consumption: <20mA
V. S. W.
R: <2.0
Antenna 1: 5 G/4G LTE/WiFi6E/UWB
Frequency Range: 600MHz~ 8.0GH z
Polarization: Linear
Gain: Up to 6dBi (20cm Cable Length)
V. S. W.
R: average 3.0
Efficiency: >50%
Antenna 2: 5 G/4G LTE/WiFi6E/UWB
Frequency Range: 600MHz~ 8.0GH z
Polarization: Linear
Gain: Up to 6dBi (20cm Cable Length)
V. S. W.
R: average 3.0
Efficiency: >50%
Antenna 3: WiFi
Frequency Range: 2100MHz-7200MHz
Polarization: Linear
Gain: 4dBi
V. S. W.
R: <1.5
Impendance: 50
Antenna 4: WiFi
Frequency Range: 2100MHz-7200MHz
Polarization: Linear
Gain: 4dBi
V. S. W.
R: <1.5
Impendance: 50
Mechanical
Dimension: 122mm *122mm*91mm
Connector:
SMA Male for 5G MIMO
SMA male for GNSS
RP SMA Plug for WIFI MIMO
Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Waterproof Grade: IP 67
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
