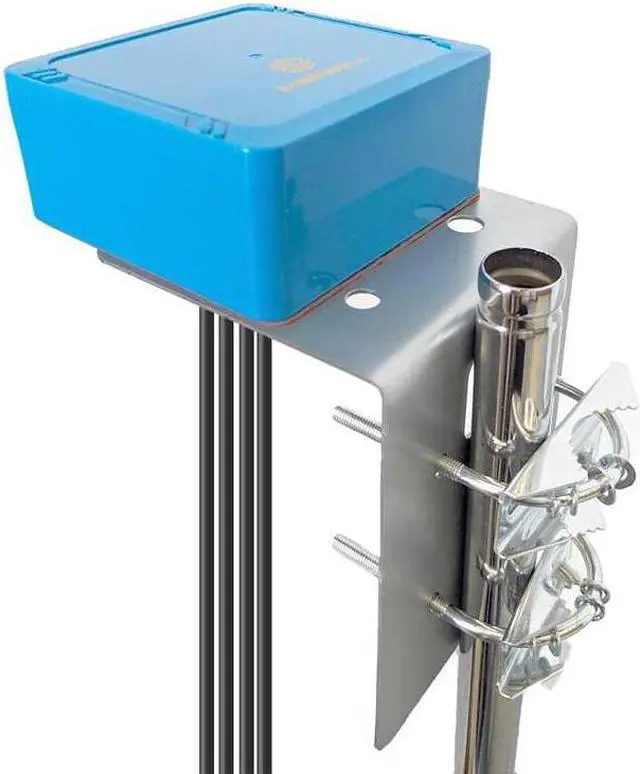

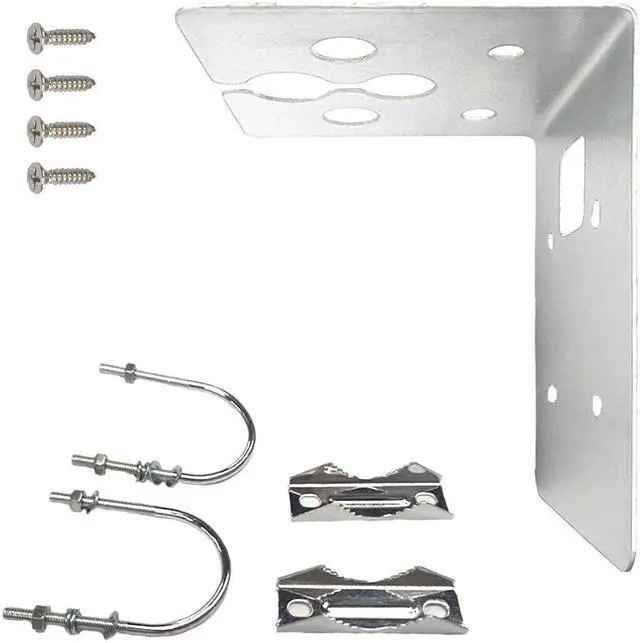

Maswell L Plate Antenna Mount Multiple Fit Screw and U Bolt Mount
- Maswell L Bracket Antenna Mount for Home Outdoor Antennas, Thickened and Stronger Antenna Mount with U-Bolts, Mounting Screws Suitable for Pole Mounting and Wall Mounting
- Supports antenna screw size M28.5 M28 M24.5 M24 M20.5 M20 M18.5 M18 M12.5M12 M10.5M10
- Usable size M 27.5, M 27, M23.5 M23, M 17.5, M17, M11.5, M11 M 9.5, M9
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Mechanical

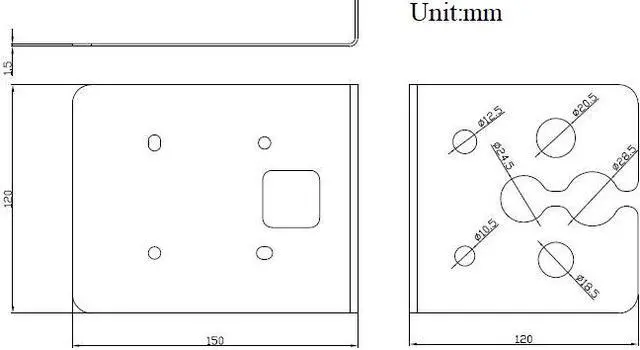

Dimension: 150*120*120mm
Metal Thickness: 1.5 mm
Material: Stainless Steel

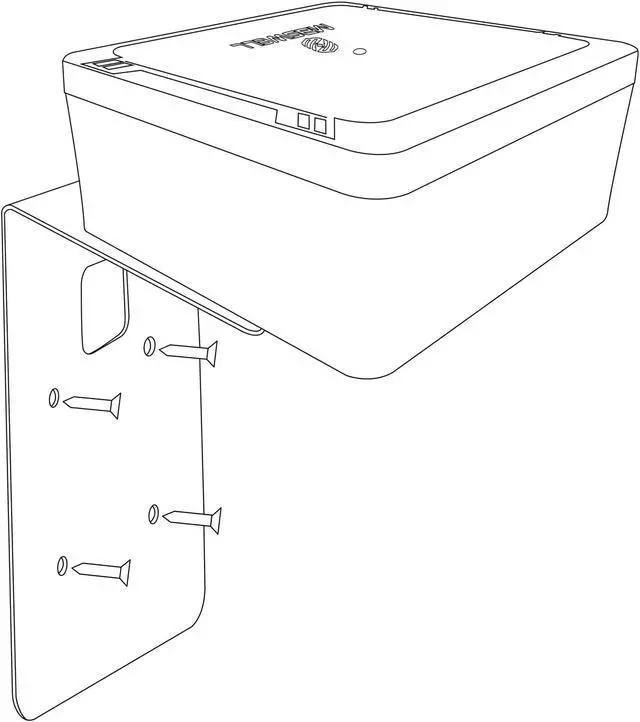

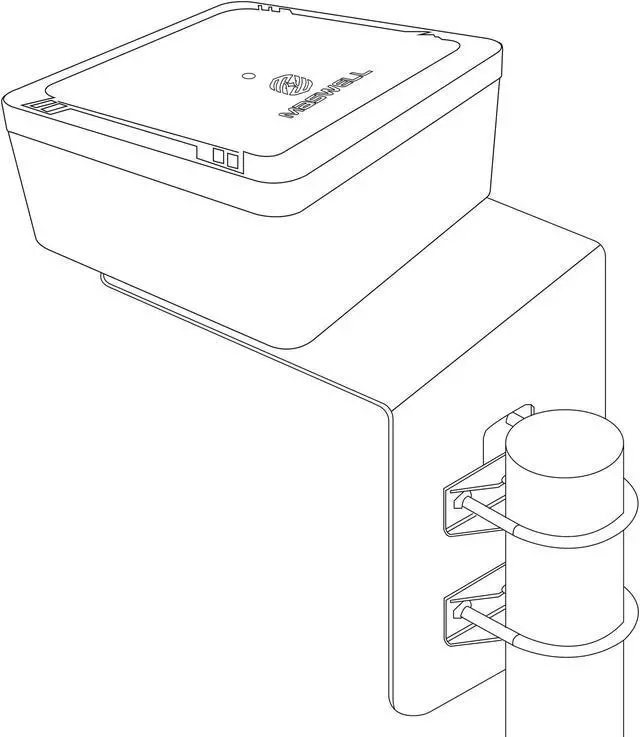

Mounting Method: Wall Screw Mount and U bolt Pole Mount
Compatible Antenna Screw Type: M 28.5 M28 M 27.5 M 24.5 M24 M 23.5 M 20.5 M20 M 19.5 M 18.5 M18 M 17.5 M 12.5 M12 M 11.5 M 10.5 M10 M 9.5
Environmental
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
Dimension: 150*120*120mm
Metal Thickness: 1.5 mm
Material: Stainless Steel
Mounting Method: Wall Screw Mount and U bolt Pole Mount
Compatible Antenna Screw Type: M 28.5 M28 M 27.5 M 24.5 M24 M 23.5 M 20.5 M20 M 19.5 M 18.5 M18 M 17.5 M 12.5 M12 M 11.5 M 10.5 M10 M 9.5
Environmental
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
