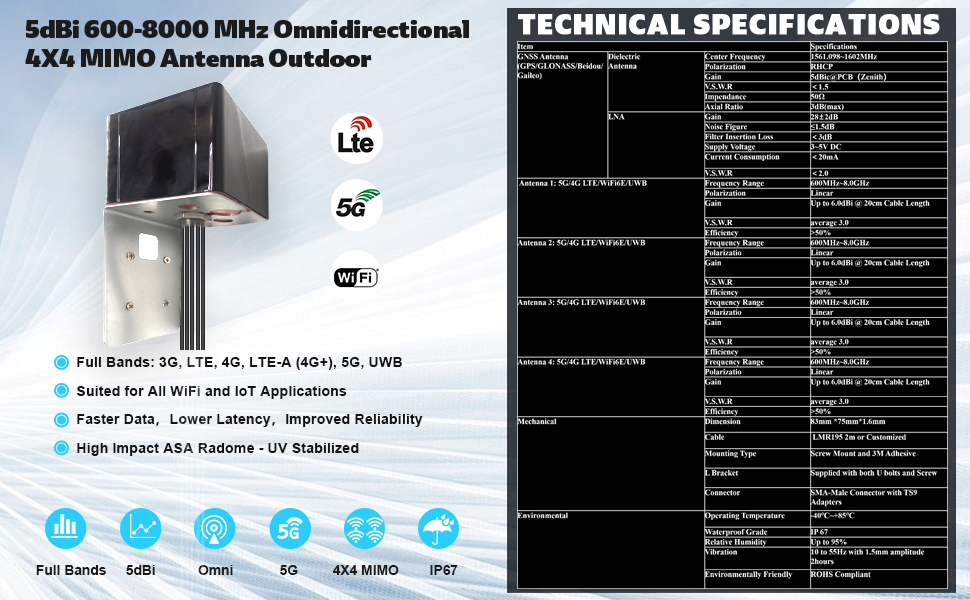

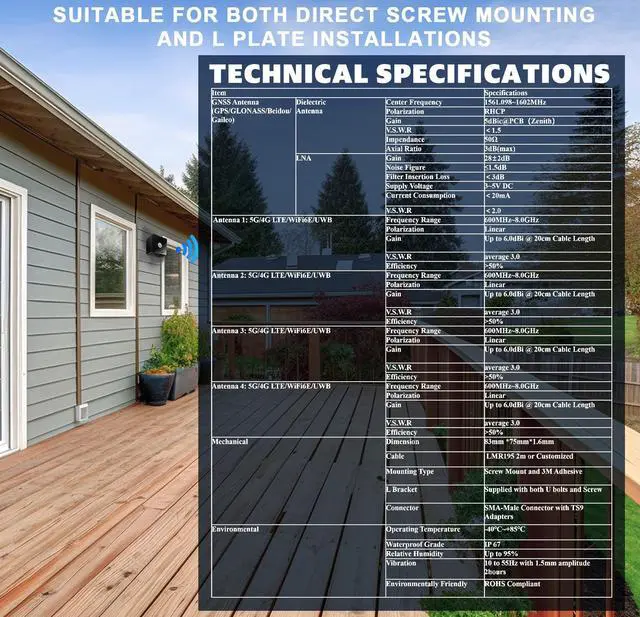

GNSS Antenna (GPS/GLONASS/ Beidou/Gaileo)
Dielectric Antenna
Center Frequency: 1561.098 ~1602MHz
Polarization: RHCP
Gain: 5dBic@PCB (Zenith)
V. S. W. R: <1.5
Impendance: 50
Axial Ratio: 3dB (max)
LNA
Gain: 28±2dB
Noise Figure: 1.5 dB
Filter Insertion Loss: <3dB
Supply Voltage: 3~5V DC
Current Consumption: <20mA
V. S. W. R: <2.0
Antenna 1: 5 G/4G LTE/WiFi6E/UWB
Frequency Range: 600MHz~ 8.0GH z
Polarization: Linear
Gain: Up to 6.0 dBi (20cm cable length)
V. S. W. R: average 3.0
Efficiency: >50%
Antenna 2: 5 G/4G LTE/WiFi6E/UWB
Frequency Range: 600MHz~ 8.0GH z
Polarization: Linear
Gain: Up to 6.0 dBi (20cm cable length)
V. S. W. R: average 3.0
Efficiency: >50%
Antenna 3: 5 G/4G LTE/WiFi6E/UWB
Frequency Range: 600MHz~ 8.0GH z
Polarization: Linear
Gain: Up to 6.0 dBi (20cm cable length)
V. S. W. R: average 3.0
Efficiency: >50%
Antenna 4: 5 G/4G LTE/WiFi6E/UWB
Frequency Range: 600MHz~ 8.0GH z
Polarization: Linear
Gain: Up to 6.0 dBi (20cm cable length)
V. S. W.R: average 3.0
Efficiency: >50%
Mechanical
Dimension: 122mm *122mm*91mm

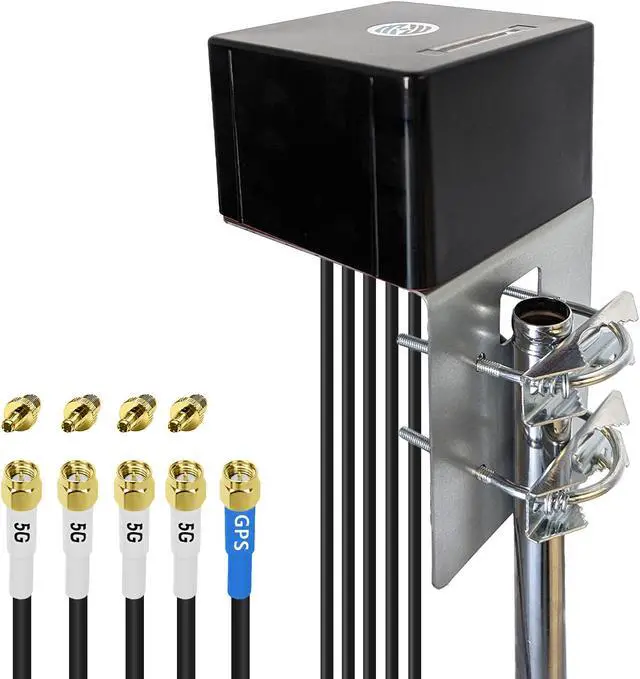

Cable: LMR195 1meter or Customised
Connector:
SMA Male for 5G MIMO
SMA male for GNSS
Environmental
Operating Temperature: -40~+85

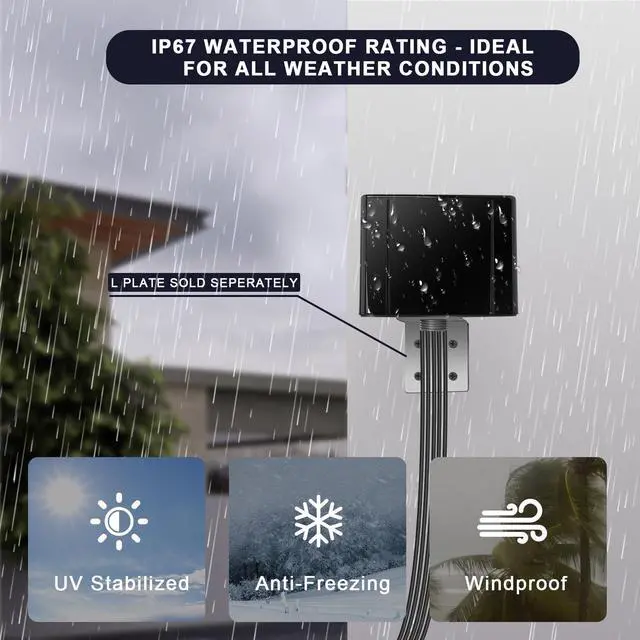

Waterproof Grade: IP 67
Relative Humidity: Up to 95%
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
