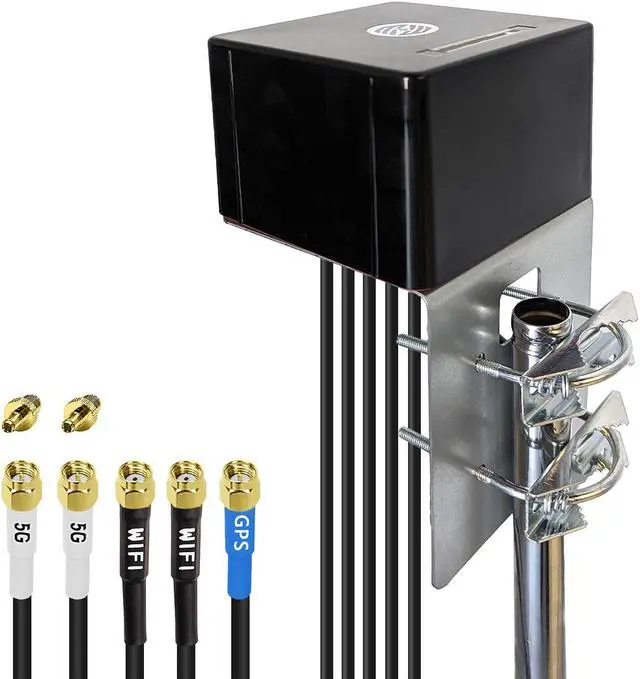

Maswell 2X2 5G MIMO 2X2 WIFI7 and GNSS Antenna 600MHz-8.0GHz Antenna Cellular 5G 4G LTE 3G WiFi6E UWB and GSM Screw Mount and L Plate Mount Cubic Antenna SMA Male RP SMA Plug Waterproof

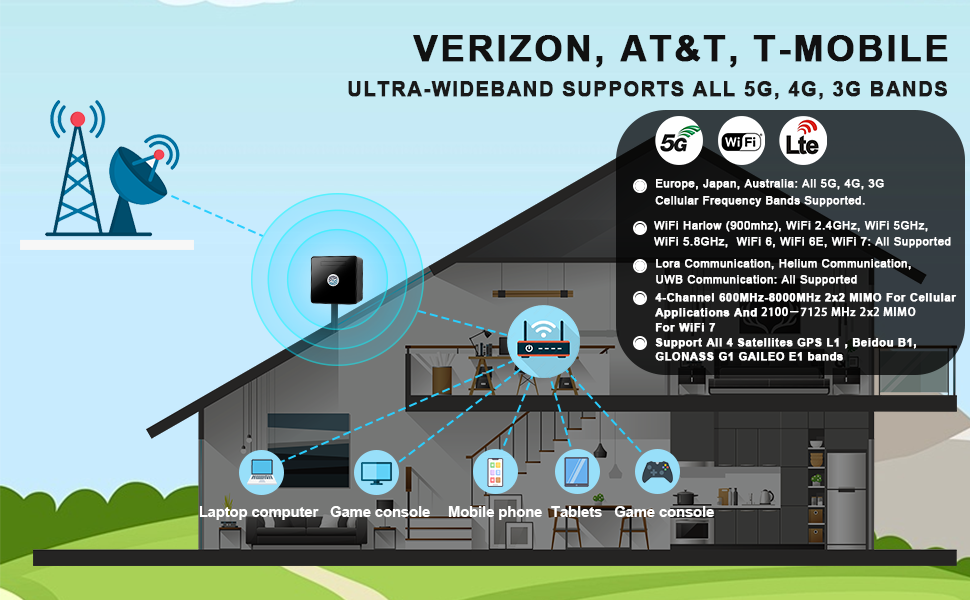

- Ideal for signal reception of GSM LTE/3G/4G/5G Cellular MIMO GNSS Wifi7/WiFi6E/Bluetooth/Zigbee wireless devices. PREMIUM QUALITY ANTENNA: Our Omni-Directional Screw Mount and L Plate Mount Antenna is made from durable material - reinforced plastic, copper wire.It will be a professional, durable accessory
- High quality Cellular MIMO GNSS Antenna for 5G 4G 3G LTE, GNSS WIFI7 Antenna for Wifi7/WiFi6E/Bluetooth/Zigbee antenna. Suitable for GSM/3G/4G/5G LTE Wifi7/WiFi6E/Bluetooth/Zigbee GNSS system.

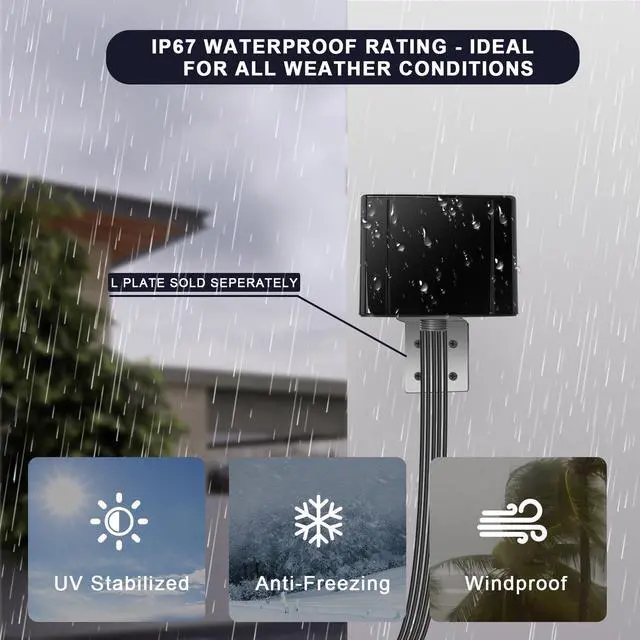

- This antenna is completely waterproof IP67 . Ideal for use outdoors, in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna.
- UV stability and IP 67 ensure its 24/7 operation capacity for industrial smart meters, sensor systems. If mounted indoor, some speed reduction or signal decrease may be obseved due to the wall blockages between the house walls and the tower.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

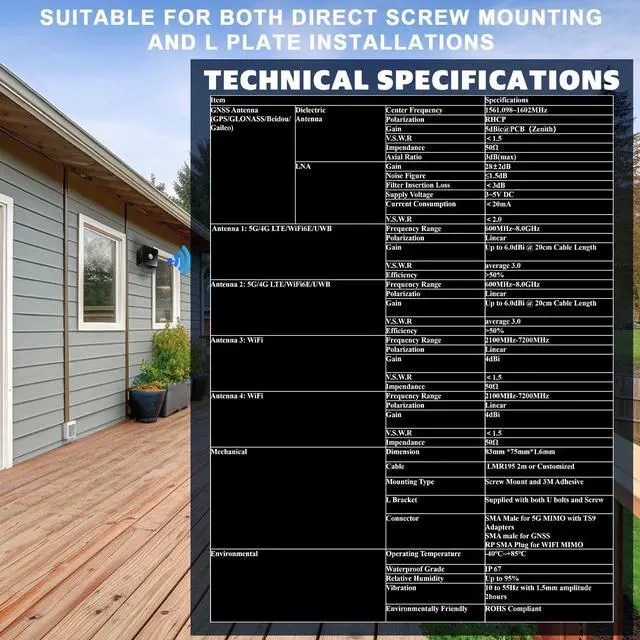

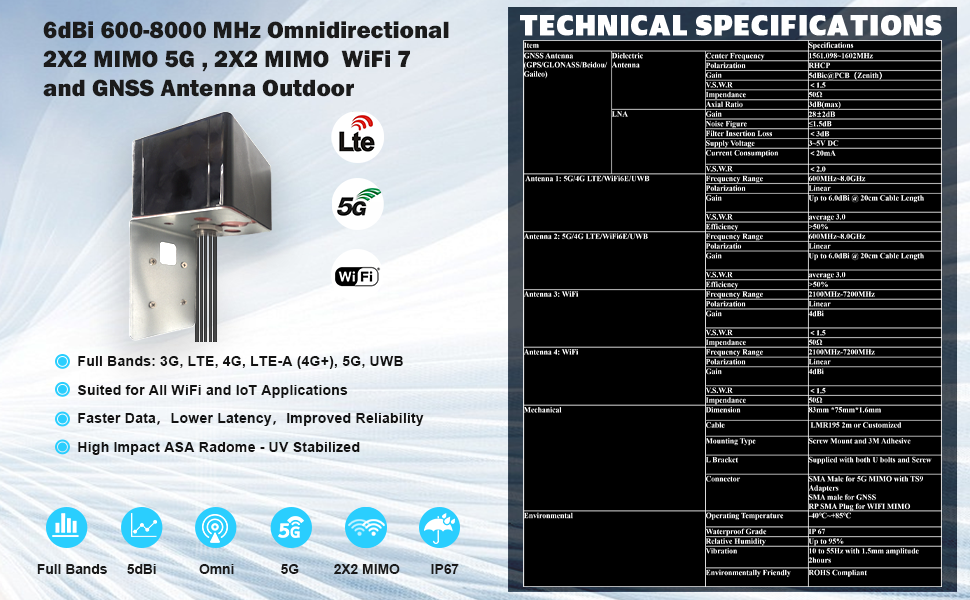

GNSS Antenna (GPS/GLONASS/ Beidou/Gaileo)
Dielectric Antenna
Center Frequency: 1561.098 ~1602MHz
Polarization: RHCP
Gain: 5dBic@PCB (Zenith)
V. S. W.
R: <1.5
Impendance: 50
Axial Ratio: 3dB (max)
LNA
Gain: 28±2dB
Noise Figure: 1.5 dB
Filter Insertion Loss: <3dB
Supply Voltage: 3~5V DC
Current Consumption: <20mA
V. S. W.
R: <2.0

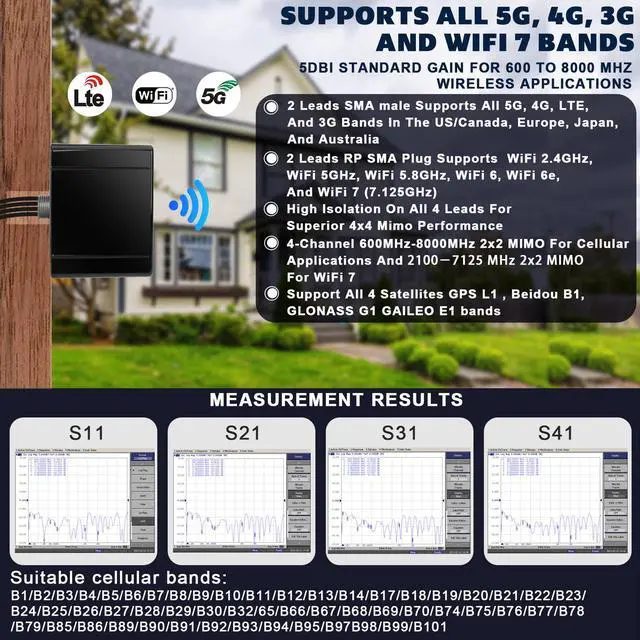

Antenna 1: 5 G/4G LTE/WiFi6E/UWB
Frequency Range: 600MHz~ 8.0GH z
Polarization: Linear
Gain: Up to 6dBi (20cm Cable Length)
V. S. W.
R: average 3.0
Efficiency: >50%
Antenna 2: 5 G/4G LTE/WiFi6E/UWB
Frequency Range: 600MHz~ 8.0GH z
Polarization: Linear
Gain: Up to 6dBi (20cm Cable Length)
V. S. W.
R: average 3.0
Efficiency: >50%
Antenna 3: WiFi
Frequency Range: 2100MHz-7200MHz
Polarization: Linear
Gain: 4dBi
V. S. W.
R: <1.5
Impendance: 50
Antenna 4: WiFi
Frequency Range: 2100MHz-7200MHz
Polarization: Linear
Gain: 4dBi
V. S. W.
R: <1.5
Impendance: 50
Mechanical
Dimension: 122mm *122mm*91mm

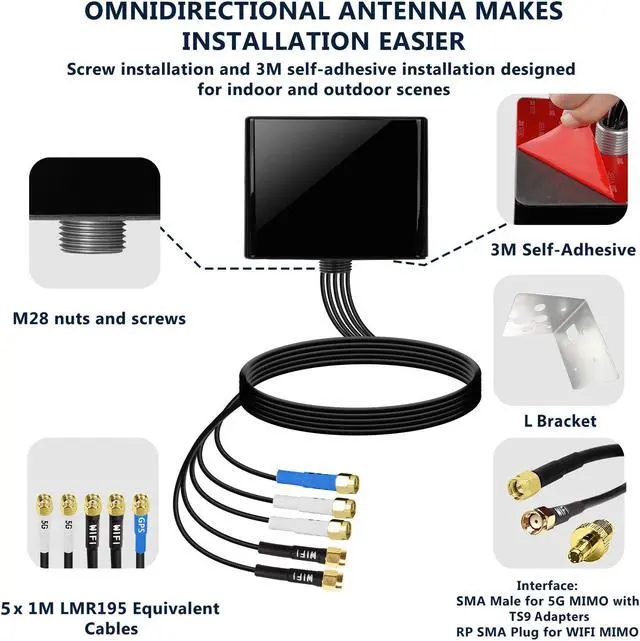

Connector:
SMA Male for 5G MIMO
SMA male for GNSS
RP SMA Plug for WIFI MIMO
Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Waterproof Grade: IP 67
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
Dielectric Antenna
Center Frequency: 1561.098 ~1602MHz
Polarization: RHCP
Gain: 5dBic@PCB (Zenith)
V. S. W.
R: <1.5
Impendance: 50
Axial Ratio: 3dB (max)
LNA
Gain: 28±2dB
Noise Figure: 1.5 dB
Filter Insertion Loss: <3dB
Supply Voltage: 3~5V DC
Current Consumption: <20mA
V. S. W.
R: <2.0
Antenna 1: 5 G/4G LTE/WiFi6E/UWB
Frequency Range: 600MHz~ 8.0GH z
Polarization: Linear
Gain: Up to 6dBi (20cm Cable Length)
V. S. W.
R: average 3.0
Efficiency: >50%
Antenna 2: 5 G/4G LTE/WiFi6E/UWB
Frequency Range: 600MHz~ 8.0GH z
Polarization: Linear
Gain: Up to 6dBi (20cm Cable Length)
V. S. W.
R: average 3.0
Efficiency: >50%
Antenna 3: WiFi
Frequency Range: 2100MHz-7200MHz
Polarization: Linear
Gain: 4dBi
V. S. W.
R: <1.5
Impendance: 50
Antenna 4: WiFi
Frequency Range: 2100MHz-7200MHz
Polarization: Linear
Gain: 4dBi
V. S. W.
R: <1.5
Impendance: 50
Mechanical
Dimension: 122mm *122mm*91mm
Connector:
SMA Male for 5G MIMO
SMA male for GNSS
RP SMA Plug for WIFI MIMO
Environmental
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Waterproof Grade: IP 67
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
