$399.99
Meet Your Seller

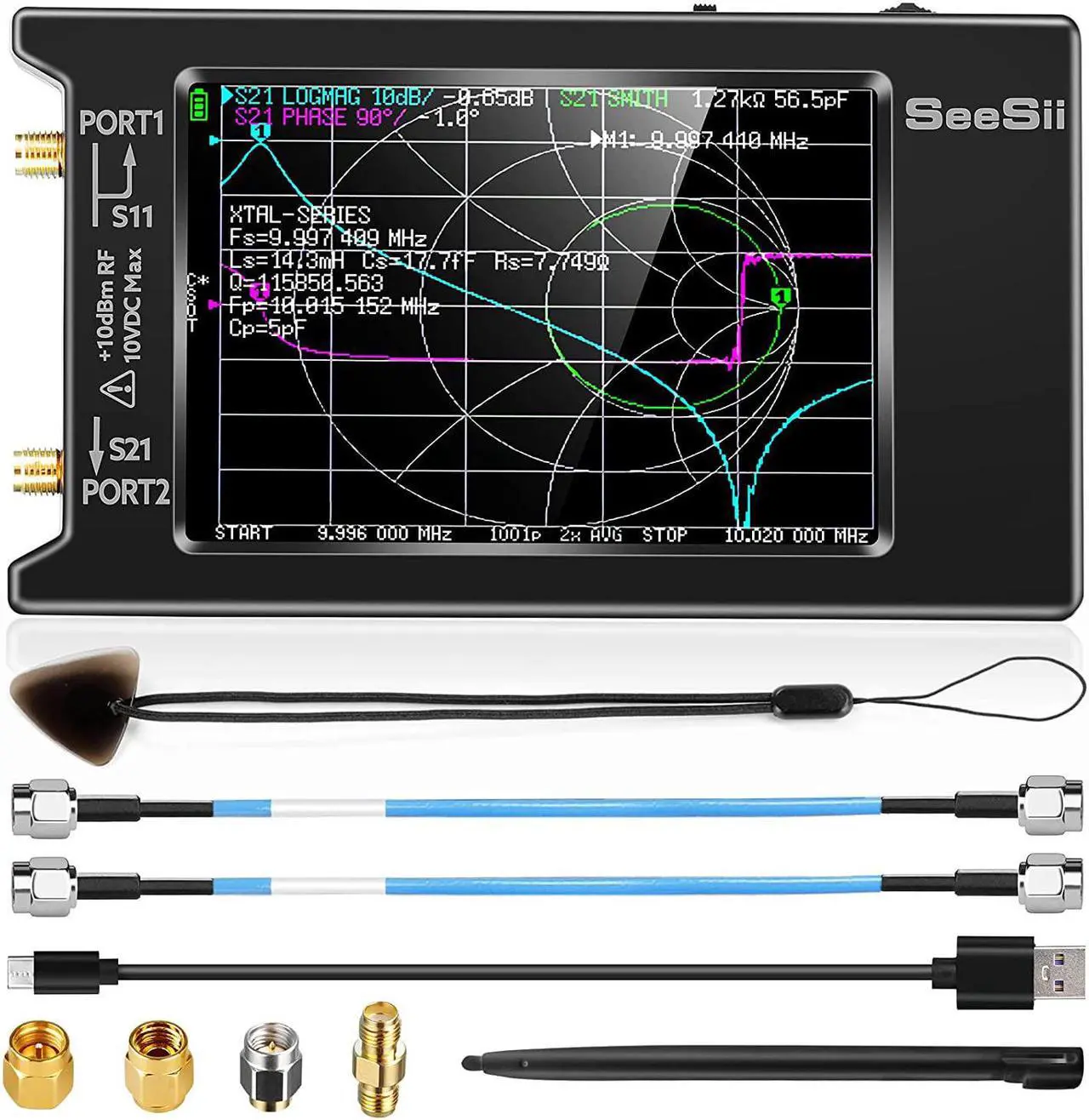

2022Upgraded NanoVNA 50kHz-6.3GHz Vector Network Analyzer,Seesii 4inch Antenna Analyzer with 2000 Battery,MicroSD Slot, Support Data Storage,Measure S Parameters HF VHF UHF SWR Phase Delay Smith Chart
- Lite--VNA improves on the popular NanoVNA and SAA2. Now you can get a portable vector network analyzer (VNA) as small as the NanoVNA and capable of meeting the ultra-wide measurement range of 50 kHz to 6.3 GHz.
- To minimize power consumption and size, the Lite--VNA uses only one mixer, with multiple internal RF switches for S11 and S21 measurements, and IFFT calculations for TDR and DTF measurements.
- With a measurement range of up to 6.3GHz, the antena analyzer is capable of meeting common amateur radio and IoT applications, as well as emerging 5GHz testing, enabling the application of the latest 5.8GHz wifi and 5.8GHz image transmission.
- Lite--VNA is a switch-switched T/R VNA that measures S11 (reflection, return loss) and S21 (transmission, insertion loss).

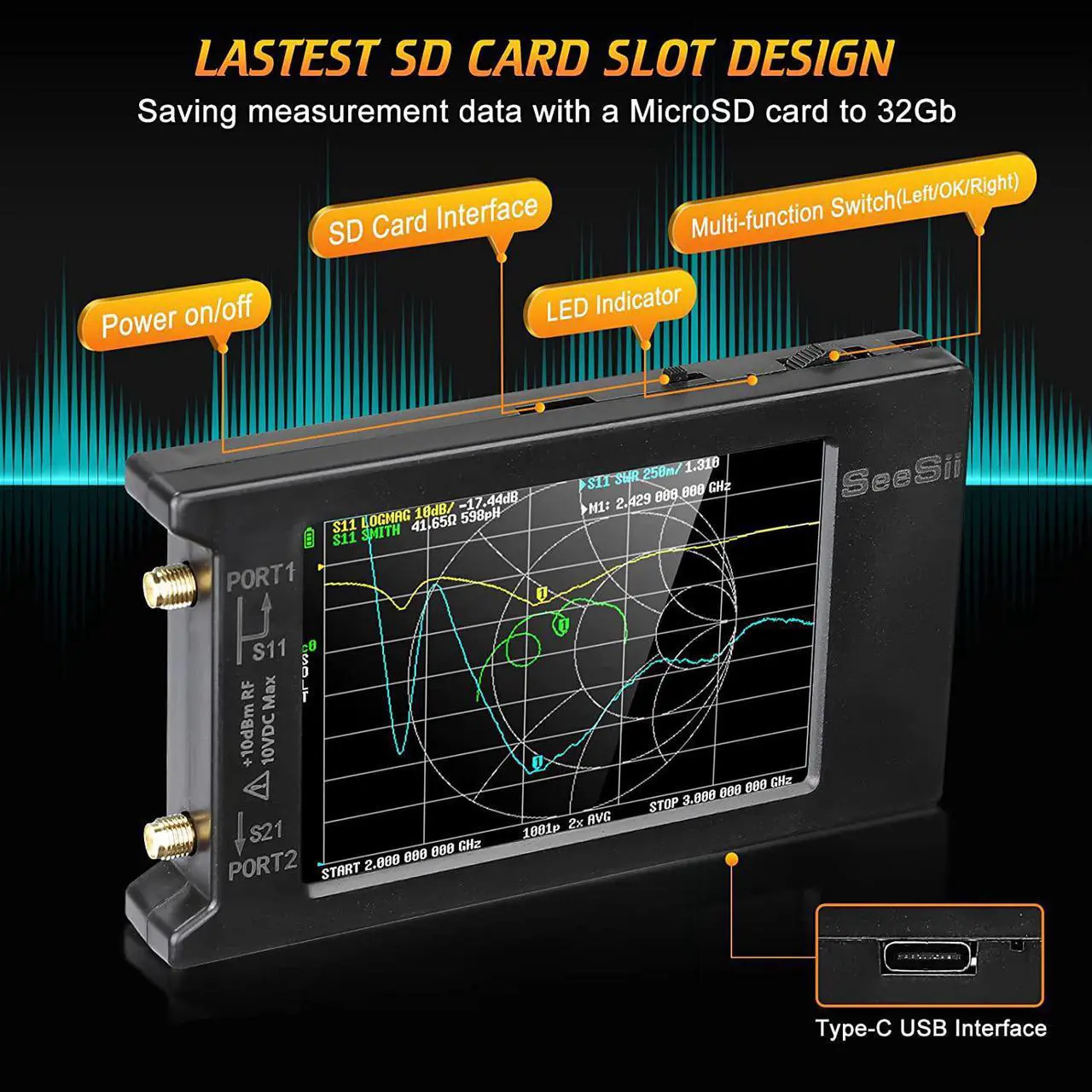

- You can use a MicroSD card to save measurement data in SNP format or to save screenshots in BMP format. MicroSD card uses SPI mode and only supports smaller than 32GB and formatted with FAT or FAT32.
+
+
Overview
Specs
Reviews
2022

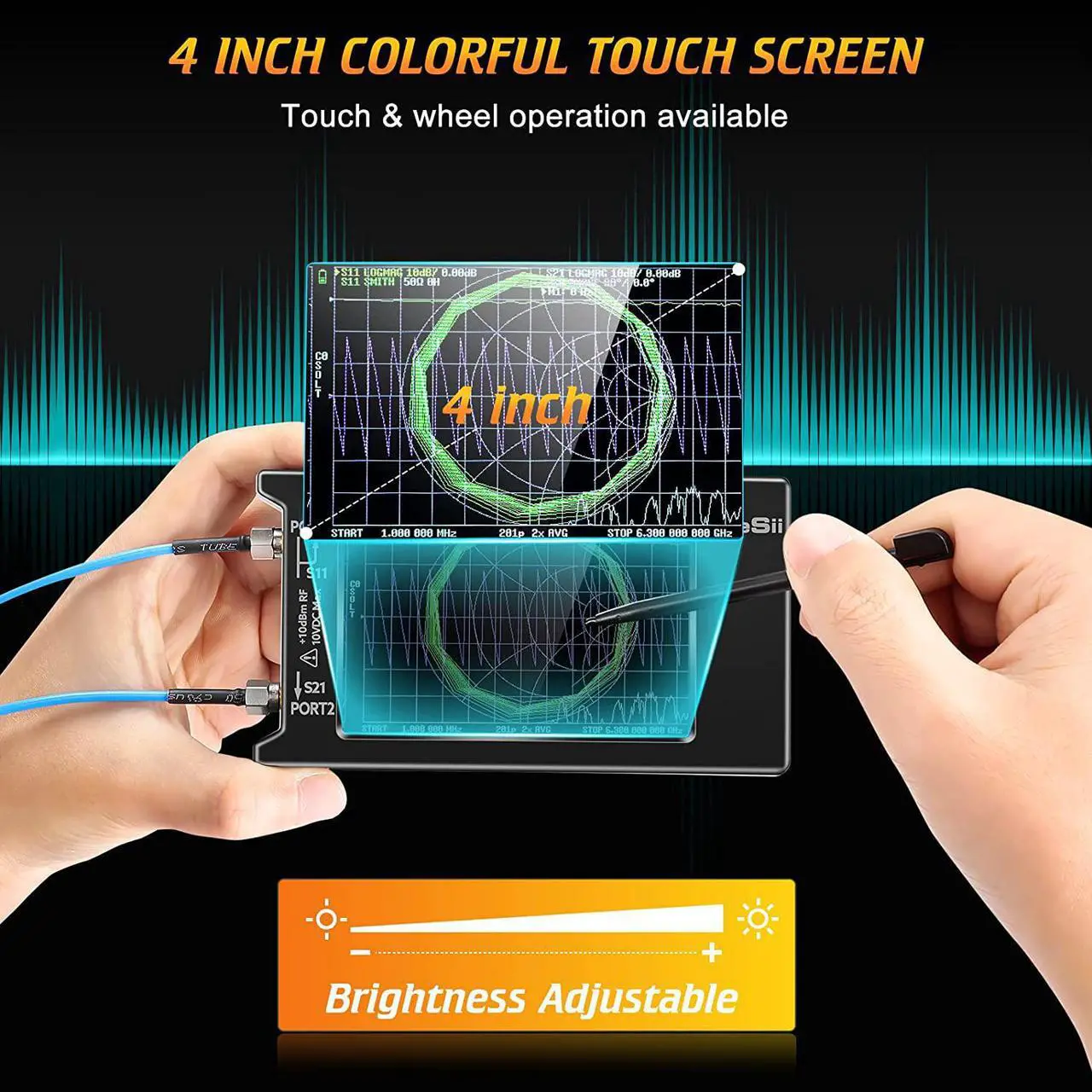

UPGRADED NANOVNA ANALYZER: SeeSii Vector Network Analyzer is developed by Hugen. With 50kHz- 6.3GH z measure range, 4.0 inch 480 x 320 touchscreen, mini and portable design. In order to minimize power consumption and size, the analyzer uses only one mixer, which allows S11 and S21 measurements through internal RF switching and can allows TDR and DTF measurements through IFFT calculations. 50kHz- 6.3GH z

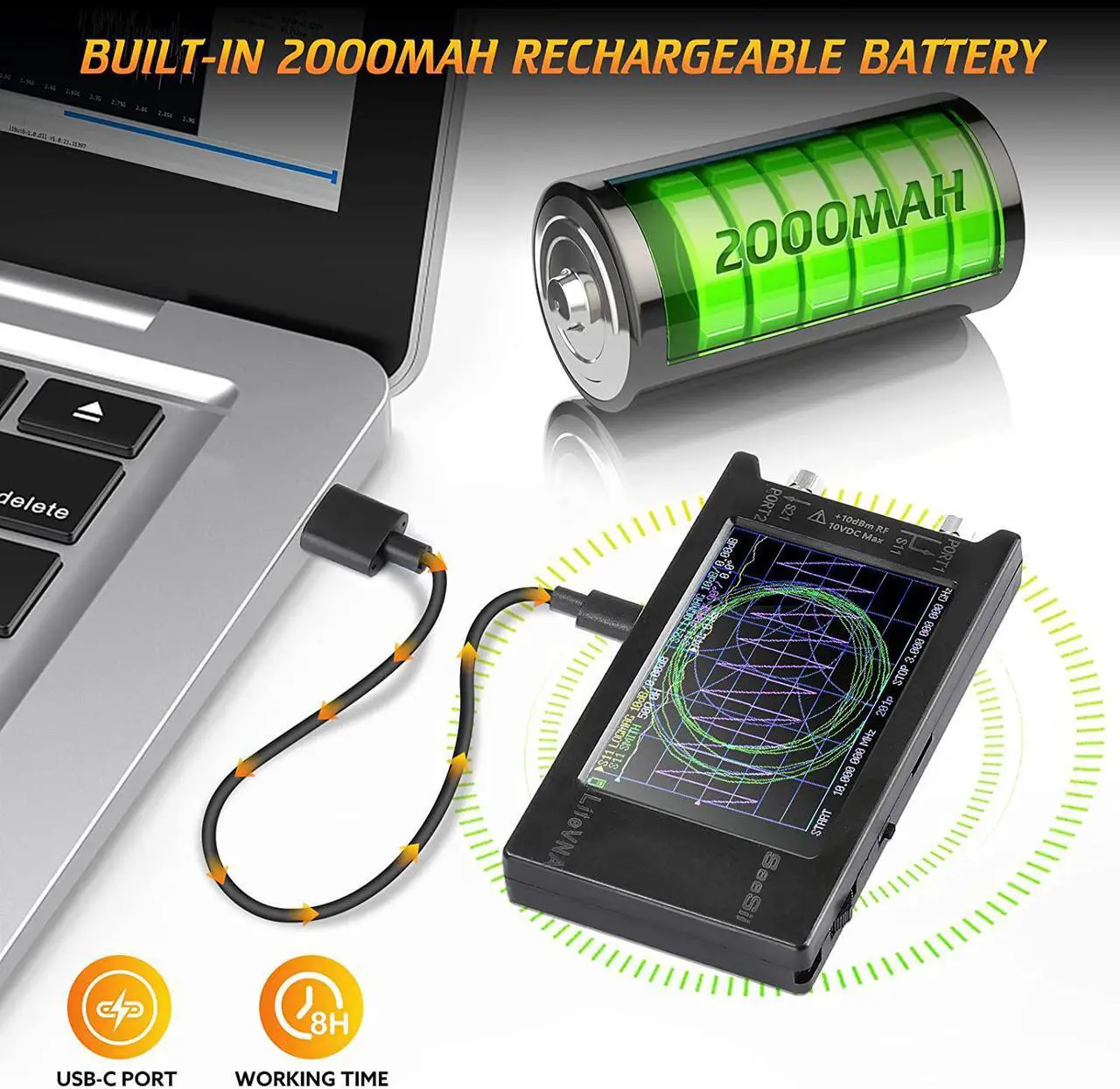

FREQUENCY RANG: Compared to the previous NanoVNAs (10KHz- 1.5 /3GHz), SeeSii antenna analyzer has 50KHz- 6.3GH z ultra-wide measuring frequency range with precision and accuration improved. Not only testing standing wave impedance of the antenna, but also can debug the duplexer, the insertion loss of the filter, the isolation and testing the attenuation of the cable, shorten the coefficient, the phase, the amplification of the antenna amplifier. BUILT-IN MICRO-SD PORT & TIME DISPLAY: The lastest antenna analyzer with MicroSD card port, so you can save field test data or screens to a MicroSD card at any time, support up to 32GB memory card. (Not include in the pacakge). In addition, different from old version NanoVNAs, the date and time can be customized, which is convenient for you to further record and save data. ULTRA-LONG BATTERY LIFE & PC CONTROL: The upgraded nano vna analyzer built-in 2000 3.7V rechargeable battery, with type-C charging cable, can be fully charged within 3 hours, no need to charge frequently. Above all, it supports PC control, compatible with Linux, Windows (7+), Mac OS ( 10.11 +). Can export Touchstone (snp) files for various radio design and simulation software through PC software.
WIDELY APPLICATION: This network vector analyzer is mini but powerful design. It can measure almost all ra-dio equipment: SWR/SMITH/SHORT WAVE/MF/HF/VHF/SSB/BALUN/TDR/DTF/LOGMAG/PHASE/DELAY/POLAR/LINEAR/REAL/IMAG/RESISTANCE/REACTANCE/Antenna/Filter/Duplexer, is capable of meeting common amateur radio and IoT applications, as well as emerging 5GHz testing, enabling the application of the latest 5.8GH z wifi and 5.8GH z image transmission.
UPGRADED NANOVNA ANALYZER: SeeSii Vector Network Analyzer is developed by Hugen. With 50kHz- 6.3GH z measure range, 4.0 inch 480 x 320 touchscreen, mini and portable design. In order to minimize power consumption and size, the analyzer uses only one mixer, which allows S11 and S21 measurements through internal RF switching and can allows TDR and DTF measurements through IFFT calculations. 50kHz- 6.3GH z
FREQUENCY RANG: Compared to the previous NanoVNAs (10KHz- 1.5 /3GHz), SeeSii antenna analyzer has 50KHz- 6.3GH z ultra-wide measuring frequency range with precision and accuration improved. Not only testing standing wave impedance of the antenna, but also can debug the duplexer, the insertion loss of the filter, the isolation and testing the attenuation of the cable, shorten the coefficient, the phase, the amplification of the antenna amplifier. BUILT-IN MICRO-SD PORT & TIME DISPLAY: The lastest antenna analyzer with MicroSD card port, so you can save field test data or screens to a MicroSD card at any time, support up to 32GB memory card. (Not include in the pacakge). In addition, different from old version NanoVNAs, the date and time can be customized, which is convenient for you to further record and save data. ULTRA-LONG BATTERY LIFE & PC CONTROL: The upgraded nano vna analyzer built-in 2000 3.7V rechargeable battery, with type-C charging cable, can be fully charged within 3 hours, no need to charge frequently. Above all, it supports PC control, compatible with Linux, Windows (7+), Mac OS ( 10.11 +). Can export Touchstone (snp) files for various radio design and simulation software through PC software.
WIDELY APPLICATION: This network vector analyzer is mini but powerful design. It can measure almost all ra-dio equipment: SWR/SMITH/SHORT WAVE/MF/HF/VHF/SSB/BALUN/TDR/DTF/LOGMAG/PHASE/DELAY/POLAR/LINEAR/REAL/IMAG/RESISTANCE/REACTANCE/Antenna/Filter/Duplexer, is capable of meeting common amateur radio and IoT applications, as well as emerging 5GHz testing, enabling the application of the latest 5.8GH z wifi and 5.8GH z image transmission.
