$239.99
Meet Your Seller

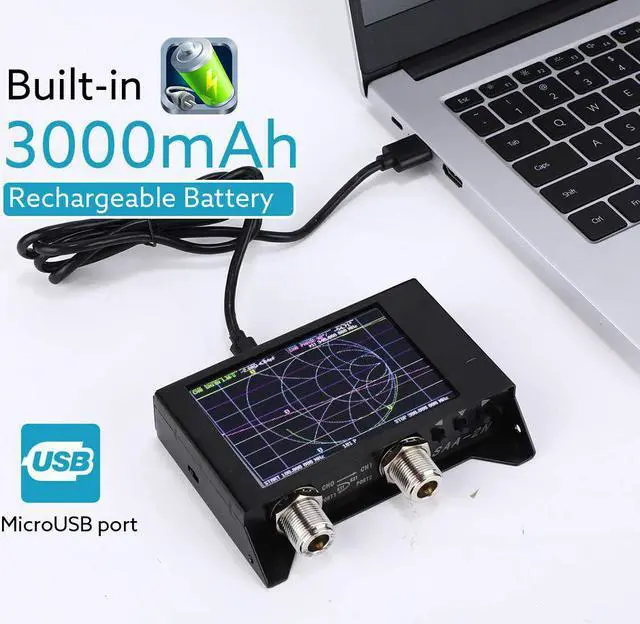

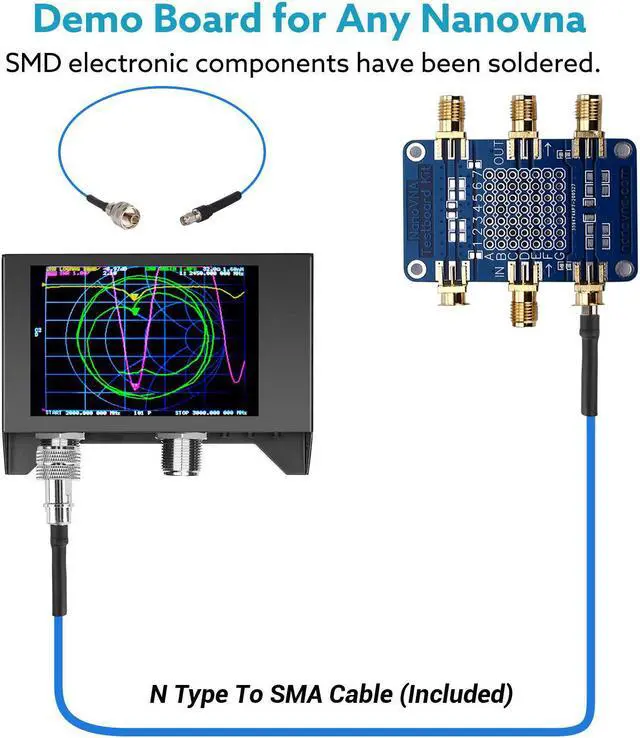

NanoVna SAA-2N VNA Antenna Analyzer,SEESII 50KHz -3GHz Vector Network Analyzer with Bag & Testboard Kit,4" inch LCD,HF VHF UHF Measuring S Parameters, Voltage Standing Wave Ratio Smith Chart

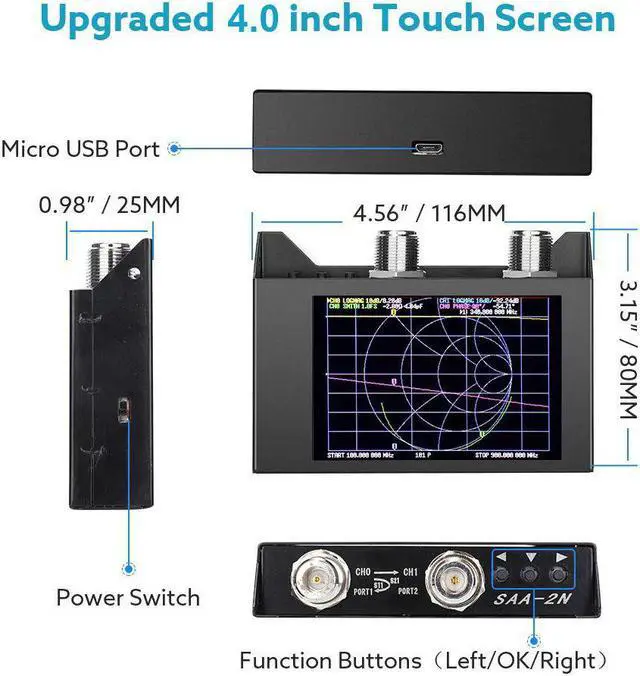

- Upgraded NanoVNA SAA-2N V2.2 VersionNot only testing standing wave impedance of the antenna, can also debug the duplexer, the insertion loss of the filter, the isolation and testing the attenuation of the cable, shorten the coefficient, the phase, the amplification of the antenna amplifier.4.0 inch touch screen make it easier for you to read data and test
- Calibration The SAA-2N/NanoVNA_V2.2 does not load the initial calibration data at startup, and does not automatically interpolate the calibration data after the user changes the frequency, and must recalibrate or recall the calibration data (previously saved data) after each startup and frequency change. Please read the user manual carefully before use to avoid damaging the device.
- Improved Frequency Range:transmission Mearsure S21: 70dB(50KHz-1.5GHz), 60dB(1.5GHz-3GHz). Reflection Measure S11: -50dB(50KHz-1.5GHz), -40dB(1.5GHz-3GHz); Antenna Analyzer: 1.005(50KHz - 1.5GHz), 1.02(1.5GHz-3GHz)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Measuring frequency range 50KHz-3GHz Frequency tolerance
