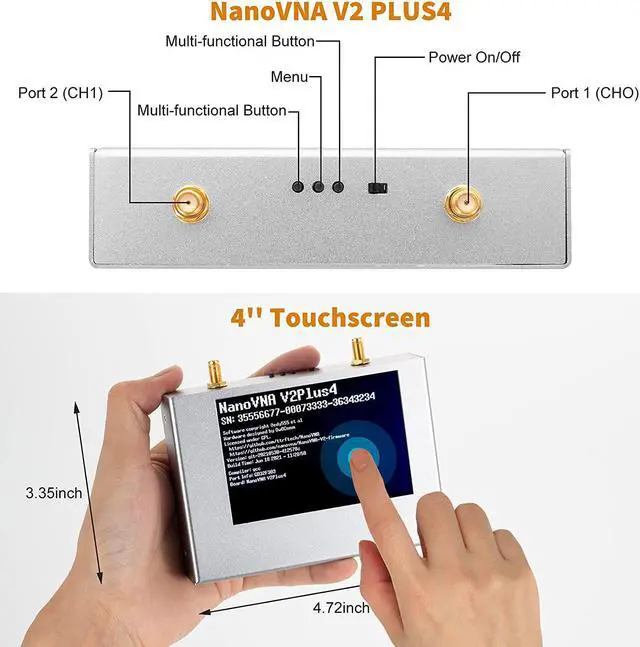

Upgraded NanoVNA V2 PLUS4 Vector Network Analyzer 50kHz-4GHz - Antenna Analyzer S Parameters Measurements with 4'' Touchscreen | HF VHF UHF SWR, Phase, Delay, Smith Chart with 3200mAh Battery
- ORIGINAL NanoVNA V2 Plus4 (S-A-A-2) is a 4GHz Transmission/Reflection vector network analyzer, measuring the S11 Reflection coefficient and the S21 Transmission coefficient of a high frequency network; Not only testing standing wave impedance of the antenna, but also can debug the duplexer, the insertion loss of the filter, the isolation and testing the attenuation of the cable, shorten the coefficient, the phase, the amplification of the antenna amplifier
- Compared to the previous NanoVNAs (10KHz-1.5/3GHz), AURSINC NanoVNA V2 vector network analyzer provides a 50KHz-4GHz ultra-wide frequency range with an improved precision and accuration, Moreover, the System dynamic range for this VNA is up to 90dB dynamic range (1GHz) and up to 80dB dynamic range (3GHz); Plus4 VNA has improved shielding that achieves high dynamic range with an aluminum enclosure
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

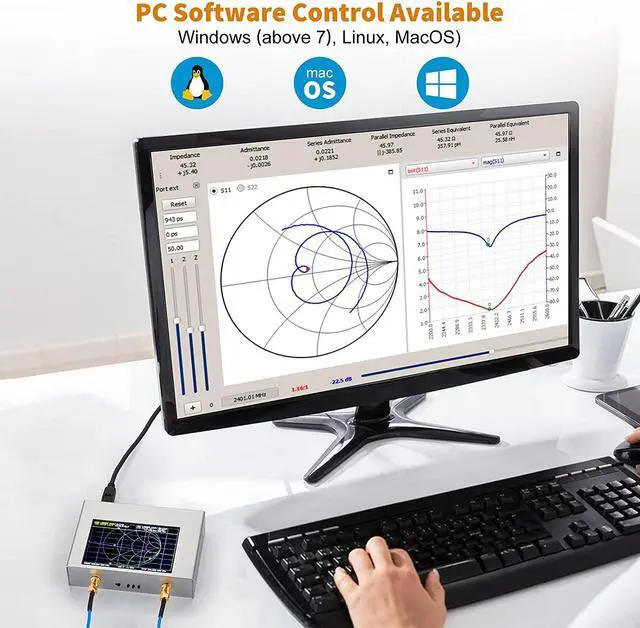

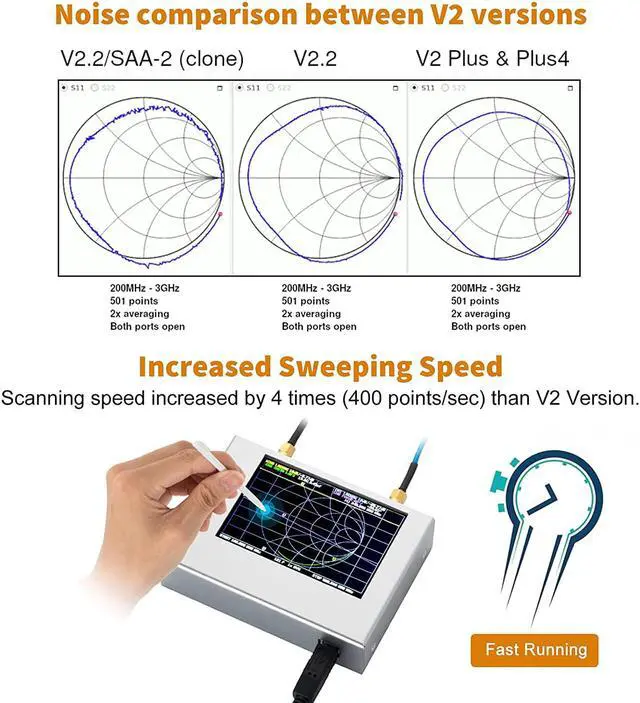

The scanning speed of NanoVNA V2 antenna analyzer increases by 4 times (400 points/sec) than previous V2 versions; Along with support PC software control, like Windows (above 7), Linux, MacOS, the VNA can be more compatible with PC and antenna measurements, when measuring the frequency. Flip Display, For your using convenience, you can flip the display as the following steps: Menu - Display - Flip Display

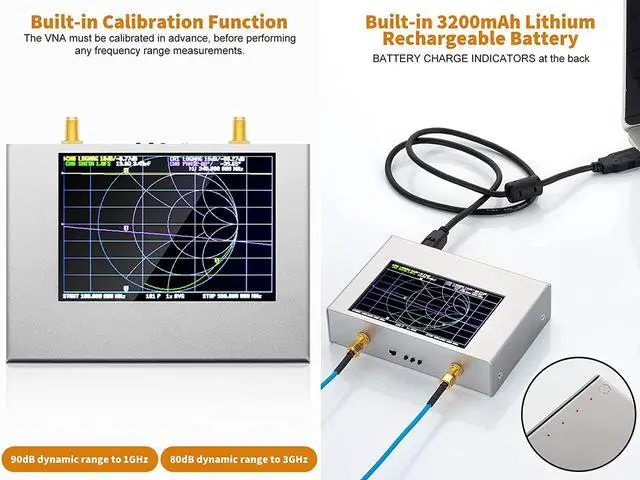

The upgraded vector network analyzer is contained with a 3200mAh/ 3.7V lithium rechargeable battery with loger operating time and lasting battery life. Also there are battery charge LED indicators at the back of the VNA which are the battery fuel gauge, the one that is closest to the CH1 port connector is the lowest charge level indicating 25%;

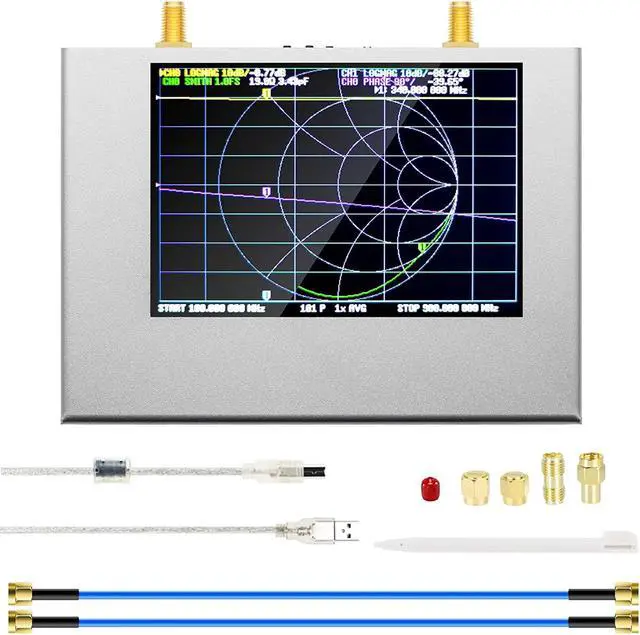

AURSINC NanoVNA V2 Plus4 is the Original edition (if you buy the clone one the VNA cannot proceed the software update forM the official site) NanoVNA V2 PLUS4 v 2.4 comes with a 4-piece calibration set - open, short, load, & thru, two male-male SMA cables, a USB2-B to USB2-A cable (black or silver), and a stylus to operate the touch screen menu and markers.
Measuring frequency range 50kHz- 4.4GH z
System dynamic range 70dB (calibrated, f < 3GHz, IFBW=800Hz, (1xAVG))
System dynamic range 80dB (calibrated, f < 3GHz, IFBW=160Hz (5xAVG))
System dynamic range 90dB(calibrated, f < 1GHz, IFBW=40Hz (20xAVG))
S11 noise floor -50dB (to 1.5GH z); -40dB (to 3GHz) (Calibrated)
Scanning rate 400 points/sec (f >= 140 MHz), 200 points/sec (f <140 MHz)
Sweep points (USB) 1 1024 points, adjustable
Sweep points (on device) 10 201 points, adjustable
Supply current 400mA typ, 500mA max
Battery capacity 3200mAh lithium battery
Power supply USB, 4.6V 5.5V
Operation ambient temperature 0 - 45 *by design, not tested in production
Ambient temperature 10 - 45 during battery charging
Port 2 return loss >= 15dB (to 3GHz), 20dB (to 1.5GH z)
USB interface USB Type-B
RF port SMA (not RP-SMA! )
The upgraded vector network analyzer is contained with a 3200mAh/ 3.7V lithium rechargeable battery with loger operating time and lasting battery life. Also there are battery charge LED indicators at the back of the VNA which are the battery fuel gauge, the one that is closest to the CH1 port connector is the lowest charge level indicating 25%;
AURSINC NanoVNA V2 Plus4 is the Original edition (if you buy the clone one the VNA cannot proceed the software update forM the official site) NanoVNA V2 PLUS4 v 2.4 comes with a 4-piece calibration set - open, short, load, & thru, two male-male SMA cables, a USB2-B to USB2-A cable (black or silver), and a stylus to operate the touch screen menu and markers.
Measuring frequency range 50kHz- 4.4GH z
System dynamic range 70dB (calibrated, f < 3GHz, IFBW=800Hz, (1xAVG))
System dynamic range 80dB (calibrated, f < 3GHz, IFBW=160Hz (5xAVG))
System dynamic range 90dB(calibrated, f < 1GHz, IFBW=40Hz (20xAVG))
S11 noise floor -50dB (to 1.5GH z); -40dB (to 3GHz) (Calibrated)
Scanning rate 400 points/sec (f >= 140 MHz), 200 points/sec (f <140 MHz)
Sweep points (USB) 1 1024 points, adjustable
Sweep points (on device) 10 201 points, adjustable
Supply current 400mA typ, 500mA max
Battery capacity 3200mAh lithium battery
Power supply USB, 4.6V 5.5V
Operation ambient temperature 0 - 45 *by design, not tested in production
Ambient temperature 10 - 45 during battery charging
Port 2 return loss >= 15dB (to 3GHz), 20dB (to 1.5GH z)
USB interface USB Type-B
RF port SMA (not RP-SMA! )
