Connection:

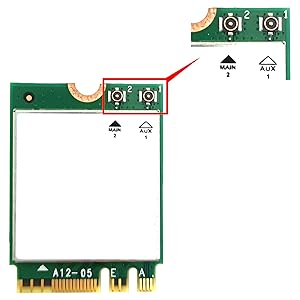

For M.2 Wireless Card
Fit for 2230 M.2 wireless card only, not for PCIe/ Mini PCIe
M.2 to RP-SMA Extension

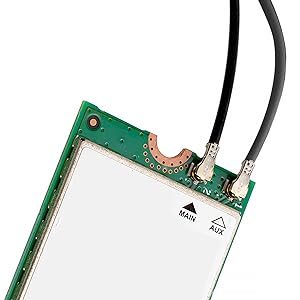

Connect RP-SMA cable to wireless card. Connectors is very small so please be patience

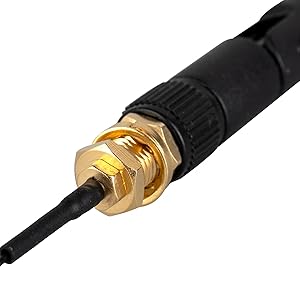

Connect Antenna to Cable
Simply turn clockwise to fix the antenna on cable

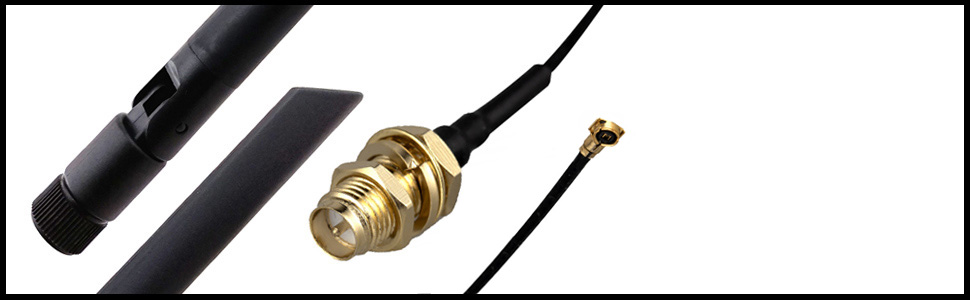

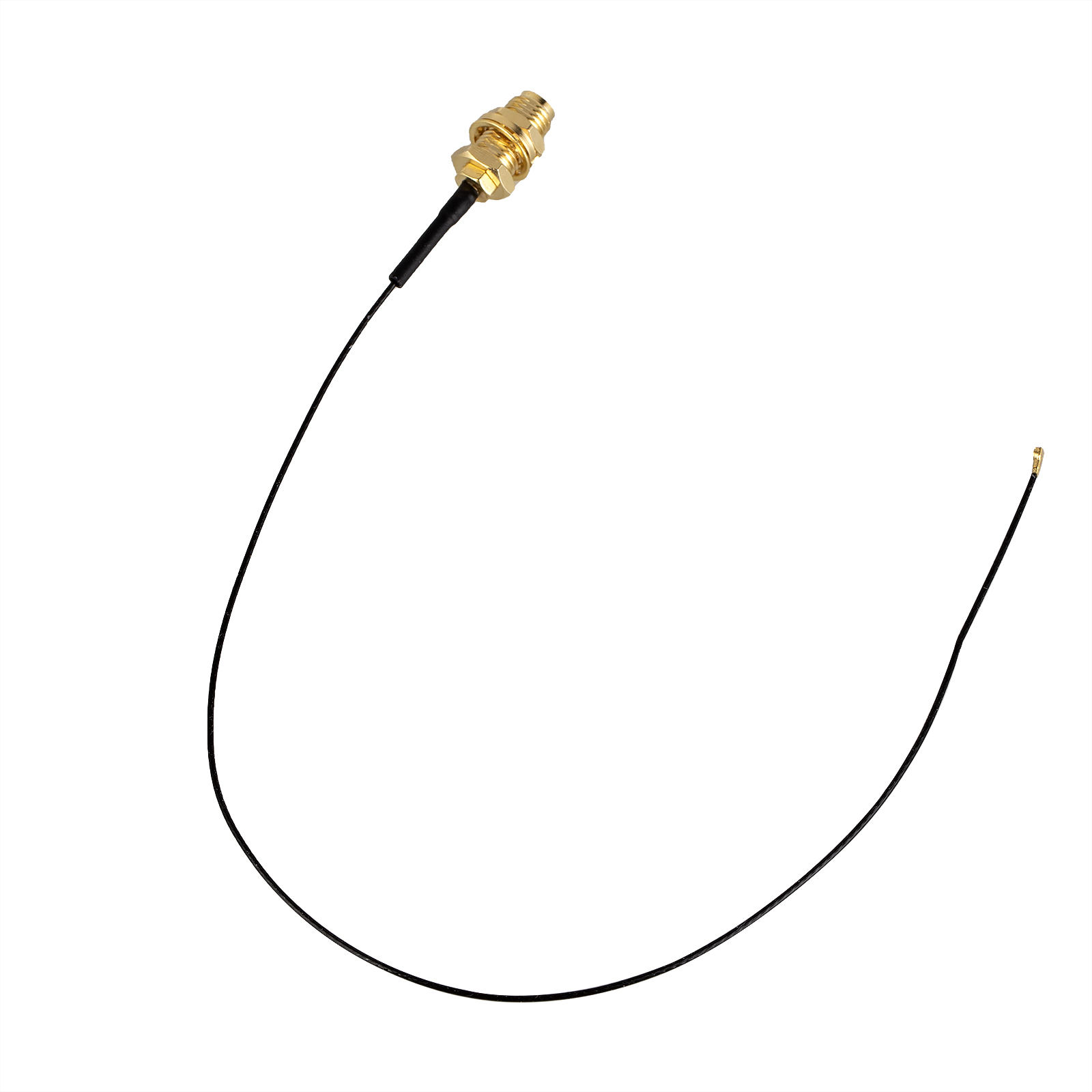

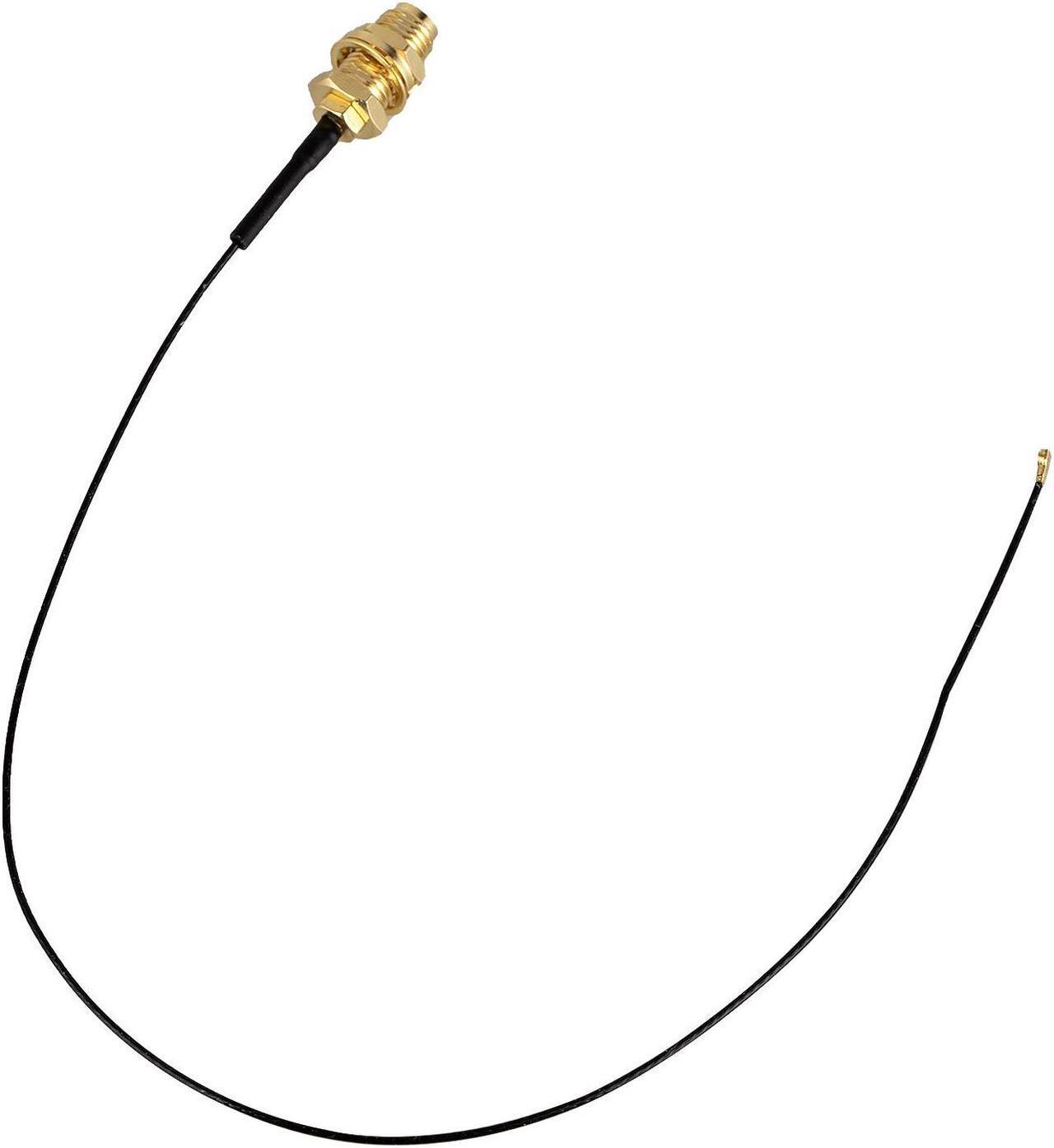

Cables Features:
- Connect high-gain RP-SMA antenna to an M.2/ NGFF wireless card
- Extend the length from WiFi card to connect external antenna
- Compatilbe with AX210NGW, AX200NGW, 9560... etc

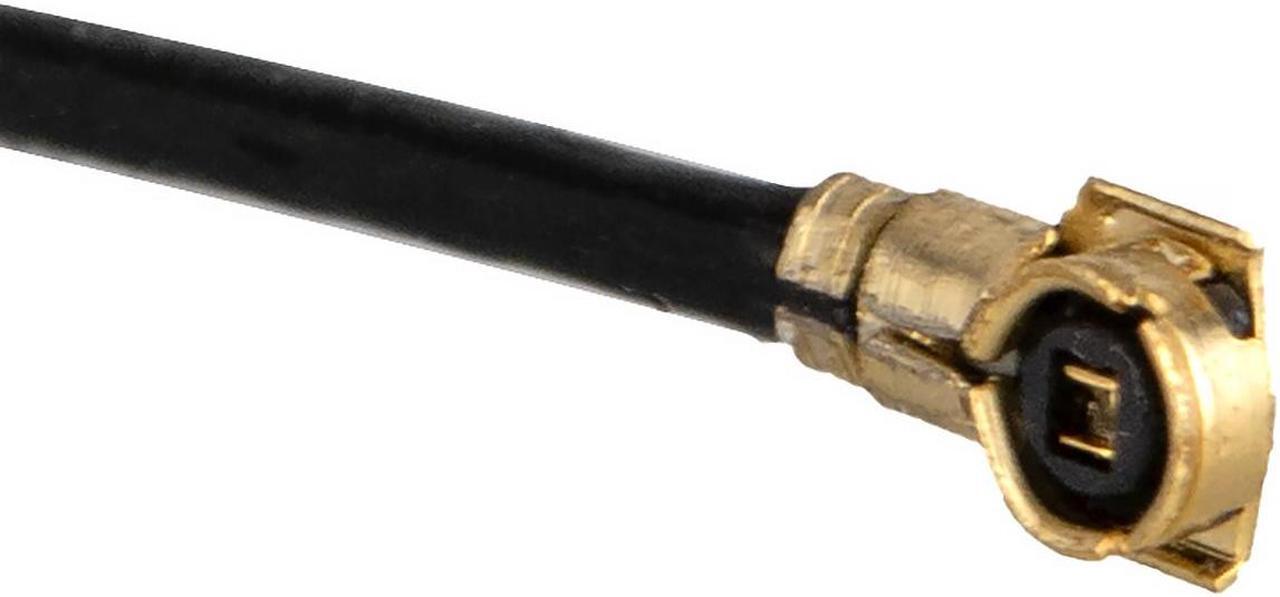

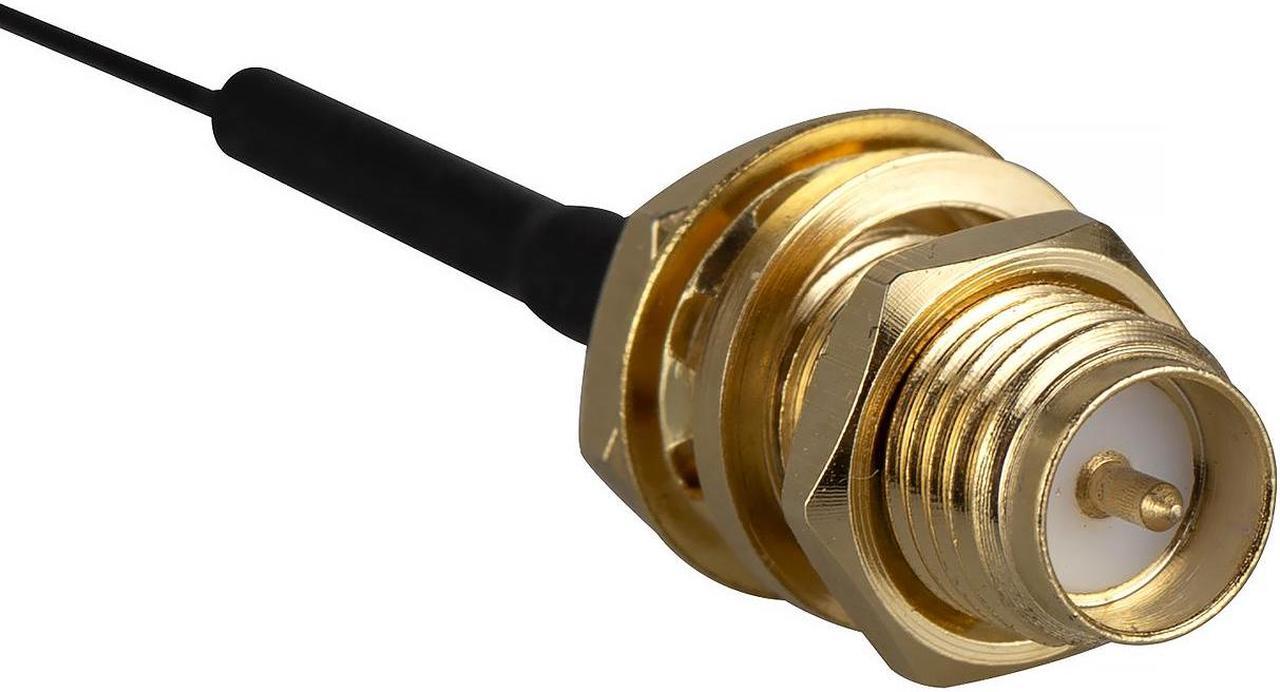

- Connector: RP-SMA Female (pin), 4th gen U.FL (IPEX) MHF4
- Length: 11.81 inch (30cm)
- Weight: 0.28oz (8g)

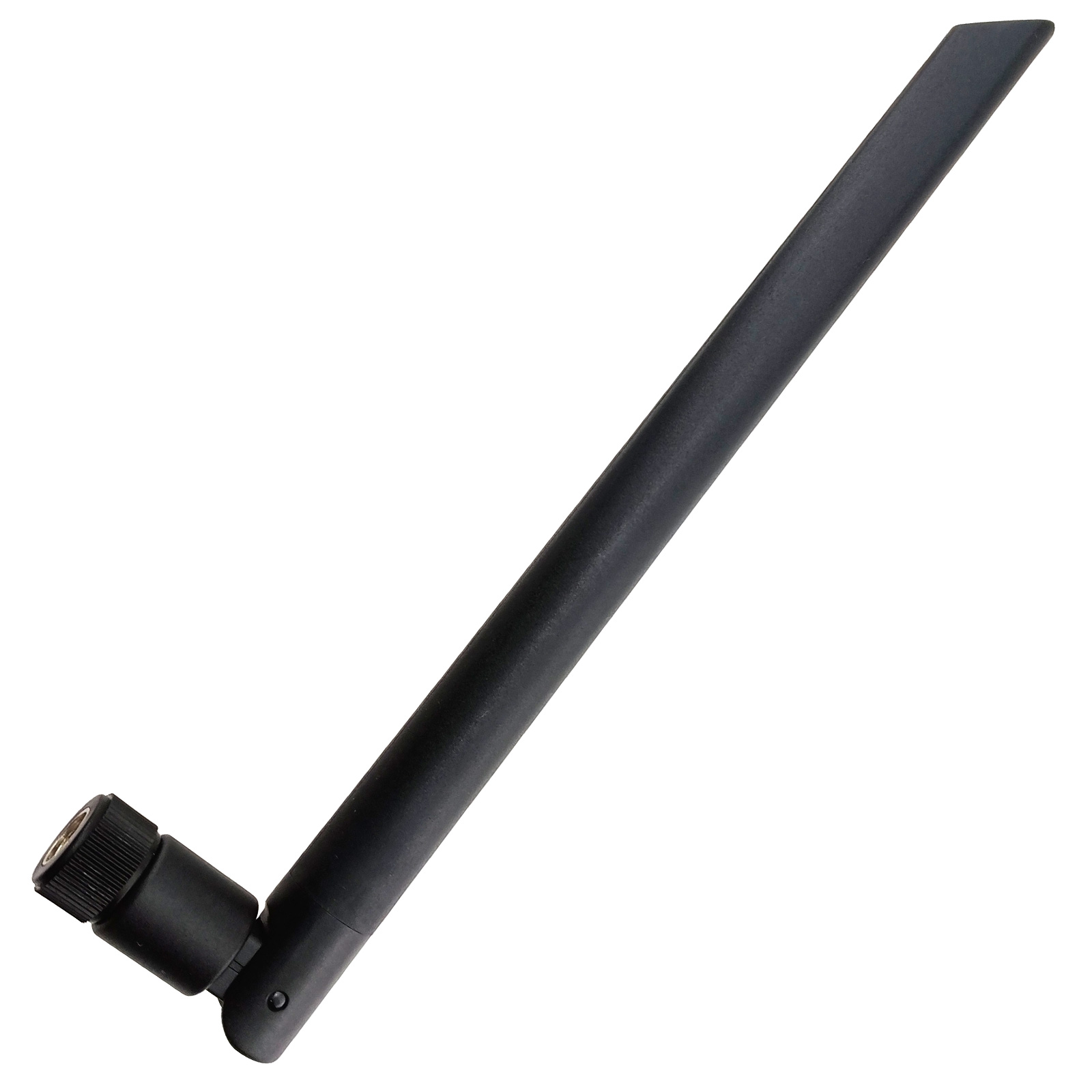

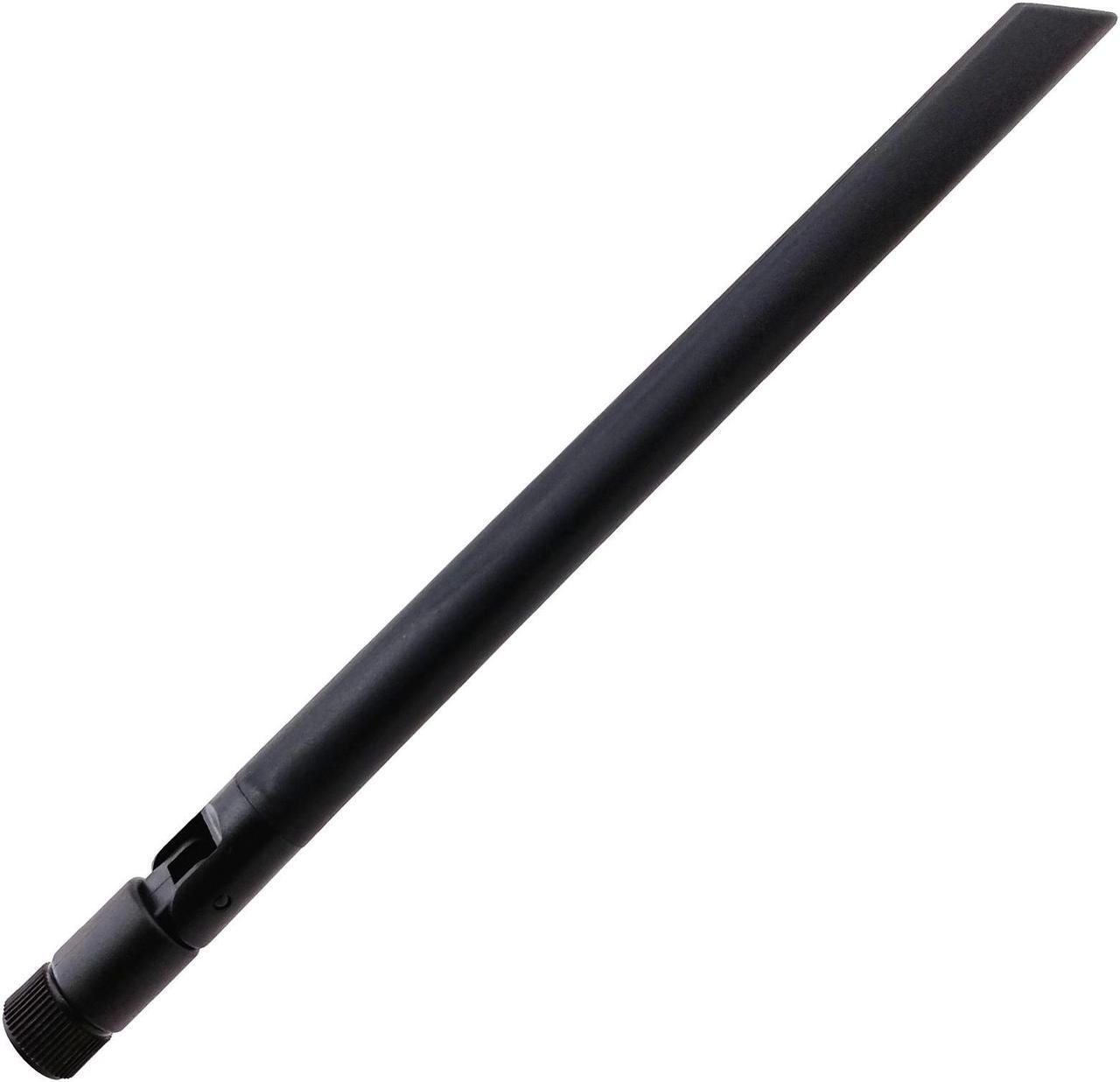

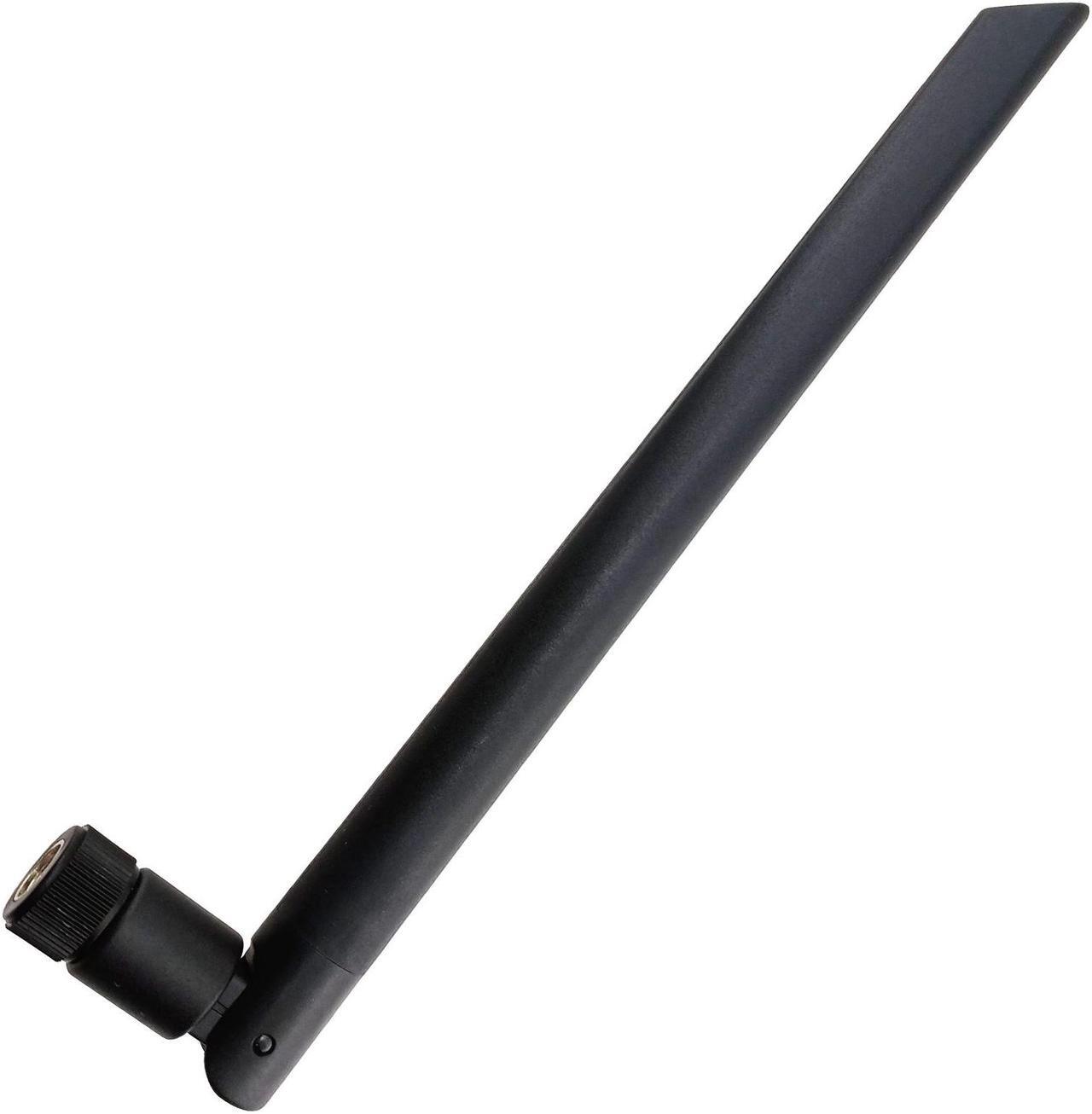

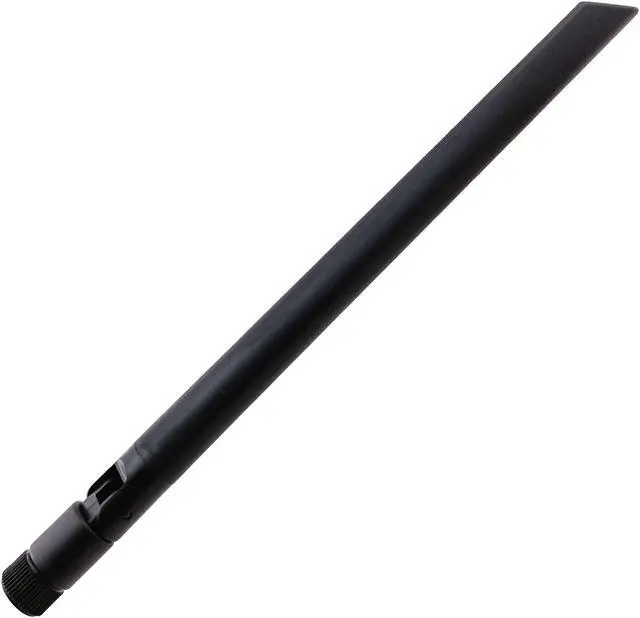

Antenna Feaures:
- For replacement or connection to network devices
- Input Impedance: 50 ohm
- Radiation: Omnidirectional
- Gain: 6 dBi

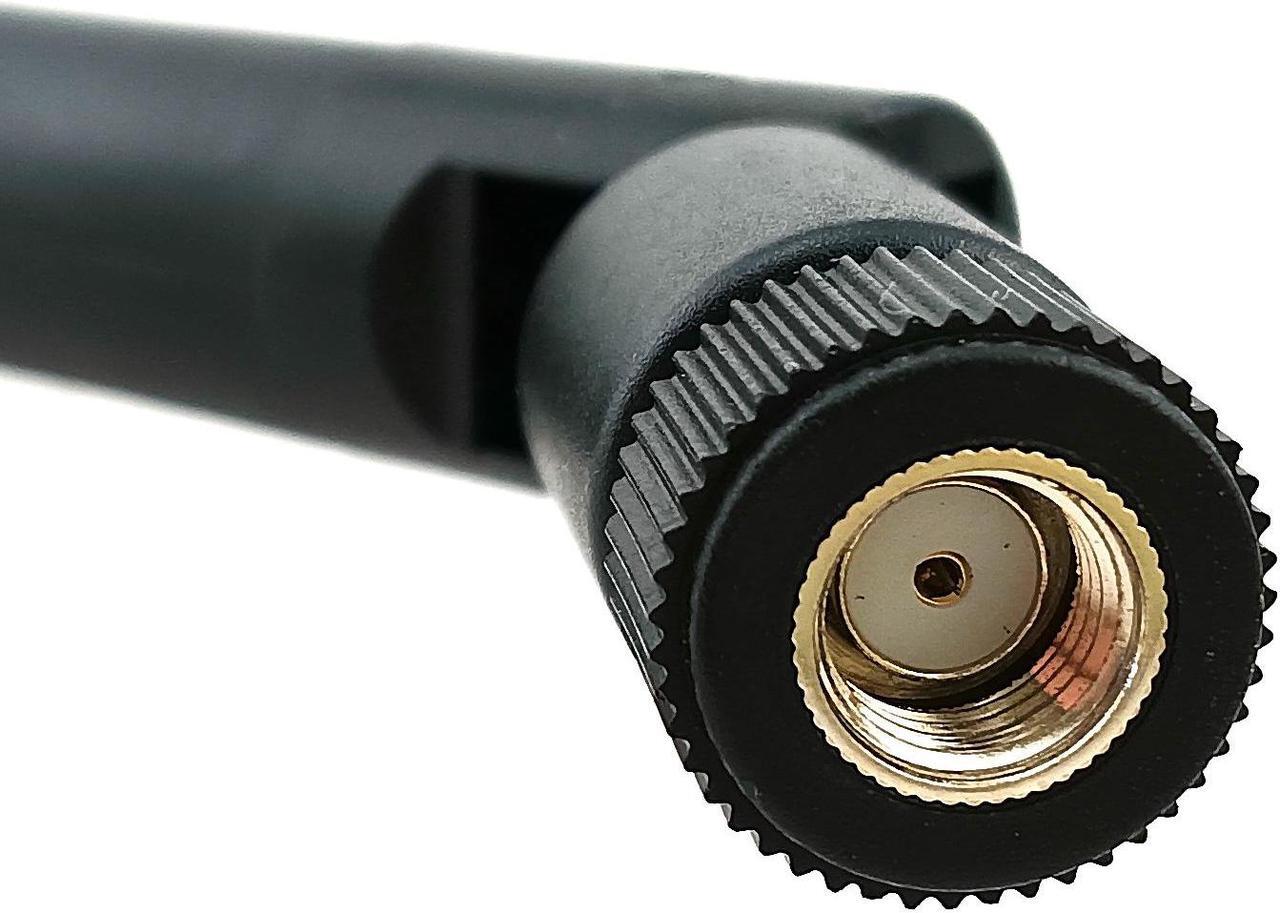

- Connector: RP-SMA male (hole)
- Length: 7.87 inch (20cm)
- Weight: 0.38 oz (11g)
Note:
- M.2 is a very small connector, requires patience to install, make sure you know how to connect before purchase
- This is antenna and cable, they do not generate wireless signal
- M.2/ NGFF/ MHF4/ IPEX-4 refers to the same connector standard

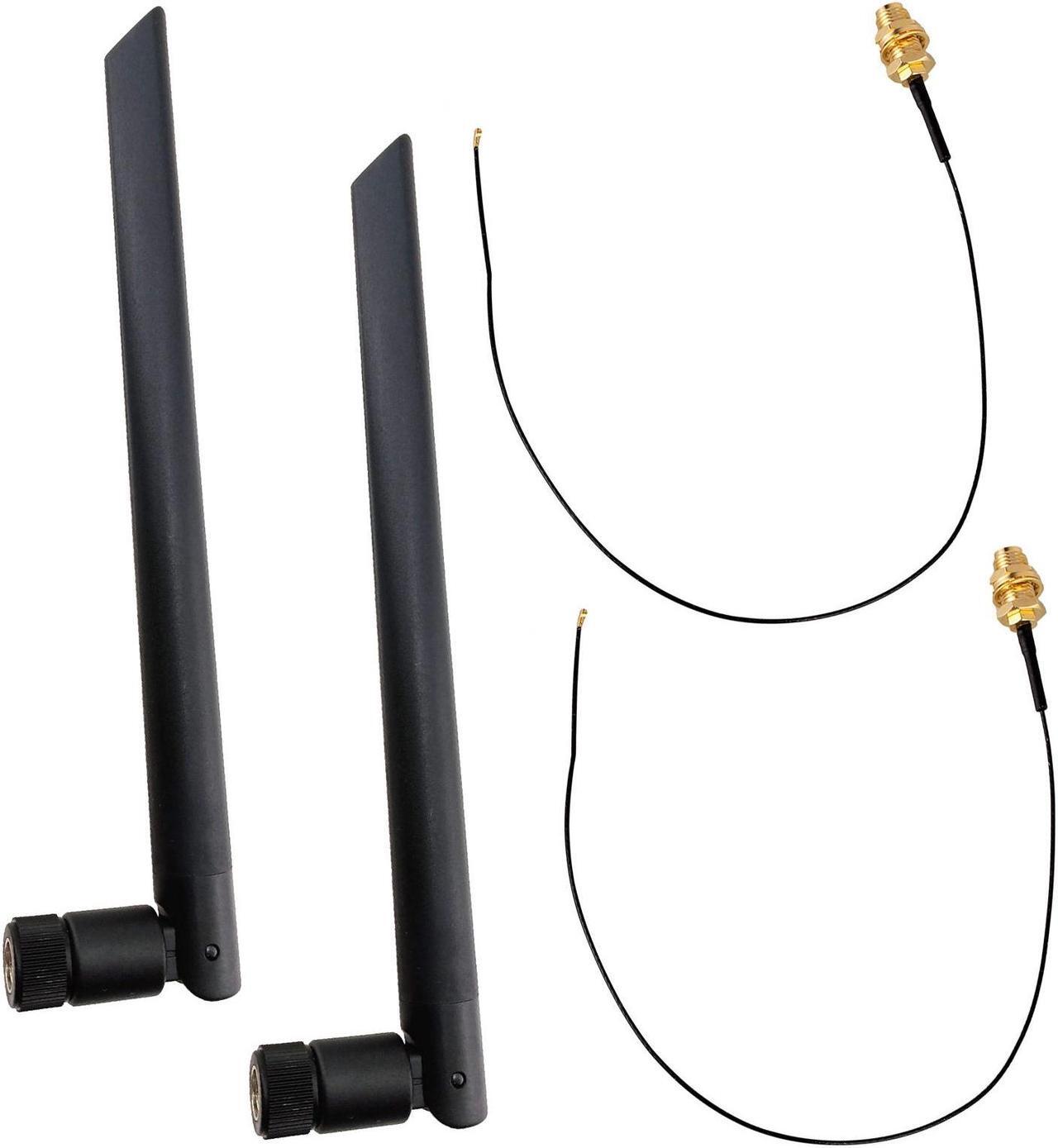

Packing List:
- 2 x M.2 cable
- 2 x Antenna
