QAREQU M.2 Wireless Extension Cable 8dBi Dual Band WiFi Bluetooth Antenna PC Rear Full Height Panel

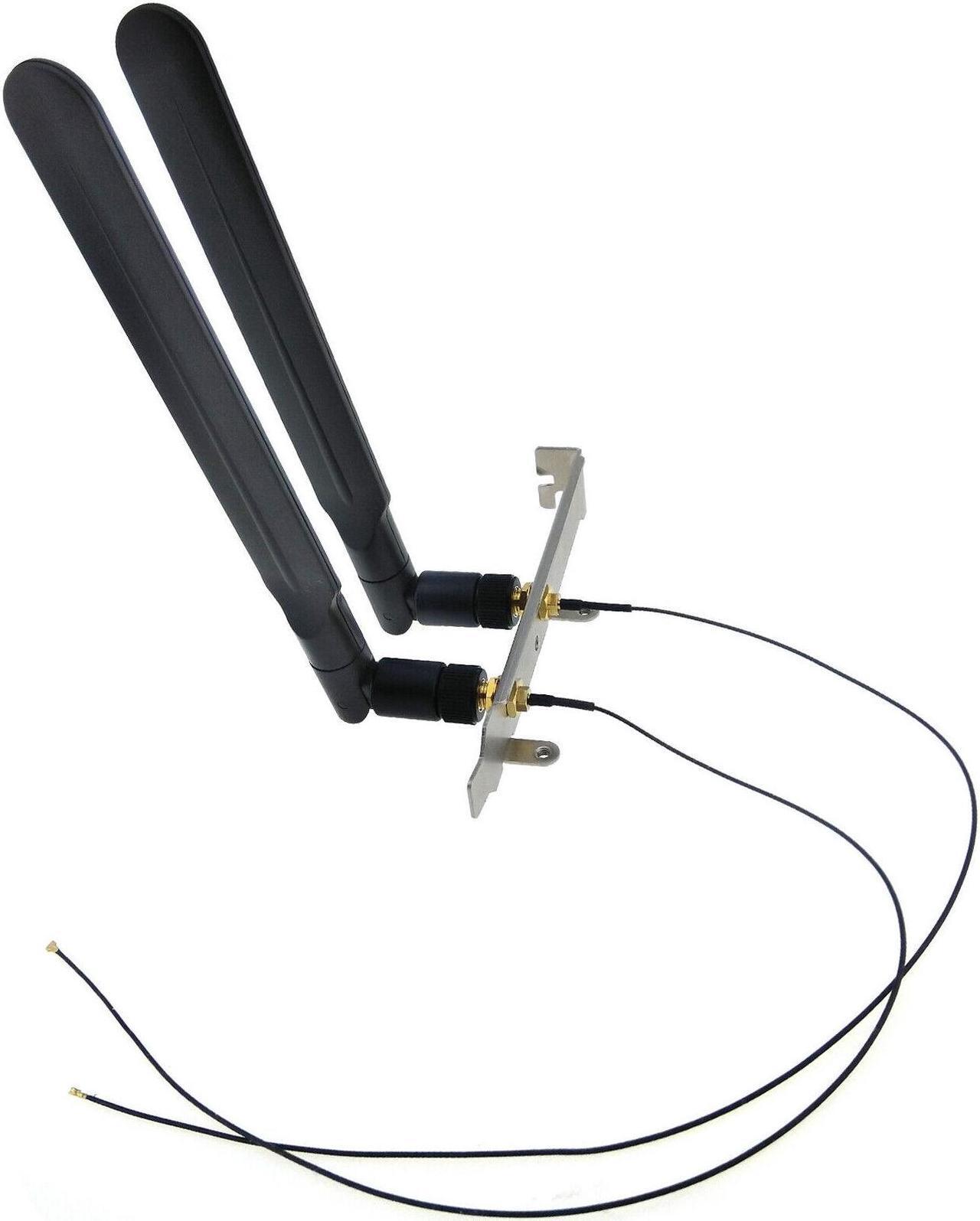

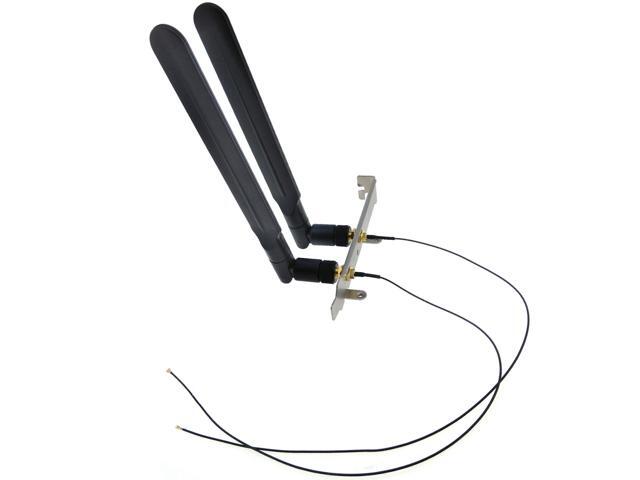

8dBi external antenna and IPEX 4 extend cable kit, for M. 2 wireless network card installed on desktop computer, greatly increase reception over this external antenna.

Note:
This is antenna only, it does not generate wireless signal
For M. 2 connector only, not for PCI-e

Packing List (bulk pack):
2 x 8dBi antenna
2 x M. 2 extend cable
1 x Full height bracket

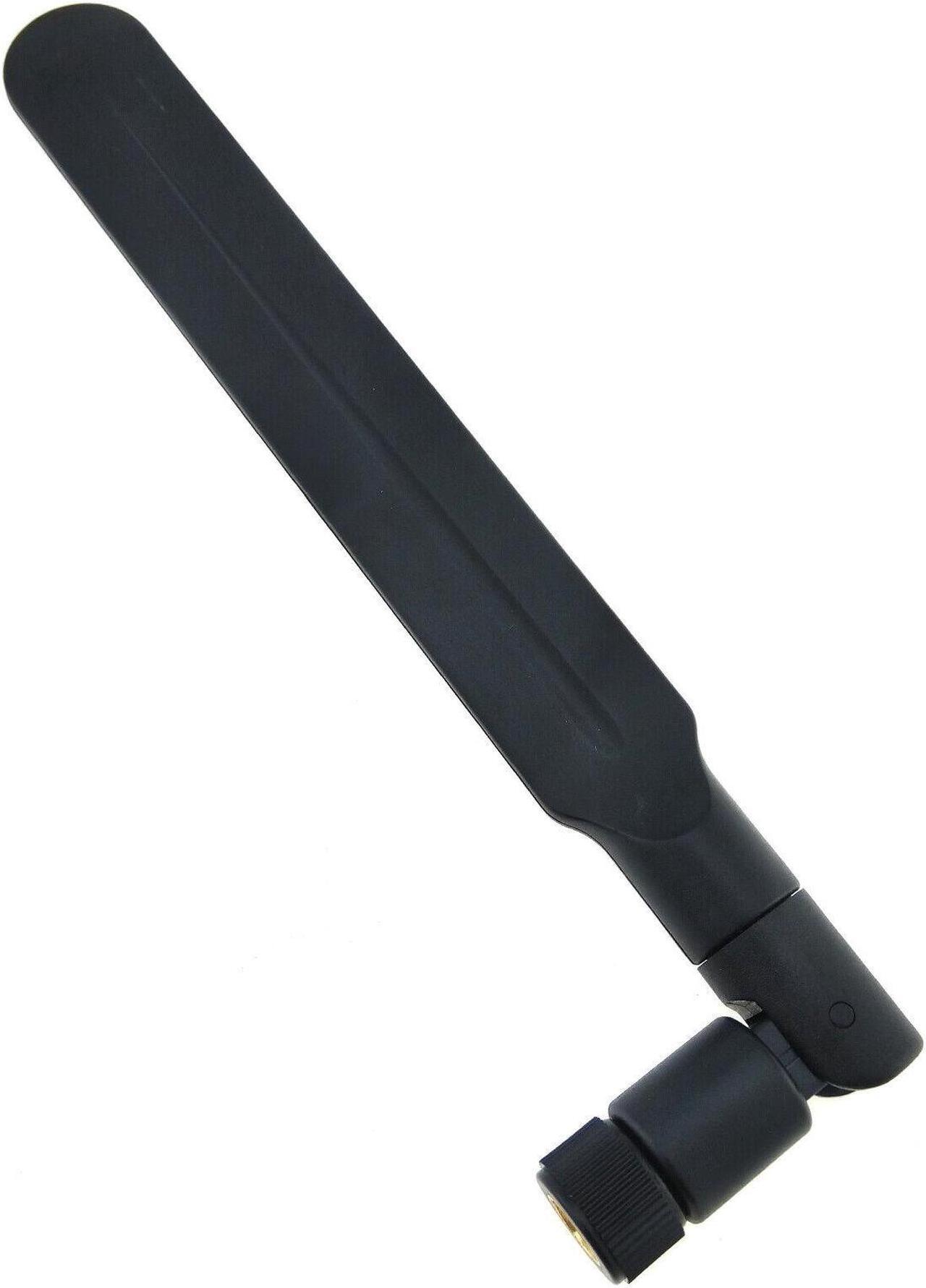

Antenna Features:
Good for replaecment
Suitable for wireless LAN and WiFi router adapter... etc
Frequency: 2400-2500MHz, 5150-5850MHz
Input impedence: 50
Max power: 50W
Radiation: Omni directional
Gain: 8dBi

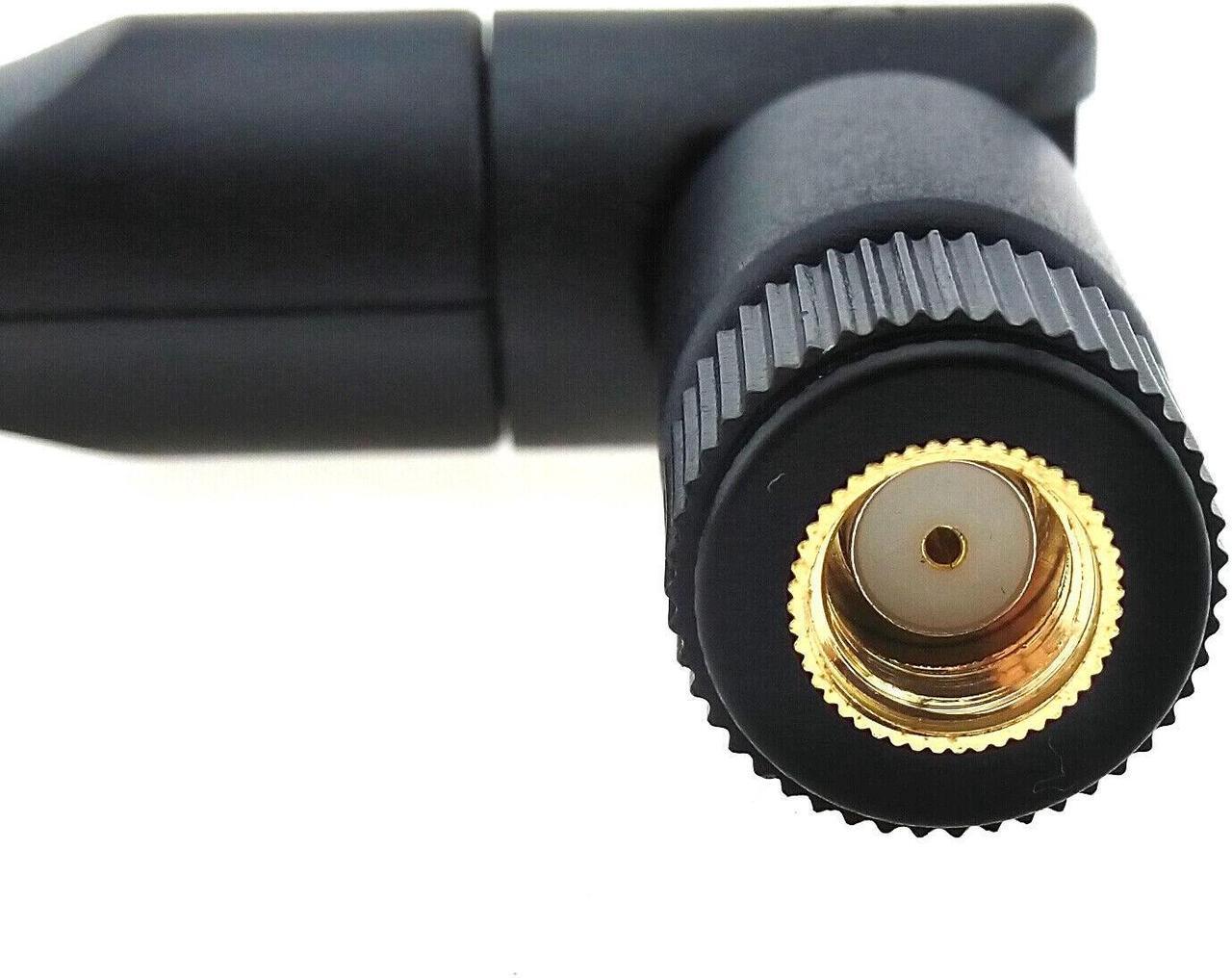

Connector: RP-SMA male (inner hole)
Length: 160mm ( 6.29 inch)

Cable Features:
Connect high gain RP-SMA antenna to M. 2 wireless Card
Greatly increase reception over built-in antenna
Support WiFi 802.11 a, 802.11 b, 802.11 g, 802.11 n, 802.11 ac, Bluetooth
Compatible with M. 2 wireless card such as AX210, 8265, 9560NGW... etc

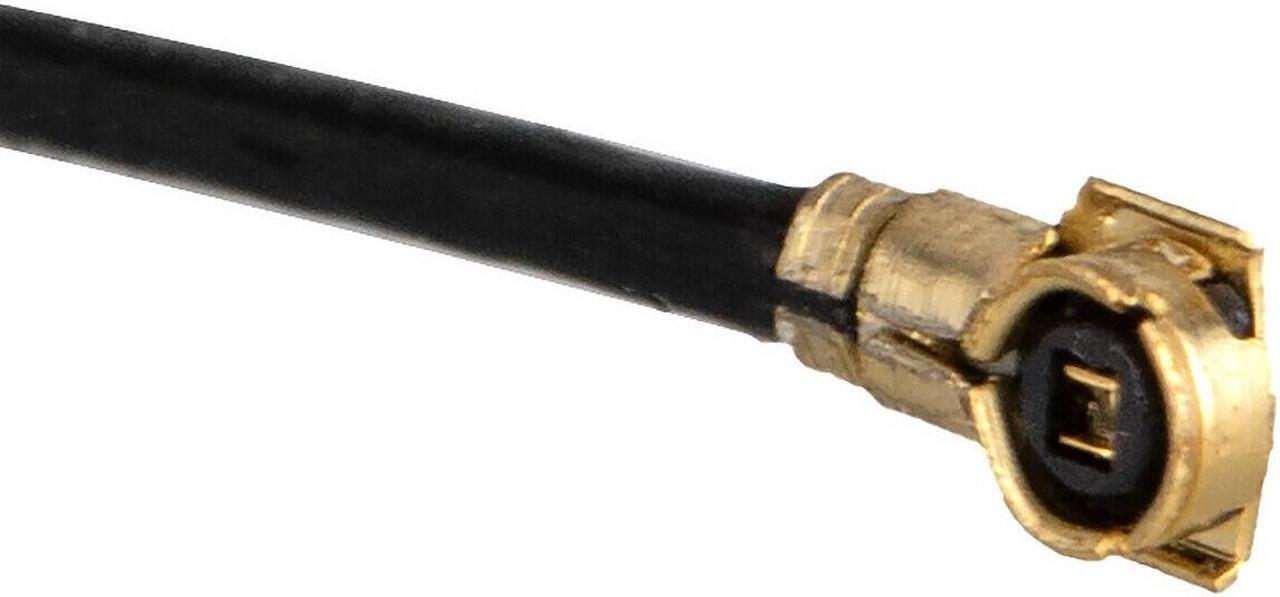

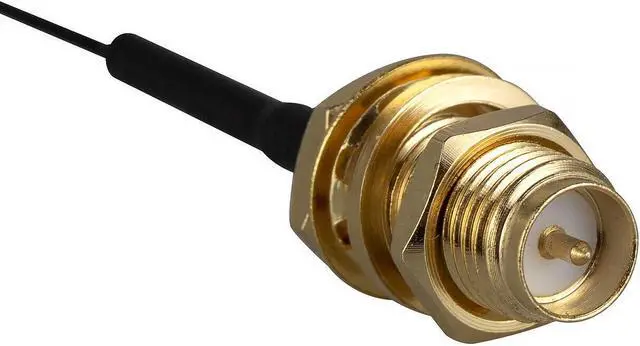

Connector: RP-SMA female (with pin), 4th generation of U. fl (IPX) MHF4
Length: 30cm ( 11.81 inch)
Weight: 8g ( 0.28 oz)

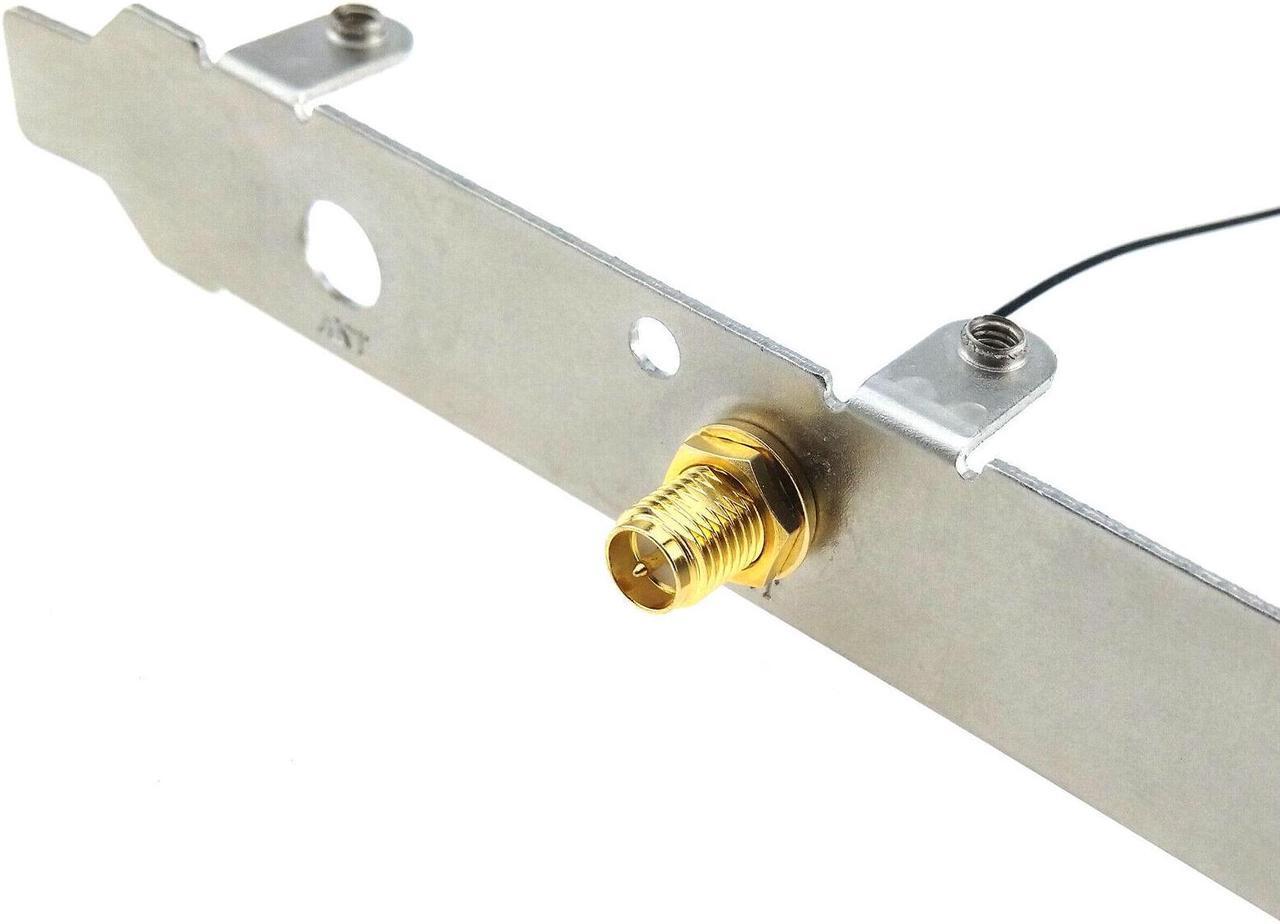

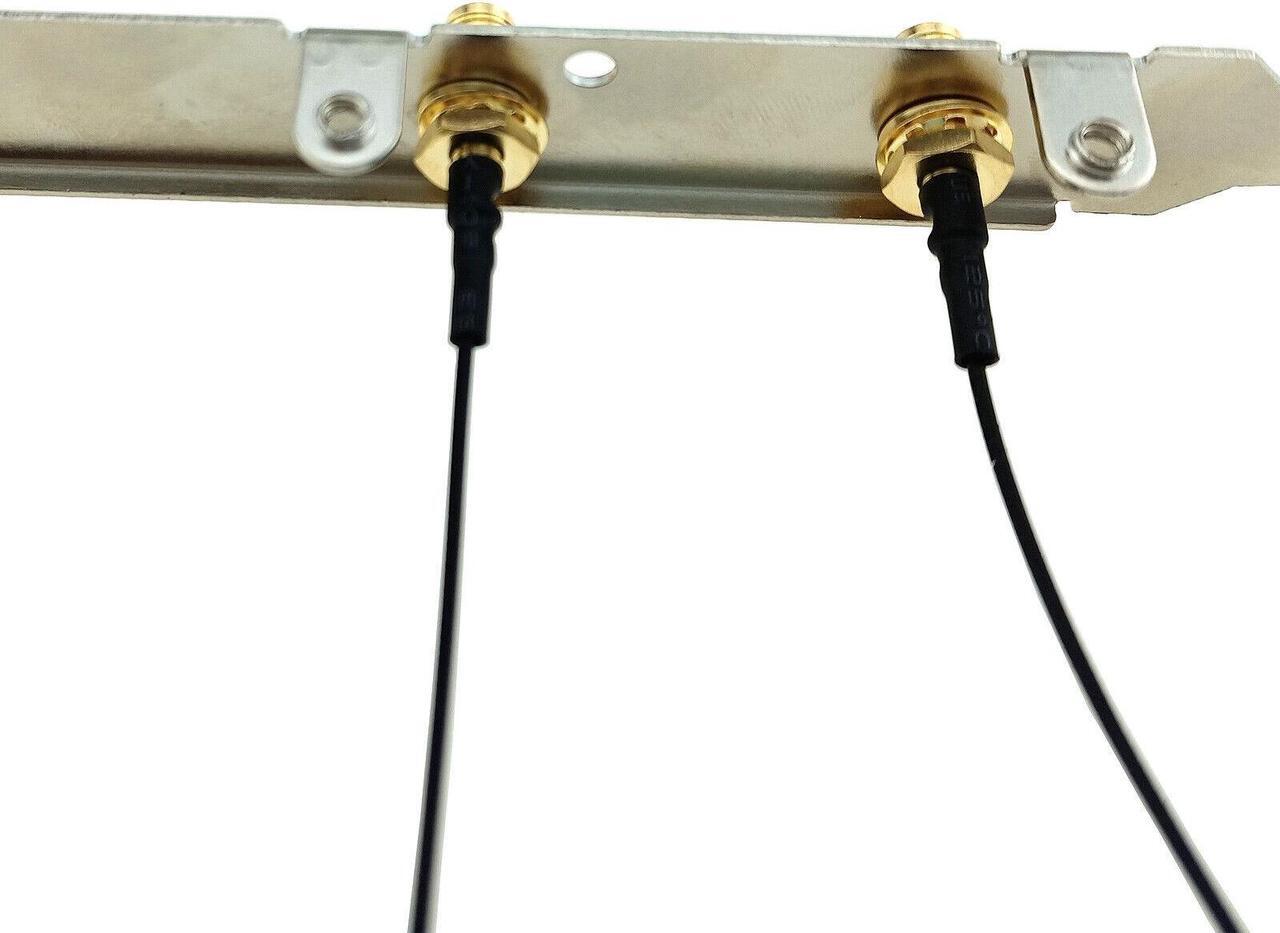

Bracket Features:
2 holes for external antennas extend from motherboard
For standard PCI, AGP slot case
Full height size, Not for low profile or short slot case
Length: 123mm ( 4.84 inch)
Slim: 0.63 mm ( 0.02 inch)
Weight: 21g ( 0.04 lb)
