About this item- 6dBi HIGH GAIN DRAMATICALLY EXTEND YOUR WIRELESS COVERAGE Upgrade from standard 2-3dBi stock antennas to 6dBi high gain for significantly stronger signal penetration through walls and obstacles. Experience up to 3-5x extended coverage perfect for 4K streaming, online gaming, and eliminating dead zones in your home or office.
- TRI-BAND COMPATIBILITY 2.4GHz / 5GHz / 5.8GHz Supports 2.4GHz (2400-2500MHz) for long-range wall penetration, 5GHz (4900-5850MHz) for high-speed gaming and streaming, and 5.8GHz for FPV drones, wireless video transmission, and interference-free applications. Fully compatible with WiFi 6, WiFi 5, Bluetooth, and most wireless devices.

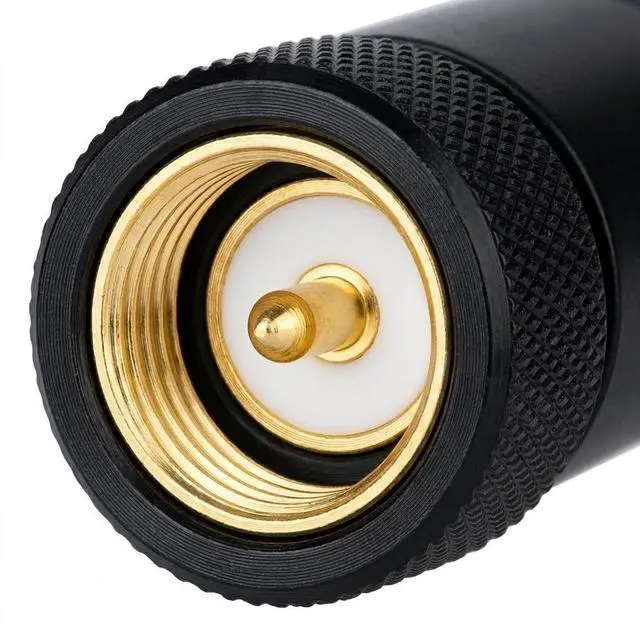

- SMA MALE CONNECTOR UNIVERSAL FIT Features standard SMA Male (Inner Pin) connectors, compatible with thousands of devices that have SMA Female ports. Works with ASUS, TP-Link, Netgear routers, PCIe network cards, USB WiFi adapters, IP security cameras, FPV drone video transmitters, and Bluetooth receivers. Plug & play no drivers required.
- 360° FOLDABLE & COMPACT DESIGN Total length of 11.5cm (4.5 inches), folding down to just 8.5cm (3.3 inches). The 360° adjustable hinge allows you to position the antenna at any angle for optimal signal reception. The compact folded size makes it easy to carry in your bag ideal for travel, outdoor events, or drone pilots.
- DURABLE CONSTRUCTION ALL-WEATHER RELIABLE Built with high-quality materials and gold-plated SMA connectors for corrosion resistance and optimal signal transfer. Operating temperature range: -20°C to +80°C. Whether youre using it indoors or outdoors, this antenna delivers consistent performance in heat, cold, or humidity. KIT INCLUDES 2x 6dBi Tri-Band WiFi Antennas (SMA Male)
Product descriptionTired of weak WiFi signals, dropped connections, and limited range on your router or desktop PC? The 2-Pack 6dBi Tri-Band High Gain Antenna Set is the solution youve been looking for. Whether youre a gamer, streamer, remote worker, or FPV drone enthusiast, these antennas deliver the range, speed, and reliability you need.
Why Upgrade to 6dBi?
Most stock router and PCIe card antennas are limited to 2-3dBi gain, sacrificing range for compact design. Upgrading to our 6dBi antennas can increase your effective coverage area by up to 3-5 times, depending on your environment.
Technical Specifications:| Frequency Bands | 2.4GHz (2400-2500 MHz), 5GHz (4900-5850 MHz), 5.8GHz (5725-5850 MHz) |
| Gain | 6 dBi ±1 |
| Connector Type | SMA Male (Inner Pin) |
| Radiation Pattern | Omnidirectional (360°) |
| VSWR | 1.8 |
| Impedance | 50 Ohms |
| Polarization | Linear Vertical |
| Antenna Length | 11.5 cm / 4.5 inches (extended), 8.5 cm / 3.3 inches (folded) |
| Operating Temp | -20°C to +80°C |
| Max Input Power | 50W |
Compatible Devices (Partial List):| WiFi Routers | for ASUS, TP-Link, Netgear, Linksys, D-Link |
| PCIe Network Cards | for AX200, AX210, Killer 1675x, TP-Link Archer |
| USB WiFi Adapters | for Most adapters with external SMA antenna ports |
| FPV Drone VTX | for DJI, FatShark, Eachine, TBS, Caddx |
| IP Security Cameras | for Reolink, Amcrest, Hikvision, Dahua |
| Bluetooth Receivers | for Denon, Pioneer, Yamaha, Marantz, Logitech |
Installation Guide:
- Remove Old Antennas Carefully unscrew your existing antennas from the router, PCIe card, or device. Most are hand-tightened no tools needed.
- Attach New Antennas Screw the SMA Male connector onto your devices SMA Female port. Hand-tighten only do not use tools or overtighten.
- Adjust for Optimal Signal Use the 360° foldable hinge to position antennas vertically for best omnidirectional coverage, or angle them to avoid obstructions.
- Test & Enjoy Power on your device and enjoy enhanced wireless coverage.
Important Notes:
- Connector Compatibility: This antenna uses SMA Male (Inner Pin) connectors. Please verify your device has SMA Female (Inner Hole) ports before ordering.
- 5.8GHz Application: The 5.8GHz band is ideal for FPV drones and wireless video transmission, providing clear video feed with minimal interference.
- Signal Environment: Actual range improvement depends on environmental factors including walls, interference, and device transmit power.
