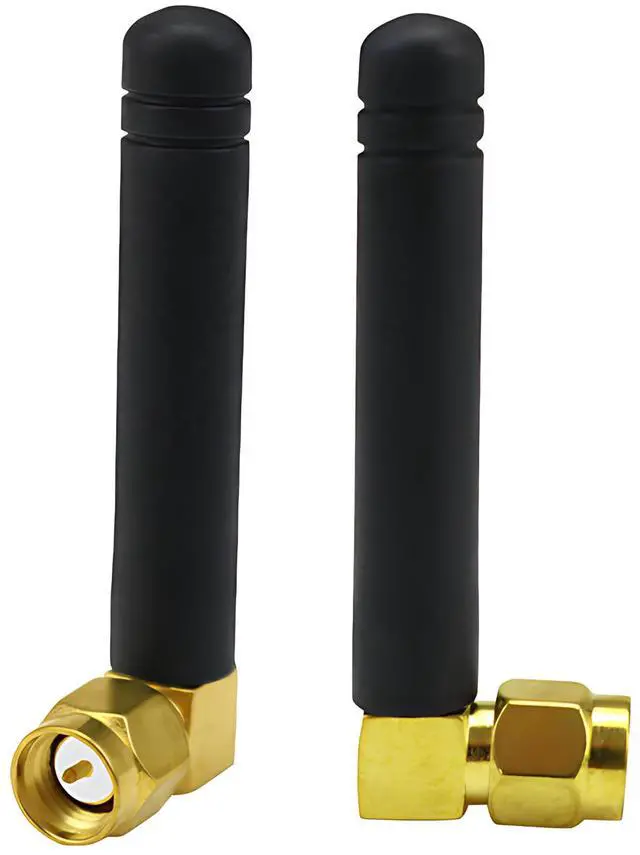

Dual Band WiFi Mini Antenna 3dBi SMA Male Antenna (2-Pack) 2.4GHz 5GHz 5.8GHz Rubber Duck Antenna for Wireless Router Network Card WiFi USB Adapter IP Camera FPV Drone IoT Gateway Multicopter
- COMPACT 4.7CM MINI DESIGN FOR SPACE-SAVING INSTALLATIONS: These ultra-compact WiFi antennas measure approximately 4.7cm (1.85 inches) in length, making them the perfect low-profile replacement for standard bulky antennas . Ideal for tight spaces, portable setups, travel routers, and applications where discretion is preferred without sacrificing performance.
- DUAL BAND 2.4GHZ & 5GHZ/5.8GHZ FREQUENCY COVERAGE: Engineered to support both 2.4GHz (2400-2500 MHz) and 5GHz/5.8GHz (4900-5875 MHz) frequency bands with 3dBi gain and 50 impedance . VSWR <2.0 ensures stable, high-performance wireless connectivity for all your dual-band devices .
- 360° OMNIDIRECTIONAL SIGNAL COVERAGE: The dipole antenna design provides true omnidirectional coverage with linear vertical polarization, capturing signals from all directions to eliminate dead zones and ensure consistent wireless performance throughout your space .
- STANDARD SMA MALE CONNECTOR FOR UNIVERSAL COMPATIBILITY: Features precision-engineered SMA male connectors (Thread inside WITH Pin) for secure push-and-twist installation . Compatible with a vast range of devices including wireless routers, network cards, WiFi USB adapters, IP security cameras, video surveillance DVRs, FPV drone controllers, IoT gateways, and M2M terminals .
- DURABLE CONSTRUCTION WITH ENHANCED FLEXIBILITY: Built with high-quality materials and rubber-coated construction for impact resistance and long-lasting performance. Operating temperature range
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description
Upgrade Your Wireless Connectivity with Ultra-Compact Mini Antennas
Are you tired of bulky antennas that take up too much space or stock antennas that deliver weak, unreliable signals? Our Dual Band WiFi Mini Antennas provide the perfect balance of compact size and enhanced performance. Measuring just 4.7cm in length, these miniature powerhouses are designed to replace standard WiFi antennas in space-constrained environments while delivering superior signal strength and stability .
Technical Specifications:
Feature Specification
Frequency Range 2.4GHz (2400-2500 MHz), 5GHz/5.8GHz (4900-5875 MHz)
Gain 3dBi
Connector Type SMA Male (Thread inside WITH Pin)
Impedance 50 Ohm
VSWR <2.0
Polarization Linear Vertical
Direction Omnidirectional (360°)
Antenna Length 47mm / 4.7cm / 1.85 inches
Net Weight ~14g per antenna
Operating Temperature -20°C to +80°C (-4°F to 176°F)
Storage Temperature -30°C to +85°C (-22°F to 185°F)
Universal Compatibility:
These SMA male antennas are compatible with a vast array of devices including :
Networking: Wireless routers, WiFi access points, hotspot modems, WiFi USB adapters, desktop PC wireless network cards, Mini PCIe WiFi cards, M.2 NGFF WiFi cards
Security & Surveillance: WiFi IP security cameras, wireless video surveillance DVR/NVR recorders, monitoring systems
FPV & Drone: 5GHz/5.8GHz FPV camera monitors, FPV drone racing controllers, wireless AV video/audio receivers, HDMI extenders
IoT & Industrial: Industrial routers, IoT gateways, M2M terminals, remote monitoring and control systems
Vehicle: Truck, RV, van, trailer rear view backup cameras and reversing monitors
Bluetooth: Can be used as 2.4GHz Bluetooth antenna for Bluetooth adapters, Bluetooth audio speakers, and music systems
IMPORTANT CONNECTOR COMPATIBILITY NOTE:
Please verify your device's connector type before purchasing:
This antenna features SMA Male connector (Thread inside WITH a center pin)
It ONLY matches devices with SMA Female connector (Thread outside WITHOUT a center pin)
NOT compatible with RP-SMA connectors (Reverse Polarity SMA), which have a hole instead of a pin
Easy Installation:
Simply unscrew your existing antenna
Screw the new SMA male antenna onto your device's SMA female connector
Position the antenna at the optimal angle using the tilt and swivel joint
Enjoy improved signal strength and coverage immediatelyno drivers or software required
Package Includes:
2 x Dual Band WiFi Mini Antennas (SMA Male Connector)
(Mounting hardware not requiredsimple screw-on installation)
