915MHz LoRa Antenna 8dBi Gain Omni-Directional with SMA Male & U.FL to SMA IPEX Cable for Meshtastic, LoRa Boards, Heltec, RAK, Dragino, LilyGO Devices

Boost Your LoRa & Meshtastic Network Range

Unlock the full potential of your long-range, low-power wireless projects with this 915MHz LoRa Antenna Kit. Featuring a high-performance 8dBi gain omnidirectional antenna and a matching U.FL to SMA adapter cable, this kit is engineered to maximize the communication range and reliability of your LoRaWAN, Meshtastic, or custom LoRa applications. Perfect for enthusiasts, developers, and professionals building IoT networks, off-grid communication systems, or environmental sensors.

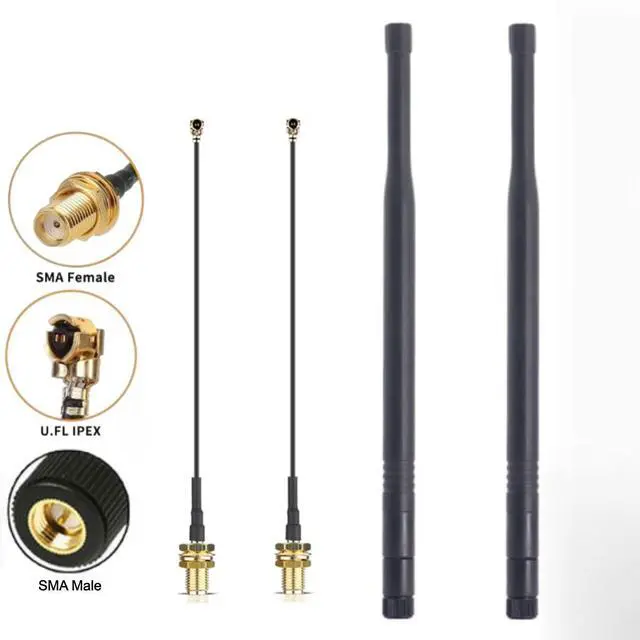

Kit Includes Everything You Need:

8dBi 915MHz LoRa Antenna (SMA Male): A high-gain, omnidirectional antenna tuned for the 915MHz ISM band, offering an excellent balance of range and coverage. The sturdy construction and standard SMA Male connector ensure a reliable, weather-resistant connection.

U.FL to SMA Female Pigtail Cable: A 15cm (6-inch) low-loss coaxial cable that bridges the gap between your device's miniature U.FL (IPEX) port and the antenna's SMA connector. The flexible cable allows for optimal antenna placement and strain relief for the delicate U.FL connector.

Why Choose This Antenna Kit?

Enhanced Range: The 8dBi gain provides a substantial increase in effective radiated power (ERP) compared to standard antennas, helping your signals travel farther and penetrate obstacles more effectively.

Universal Fit: The combination of SMA and U.FL connectors covers the vast majority of popular LoRa development boards and modules, which typically have a U.FL port for an external antenna.

Omnidirectional Simplicity: The 360-degree horizontal radiation pattern means you don't have to point the antenna in a specific direction, simplifying setup for mesh networks or moving nodes.

Ready-to-Use: No need to source a separate adapter cable. This complete kit gets your device connected and operational in minutes.

Ideal For:

Meshtastic / Mesh Networking: Dramatically extend the node-to-node range in your off-grid communication mesh.

LoRaWAN IoT Sensors: Improve the uplink and downlink for remote temperature, humidity, or agricultural sensors.

Development Boards: Heltec Wireless Stick/V3, LilyGO T-Beam, TTGO LoRa32, RAKwireless WisBlock/RAK4631, Dragino LoRa Shield, and Seeed Studio LoRa-E5.

LoRa Gateways & Receivers: Use as an upgrade antenna for portable or indoor gateways to increase coverage area.

Specifications:

Frequency: 915 MHz (Also suitable for 868MHz/923MHz with slight tuning)

Gain: 8 dBi

VSWR: <1.5

Connector: Antenna: SMA Male; Cable: U.FL Male to SMA Female

Cable Length: 15 cm / 6 inches

Radiation Pattern: Omnidirectional

Polarization: Vertical

Length: ~231cm / 9 inches (Antenna only)

Color: Black

Package Includes: 1 x 8dBi 915MHz SMA Antenna, 1 x U.FL to SMA Pigtail Cable

FAQ:

Q: Is this compatible with my Heltec WiFi LoRa 32 (V3) board?

A: Yes! Most Heltec, LilyGO, and similar boards have a tiny U.FL connector for an external antenna. This kit is perfect for them. Simply disconnect the onboard PCB antenna (if applicable) and connect the U.FL cable from this kit.

Q: Will this work for 868MHz LoRa in Europe?

A: While tuned for 915MHz, this antenna will perform adequately at 868MHz with a slight efficiency drop. For optimal performance in the EU, a dedicated 868MHz antenna is recommended, but this kit will function.

Q: Can I use this antenna outdoors?

A: The antenna is constructed with durable materials suitable for protected outdoor use (e.g., under an eave). For prolonged, fully exposed outdoor use, consider an antenna specifically rated for full weatherproofing (IP67).

Q: Does it work with Meshtastic?

A: Absolutely. This is an excellent upgrade for Meshtastic nodes (like the T-Beam or Heltec boards) to significantly increase the range and reliability of your mesh network.
