915MHz LoRa/HaLow Outdoor Antenna with U.FL to N-Type Female Coaxial Cable 5dBi Gain Omni-Directional N Male Connector for 802.11ah IoT Gateway, Helium Hotspot, RAK Wireless 902-928MHz

Overview

Unlock the full potential of your IoT gateway, Helium miner, or LoRaWAN deployment with this professional-grade 915MHz LoRa/HaLow Outdoor Antenna Kit. Designed specifically for the 902-928MHz ISM band used in North America, this complete solution pairs a high-performance omni-directional antenna with a U.FL to N-Type female coaxial cable, giving you everything needed to connect your internal radio module to an external antenna for superior range and reliability.

What is Wi-Fi HaLow (802.11ah)?

Wi-Fi HaLow is the designation for products incorporating IEEE 802.11ah technology . It augments traditional Wi-Fi by operating in spectrum below one gigahertz (sub-1GHz) to offer longer range and lower power connectivity . Wi-Fi HaLow meets the unique requirements for the Internet of Things (IoT), enabling a variety of use cases in industrial, agricultural, smart building, and smart city environments . Its range is longer than many other IoT technology options, and it provides a more robust connection in challenging environments where the ability to penetrate walls or other obstacles is critical .

Why Choose This Antenna Kit?

Complete Solution: Includes both the outdoor antenna and the necessary U.FL-to-N-Female pigtail cableno additional shopping required.

Optimized for Sub-1GHz: Unlike generic antennas, this unit is precision-tuned for the 915MHz band, ensuring maximum efficiency for your LoRa or HaLow application.

Professional-Grade Performance: With 5dBi gain, omni-directional coverage, and low VSWR, you'll experience reliable connectivity even at extended distances.

Built to Last Outdoors: Weatherproof construction means this antenna can be mounted on rooftops, towers, or poles and withstand years of exposure to the elements.

Premium Build Qualityv

Antenna Specifications :

Frequency Range: 868MHz / 915MHz (optimized for 902-928MHz US band)

Gain: 8dBi

VSWR: 2.0

Radiation Pattern: Omni-directional

Impedance: 50

Connector: N-Male

Dimensions: 22 x 180 mm (approx. 7 inches tall)v

Weight: 81.5 g

Operating Temperature: -40°C to 85°C

Humidity Tolerance: 95% @ 25°C

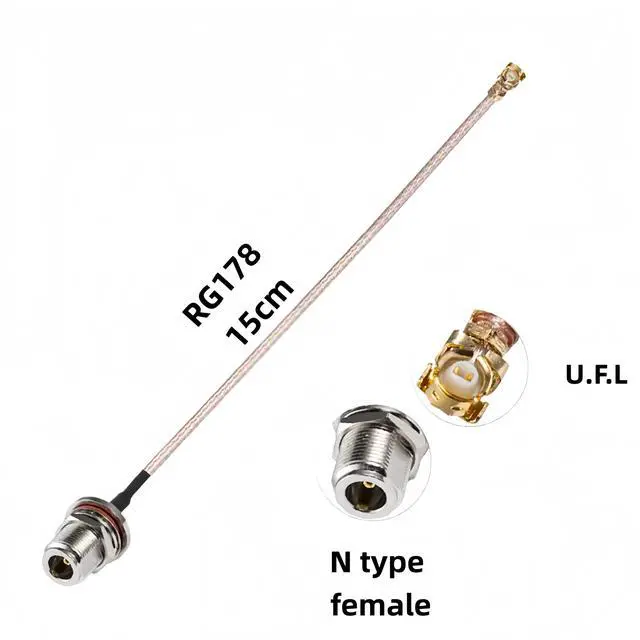

Included Coaxial Cable:

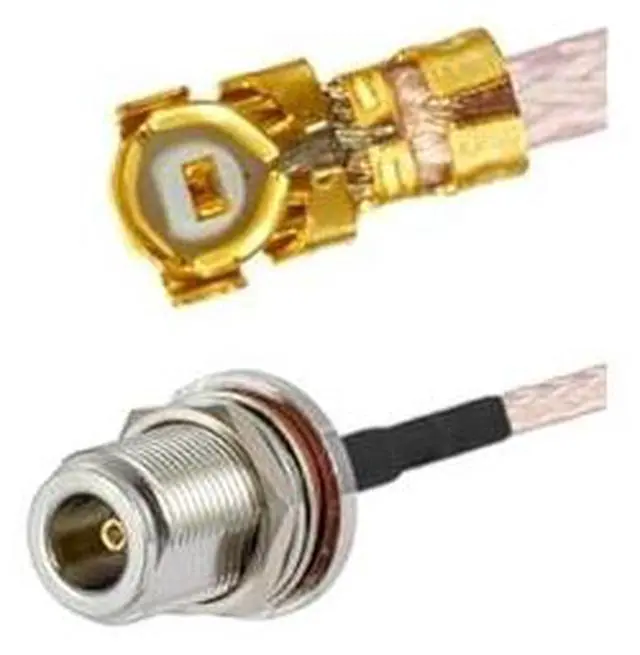

Connector A: U.FL1 (female) connects to your device's internal U.FL port

Connector B: N-Type (female) connects to the antenna's N-Male connector

Length: [Specify length, e.g., 15cm / 6 inches] suitable for routing from device enclosure to external antenna mount

Impedance: 50 matched to antenna for optimal performance

Technical Specifications Summary

Component Specification

Antenna Type 915MHz LoRa/HaLow Outdoor Antenna

Frequency Band 902-928 MHz (US) / 868 MHz (EU)

Gain 8dBi

VSWR 2.0

Impedance 50

Radiation Pattern Omni-directional

Antenna Connector N-Male

Cable Connector A U.FL1 (female)

Cable Connector B N-Type (female)

Cable Impedance 50

Cable Length [Insert length, e.g., 15cm]

Operating Temperature -40°C to 85°C

Compatible Applications

This antenna kit is ideal for:

LoRaWAN Gateways RAK Wireless, Dragino, Multitech

Helium Hotspots RAK Hotspot Miner V2, Bobcat 300, Nebra Indoor/Outdoor, SenseCAP M1, SyncroB.it

802.11ah HaLow Devices Industrial IoT gateways, sensor networksv

Custom IoT Projects Arduino/RAK-based LoRa nodes with external antenna requirements

Smart Agriculture Long-range soil monitoring, livestock tracking

Smart City Deployments Parking sensors, street lighting control

Industrial IoT Asset tracking, remote monitoring

IMPORTANT COMPATIBILITY AND INSTALLATION NOTES

1. Connector Compatibility Check

This antenna features an N-Male connector and requires a device or pigtail with N-Female .

The included cable has U.FL (female) on one end and N-Female on the other. This allows connection from devices with internal U.FL ports to this external antenna.

If your device has an RP-SMA connector, you will need an additional RP-SMA to N-Female adapter (not included) .

2. Frequency Band Verification

This antenna is optimized for the US 902-928 MHz band (ISM). It also supports 868 MHz for EU applications but verify your region's requirements.

This is NOT a 2.4GHz or 5GHz WiFi antenna using it for WiFi applications will result in poor performance .v

3. Device Compatibility Examples

Works with devices requiring external 915MHz antenna via N-Female or U.FL connection:

RAK Hotspot Miner V2 (with U.FL to N-Female cable, included)

Bobcat 300 (requires appropriate adapter)

Nebra Indoor/Outdoor Hotspot

SenseCAP M1

Kerlink & LongAP gateways

4. Outdoor Installation Guidelines

Ensure all connections are weather-sealed with waterproof tape or enclosures to prevent moisture ingress

Mount antenna vertically for optimal omni-directional coverage

Keep cable runs as short as practical to minimize signal loss

For lightning-prone areas, consider appropriate lightning protection

If you are unsure whether this antenna kit is compatible with your specific device, please contact us through Amazon with your device model before ordering.

Package Includes

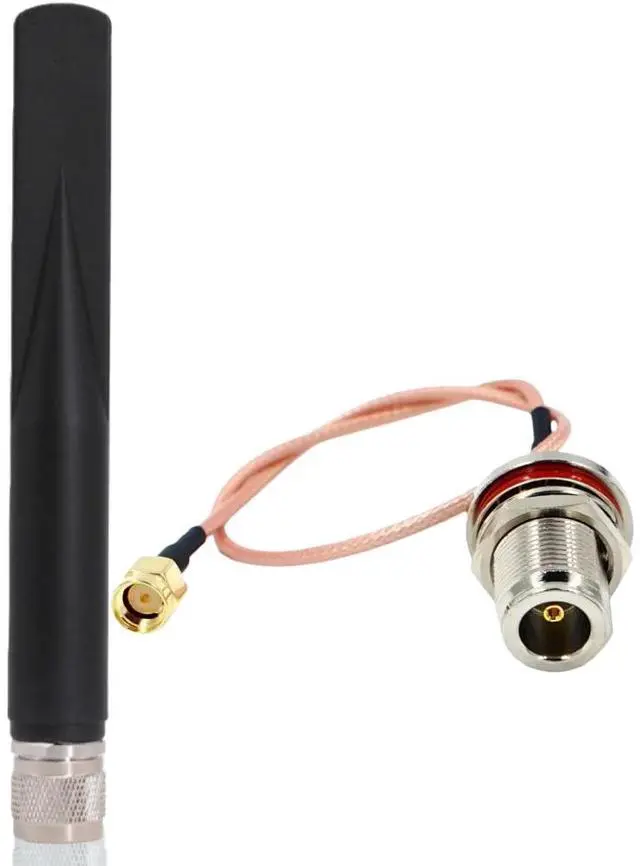

1 x 915MHz LoRa/HaLow Outdoor Antenna with N-Male Connector

1 x U.FL to N-Type Female Coaxial Pigtail Cable (15cm length)
