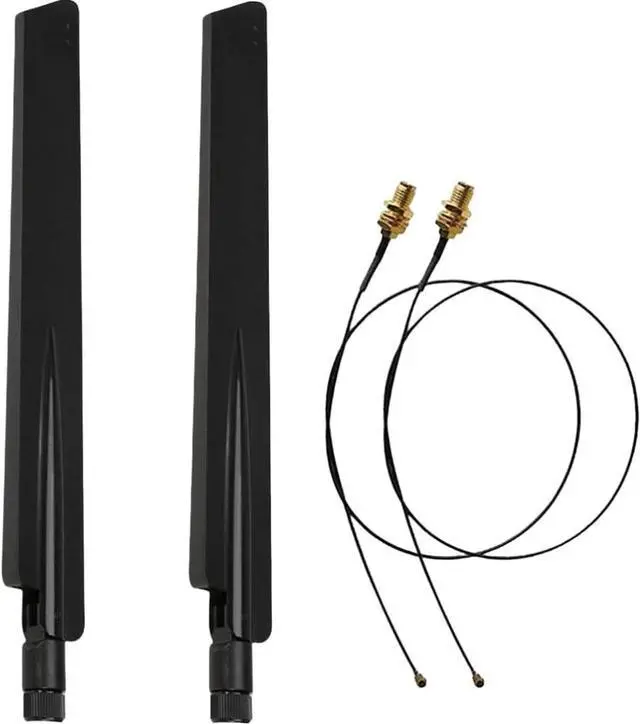

10dBi 2.4GHz 5GHz 5.8G Dual Band WiFi RP-SMA Male High Gain Antenna & MHF4 to RP SMA Female Cable Antenna for NGFF M.2 AX200 9260 WiFi Card Wireless Routers PC Repeater Desktop PC FPV UAV Drone

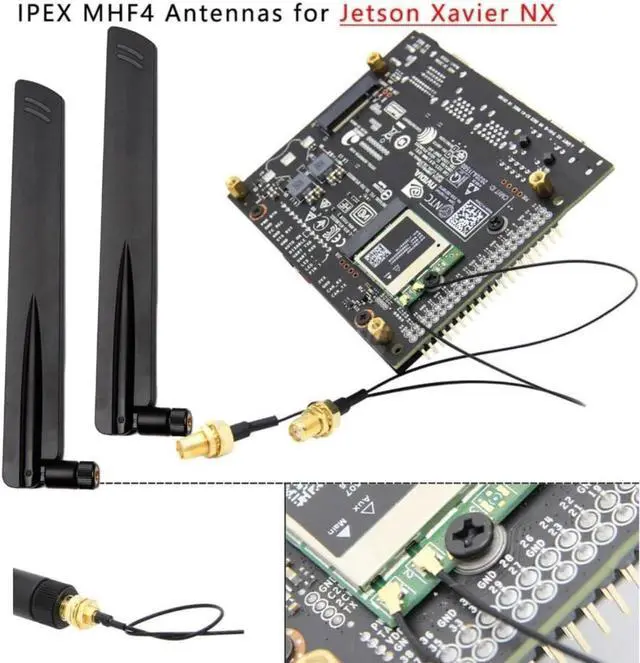

1. compact for: Jetson Nano WiFi board NVIDIA Jetson M.2 Network Adapter MSI MPG X570 GAMING EDGE with m.2 slot with wifi bluetooth network card ASROCK X570 motherboard WiFi Bluetooth board with m.2 slot with wifi bluetooth network card asrock Z370 extreme 4 with m.2 slot with wifi bluetooth network card Crosshair VI formula board with m.2 slot with wifi bluetooth network card gigabyte z270n-wifi motherboard Gigabyte GA-X99-UD4 etc
2. 1.Upgraded your Routers / Repeater / Range Extender to make the signal be better and longer range, improve range and coverage of wireless signal. 2.Upgraded your Desktop PC / Mini ITX Build / PCI Card to make your desktop great increased work performance. 3.Upgraded the TX and RX of a FPV UAV Drone for longer range. 10dBi high-gain dual-band aerial for indoor use. 5.Suitable for all DrayTek Routers and Access Points.
3. The cable is 1.13mm mini-coaxial cable (50-ohm antennas and cables.): This is a very thin and flexible cable, with a black jacket. When connecting the U.FL connector to a jack on a miniPCI card or board, often the tight space requires the use of 1.13mm cable, because it is very thin and flexible (diameter is 1.13mm). This very thin cable is typically needed in tight spaces inside of enclosures so that the U.FL connector will snap down on the jack without popping off.
4. Our MHF4 to RP-SMA series coaxial cables have medium-sized, threaded coupling connectors designed for use from DC to 11 GHz. MHF4 miniature RF coaxial connector is the smallest mini RF connector in the world. Only 1.2mm low profile, MHF4 connector provides good working performance in various application of Wireless LAN.
5. With their small size and high operational frequency ranges MHF4 connectors can be used for a variety of Bluetooth and wireless LAN applications in gaming equipment, test points, access points, GPS, notebook computers, and wireless communication devices

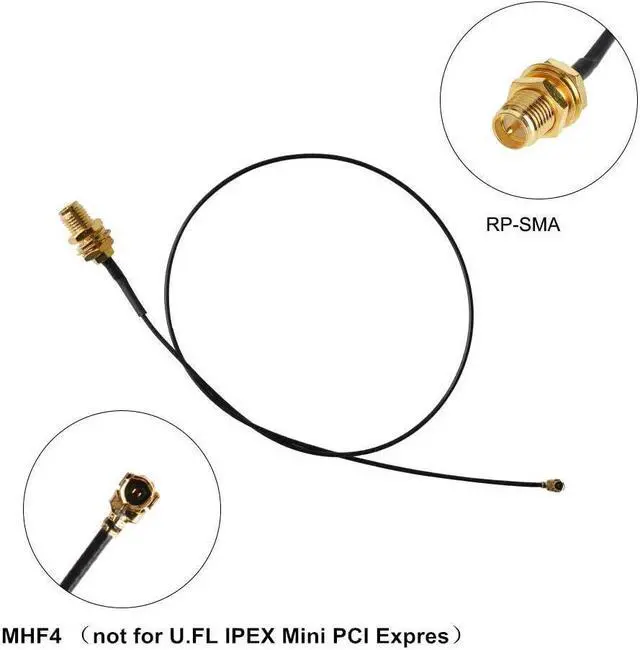

One end has an MHF4 connector, and the other end has an RP-SMA female connector with a bulkhead-mount. The cable is 8 inches in length. RP-SMA Female connector includes a bulkhead nut and washer. The length of the RP-SMA-female connector (threaded part) is 3/8 inches.

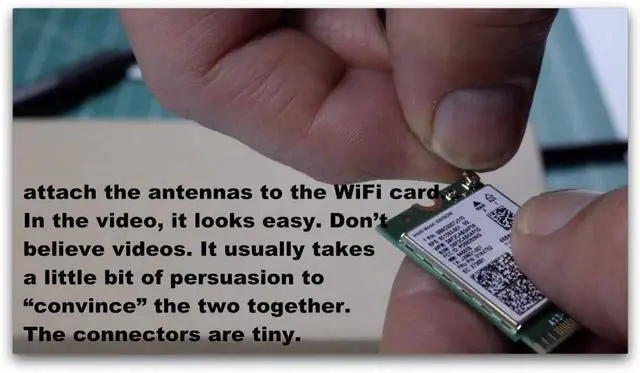

The cable is 1.13mm mini-coaxial cable (50-ohm antennas and cables.): This is a very thin and flexible cable, with a black jacket. When connecting the mhf4 connector to a jack on a M.2 wifi card or board, often the tight space requires the use of 1.13mm cable, because it is very thin and flexible (diameter is 1.13mm).

RP-SMA is a round screw-type connector, with medium-sized, threaded coupling connectors that are rated for frequencies from the lowest (DC) up to 18GHz: This antenna cable is compliant for all types of wireless antennas, including WiFi & WiMax networks: 802.11N, AX, AC, G, A, B. 900MHz, 2.4GHz & 5GHz applications, ISM, GSM, LTE antennas, as well as any other frequency between 0 and 18GHz.

Fit Gigabyte GA-X99-UD4, ASRock J4205-ITX and OSX86 , Intel Wireless-AC 7260 8265 17265 8265 9260 9560 ax200 ax201 Dual Band M.2 wifi card, Intel NUC with m.2 slot with wifi bluetooth network card, Killer WiFi 6 AX1650 1550 1535 NGFF m.2 wifi card, Jetson Nano WiFi board NVIDIA Jetson M.2 Network Adapter, MSI MPG X570 GAMING EDGE with m.2 wifi bluetooth network card, ASROCK X570 motherboard with m.2 wifi bluetooth network card, asrock Z370 extreme 4 with m.2 wifi bluetooth network card, Crosshair VI formula board with m.2 slot with wifi bluetooth network card, gigabyte z270n-wifi motherboard Gigabyte GA-X99-UD4 etc

Upgraded your Routers, Repeater, Range Extender to make the signal be better and longer range, improve range and coverage of wireless signal.

Upgraded your Desktop PC, Mini ITX Build, PCI Card to make your desktop great increased work performance.

Upgraded the TX and RX of a FPV UAV Drone for longer range.

Suitable for all DrayTek Routers and Access Points.

Antenna functionality differs depending on the Wireless adapter

Most dual band Wireless adapters, both antenna connectors are used for Wi-Fi 2.4 GHz and 5 GHz bands. The difference is that one of the antenna is shared by both the Wi-Fi and Bluetooth radio.

For those 2x2 Wi-Fi adapters( which means both antennas need to be connected to achieve the optimal Wi-Fi performance.), Antenna Connector Functionality: Antenna 1 (Aux) Wi-Fi BT, Antenna 2 (main) Wi-Fi

With their small size and high operational frequency ranges MHF4 connectors can be used for a variety of Bluetooth and wireless LAN applications in gaming equipment, test points, access points, GPS, notebook computers, and wireless communication devices

If you update this antenna on intel NUC, the installs were fairly straightforward with two exceptions:

1. The drive cage is NOT compatible with the the taller style NUC that has room for a 2.5 drive

2. You lose the two VESA mount screws also due to the drive cage not being installed

Application Technology: IEEE 802.11 ax/ac/a/b/g/n, WiMax, Zigbee, Bluetooth Wireless

Dual Band Antenna Omni Directional with RP-SMA Male connector with right angle articulating angle that can be adjusted to 90-degrees

Suitable for 802.11abgn, 802.11ac, 802.11ax

Mounts directly onto the RP-SMA-female connector of the device.

Frequencies: 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.8GHz

Gain: 8dBi

V.S.W.R: Less than 2.2:1

Impedance: 50 ohms
