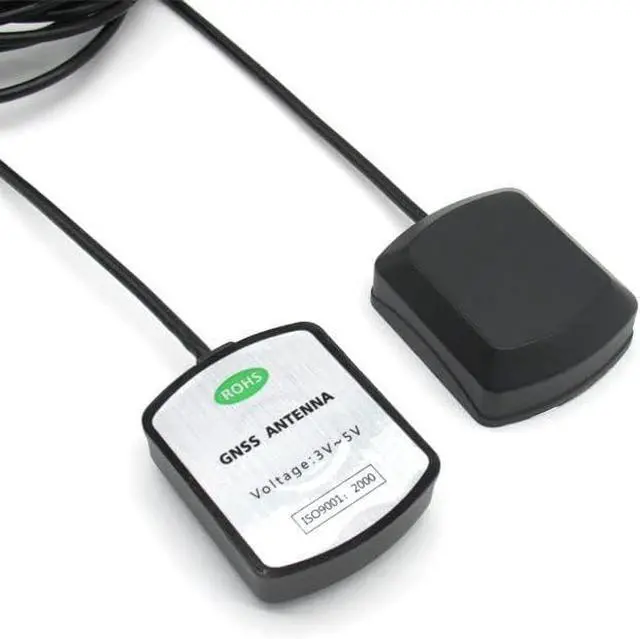

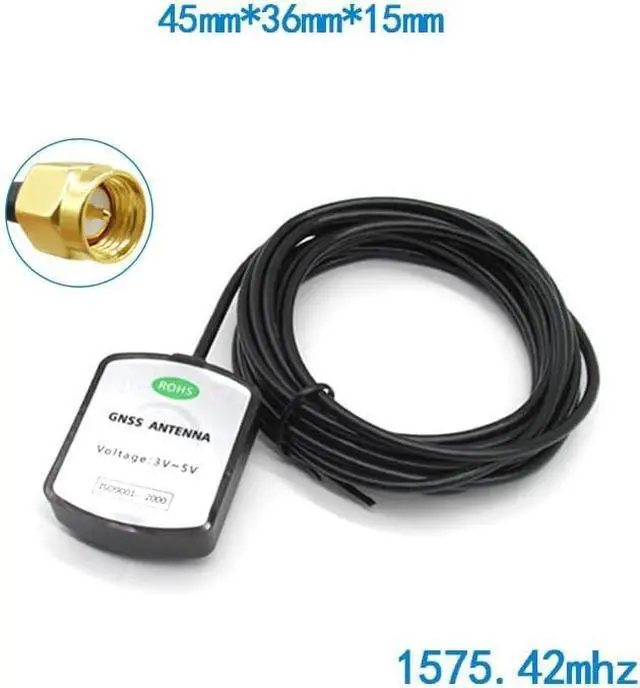

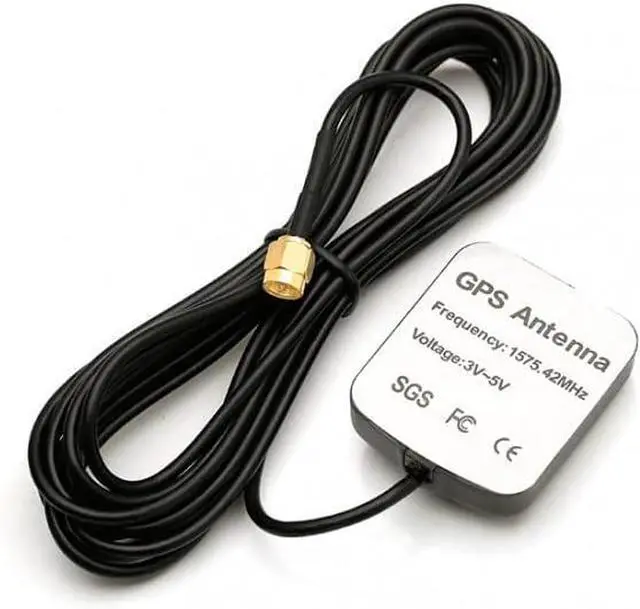

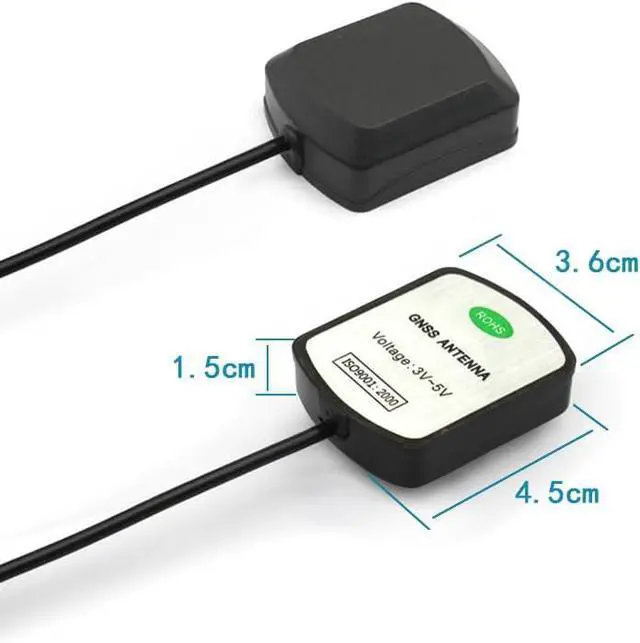

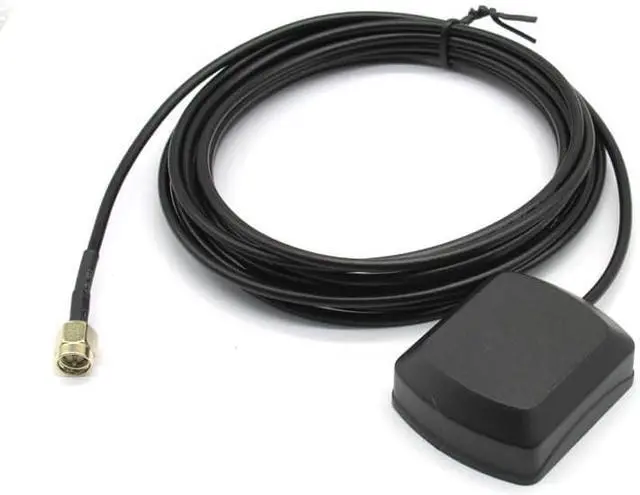

Vehicle Waterproof GPS Navigation Magnetic Antenna SMA Male Connector for Car Stereo Head Unit GPS Navigation System Module Truck Marine Boat GPS Tracker Locator Real Time Tracking (with Magnetic)
- Center Frequency 1575.42±1MHz Band Width CF±5MHz Gain 28±2dB
- Cable is double-shielded, low-loss and very flexible. The cable-type is equivalent or better than LMR-100: Coax with black jacket has the same or better signal-loss-per-meter and flexibility as LMR100, and less attenuation (signal loss) than RG174. The higher quality of the cable of this antenna translates into lower loss/better performance. These antenna cables are rated for outdoor use and are also suitable for indoor use. Recommended tightest continuous bend radius is 1.1 inch (28mm).
- RP-SMA male have threads on the inside, and RP-SMA-male is also called "plugs".
- RP-SMA male have threads on the inside, and RP-SMA-male is also called "plugs".
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description
Center Frequency: 1575.42±1MHz
Band Width: CF±5MHz
Gain: 2dBic(Zenith)
V.S.W.R.: SAW
Ground Plane<1.5
Gain: 28±2dB
Noise Figure<1.5
Filter Insertion Loss<3dB
Ex-band Attenuation: 12dB@CF+50MHz/16dB@CF-50MHz
Supply Voltage: 2.2~5V DC
Current Consumption: 5~15mA
V.S.W.R<2.0
