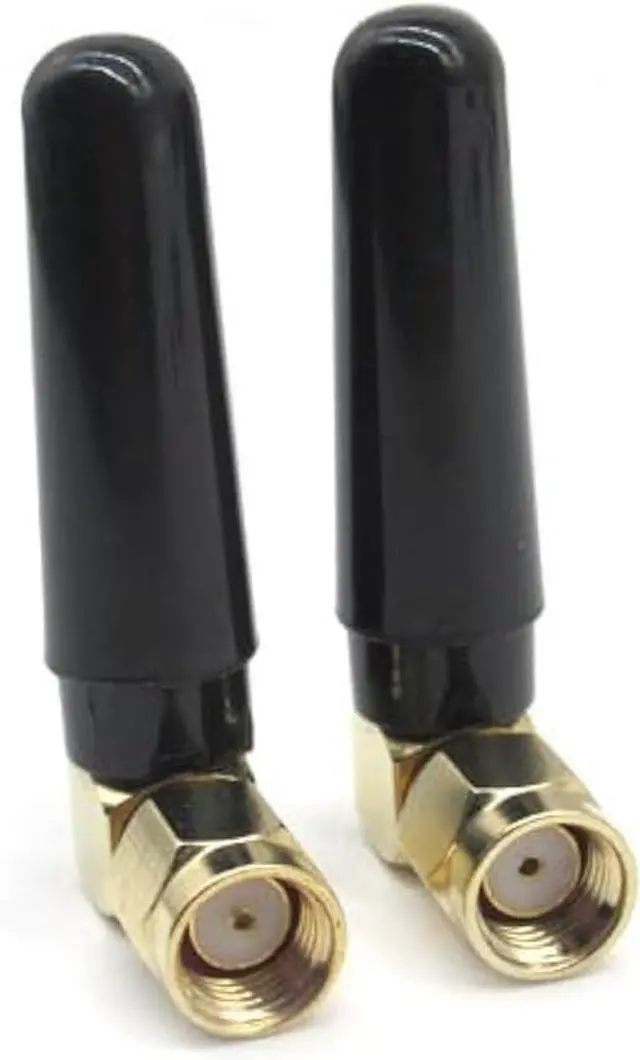

2.4Ghz 5GHz 5.8G Omnidirectional Small WiFi Bluetooth Mini RP SMA Antenna Dual Band Antenna for Router, WiFi Booster, PC USB Adapter Security IP Camera Video Surveillance Monitor FPV TX Transmitter

1. This compact 2.4 GHz 5Ghz 5.8Ghz omnidirectional "rubber-duck" antenna provides broad coverage and 3 dBi gain. It is an RP SMA Male design with an Omni-directional pattern. It is ideally suited for IEEE 802.11b, 802.11g Wireless LAN, IEEE 802.11n (Pre-N, Draft-N) IEEE 802.11ac, and IEEE 802.11ax wireless LANs, Bluetooth, and other WLAN applications.
2. Measuring 1.6 inches long, this antenna with a RP SMA connector, allowing them to be used vertically, at a right angle.It is suitable as a replacement RF antenna for many access points and radios that are equipped with RP SMA connectors including D-Link, Linksys WET11 and others.

1. Small size for easy installation
2. Lightweight for portable deployment
3. Tilt and swivel design
4. RP-SMA-type (male) connector
5. Multipoint Applications & Bluetooth, Wi-Fi / WLAN / MIMO / Bluetooth System
6. Public Wireless Hotspot, Wireless Communication System
7. WIFI bluetooth
8. Wireless Video Systems

Key Features:

Operates in 2400-2500 MHz and 4900-5900 MHz frequency ranges with 3 & 5 dBi gains respectively

Coverage range extension of wireless access points, wireless bridges, or routers

Applications include 802.11a/b/g/n, 802.11ac, 802.11ax, and it is designed for IEEE 802.11b, 802.11g and 802.11n, 802.11ac, 802.11ax, wireless LANs, Bluetooth, and other WLAN applications.

Key Parameters:

Device Type: Device Replacement Antennas, Wi-Fi Antennas

Frequency Bands: 2.4 GHz, 5 GHz, 5.8gHZ

Antenna Properties: Rubber Duck Antenna

1. Frequency: 2400 - 2500 MHz 4900 - 5900 MHz
2. Gain: 3 dBi
3. VSWR: 1.5 : 1 1.5 : 1
4. Impedance: 50 Ohms
5. Polarization: Vertical
6. Max Power: 50 Watts
7. Connector Type RPSMA-Male

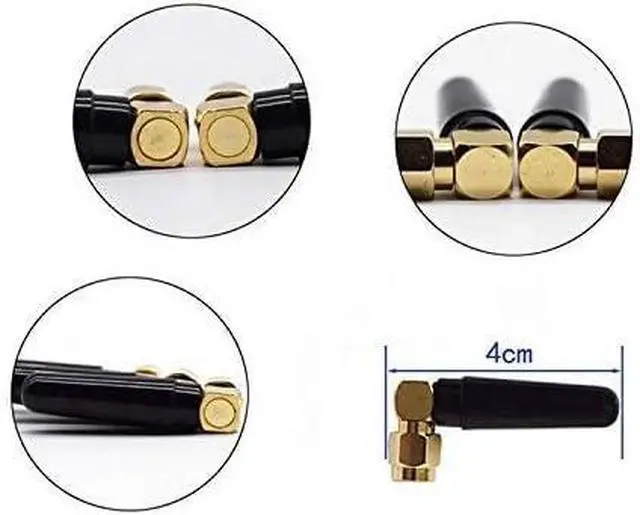

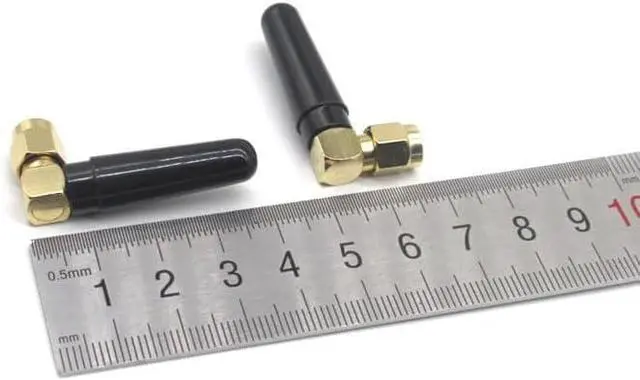

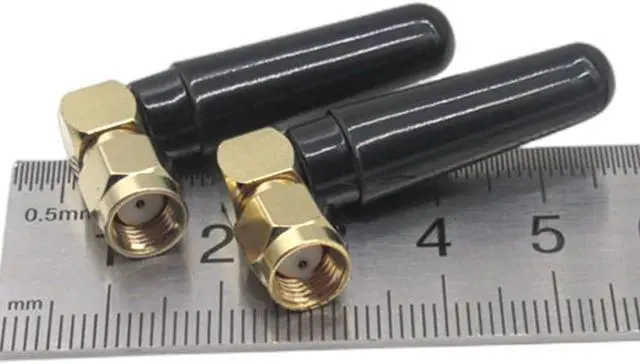

8. Dimensions (Inches): 1.6 (4cm)
