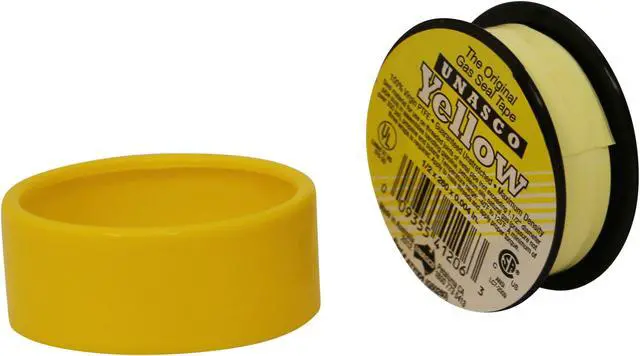

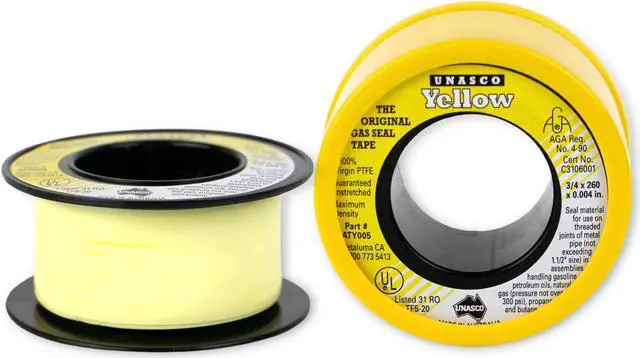

Unasco Yellow Gas Seal Thread Seal Tape (ATY0): 1 in. x 260 in. (Yellow)

Unasco Yellow Gas Thread Seal Tape is a yellow thread seal tape developed specifically for the gas industry. This is the gas seal tape that is used by gas authorities worldwide. The tape is a full maximum density tape that creates an impenetrable barrier so that the gas won't escape. It is also compatible with a wide range of gases and liquids. Benefits of using this tape include compatibility with a wide range of piping materials and will not harden or crack on the joint. Also, this acts as a thread lubricant and anti-seize. Other features include preventing galvanic corrosion, no curing time, effective in a wide range of temperatures, non-flammable and unlimited shelf life.

Unasco Stainless Steel Thread Sealing Tape can be used on the following pipes made from:

• Galvanized Steel
• Iron
• Brass
• Copper
• Aluminum
• Fiberglass
• Stainless Steel
• Polyethylene
• Polypropylene
• PVC
• CPVC
• ABS

For fittings up to 1-1/2 inch / 38 mm diameter

1. Use 1/2 inch / 12 mm wide tape.
2. Clean the male and female threads thoroughly.
3. Wrap the tape around the male thread. Take care to keep the tape under tension as you are wrapping so the tape moulds itself into the root of the thread.
4. Make sure that you wrap with the thread.
5. Make sure that the tape does not overlap the end of the fitting.
6. Three wraps seal most threads.

Note. For poor quality or damaged threads or threads that are hard to seal like parallel threads or threads on fittings subject to vibration, more than four wraps may be necessary.
