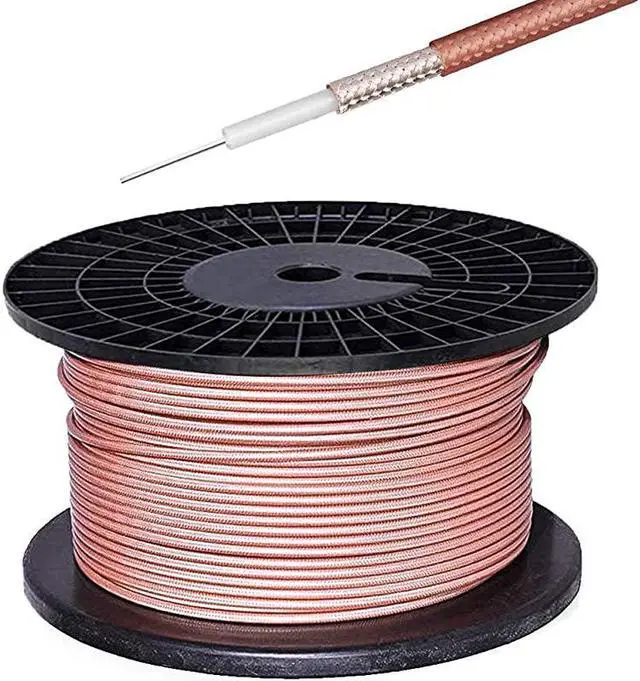

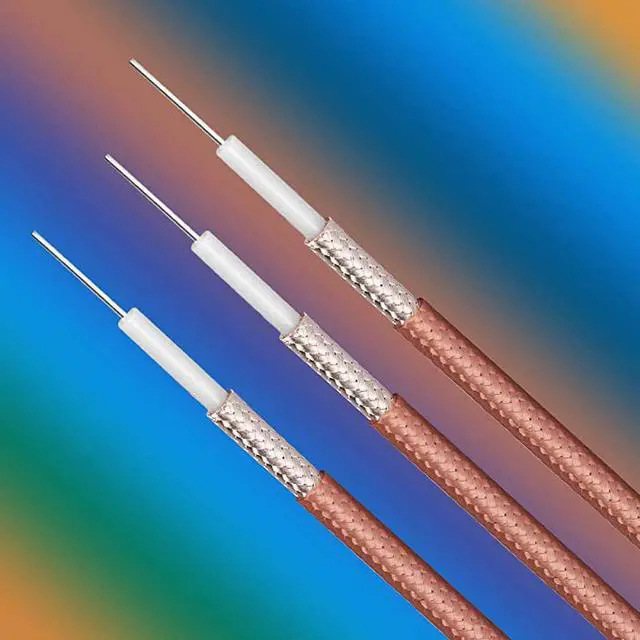

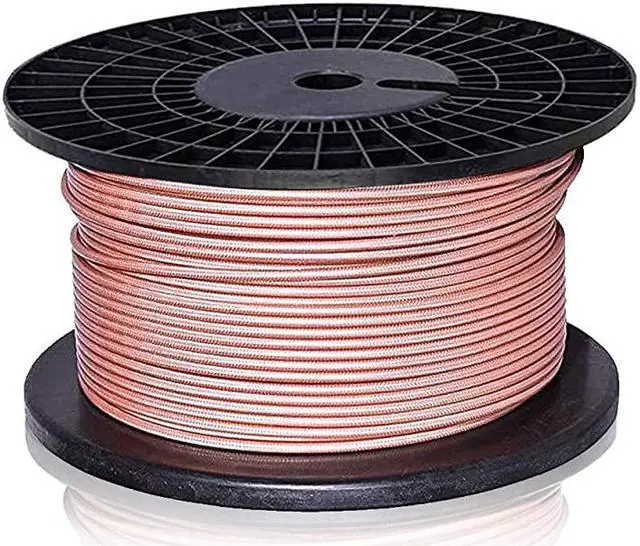

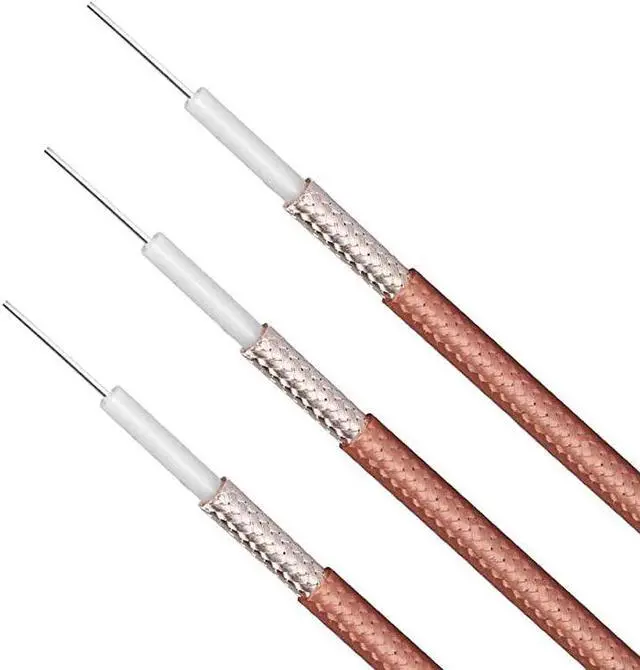

RG142 M1760 RF Coaxial Cable 50ft SilverPlated Copper Double Shielded Coax
- *****

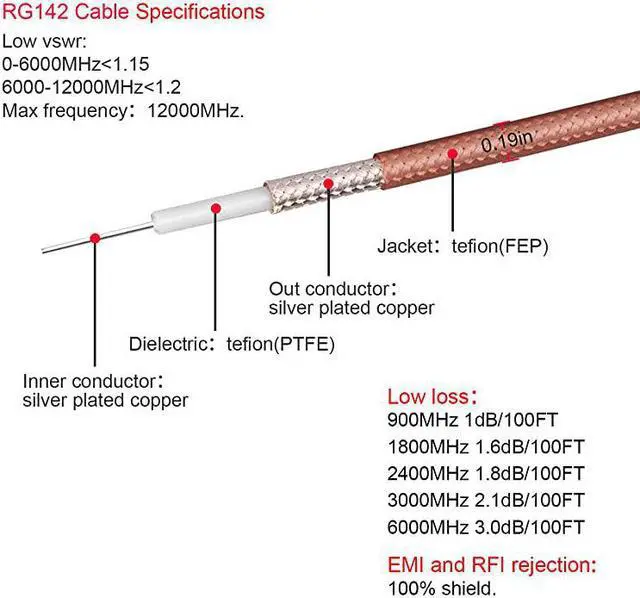

- **********Best Quality Guranteed.*****TYPE--RG142 rf coaxial coax cable silver-plated copper inner conductors and silver-plated copper double shielded. teflon jacket.*****LOW LOSS--rg142 coax cable double silver-plated copper braid. superior shielding effectiveness.at 900MHZ attenuates signal only by 0.1db. rg142 thin coax cable much lower loss than comparable cables assembled with RG-58 but still flexible.at 3GHZ rg142 coax VSWR1.15.max frequency 12400mhz.*****DURABLE SOLIDLY BUILT--rg142 coaxial cable is very durable and strong,teflon insulation and jacket,double silver plated copper braid.*****IT FOR-- rg142 thin cable fit for aircraft comm radio/cable for gps antenna/balun/linear amplifier/ham radio/4g/lte/phone signal booster/uhf/vhf/wifi.*****QUALITY YOU CAN TRUST--100% money refund and replacement warranty.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

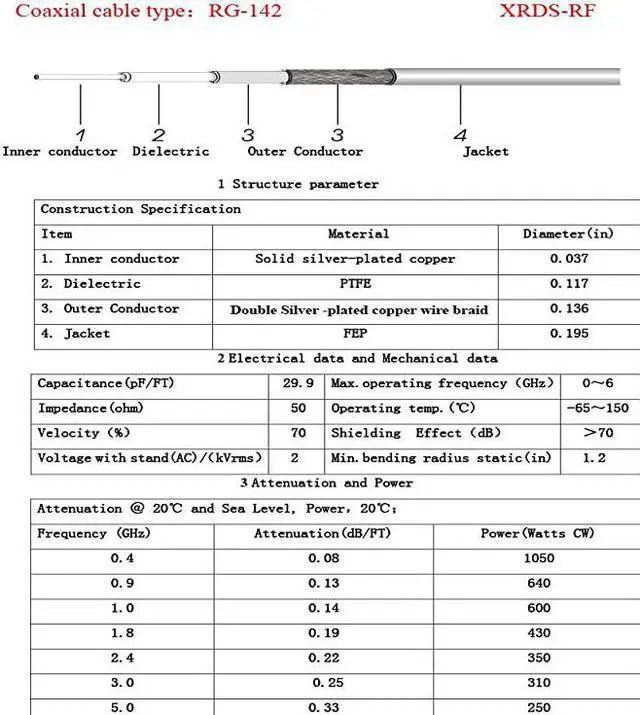

XRDS-RF: as a professional rg142 rf coaxial cable manufacturer. rg142 cable provides an ideal balance of performanceflexibility and economy. Specification Nom.
Max Frequency: 12400MHz Nom. 3GHZ VSWR 1.15 Nom. 1GHZ Attenuation 0.12 dB/FT. Nom.
Capacitance Conductor to Shield(pF/FT): 30 Nom.
Characteristic Impedance: 50ohm Nom. Min.
Bend Radius (Install): 0.98 in Nom.
Operating Temp: -55 to 200 Nom.
Maximum tensile strength: 28.2I b
Max Frequency: 12400MHz Nom. 3GHZ VSWR 1.15 Nom. 1GHZ Attenuation 0.12 dB/FT. Nom.
Capacitance Conductor to Shield(pF/FT): 30 Nom.
Characteristic Impedance: 50ohm Nom. Min.
Bend Radius (Install): 0.98 in Nom.
Operating Temp: -55 to 200 Nom.
Maximum tensile strength: 28.2I b
